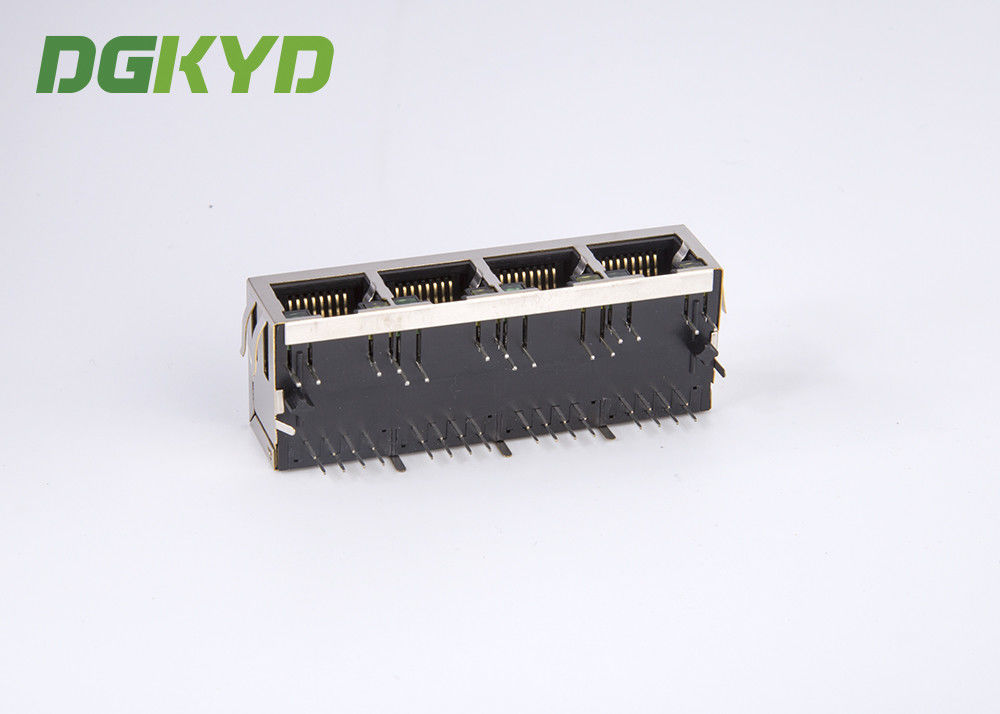

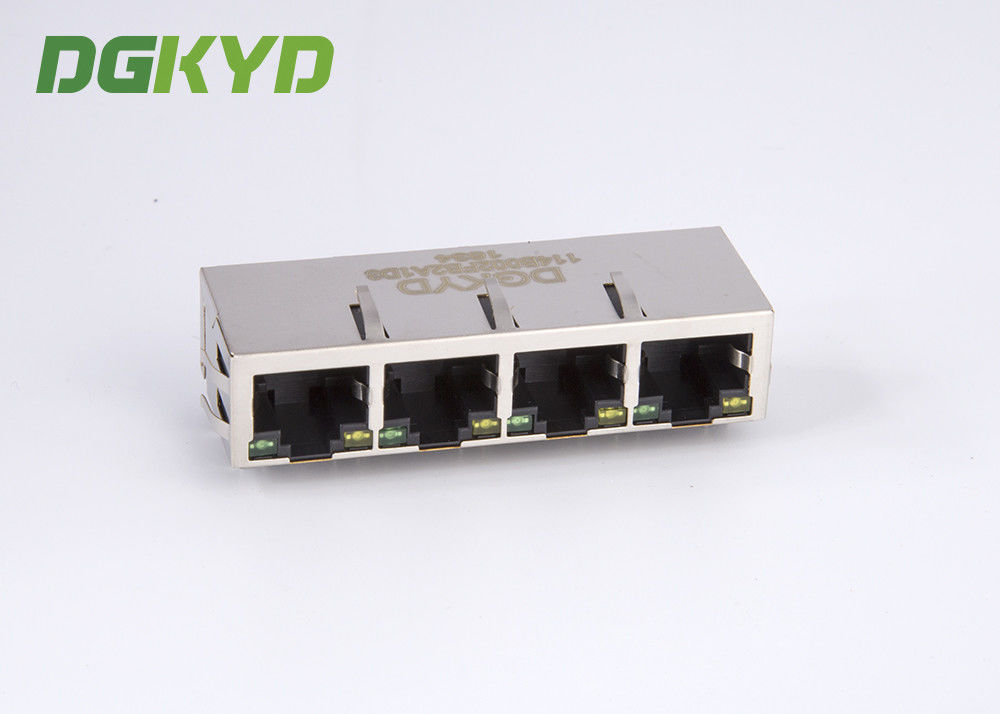

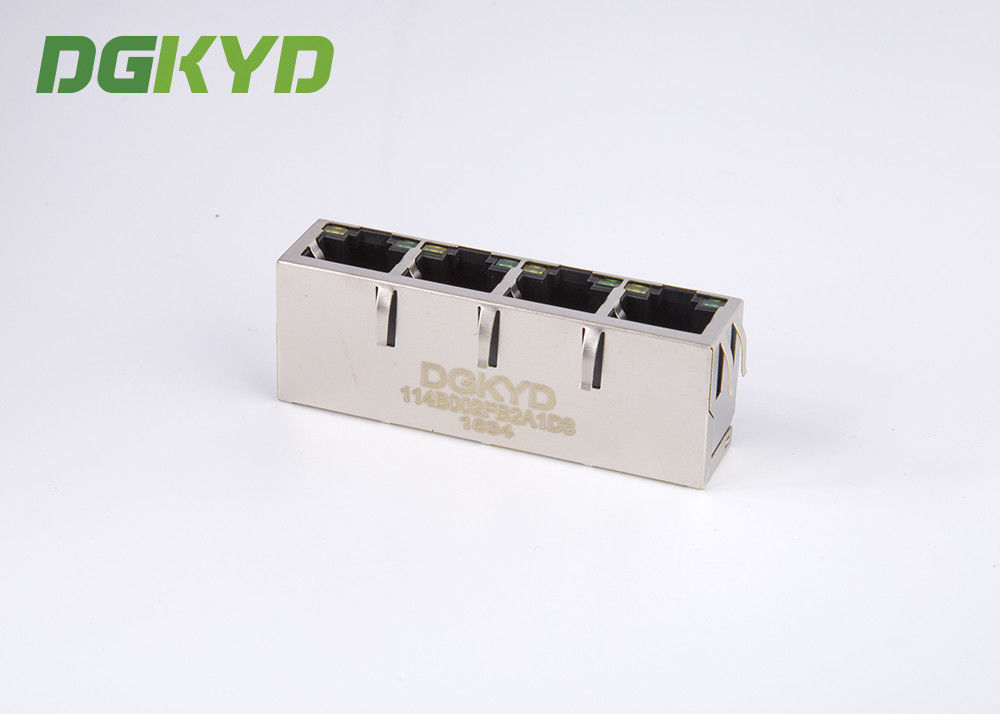

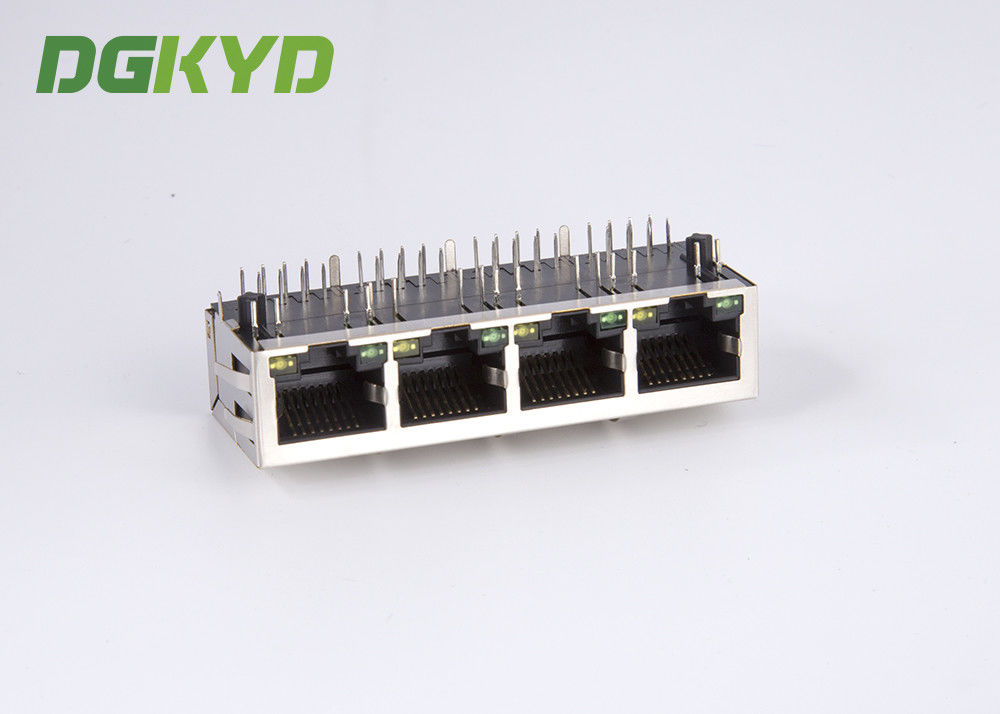

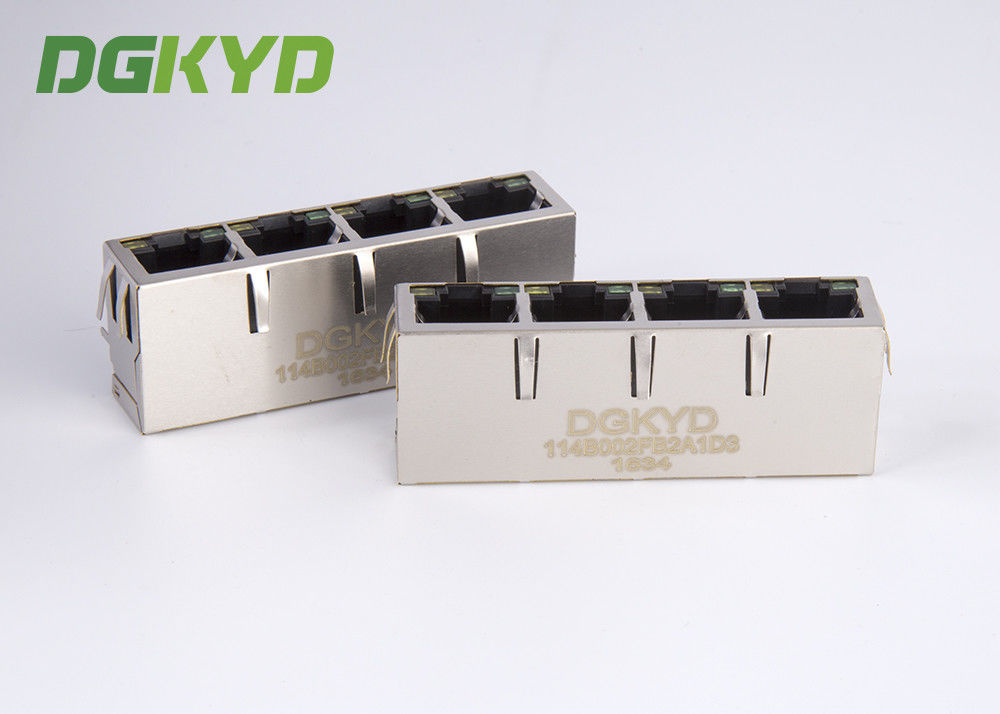

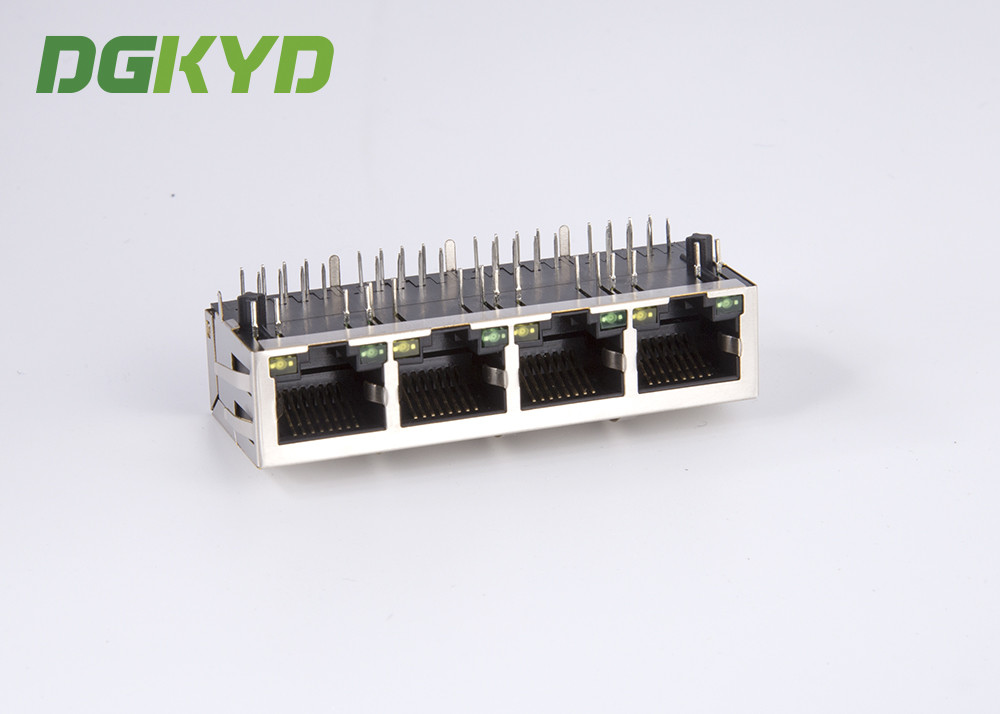

Metal shielded cat 5 quad port rj45 modular jack, 100 BASE-TX / G/Y LEDs



► Product Datasheet



Part Number DGKYD114B002FB2A1D3 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch down
Filter With internal filter LED Option With LED
LED Color Green/ Yellow Panel Stops With Panel Stops
Shielded Metal shielded Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  4 port Number of Positions  8
Jack Configuration 1 x 4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0




Main Characteristics

• Available in a four port harmonica jack configuration
• Allows for sealed protection from outside elements for IP67 applications per IEC 60529 Specifications
• The connector housing is comprised of a Zinc die cast alloy with Nickel plating
• A compact design that minimizes weight, volume and area over competitive products
• Port Density volume of 2.3 ports per in3
• Available with optional EPP 918-A protective coating
• Minimum of 750 mating cycles
• Includes a gasket that allows for front panel mounting or rear panel mounting
• Multiple LED configurations available
• POE+ compatible and RoHS compliant



Applications

• Rugged computing equipment
• Industrial Environments
• Military Communication
• Marine Equipment
• Medical devices
• Test Equipment
• Connectivity for non-office environments
• Renewable Energy Industry
