Gigabit Ethernet Filter 1x4 RJ45 Multiple Port Connectors

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD114Q066HWA1D5

Detail Information

Product Name: RJ45 Multiple Port Connectors Application: Set-top Box,internet Camera,net Bridge
Shieded: Yes Housing Material: PBT Black
Connector Type: Modular Jack Latch Style: Standard
High Light:

rj45 multi port jack

,

plug modular rj45

Product Description

1 x4 RJ45 connector Gigabit Ethernet filter RJ45 communication interface



Advantage



•100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•Quality Guarantee:9 Years

•Competitive Price And Service



Paramters



Part Number DGKYD114Q066HWA1D5 Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With internal Filter LED Option Without LED
LED Color N / A Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 100M / 1000M BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  1X4 ports Number of Positions  10
Jack Configuration 1X 4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6/15/30/50 Microinch Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Drawing

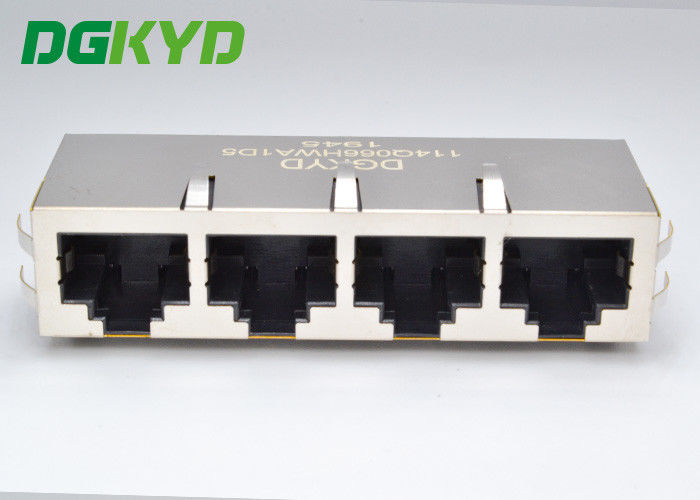

Gigabit Ethernet Filter 1x4 RJ45 Multiple Port Connectors 0

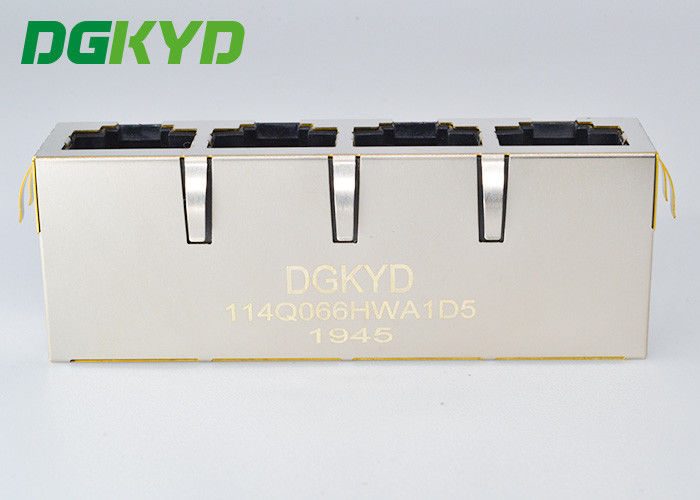

Gigabit Ethernet Filter 1x4 RJ45 Multiple Port Connectors 1

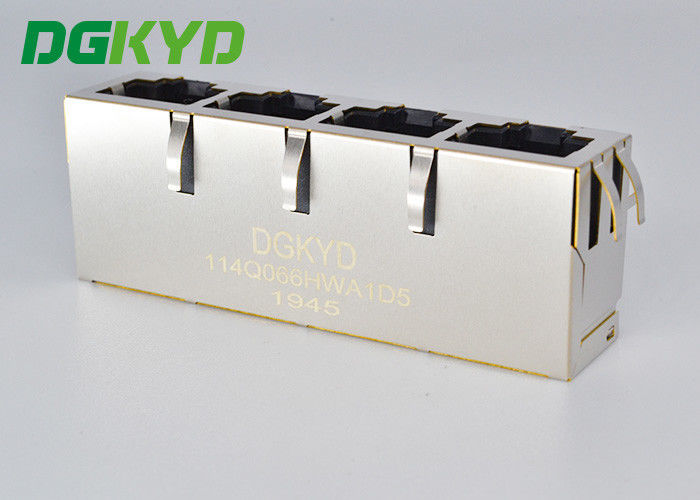

Gigabit Ethernet Filter 1x4 RJ45 Multiple Port Connectors 2





Pictures

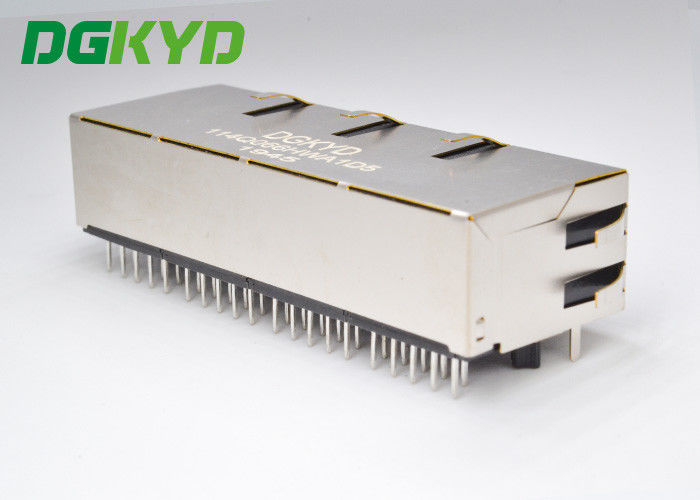

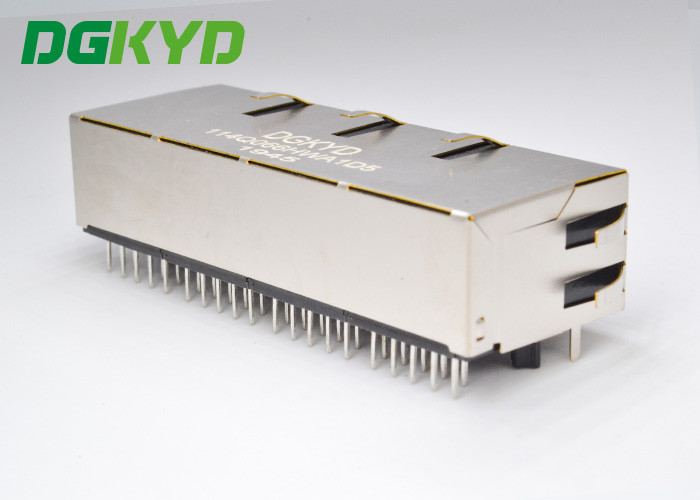

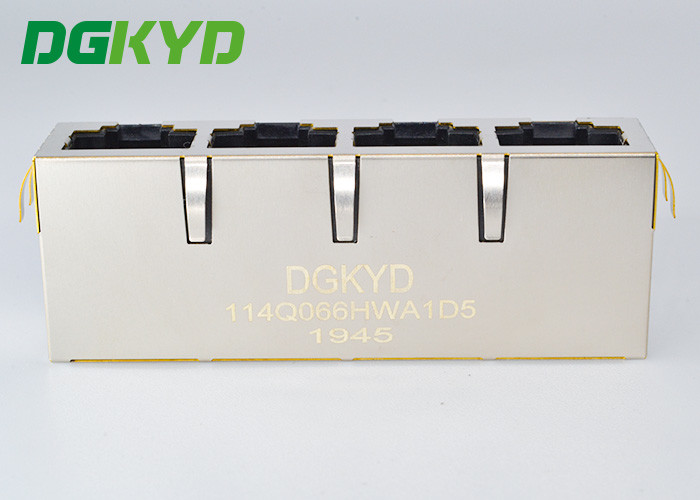

Gigabit Ethernet Filter 1x4 RJ45 Multiple Port Connectors 3



Our Service



World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
