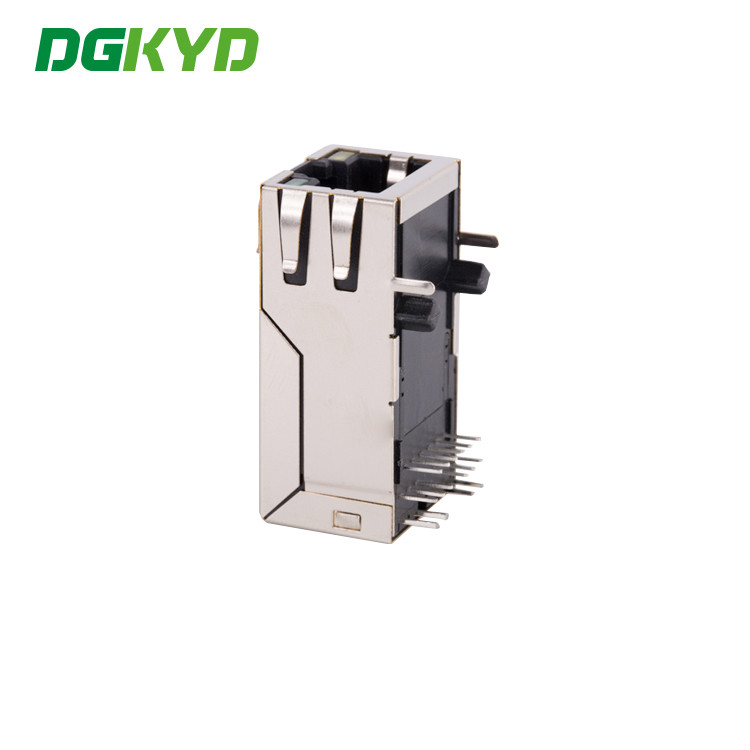

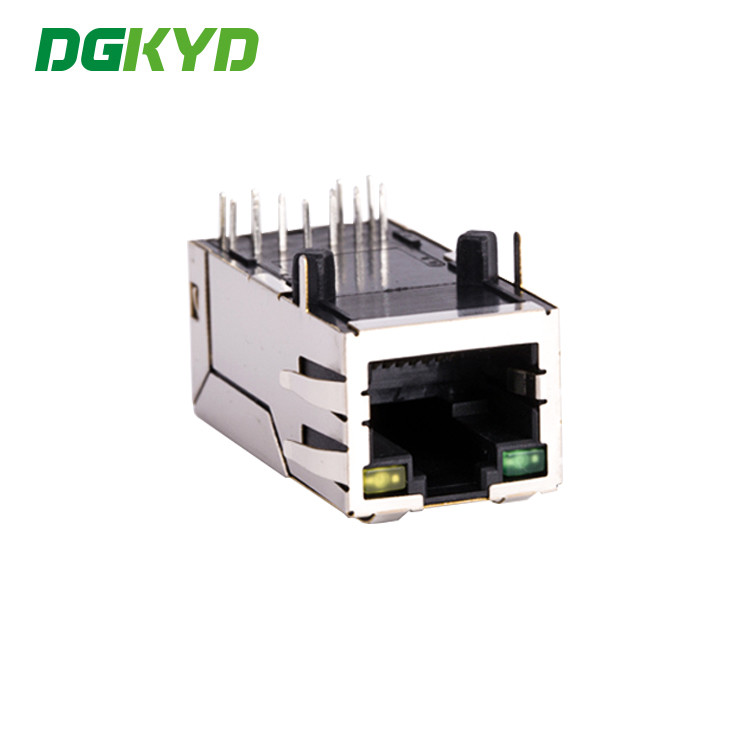

Side Entry KRJ-098GNL Shielded Rj45 Connector With Light Strip
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-339GYENL |
|
Detail Information |
|||
| Product Name: | Integrated RJ45 Jack | Number Of Positions: | 12 |
|---|---|---|---|
| RJ45 PCB Terminal: | Phosphor Bronze ,Tail-Tin Over Nickl | Metal Shell RJ45: | Copper Alloy ,Tin And Nickel Plated |
| High Light: | KRJ-339GYENL 8p8c Plug,Single Port Gigabit 8p8c Plug,Light Strip Rj45 Integrated Magnetics |
||
Product Description
Product Specification Document
Parameters

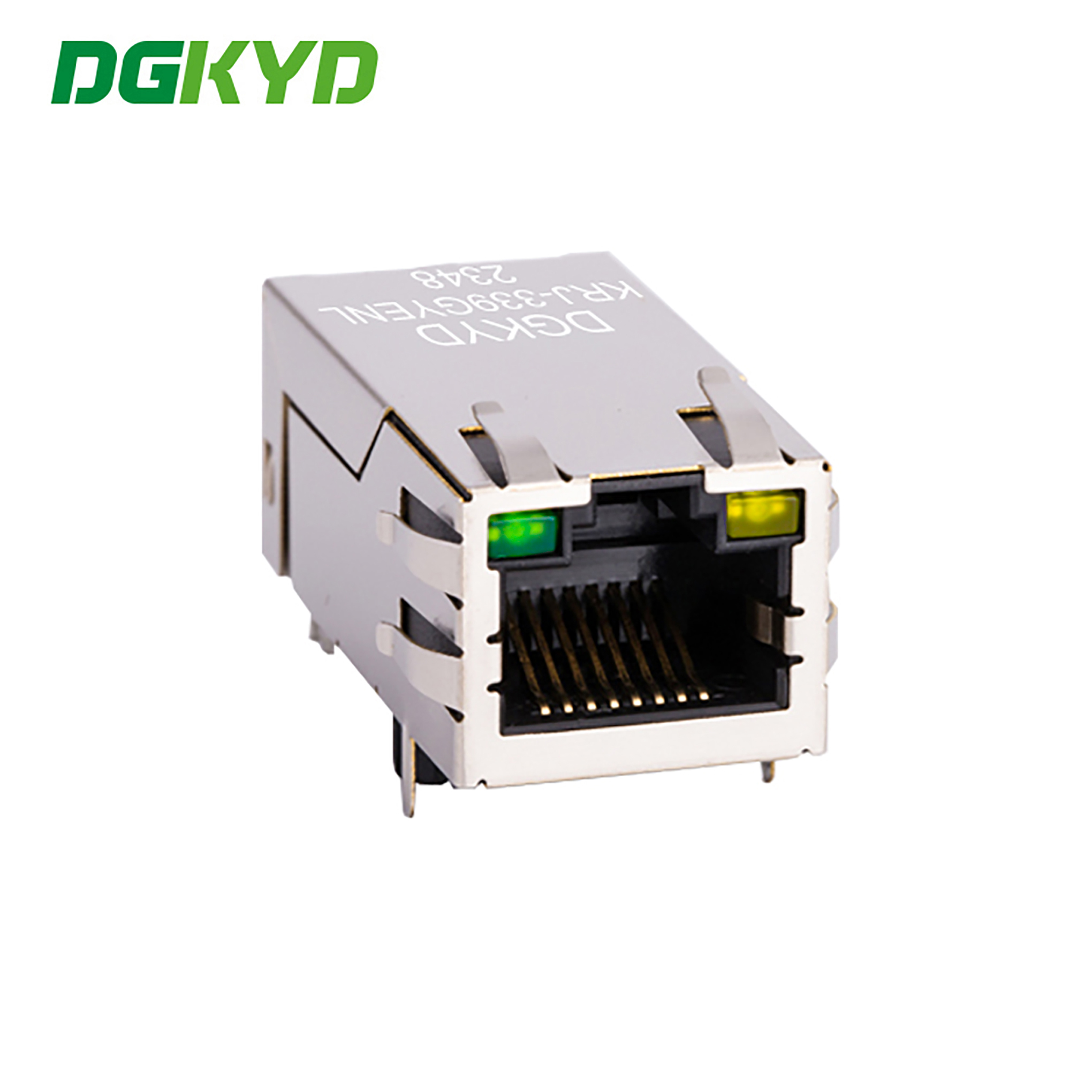

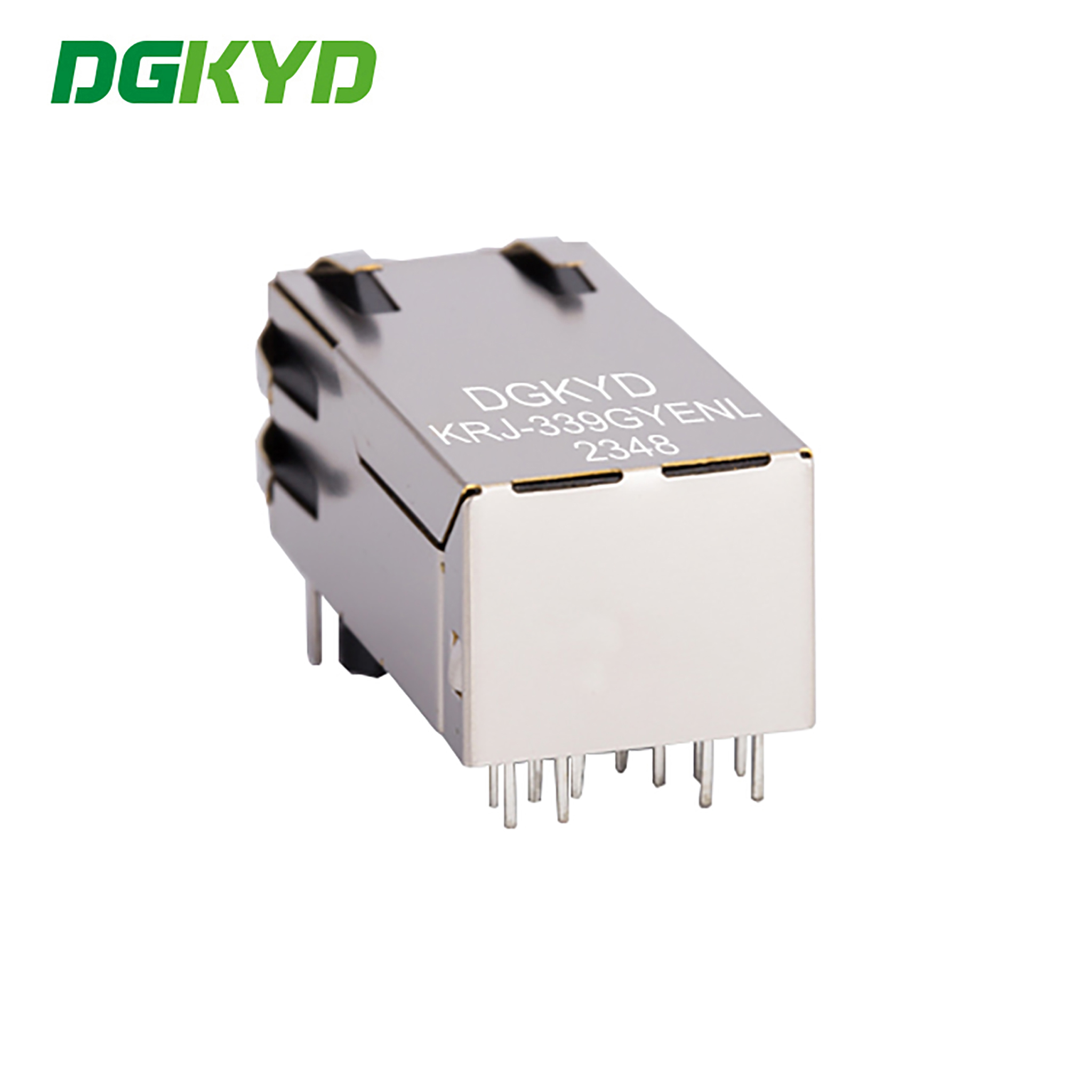

| Part Number | KRJ-339GYENL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 12 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Descriptions:
Applications:
Integrated RJ45 connector main used to :
• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical
transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.
