RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-008QUSBNL

Detail Information
Product Name:	RJ45 With Transformer	Type:	Connector Combo
Housing:	Phenolic, PBT Black (UL94V-0)	Shield RJ45:	Yes
No.Port:	RJ45 Single Port With USB	RoHS:	Yes
PCB Mount Style:	DIP	Number Of Pins:	8
Number Of Cores:	8	Gold Plating On Contact Pins:	6U
Operating Temperature:	- 40 ℃ ~ 85 ℃	Storage Temperature:	- 40 ℃ ~ 85 ℃
Highlight:	RJ45 USB 2.0 connector with filter , Gigabit network port RJ45 USB , RJ45 USB integrated filter connector

Product Description

RJ45 with USB 2.0 Socket Gigabit Integrated Filter Network Port Connector

Part Number: KRJ-008QUSBNL

Technical Parameters

Parameter	Specification
Part Number	KRJ-008QUSBNL
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Filter	With Filter
LED Option	With LED
LED Color	Green/Yellow
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Port
Number of Positions	12
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
PCB Mounting Style	Through Hole
Termination Method	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
UL Flammability Rating	UL 94V-0

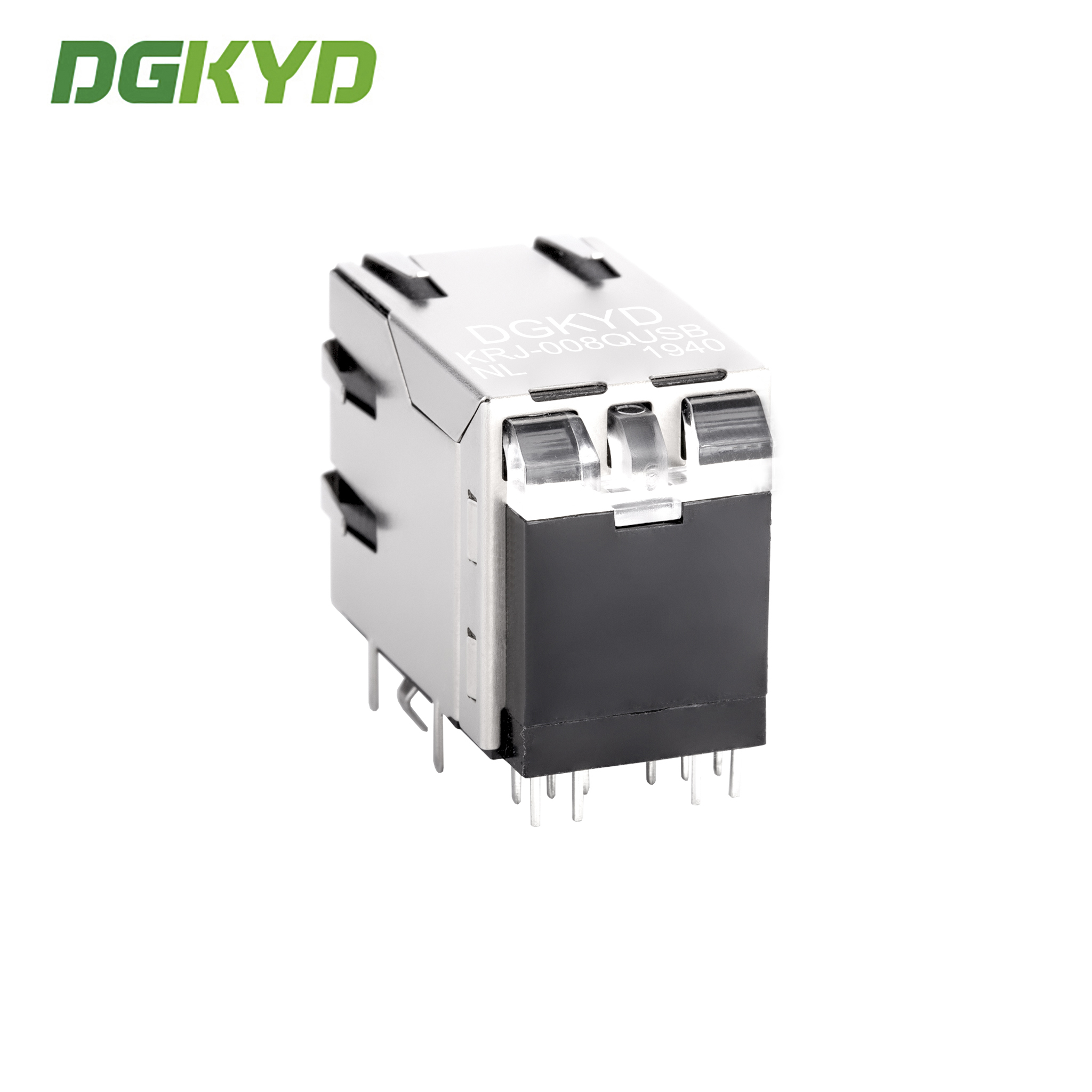

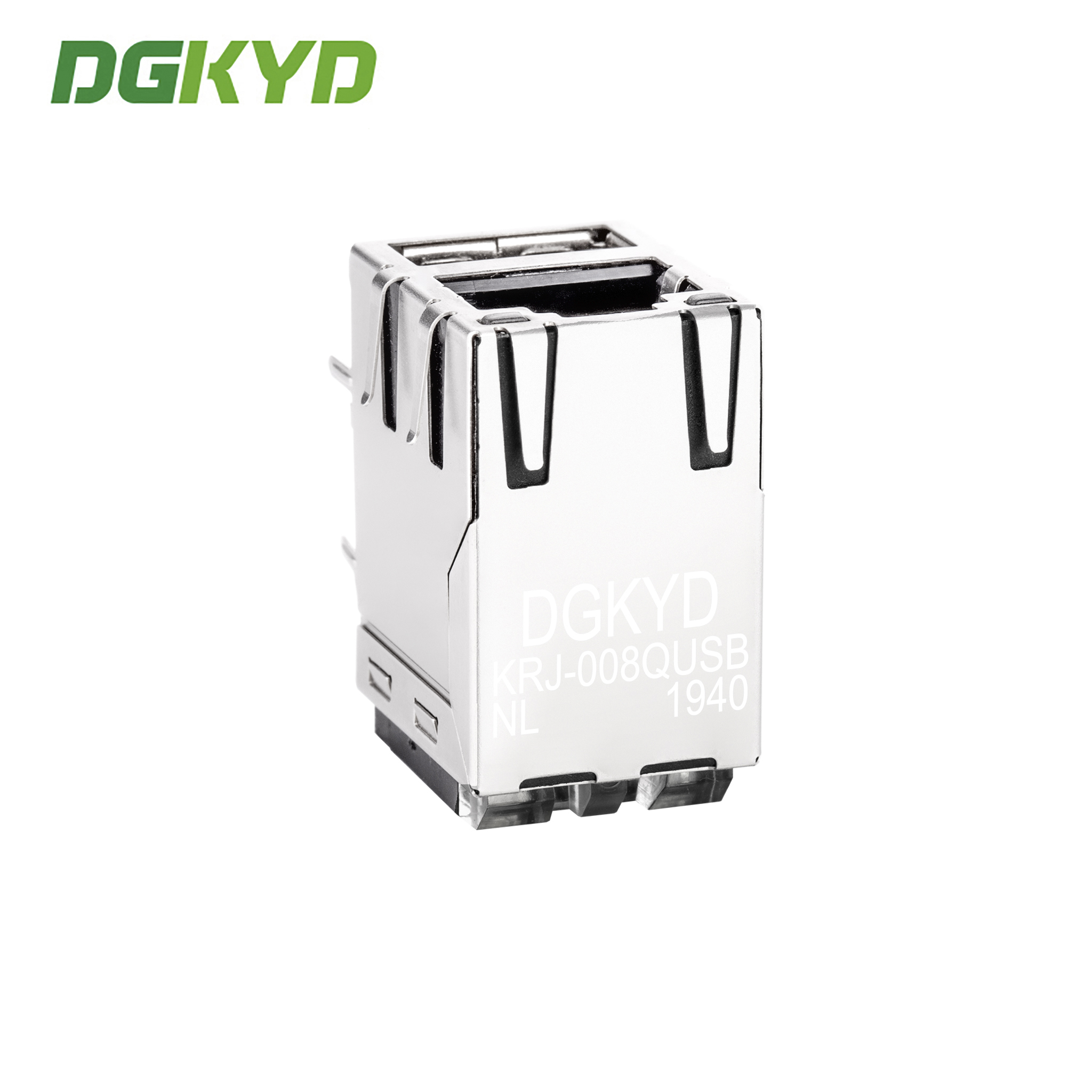

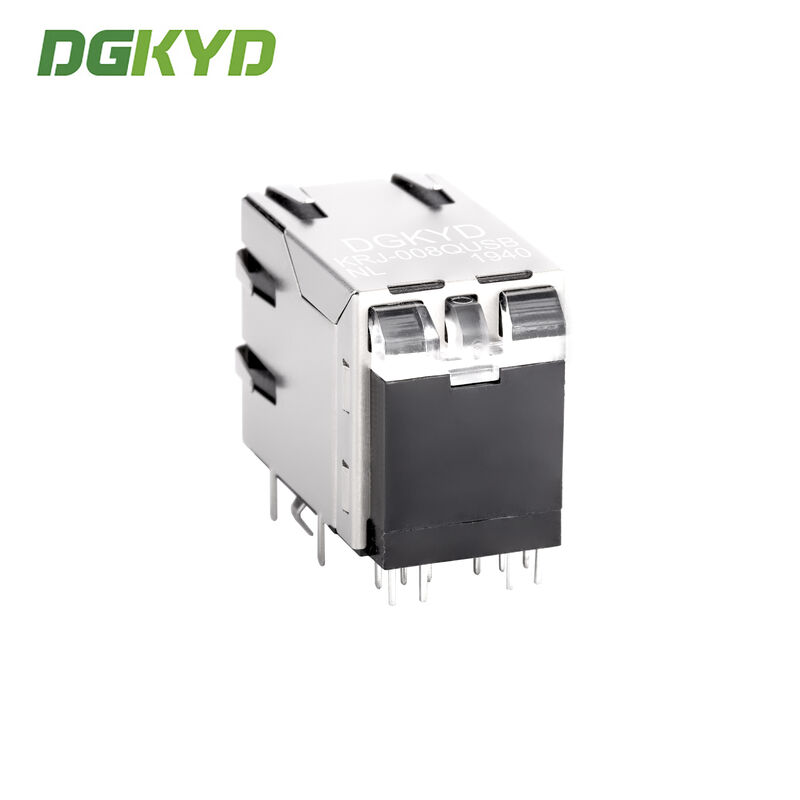

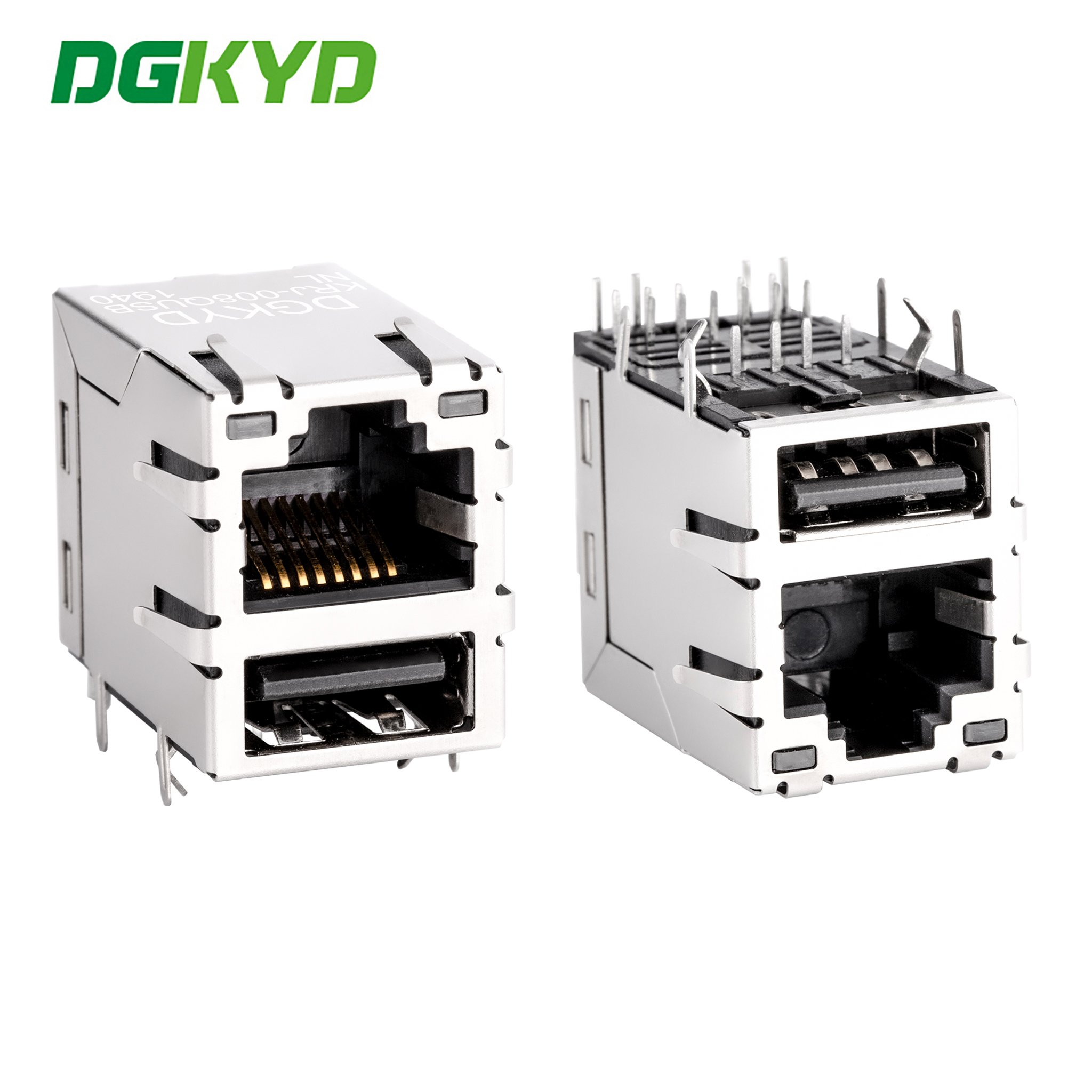

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
