RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet

Contact Now

RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet

Minimum Order Quantity :	Negotiation	Price :	Please contact us to get the latest price.
Packaging Details :	560Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD112Q060AB2A1D
Document:	DGKYD112Q060AB2A1D.pdf

Detail Information
Product Type:	RJ45	Encapsulation Method:	DoubleIn-line Package
PCB Mount Style:	DIP	Filter:	With Filter
Shield:	Brass	Number Of Positions/Contacts:	8p10c (RJ45, Ethernet)
Number Of Ports:	TAB-Down	Dimension (mm):	30.8* 21.1*13.55
Contact Plating:	6u Glod Plating	Housing Color:	Black
Storage Temperature:	- 40 ℃ ~ 85 ℃
Highlight:	6u Gold Plating RJ45 Connector , With Filter Modular Jack , TAB-Down Port Ethernet Socket

Product Description

RJ45 Connector Gigabit Ethernet Filtering Network Interface Socket DGKYD112Q060AB2A1D

Product Overview

RJ45 connector Gigabit Ethernet filtering network interface socket DGKYD112Q060AB2A1D designed for high-performance network applications with integrated filtering capabilities.

Part Number: DGKYD112Q060AB2A1D

Product Documentation: DGKYD112Q060AB2A1D.pdf

Technical Parameters

Parameter	Value	Parameter	Value
Part Number	DGKYD112Q060AB2A1D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Double Port	Number of Positions	10
Jack Configuration	1X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Images

Technical Diagram

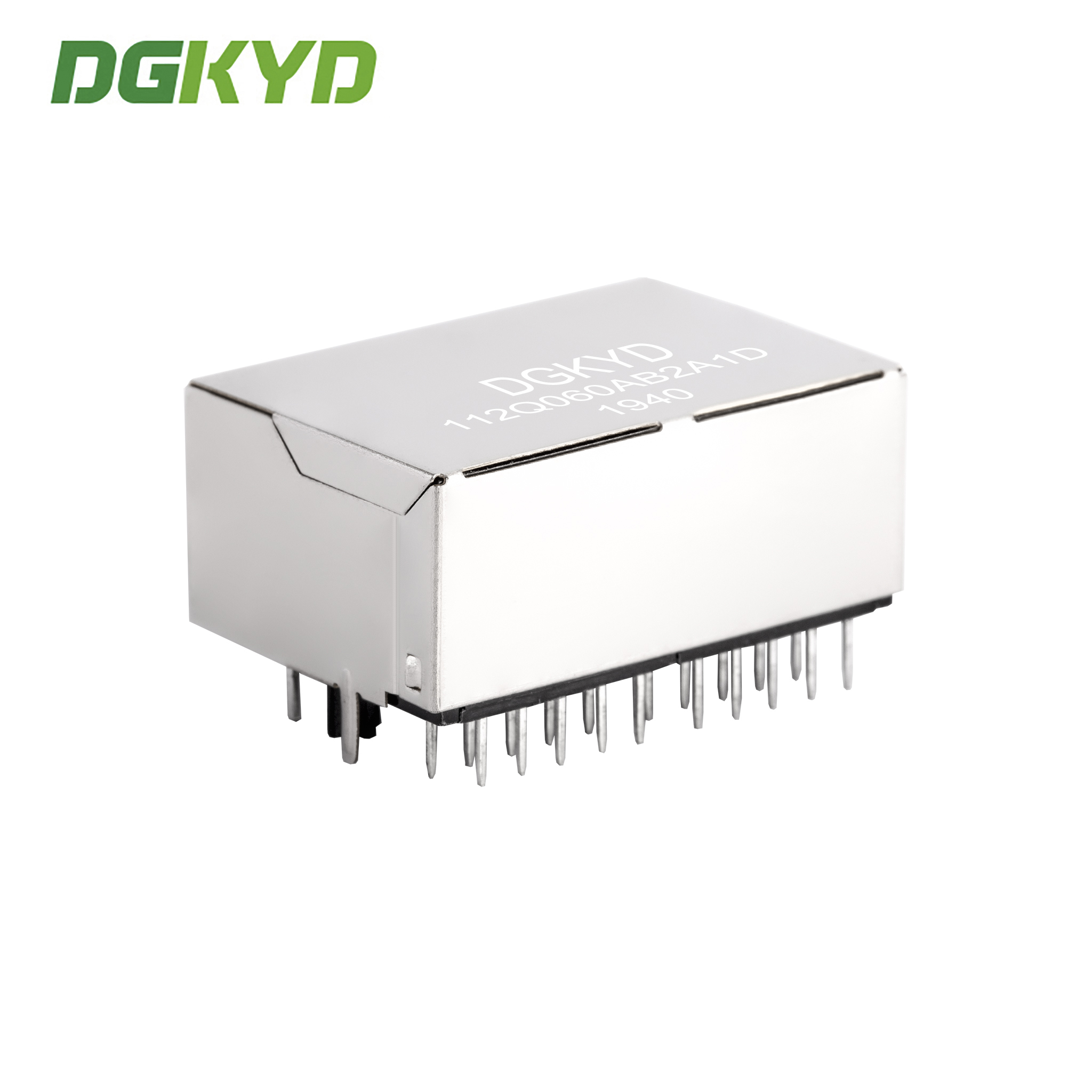

Internal View

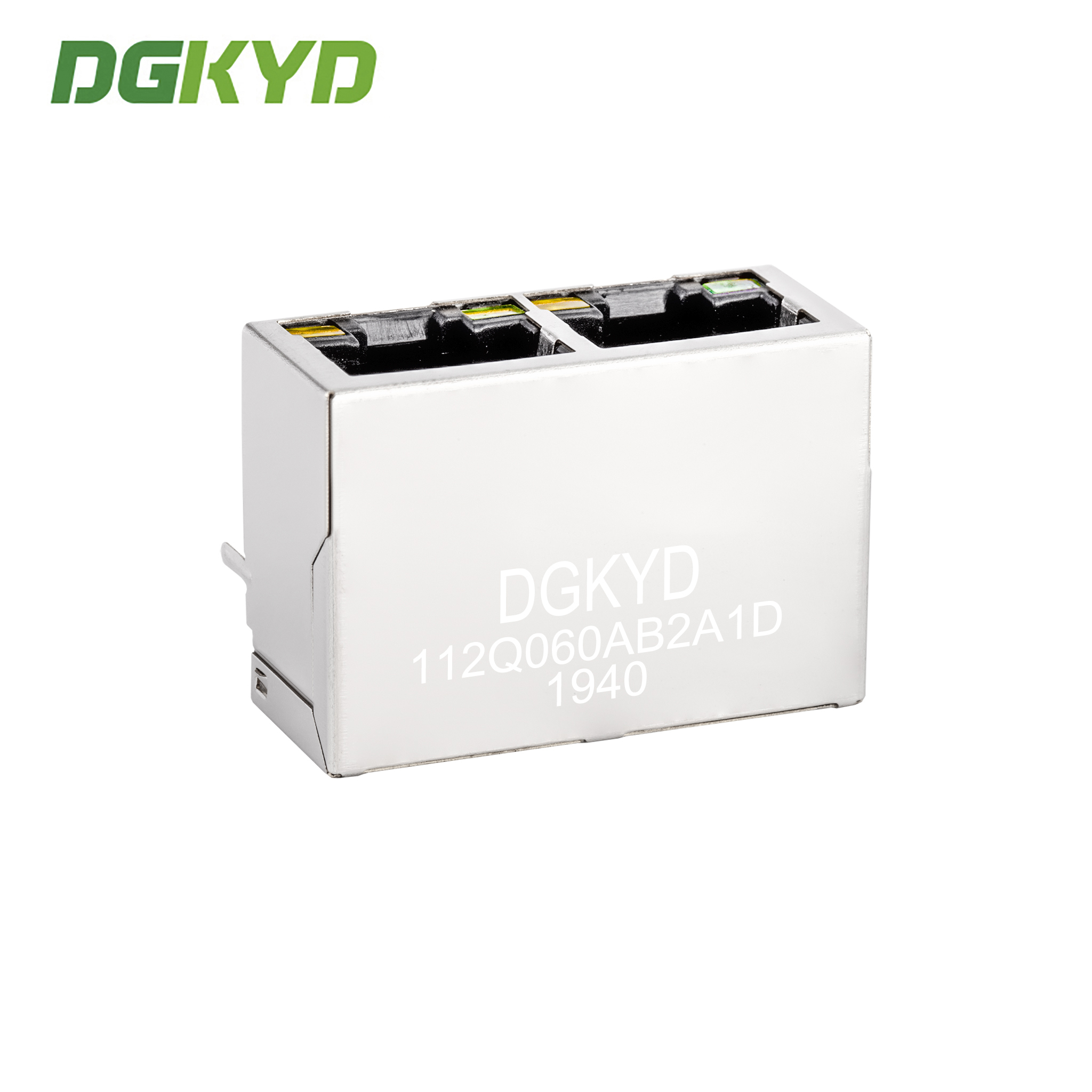

Front View

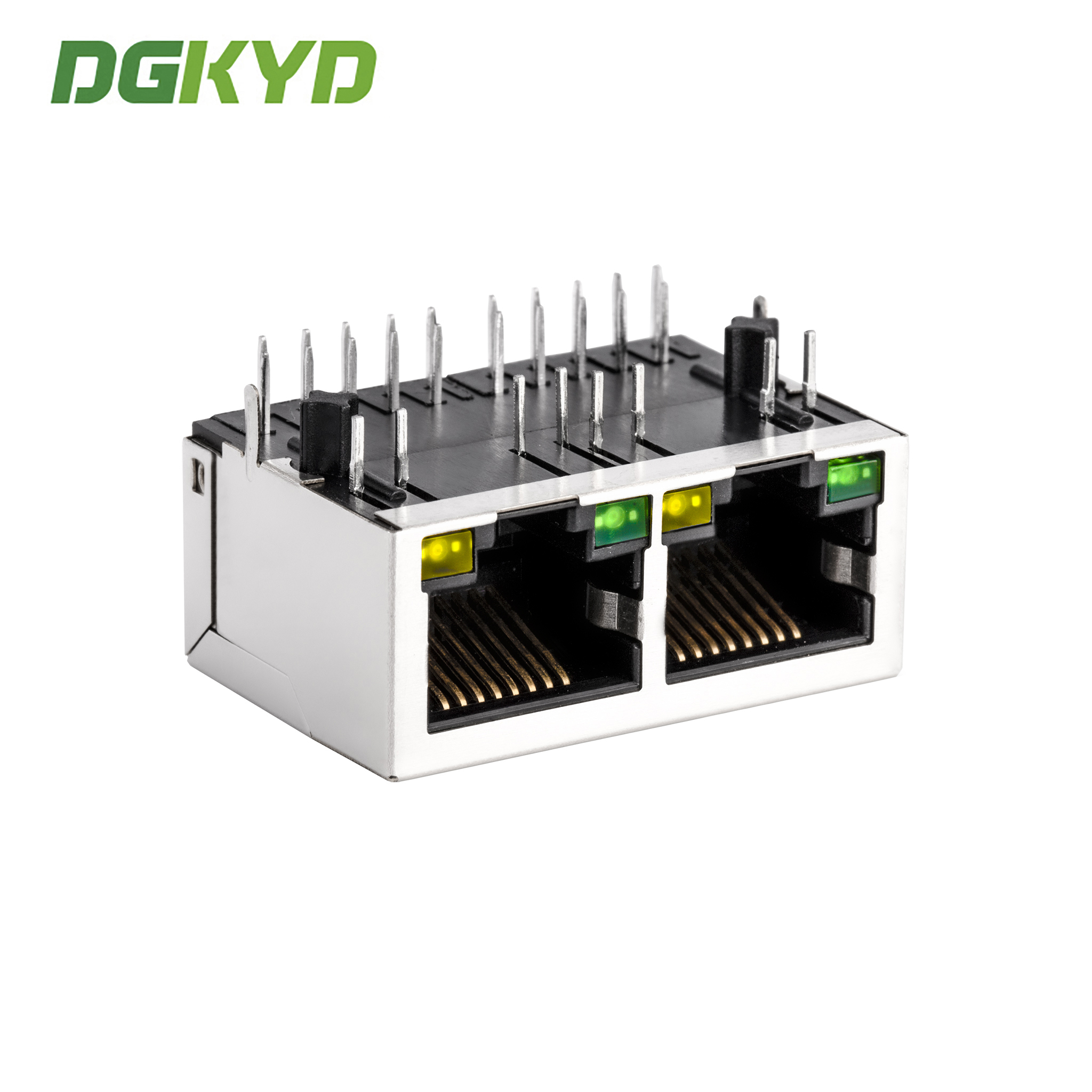

Angled View

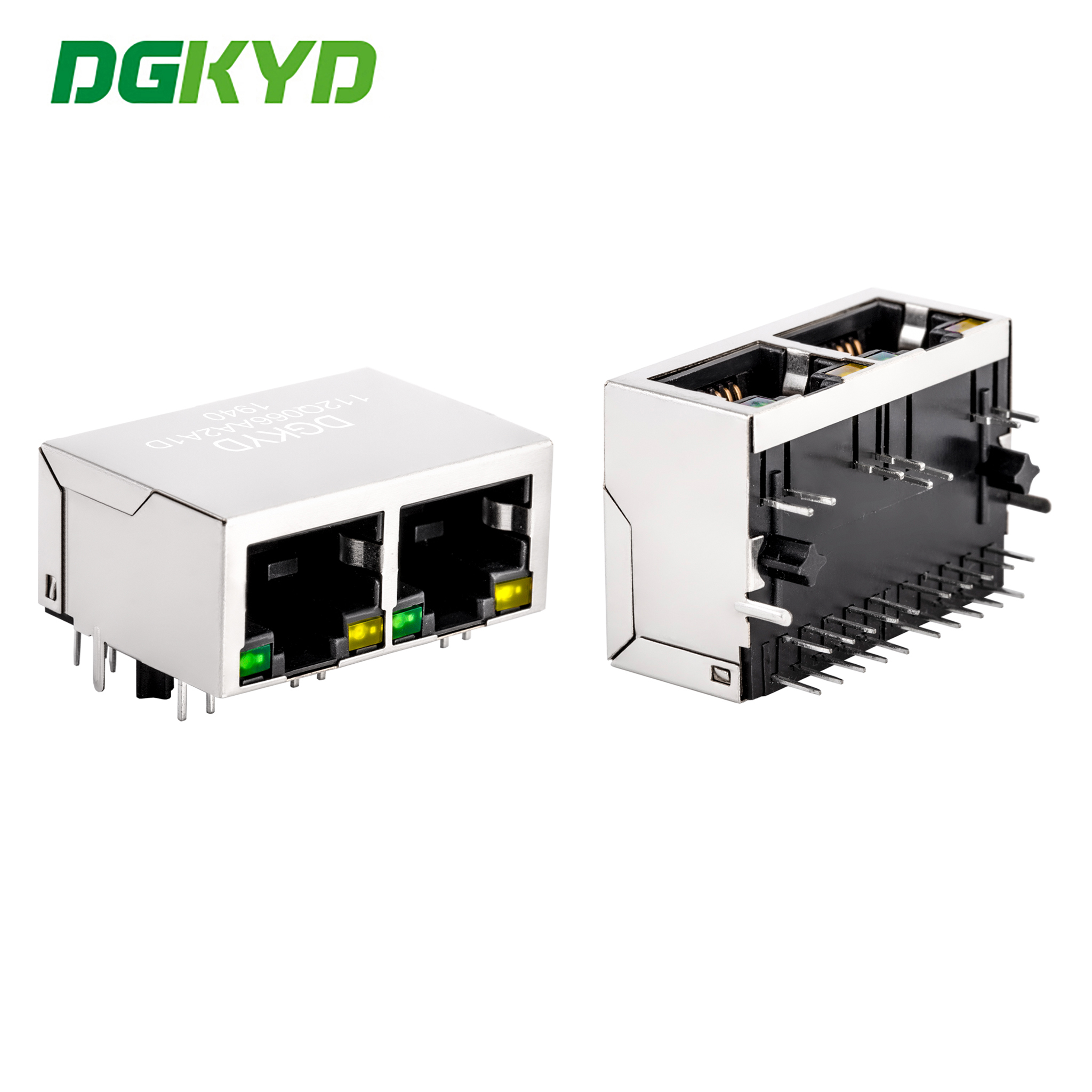

Mounting View

PCB Interface

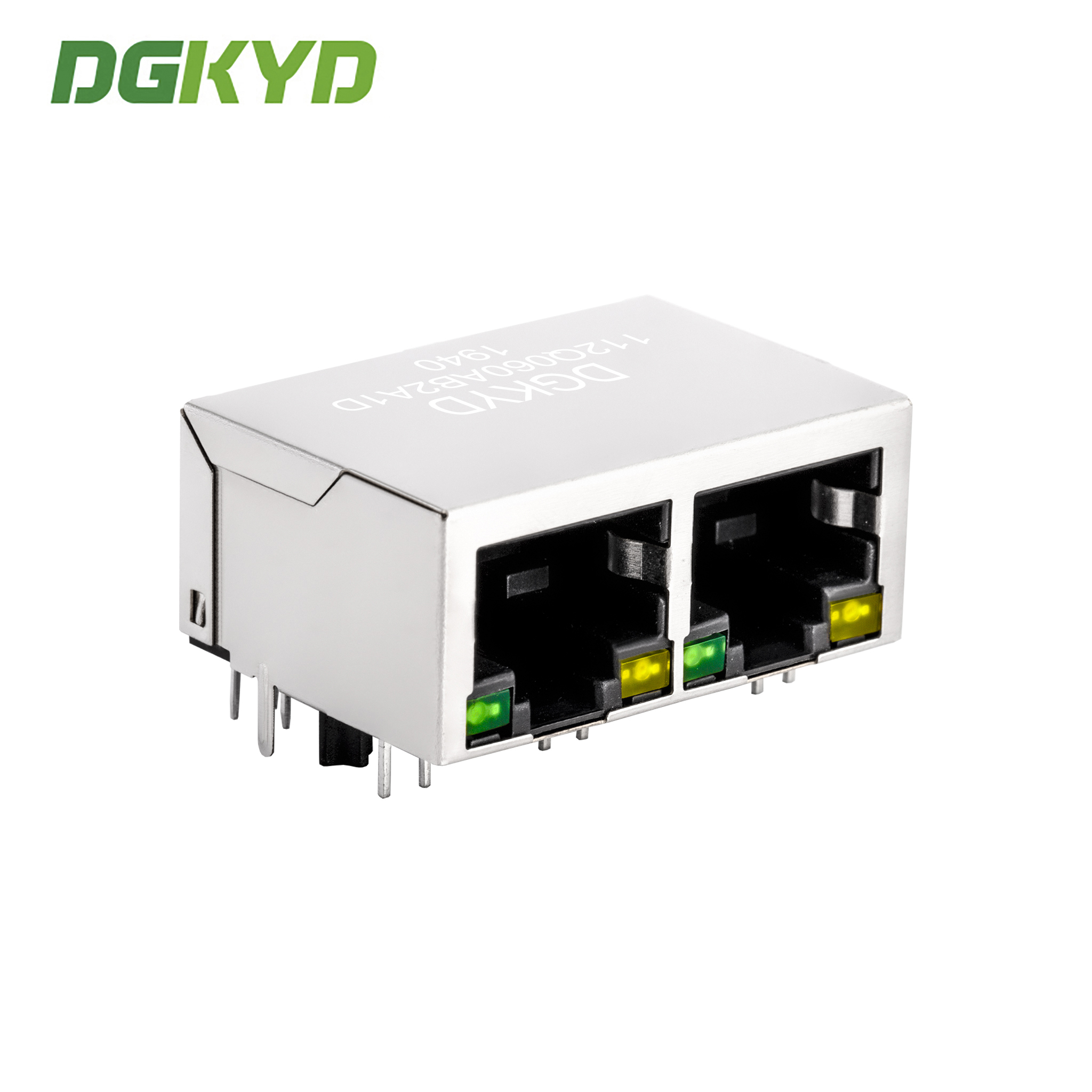

LED Indicator

Final Assembly

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply. Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance.

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Your satisfaction is our primary service objective!
