1000BASE RJ45 connector network interface Ethernet filtering DGKYD111Q070BB1A1D

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111Q070BB1A1D

Detail Information

Performance: Cat 5/5e Category: Modular Jacks
Component Type: PCB Jack Application: Lan,bridge,PC,router,usb Hub Network Rj45
Gender: Female RJ45 Product Name: RJ45 Ethernet Jack
LED Color: Yellow/Green Shielded: Yes
Performance Speed: 1000M BASE-Tx

Product Description

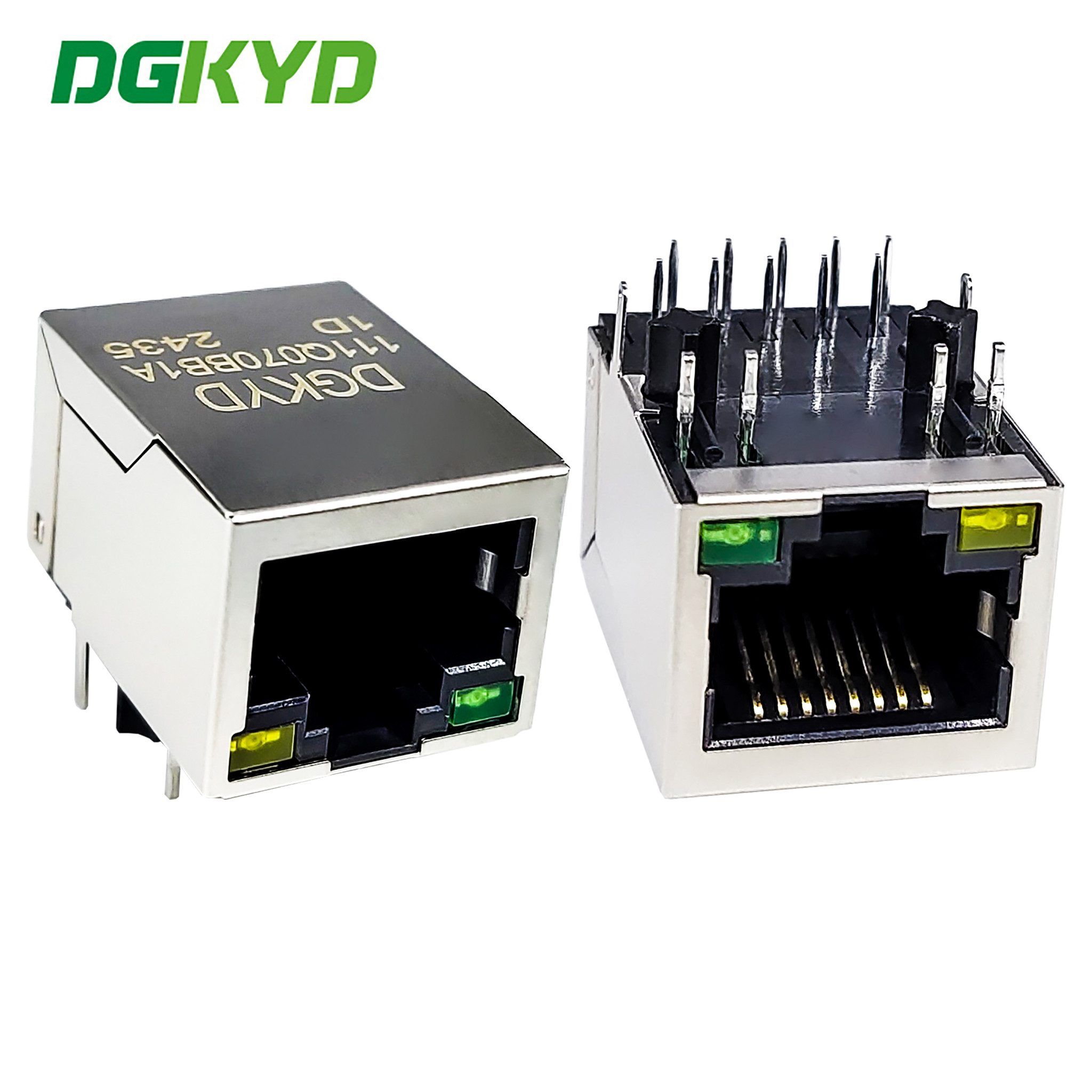

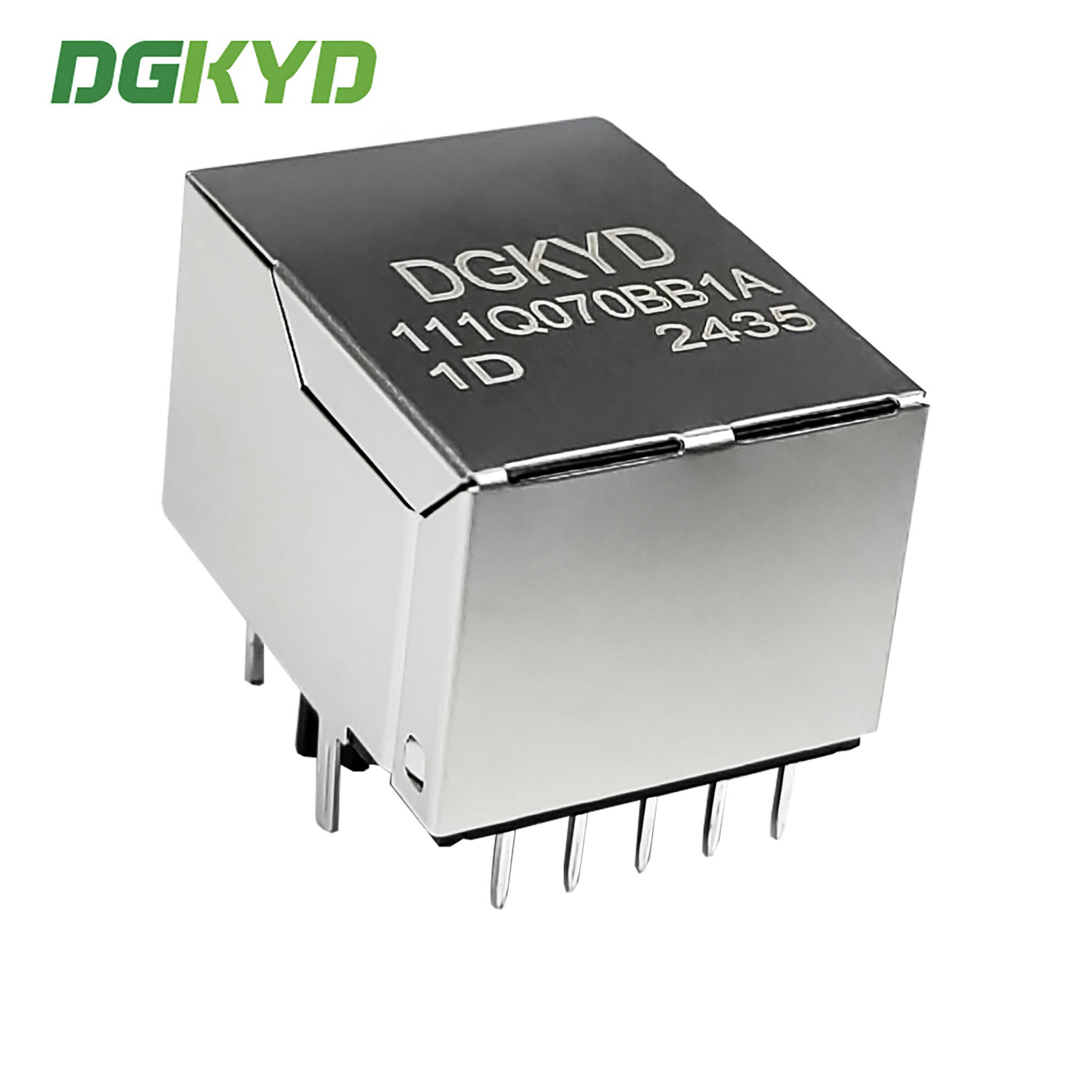

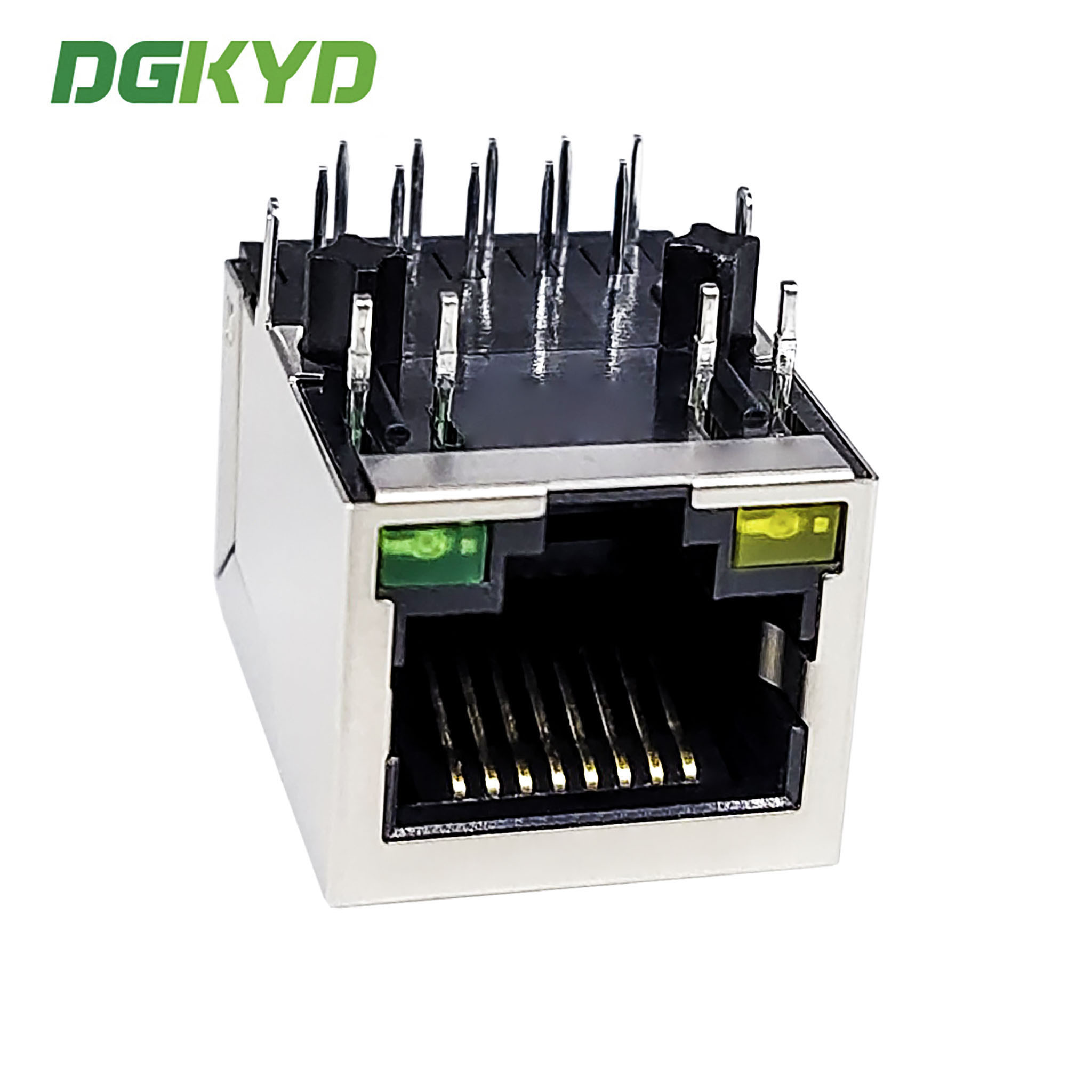

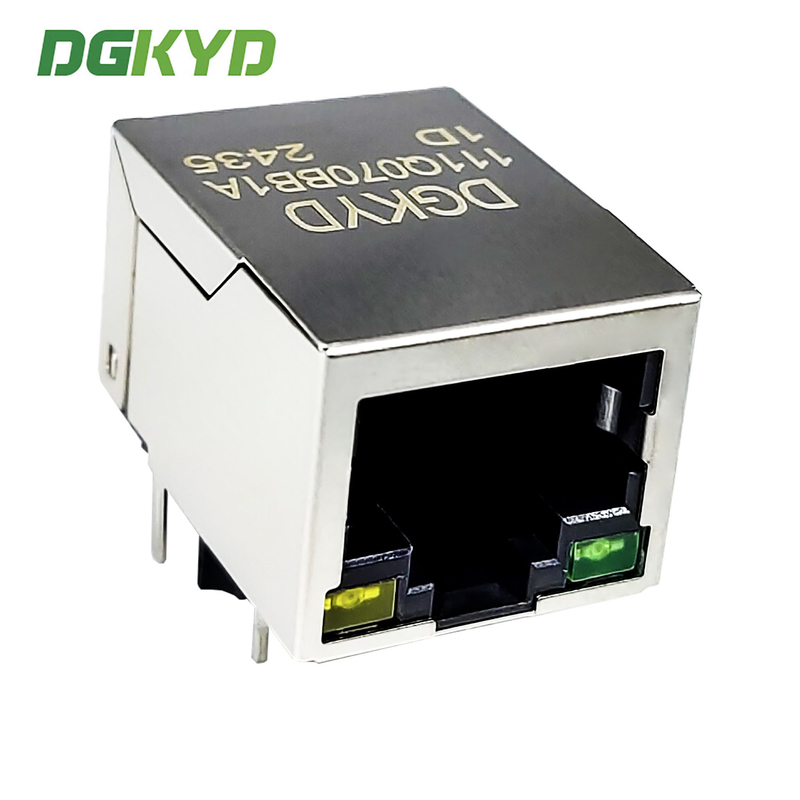

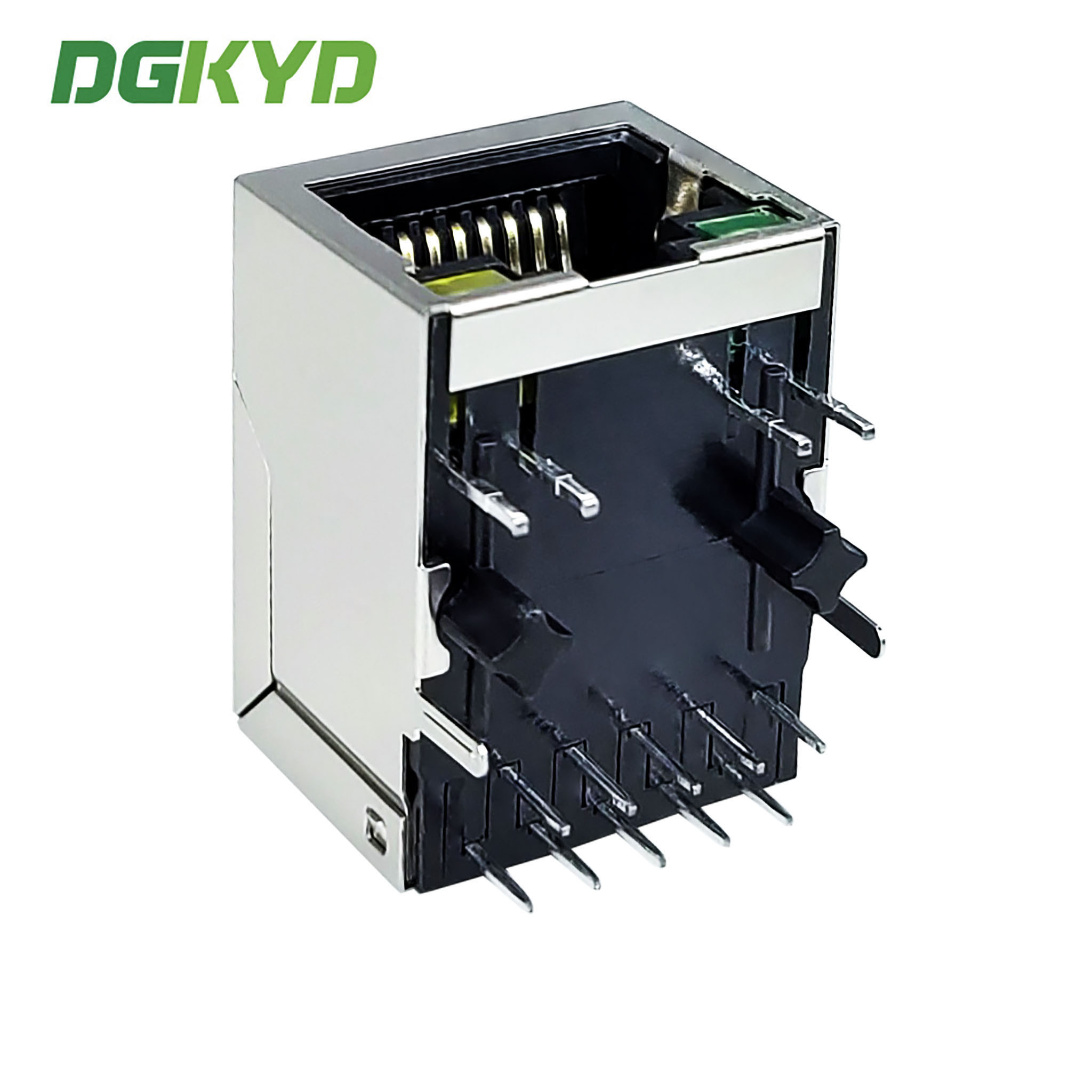

1000BASE RJ45 connector network interface Ethernet filtering DGKYD111Q070BB1A1D

Product Specification Document
DGKYD111Q070BB1A1D.pdf

Parameters

Part Number DGKYD111Q070BB1A1D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color Yes L-Yellow/R-Green Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions  10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



  • 1000BASE RJ45 connector network interface Ethernet filtering DGKYD111Q070BB1A1D 0

    1000BASE RJ45 connector network interface Ethernet filtering DGKYD111Q070BB1A1D 1



    1000BASE RJ45 connector network interface Ethernet filtering DGKYD111Q070BB1A1D 4

    1000BASE RJ45 connector network interface Ethernet filtering DGKYD111Q070BB1A1D 5





    1000BASE RJ45 connector network interface Ethernet filtering DGKYD111Q070BB1A1D 6




    Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

    Type: RJ45 built in magnetics

    Working frequency: high frequency characteristic: filtering, anti-interference

    Working temperature: 40 ℃ - 85 ℃

    Storage temperature: - 40 ℃ - 85 ℃

    Lead free soldering: wave soldering height up to 265 ℃

    RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

    1. Business mode: Manufacturer

    2. Delivery time: on time delivery, around two weeks.

    3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>

    Shield with EMI fingers or not

    coil ratio of magnetic core

    magnetics circuit diversification optional

    contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

    plastic housing material (PBT,PA46,PA9T, LCP)

    4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

    Performance parameters:

    1. Applied to Ethernet, coil ratio: 1CT: 1CT

    2. Meet IEEE 802.3 & ANSI X 3.263 standard

    3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

    4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

    5. Withstand voltage: 2250VDC 1mA max, 60s

    6.Impedance: 100 ohms

    7. RJ45 interface meets FCC 68.5 standard

    8. DC resistance: 1.5 Ω



    FAQ:

    1. Q: Are you trading company or manufacture?
    A: We are manufacture. Welcome to our factory.

    2. Q: What about your lead time?
    A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

    3. Q: Can you provide samples? Are they free?
    A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

    4. Q: Can I put my own logo on it?
    A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
