Industrial Grade RJ45 Connector with 6u Gold Plating for Gigabit Ethernet

Contact Now

Industrial Grade RJ45 Connector with 6u Gold Plating for Gigabit Ethernet

Minimum Order Quantity :	Negotiation	Price :	Please contact us to get the latest price.
Packaging Details :	560Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD112Q060DB2A1D
Document:	DGKYD112Q060DB2A1D.pdf

Detail Information
Product Type:	RJ45	Encapsulation Method:	DoubleIn-line Package
PCB Mount Style:	DIP	Shape:	Rectangle
Shield:	Brass	Number Of Positions/Contacts:	8p10c (RJ45, Ethernet)
Number Of Ports:	Tap Down	Dimension (mm):	30.8* 21.1*13.55
Contact Plating:	6u Glod Plating	Operating Temperature:	- 40 ℃ ~ 85 ℃
Storage Temperature:	- 40 ℃ ~ 85 ℃
Highlight:	6u Gold Plating RJ45 Connector , Gigabit Ethernet Modular Jack , Industrial Grade Ethernet Socket

Product Description

RJ45 Gigabit Ethernet Connector Industrial Ethernet Port Network Socket DGKYD112Q060DB2A1D

Product Overview

RJ45 Gigabit Ethernet Connector Industrial Ethernet Port Network Socket designed for reliable network connectivity in demanding industrial environments.

Product Identification

Part Number	DGKYD112Q060DB2A1D
Product Documentation	DGKYD112Q060DB2A1D.pdf

Technical Parameters

Part Number	DGKYD112Q060DB2A1D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Double Port	Number of Positions	10
Jack Configuration	1X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

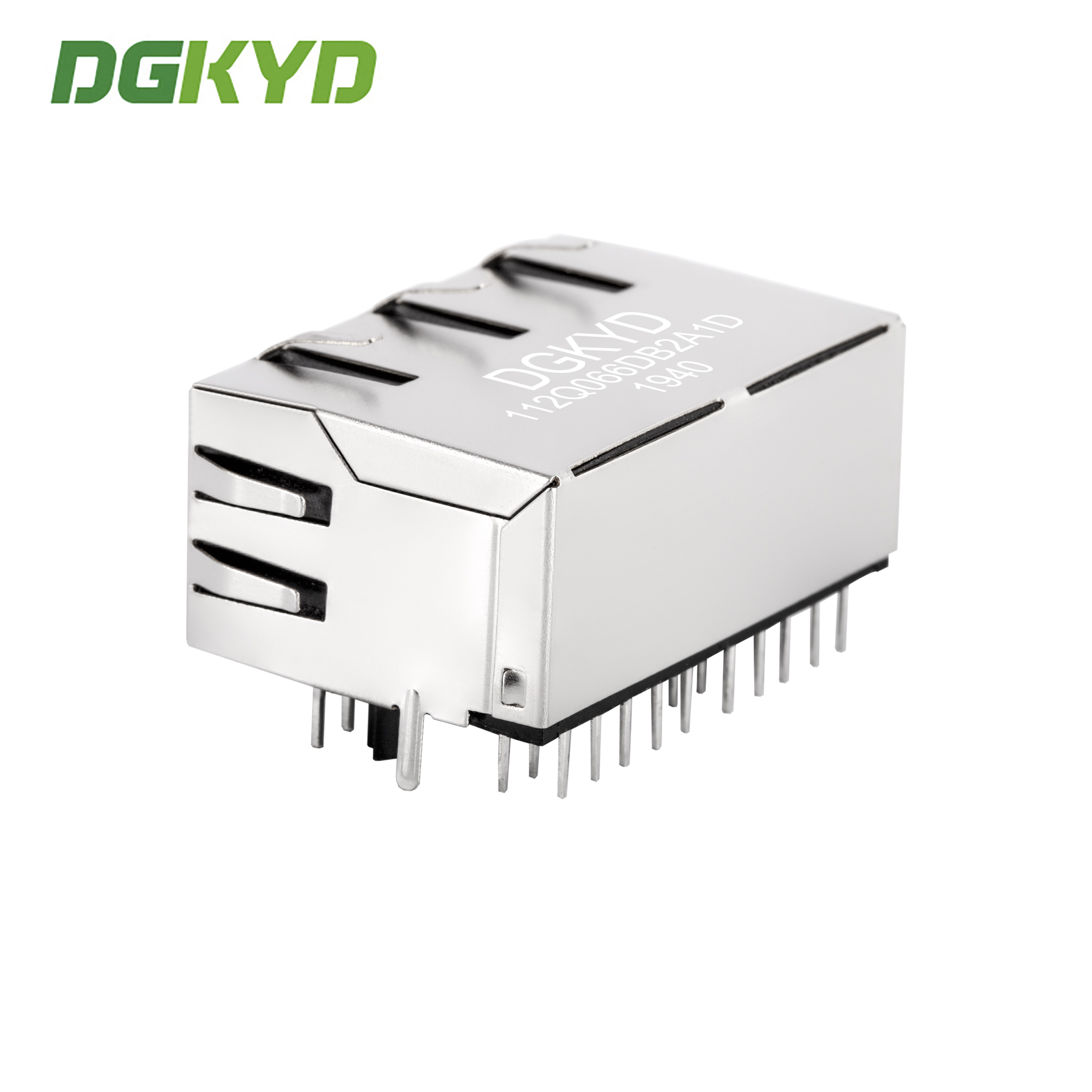

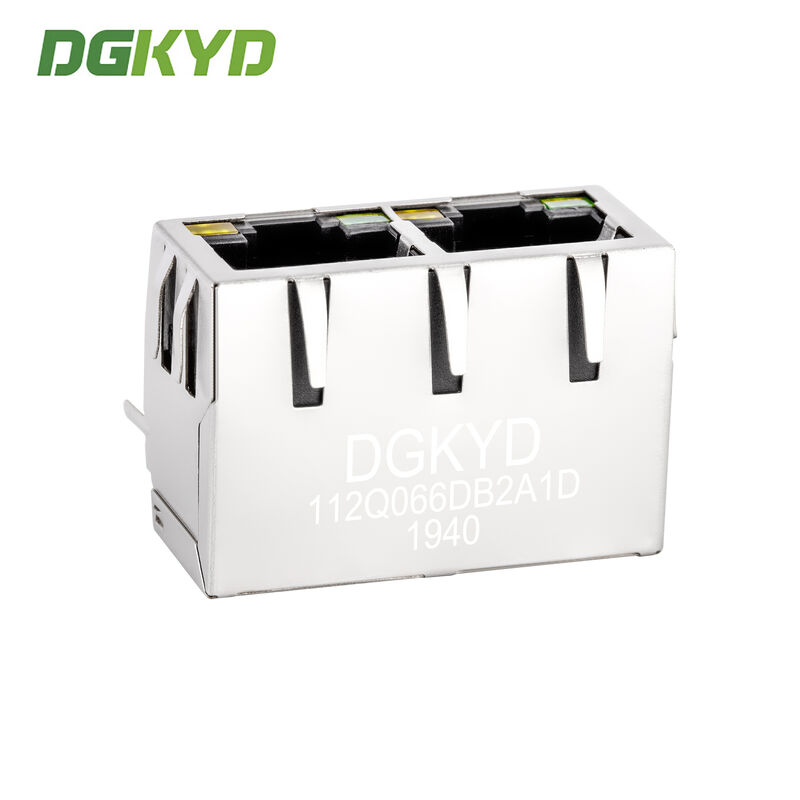

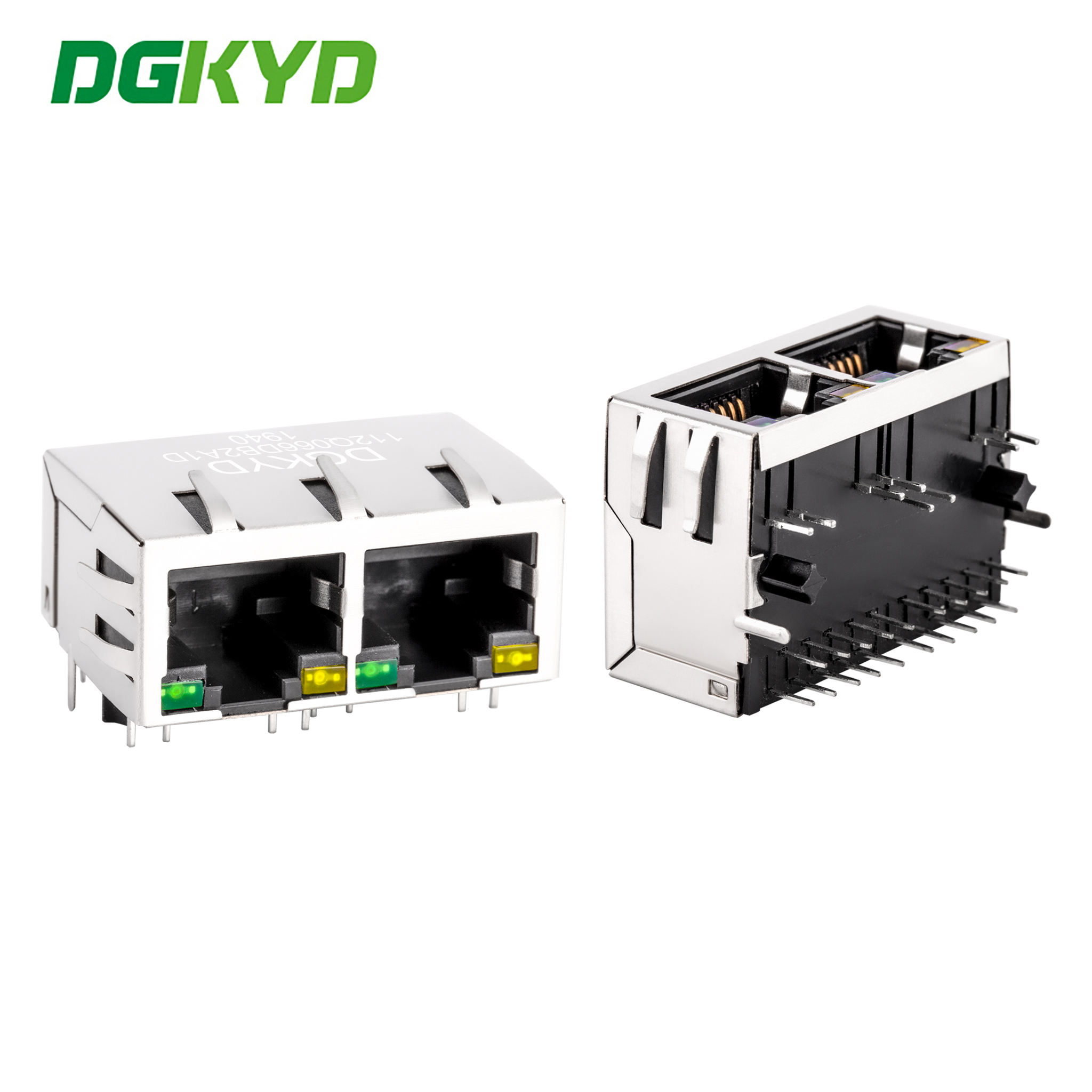

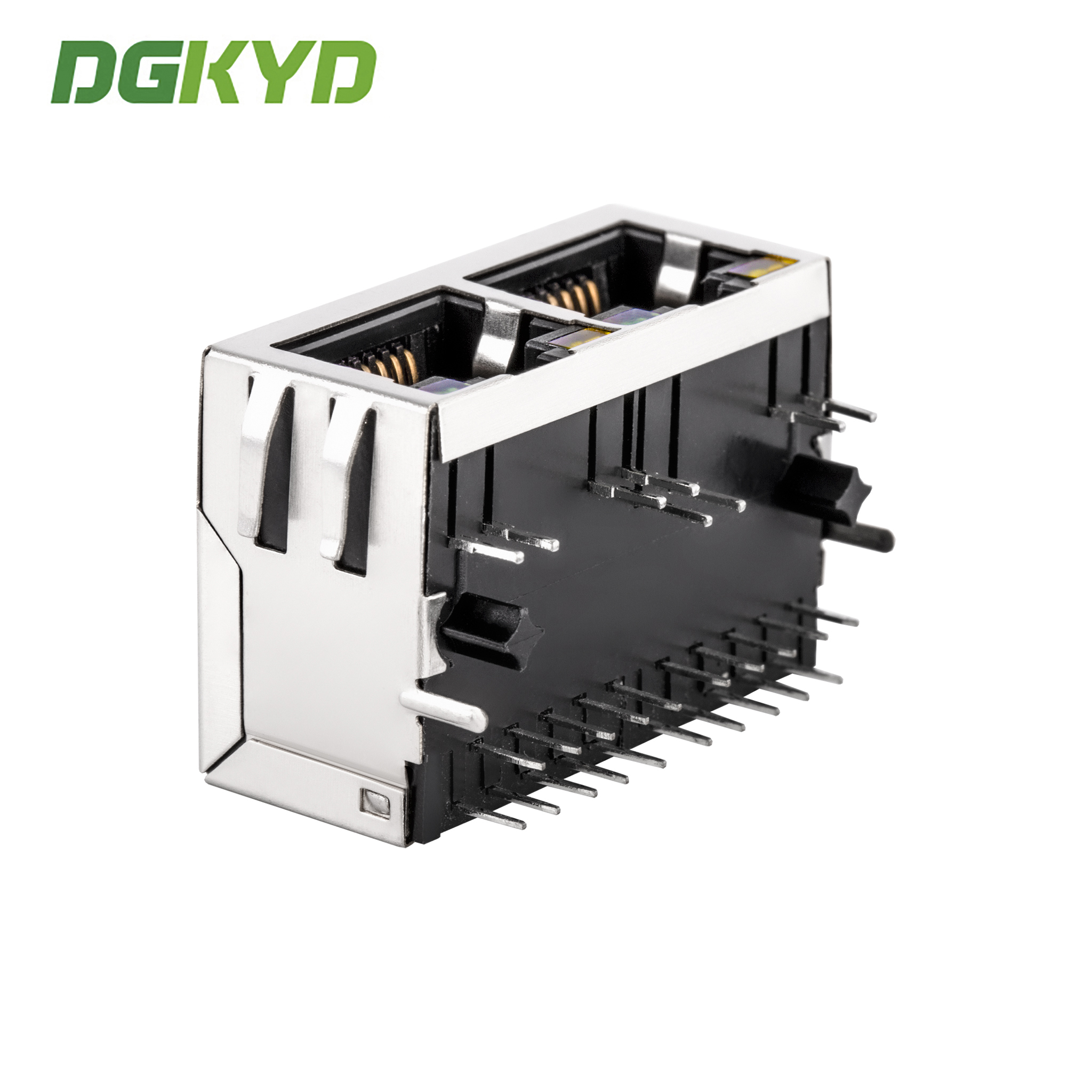

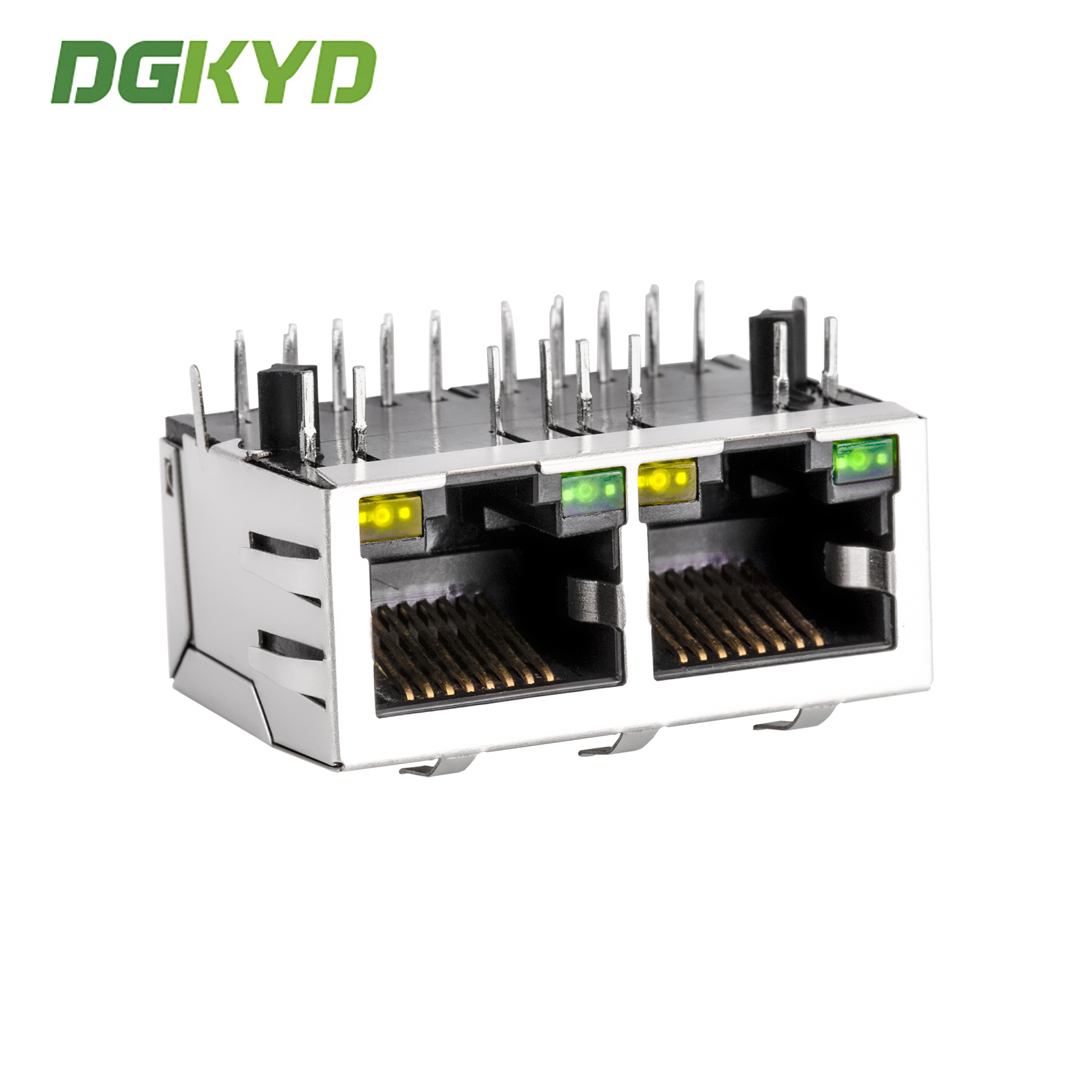

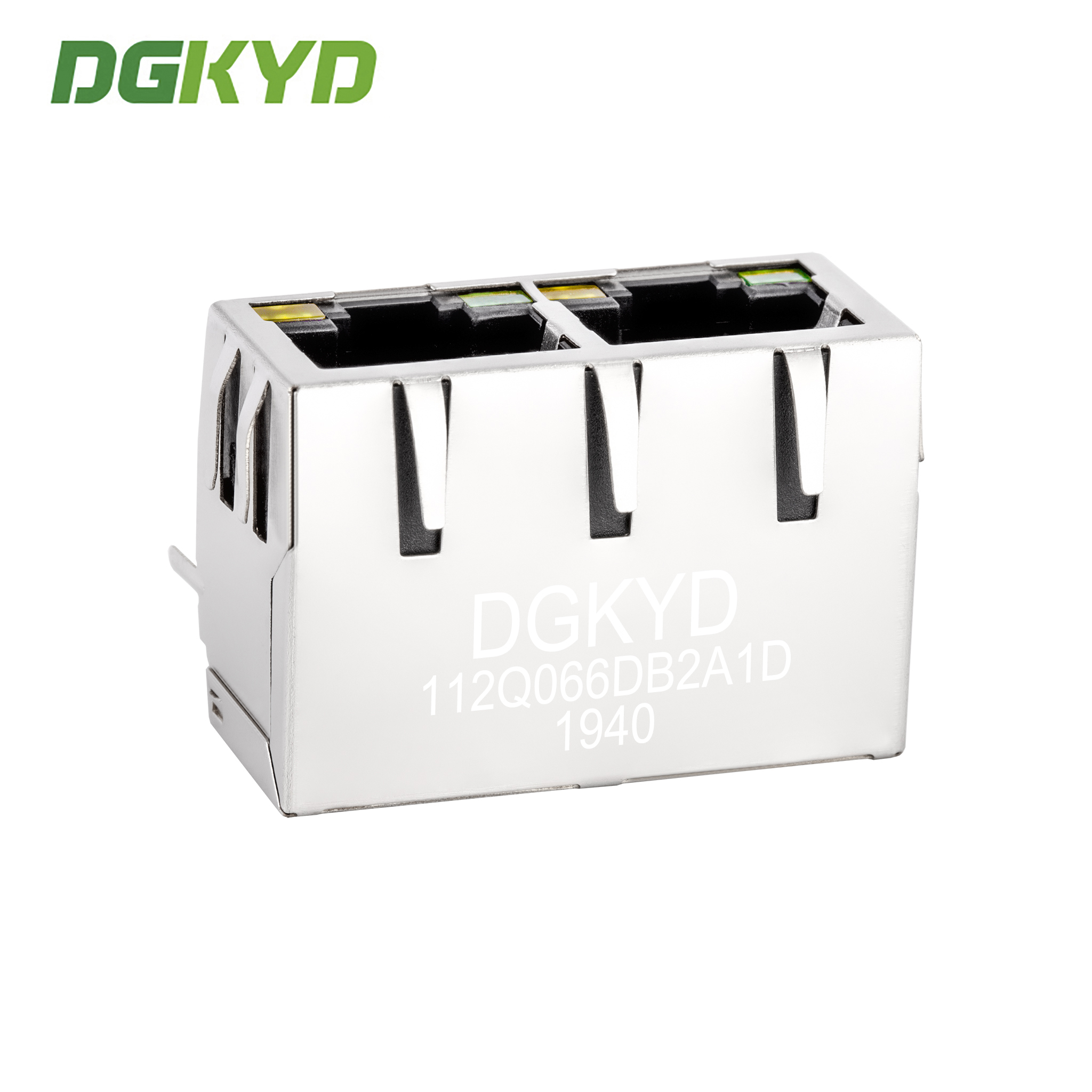

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
