100Mbps Shielded RJ45 Ethernet Connector with Integrated Transformer and LED Indicators

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD311B083AB1A4DN
Document:	DGKYD311B083AB1A4DN.pdf

Detail Information
Housing:	PBT Black (UL94V-0)	No.Port:	1X1
Type:	RJ45 Female Jack	Product Name:	RJ45 With Transformer
Shield RJ45:	Yes	LED:	Yellow/Green
Number Of Positions/Contacts:	8p8c (RJ45, Ethernet)	Gold Plating On Contact Pins:	6U
Operating Temperature:	-40°C~+85°C	Storage Storage Temperature:	- 40 ℃ ~ 85 ℃
Highlight:	100Mbps RJ45 Connector , Shielded RJ45 Ethernet Connector , Integrated Transformer RJ45 Female Jack

Product Description

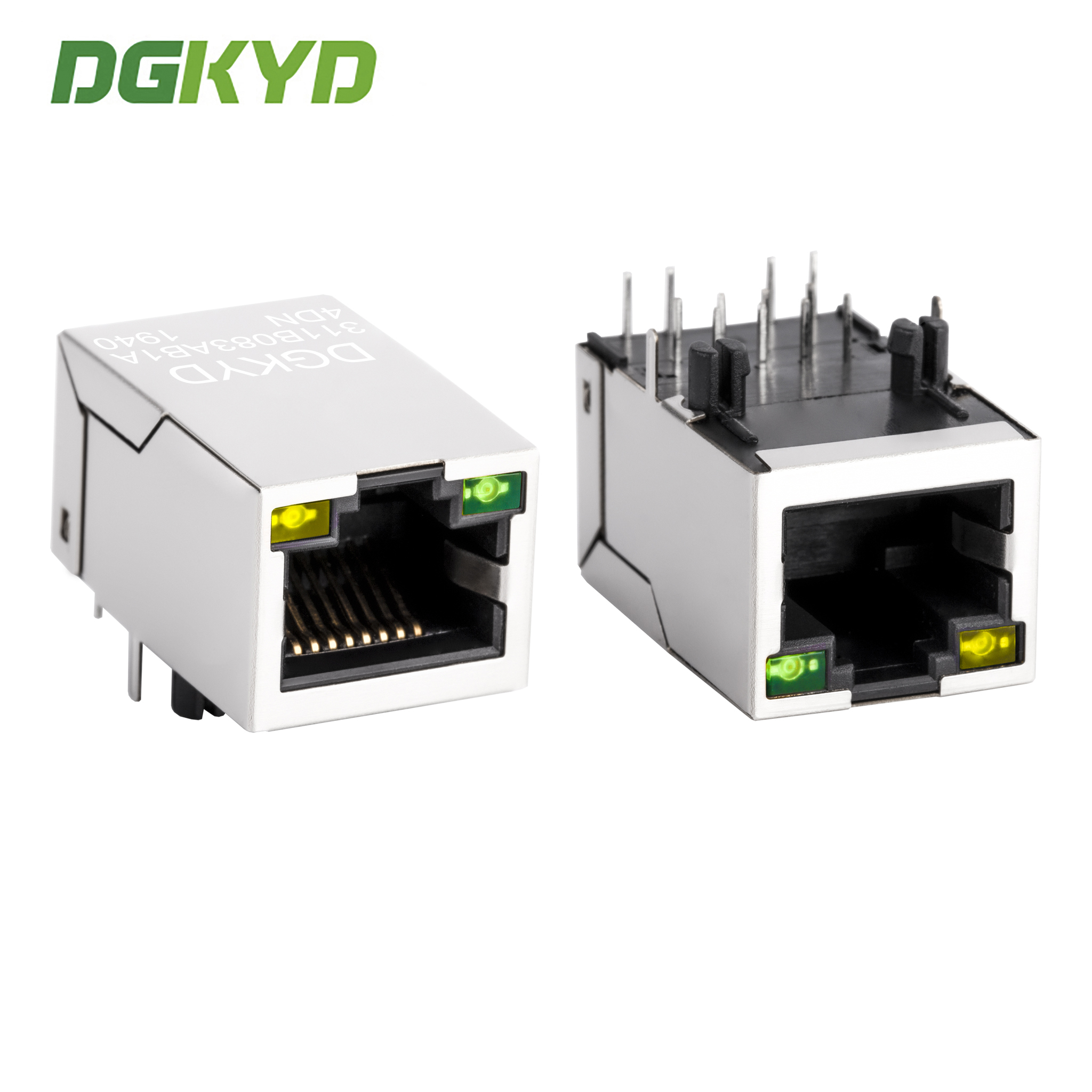

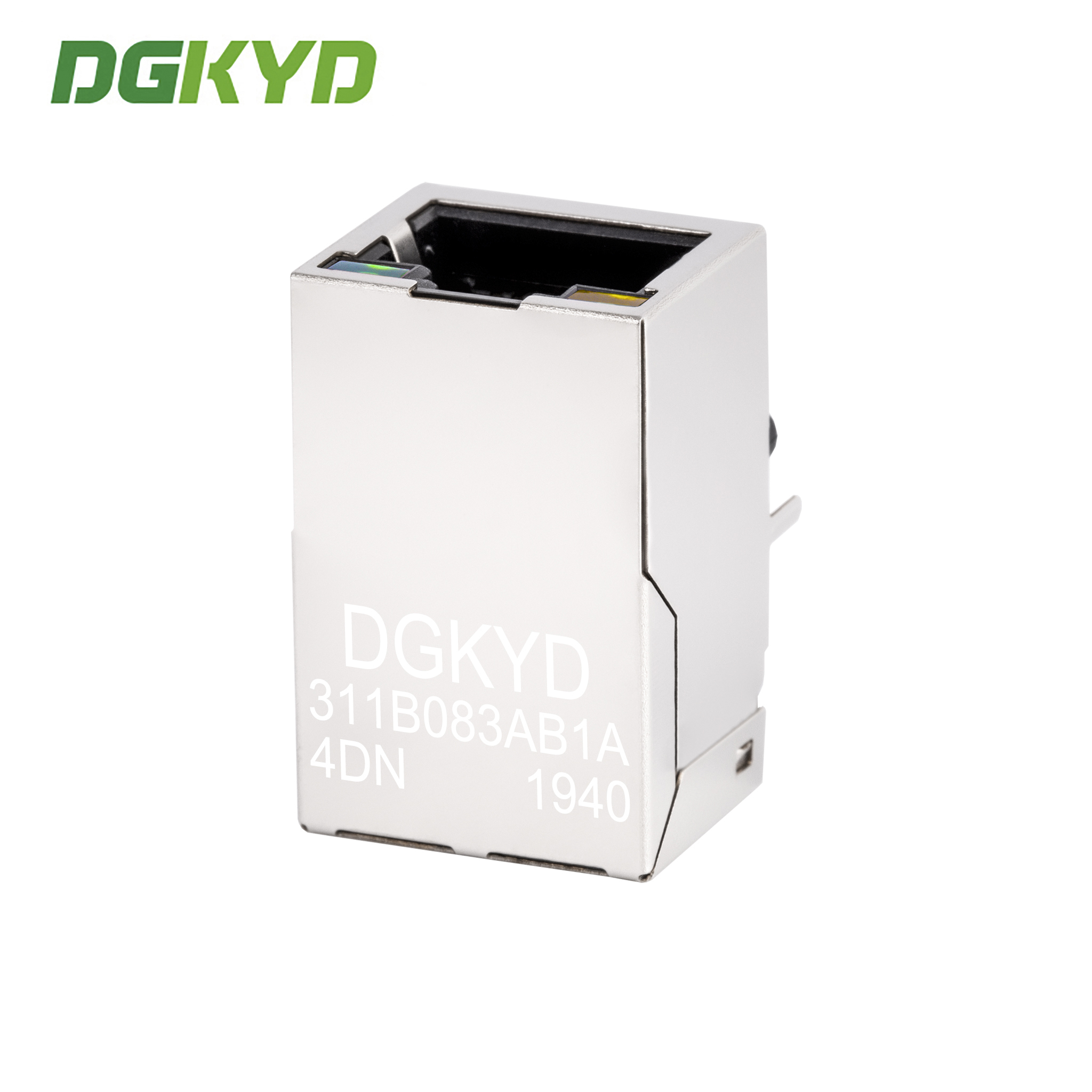

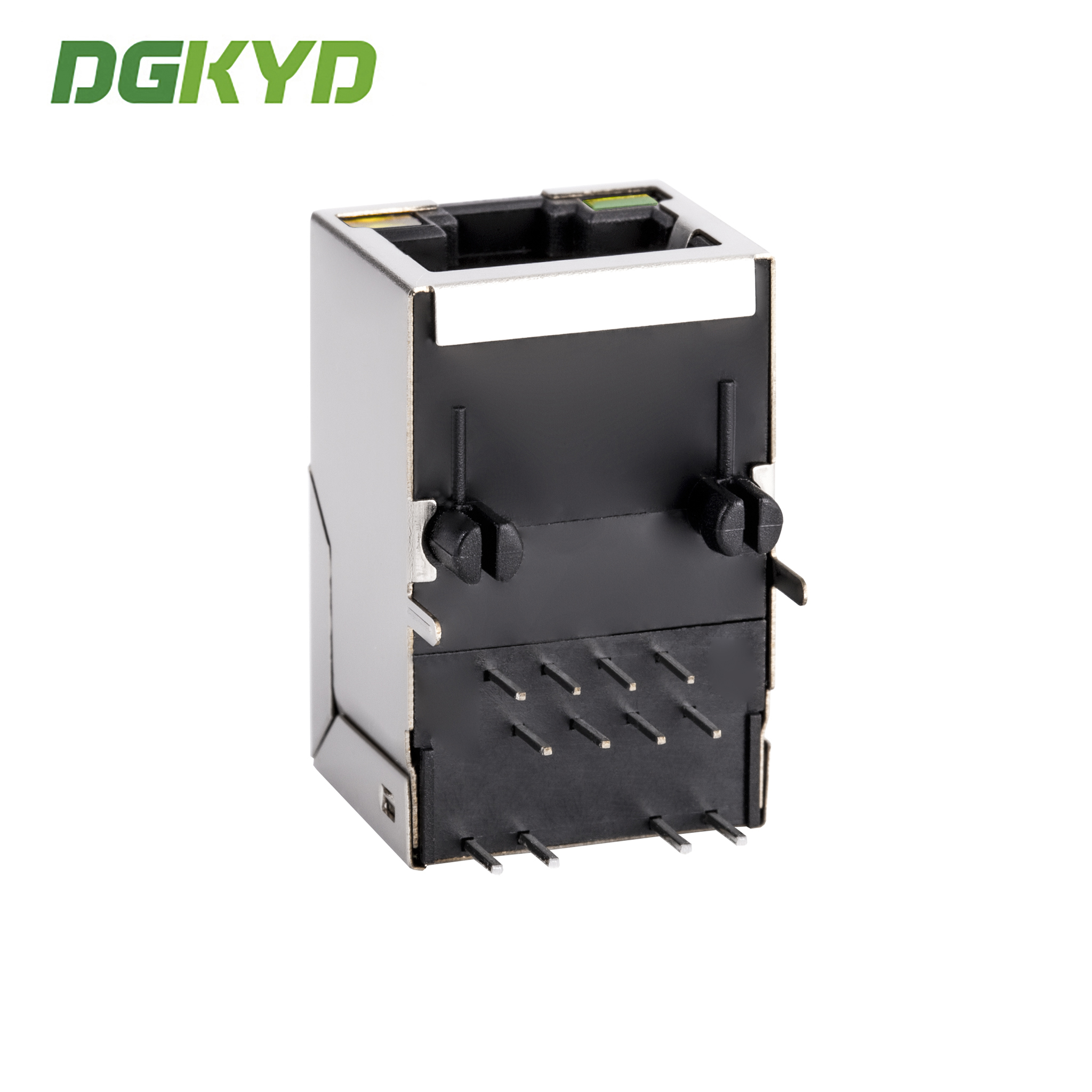

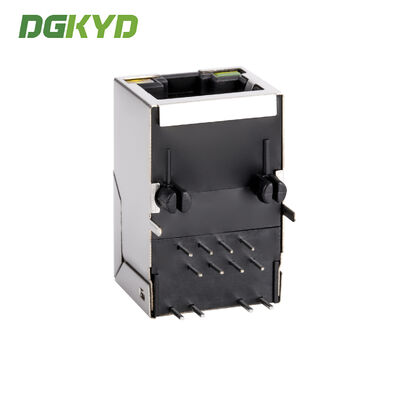

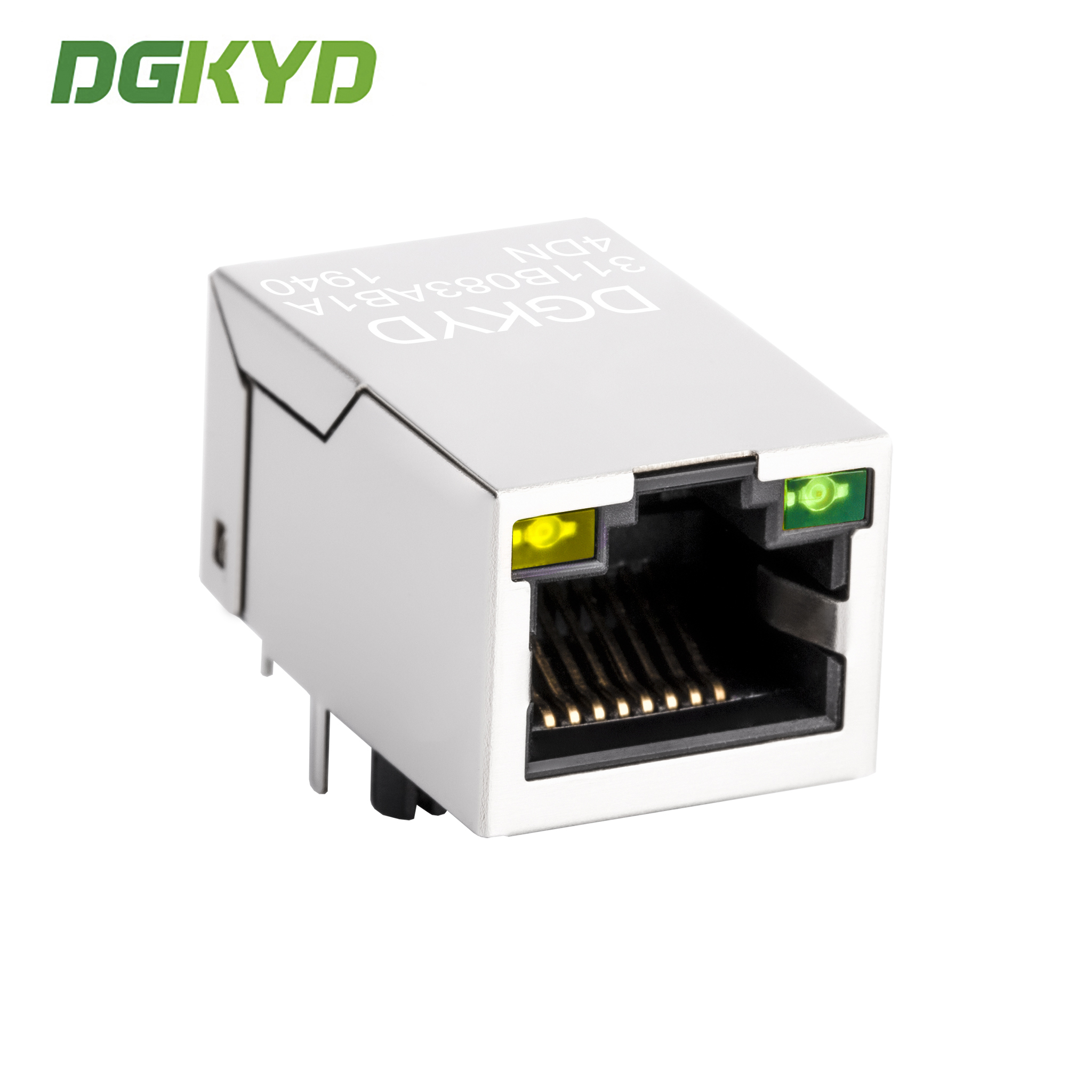

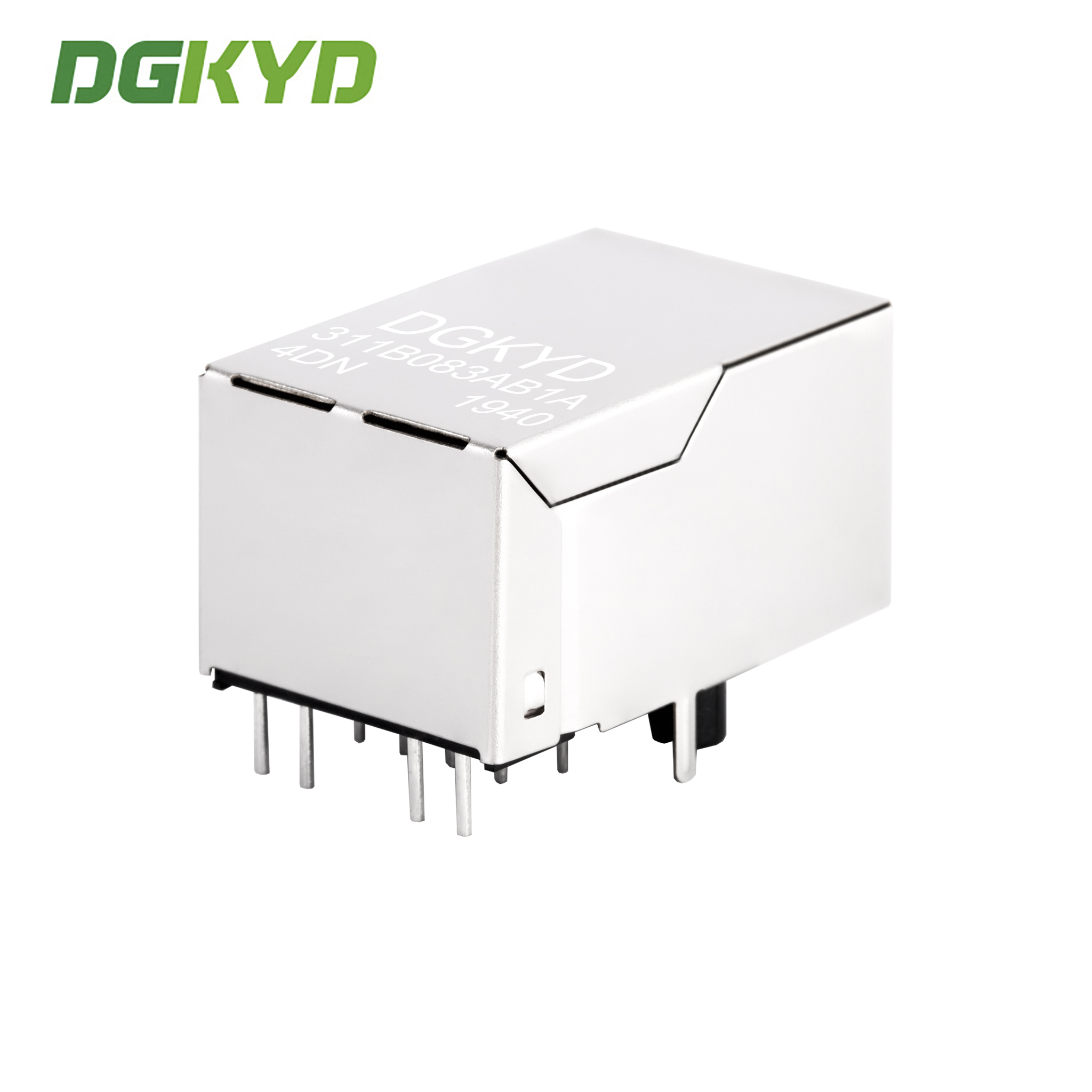

RJ45 Ethernet Connector, 100Mbps Integrated Transformer with Light and Shielding DGKYD311B083AB1A4DN

RJ45 Ethernet connector with integrated transformer, LED indicators, and metal shielding for 100Mbps applications.

Product Specifications

Part Number	DGKYD311B083AB1A4DN
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	1X1 Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

LED Specifications

Emitting Color	Dominant Wavelength (nm)	Forward Voltage (V)	Forward Current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Interface type: crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: high frequency with filtering and anti-interference characteristics
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering compatible with wave soldering height up to 265℃

Manufacturer Advantages

Complete RJ45 integrated circuit accessories series with direct manufacturer supply
Business mode: Manufacturer
Reliable delivery time: approximately two weeks
Extensive customization options available:
- LED indicator lights (green, yellow, red, orange, blue, bi-color LED)
- Shield with or without EMI fingers
- Custom coil ratio of magnetic core
- Diverse magnetics circuit options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing materials (PBT, PA46, PA9T, LCP)
Products meet industry standards for electrical properties, appearance, mechanical performance, and environmental protection
