KRJ -5921S2X3YGZENL Power Over Ethernet Rj45 Connector Metal Shielded stack 2X3 G/Y LED

Contact Now

KRJ -5921S2X3YGZENL Power Over Ethernet Rj45 Connector Metal Shielded stack 2X3 G/Y LED

Name: KRJ -5921S2X3YGZENL Power Over Ethernet Rj45 Connector Metal Shielded stack 2X3 G/Y LED
Brand: DGKYD
SKU: KRJ-5921S2X3YGZENL
Rating: 4.8 (169 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921S2X3YGZENL

Detail Information
Magnetics:	Without Internal Magnetics	Shielded :	Metal Shielded
Connector Style :	Jack	Product Type :	Connector
Connector Type :	Connector Assembly	Number Of Ports:	2x3
Highlight:	poe rj45 connector , rj45 connector with magnetics , KRJ -5921S2X3YGZENL Rj45 Connector

Product Description

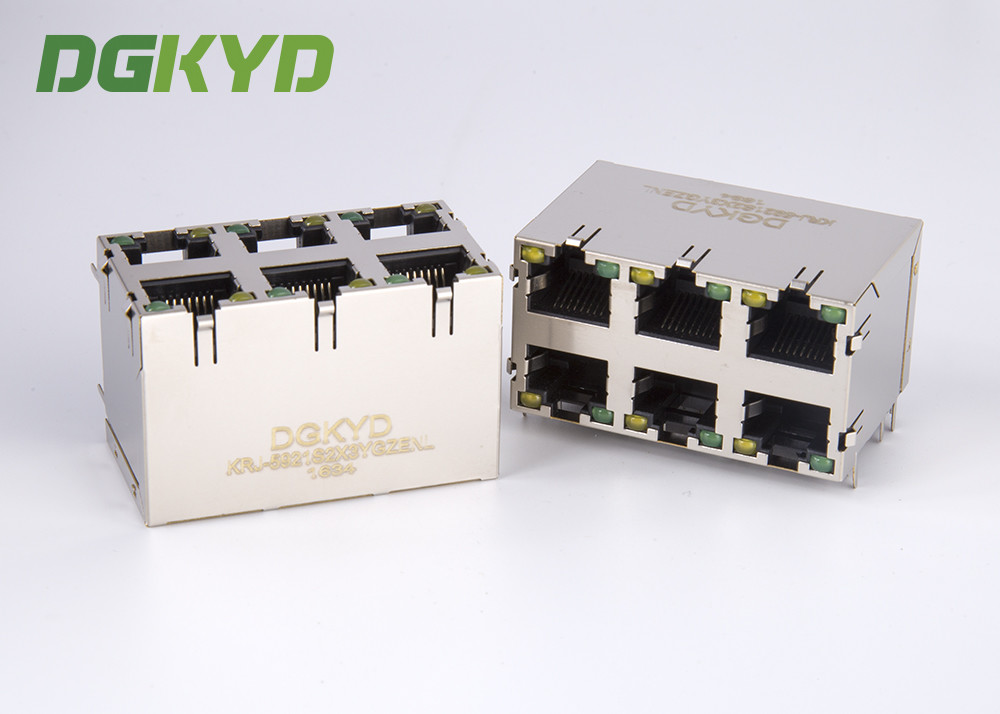

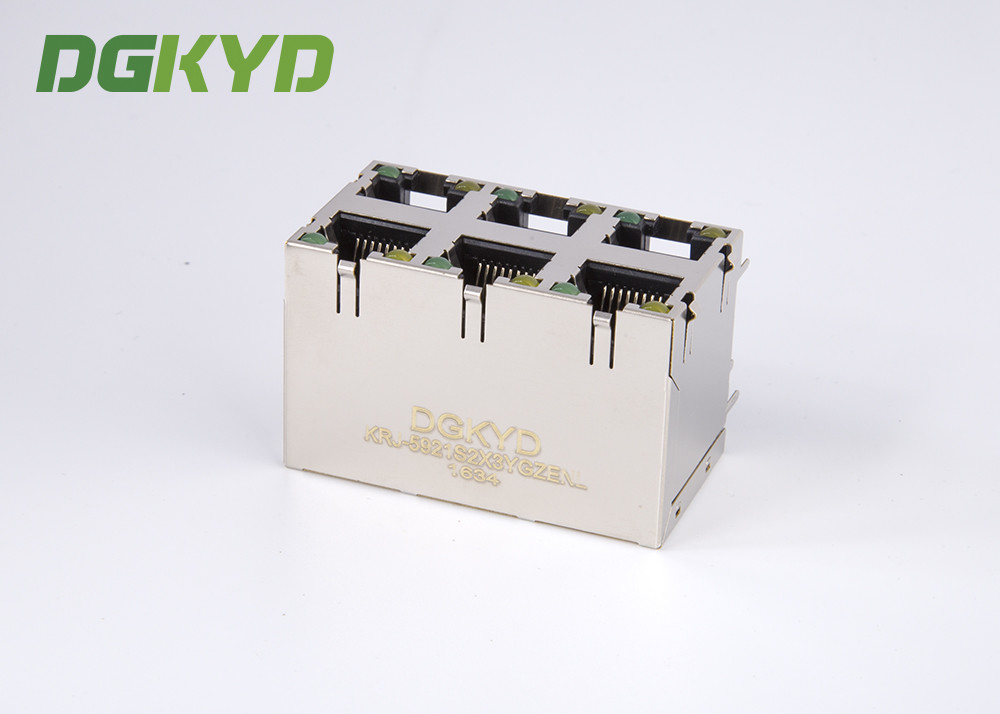

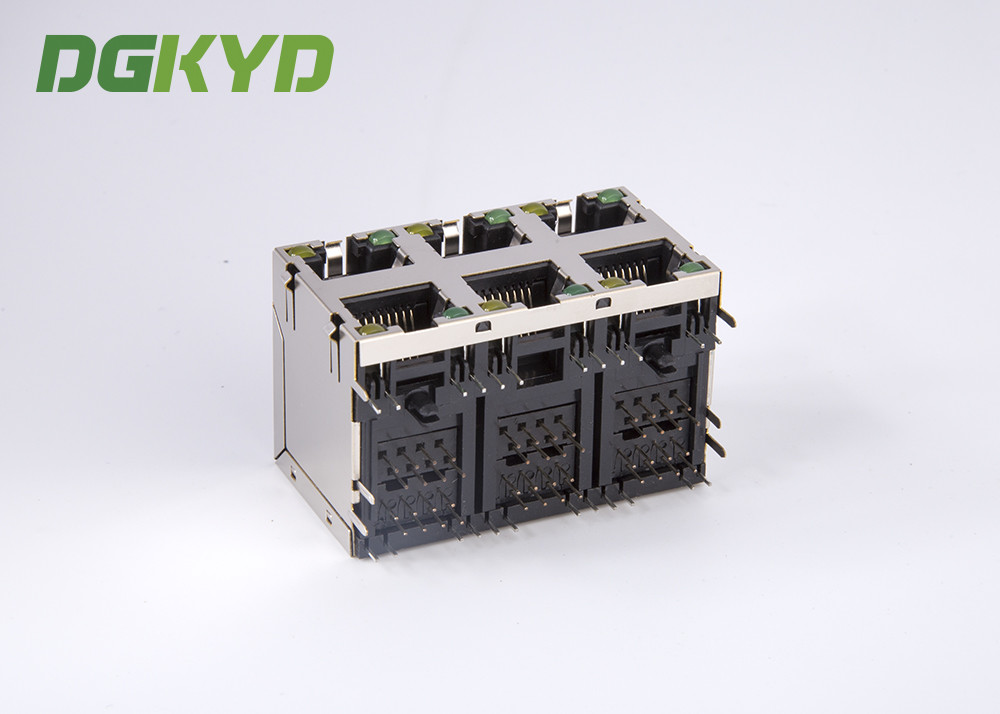

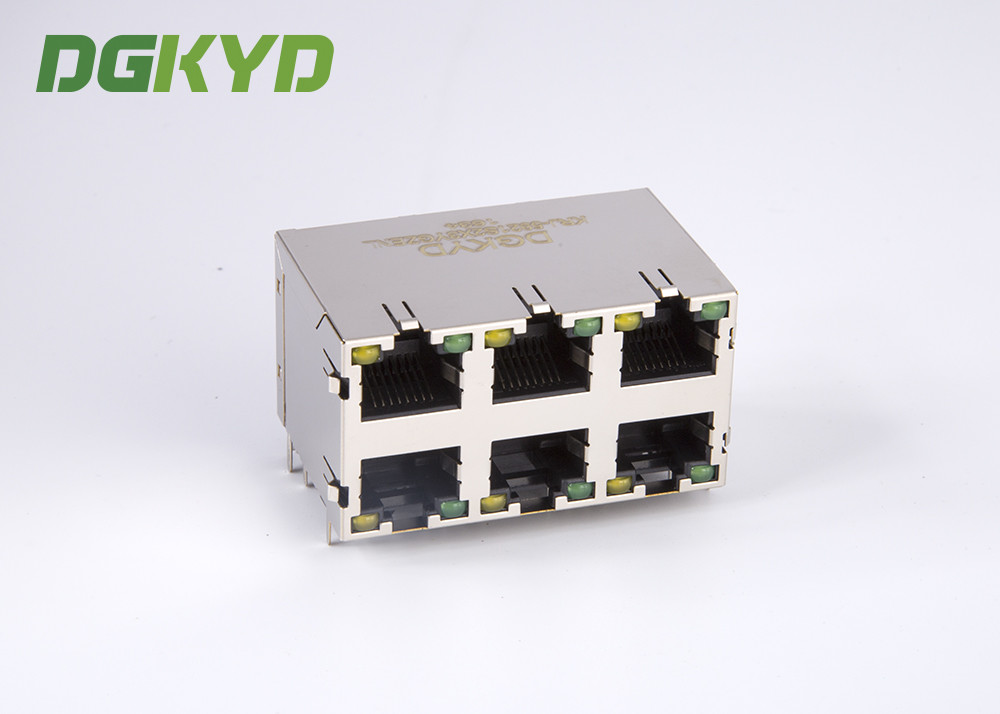

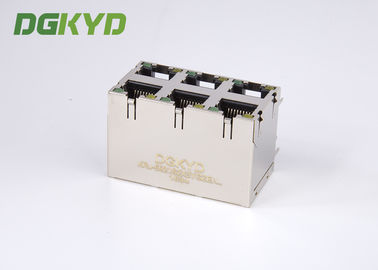

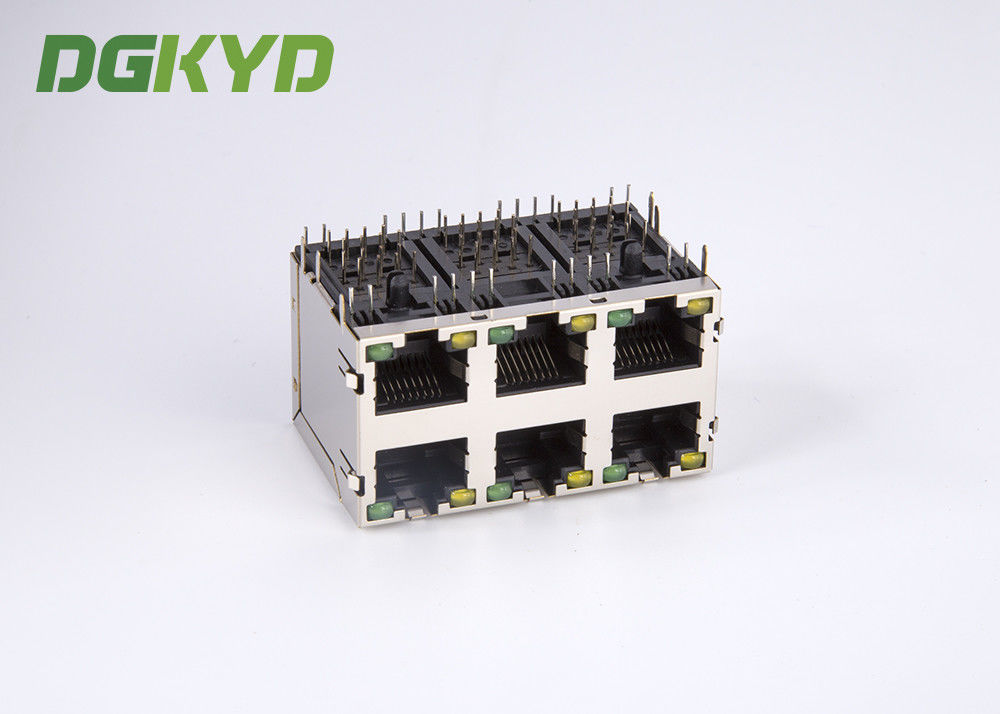

KRJ-5921S2X3YGZENL metal shielded RJ45 stack jack, 2X3, G/Y LEDs, RoHS

Product Type Features

Jack Type RJ45
Shielded Yes
Connector Style Jack
LED G/Y
Performance Category Cat 5/5E/6
Profile Offset - Overhangs PCB
PCB Mounting Orientation Side Entry (Right Angle)
Product Type Connector
Grounding Options Panel Ground and PCB Ground
Panel Stops Yes
Connector Type Connector Assembly

Configuration Features

Port Configuration Stacked
Jack Configuration 2 x 3
Number of Positions 8
Preloaded Yes
Panel Ground Location Top and Side
Terminals per Port 8

Body Features

Grounding Tab Plating Material Tin over Copper
Color Black
Shield Material Copper Alloy
Shield Plating Material Tin over Copper

Packaging Features

Packaging Method Tray
Packaging Quantity 20

Specifications

Housing Material: UL 94V-0 rated glass -filled thermoplastic
Contact Material: Copper Alloy
Contact Plating: Selective gold plating in the contact interface
Jack Tolerances and Dimensions: Compliant with all FCC requirements when plated with 50 (1.27 um) microinches of gold
Current Rating: 1.5 A (maximum) @ 25° C
Voltage Rating: 150 VAC (maximum)

Design Features

Provides 100 grams (minimum) of Contact Normal Force
Performance levels from CAT3 thru CAT6a
A variety of shielding options to provide EMI/RFI protection
Available in 4 through 10 positions with selectively loaded contacts for all configurations of RJ-11 and RJ-45
Numerous keying options available on select models to match keyed plugs
Available with customer specified single or bi-color LED’s
