RJ45 dual port connector without built-in filter, no light strip, shielding pin front 4.57mm DGKYD112B035HWA1D13

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD111Q334AB2A1DP

Detail Information
Category:	Modular Jacks	Component Type:	PCB Jack
Type:	RJ45	Magnetic:	NONE
Performance Category:	Cat 3 5	Insetion Type:	Side Entry
Mount Style:	DIP	OEM/ODM:	Yes
Number Of Positions/Contacts:	8p8c (RJ45, Ethernet)	Gold Plating On Contact Pins:	6U
Storage Temperature:	-40°C~+85°C	Operating Temperature:	-40°C~+85°C
Highlight:	RJ45 dual port connector without filter , RJ45 connector shielding pin front , RJ45 with transformer no light strip

Product Description

RJ45 Dual Port Connector Without Built-in Filter

DGKYD112B035HWA1D13 - Professional RJ45 dual port connector without built-in filter, no light strip, with shielding pin front 4.57mm.

Technical Documentation

Download Product Datasheet (PDF)

Technical Specifications

Specification	Details
Part Number	DGKYD112B035HWA1D13
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard TAB-DOWN
Filter	Without Filter
LED Option	Without LED
Shielded	With metal shield
Port Configuration	Single Ports (1X2)
Number of Positions	8
Terminals per Port	8
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Housing Material	PBT Polyester (Black)
UL Flammability Rating	UL 94V-0

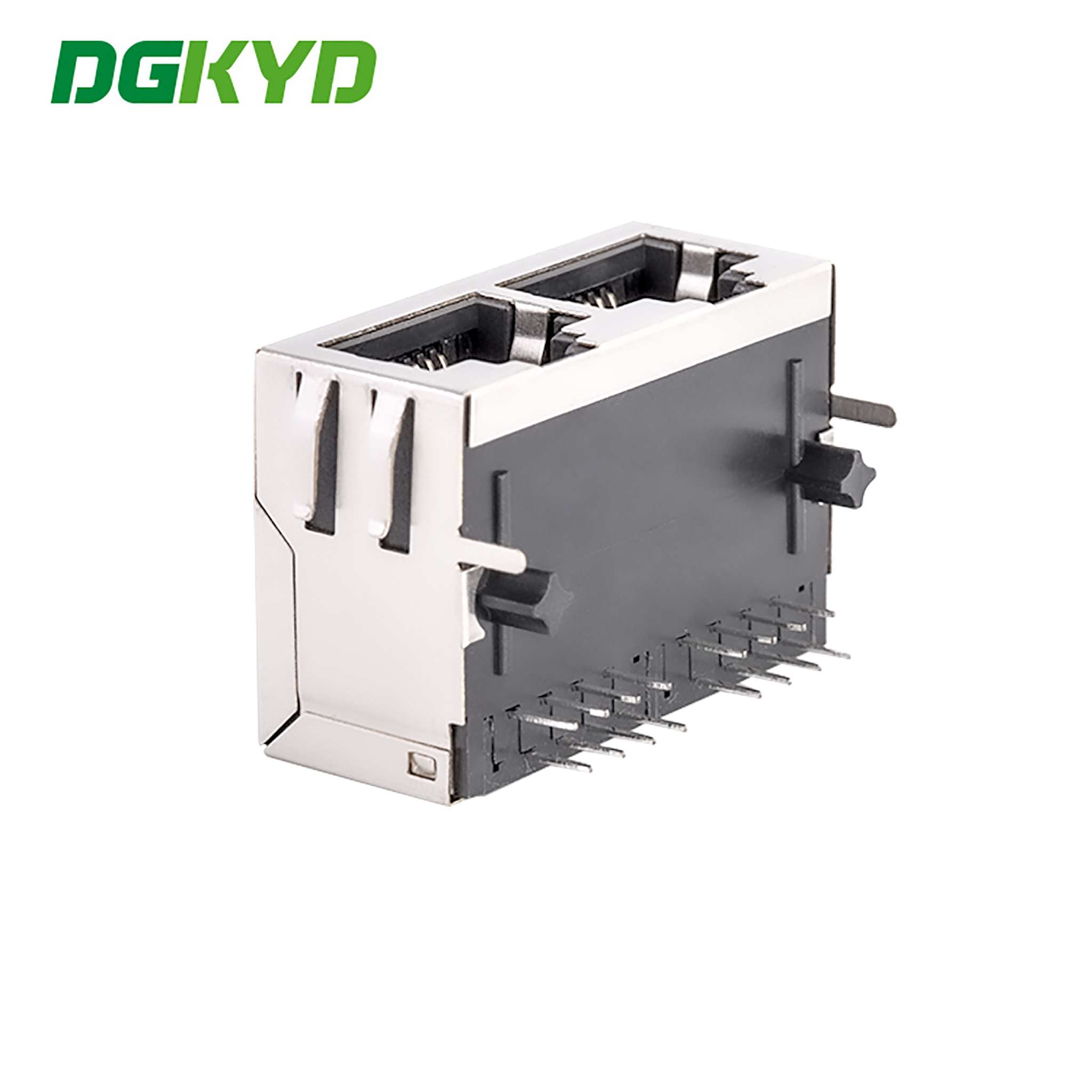

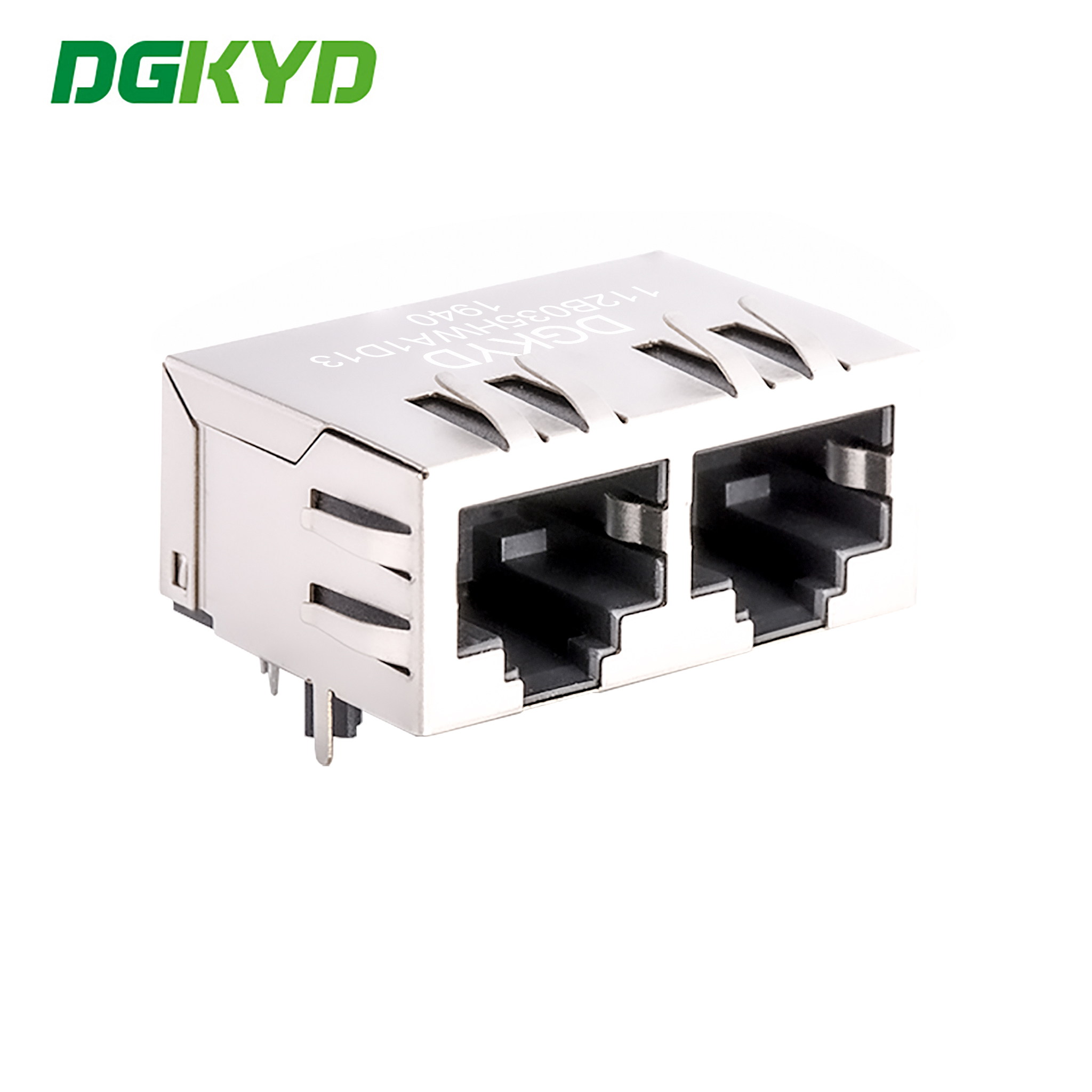

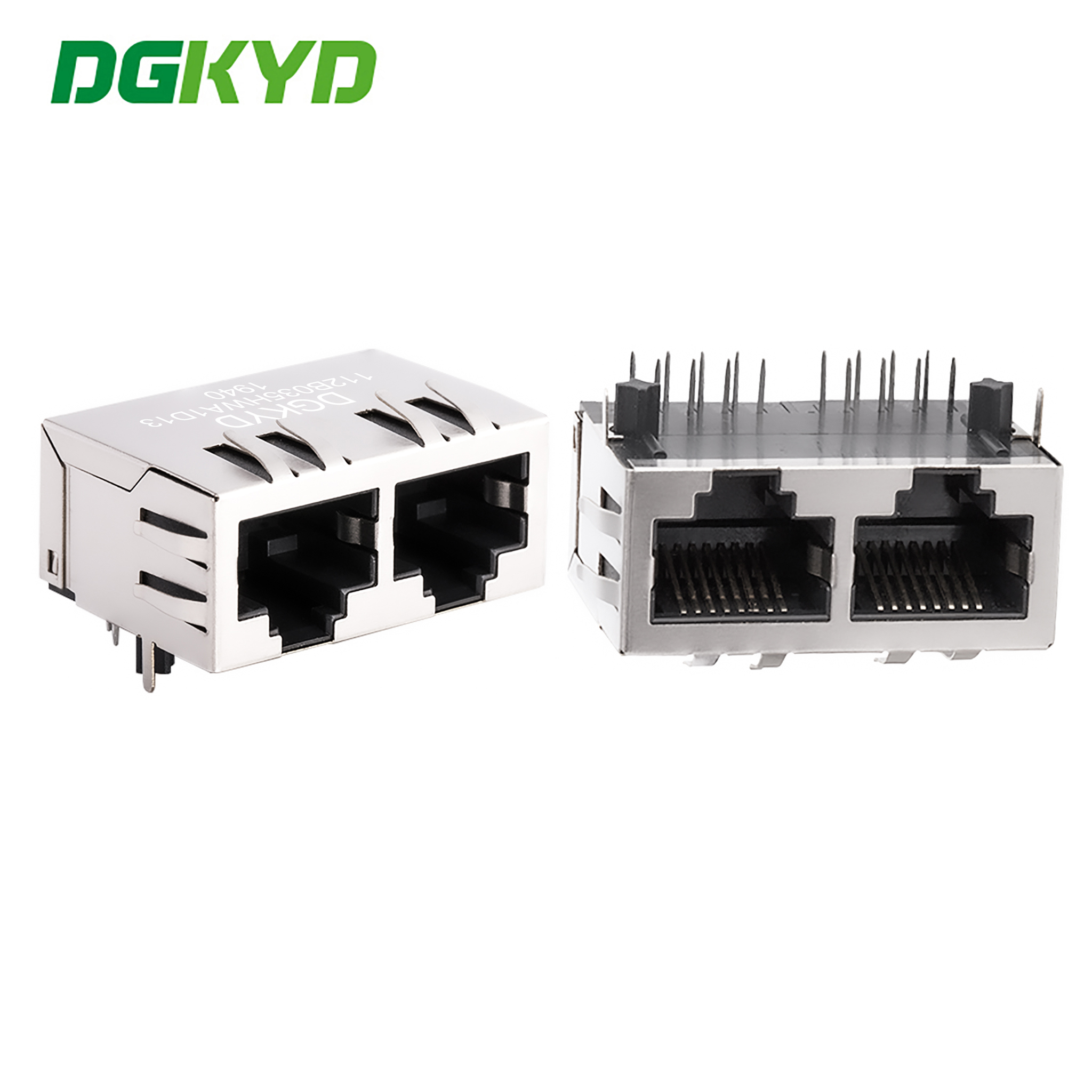

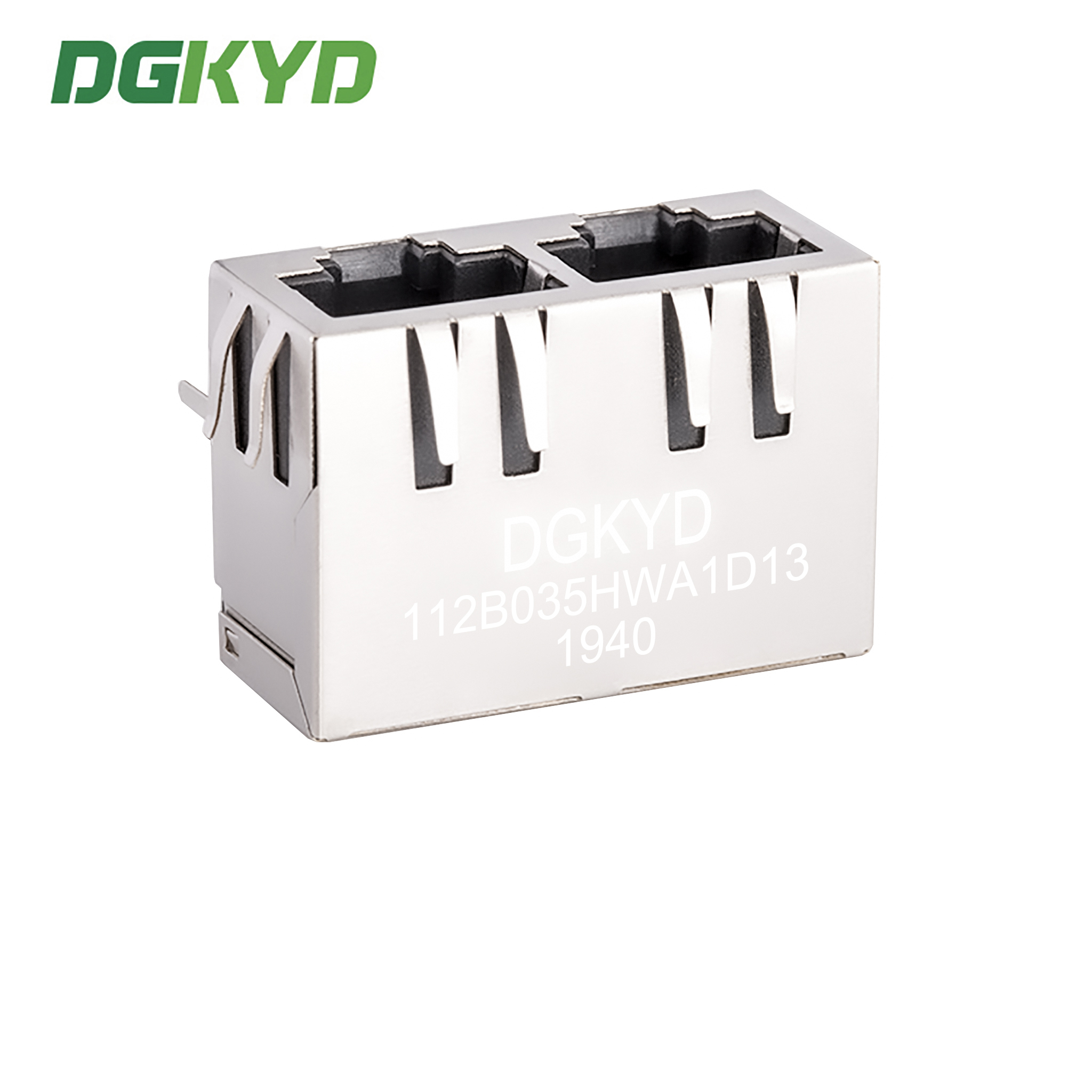

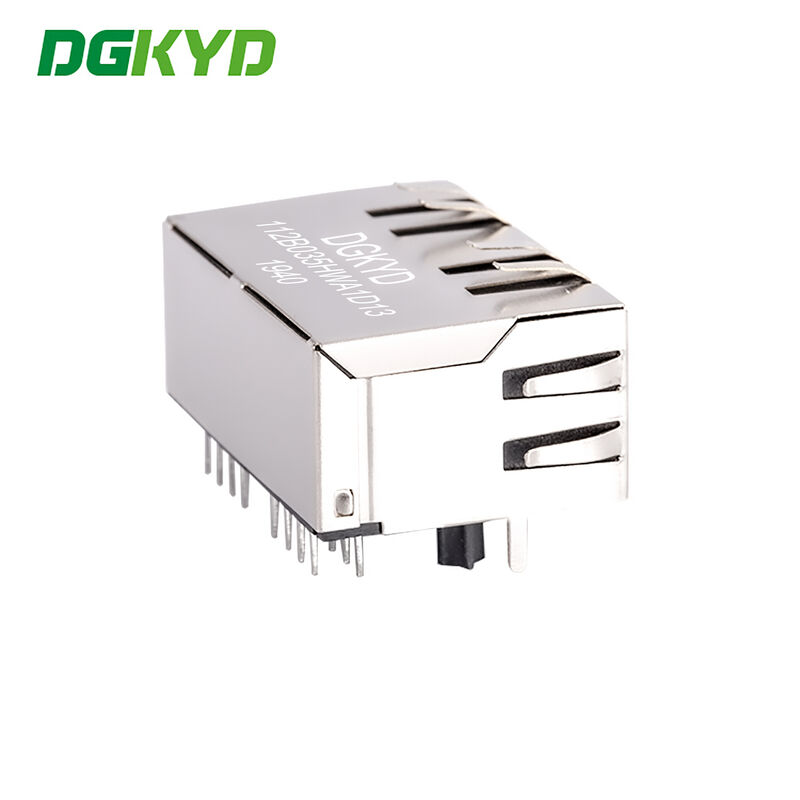

Product Images

Manufacturer Information

Company Profile

Factory Show

Product Catalog

Product Features

Interface type: crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic with filtering and anti-interference
Operating temperature range: -40℃ to 85℃
Storage temperature range: -40℃ to 85℃
Lead free soldering compatible with wave soldering up to 265℃
Full series of integrated circuit accessories available
Manufacturer direct supply with competitive pricing

Customization Options

LED indicator light options (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or without
Various coil ratios of magnetic core
Diverse magnetics circuit options
Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material choices (PBT, PA46, PA9T, LCP)

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer with our own production facilities. Welcome to visit our factory.

Q: What is your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes, we typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on the product?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products according to your specifications.
