KRJ-56B8P8C1X8NL 8 contacts 8 position rj45 modular connector 1X8 multiple port

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-56B8P8C1X8NL

Detail Information

Jack Type : RJ45 JACK Transformer: Without Transformer
Shielded : Metal Shielded Tab: Tab Down
Port Number: 8 Ports Housing Material: PBT Black
High Light:

rj45 multi port jack


plug modular rj45


rj45 modular connector 1X8

Product Description

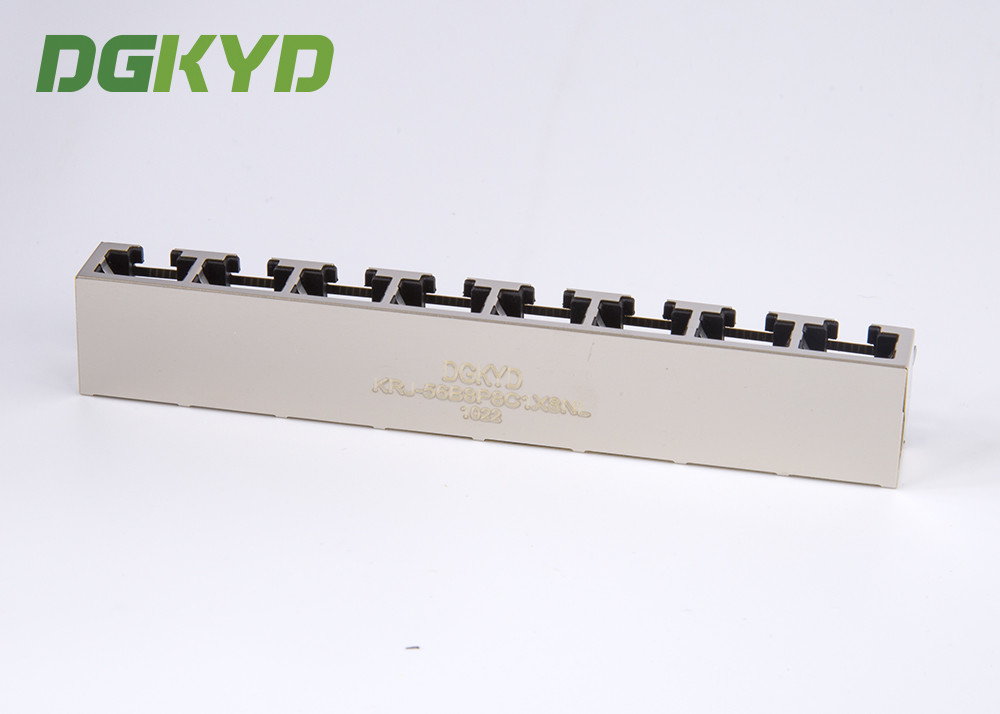

Metal shielded KRJ-56B8P8C1X8NL 1X8 multiple ports rj45 interface jack, for switch

Configuration Features

  • Port Configuration  Multiple

  • Jack Configuration  1 x 8

  • Number of Positions  8

  • Number of PCB Ground Tabs  8

Body Features

  • LED Color (Top Right)  n/a

  • Shield Material  Copper Alloy

  • Shield Plating Material  Tin over Nickel

  • LED Color (Top Left)  n/a

Contact Features

  • Solder Tail Contact Plating Material  Tin over Nickel

  • Contact Mating Area Plating Thickness  0.6 µin 

  • Contact Base Material  Phosphor Bronze

  • Number of Contacts Loaded  8

  • Contact Mating Area Plating Material  Gold

Termination Features

  • Termination Method to PC Board  Through Hole - Press-Fit

Mechanical Attachment

  • Panel Mount Retention  Without

  • PCB Mounting Style  Through Hole

Housing Features

  • Housing Material  PBT Polyester

  • Housing Color  Black

► Product Drawing


KRJ-56B8P8C1X8NL 8 contacts 8 position rj45 modular connector 1X8 multiple port 0
