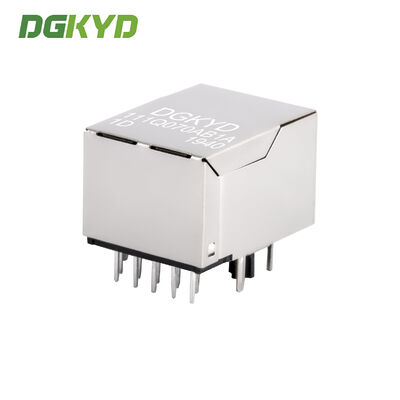

DIP Mount TAB-DOWN RJ45 Network Connector with 2.5G Integrated Transformer Single Port RJ45 Ethernet Jack

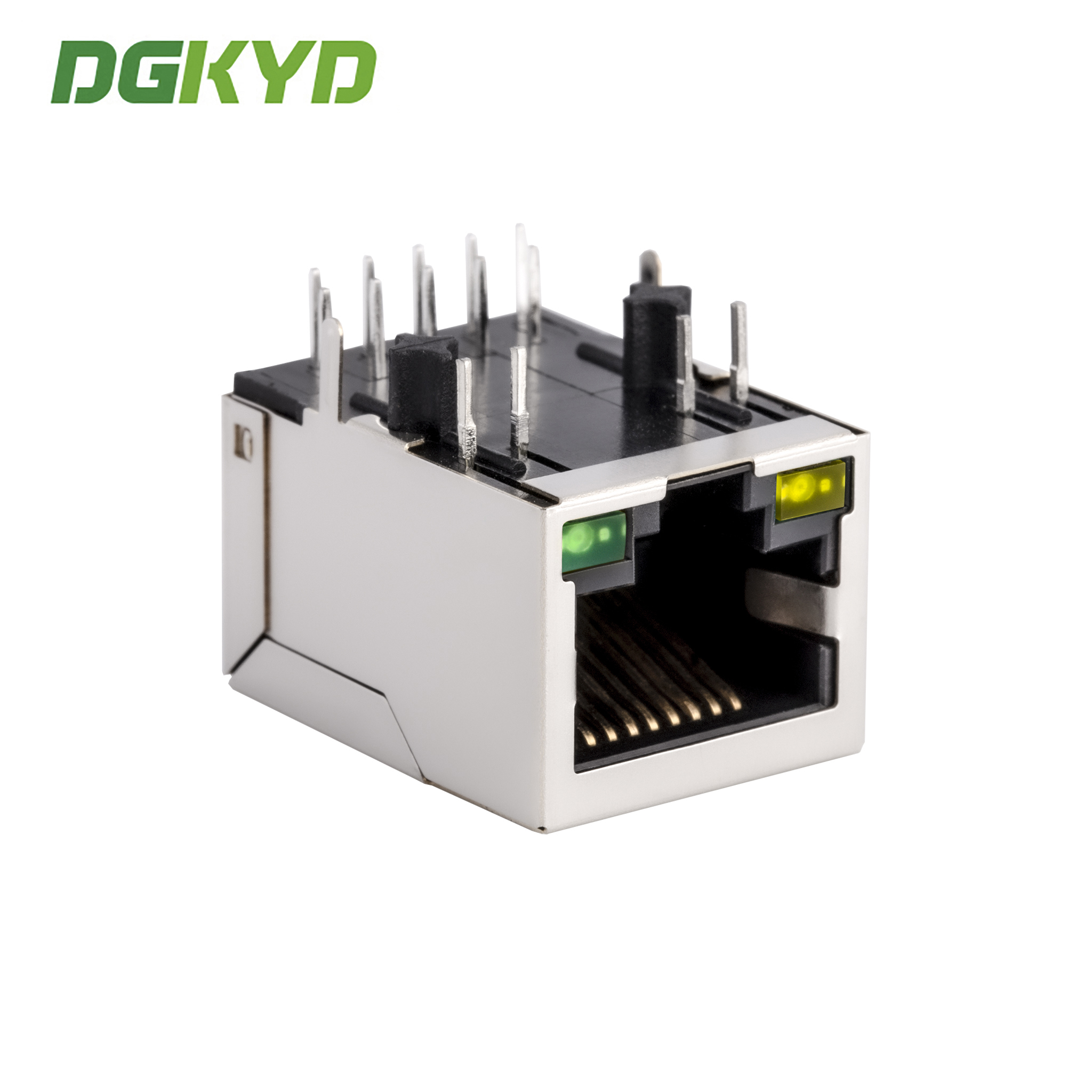

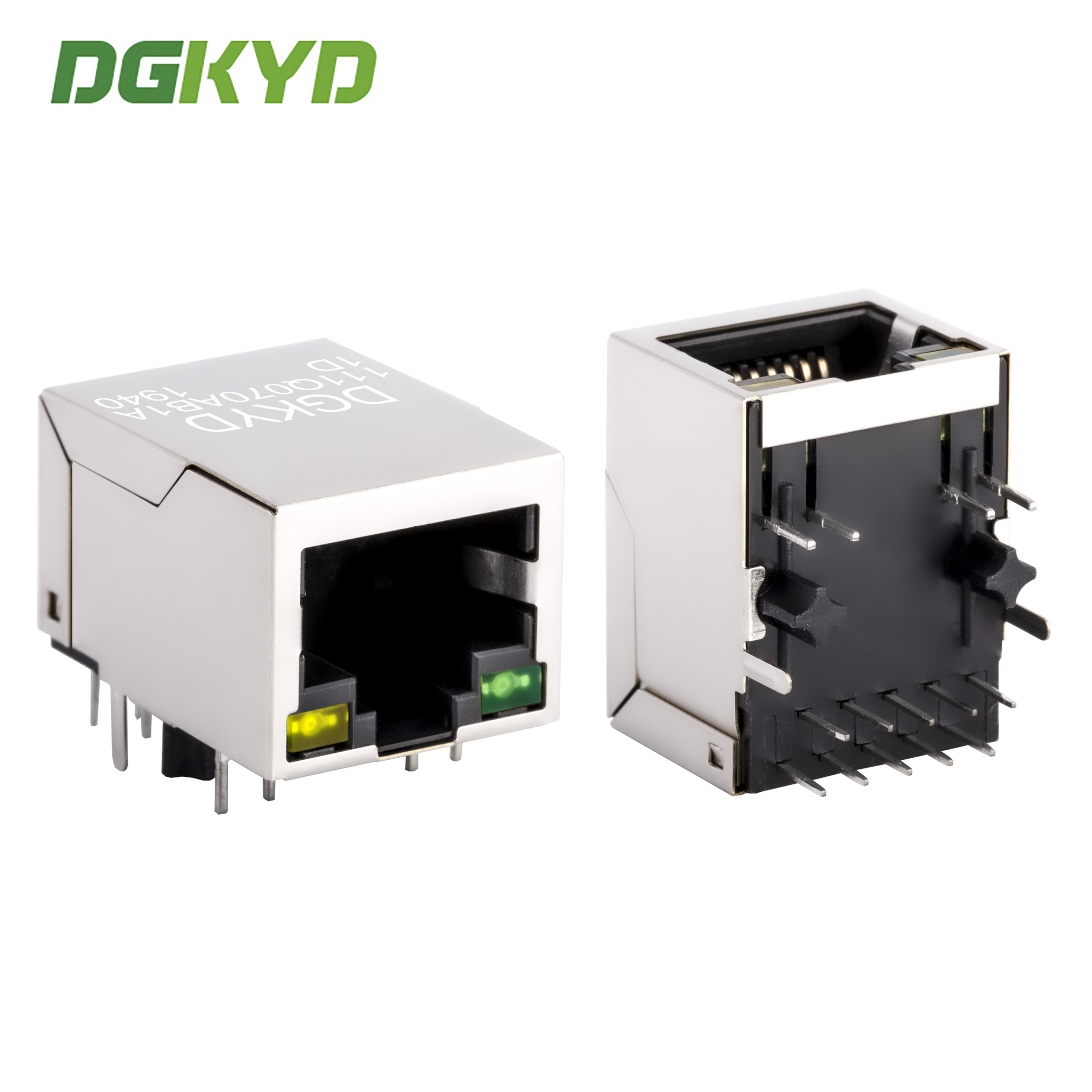

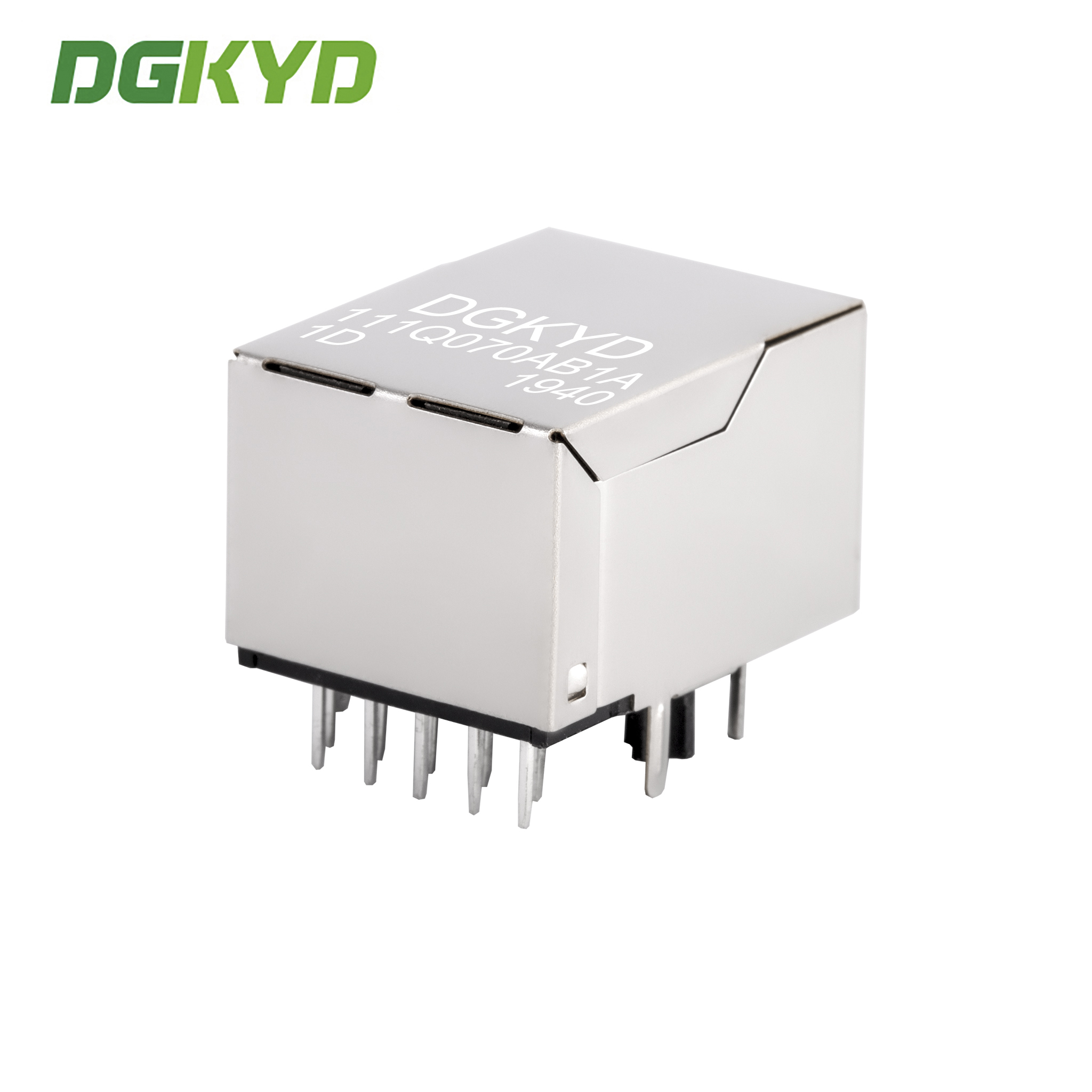

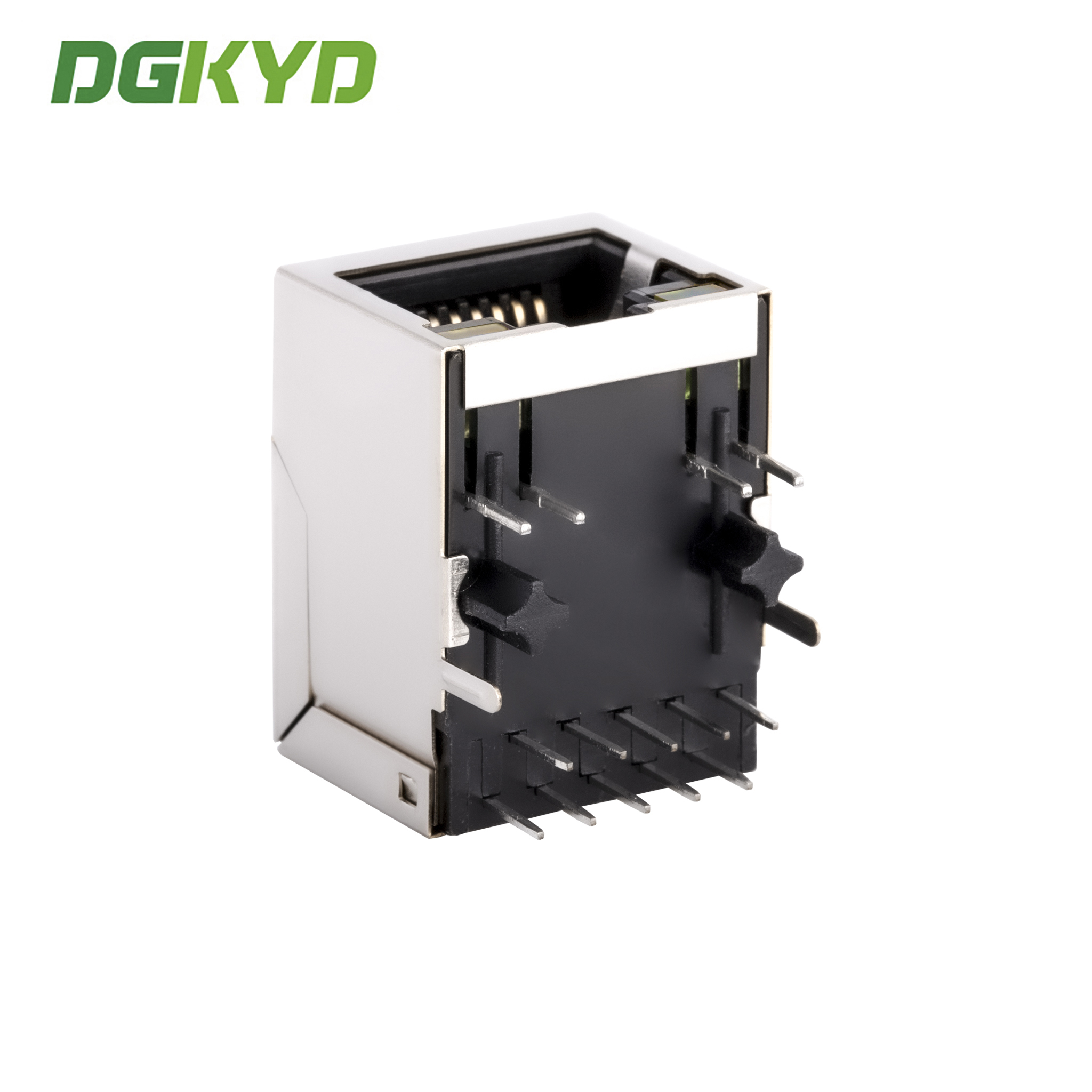

The DGKYD111Q070AB1A1D is a DIP-mount, single-port RJ45 network connector featuring a TAB-DOWN latch and integrated magnetics. Designed for reliable Ethernet connectivity on printed circuit boards, it combines a shielded modular jack with built-in filtering, LED indication, and a robust through-hole mounting interface suitable for demanding industrial and networking applications.

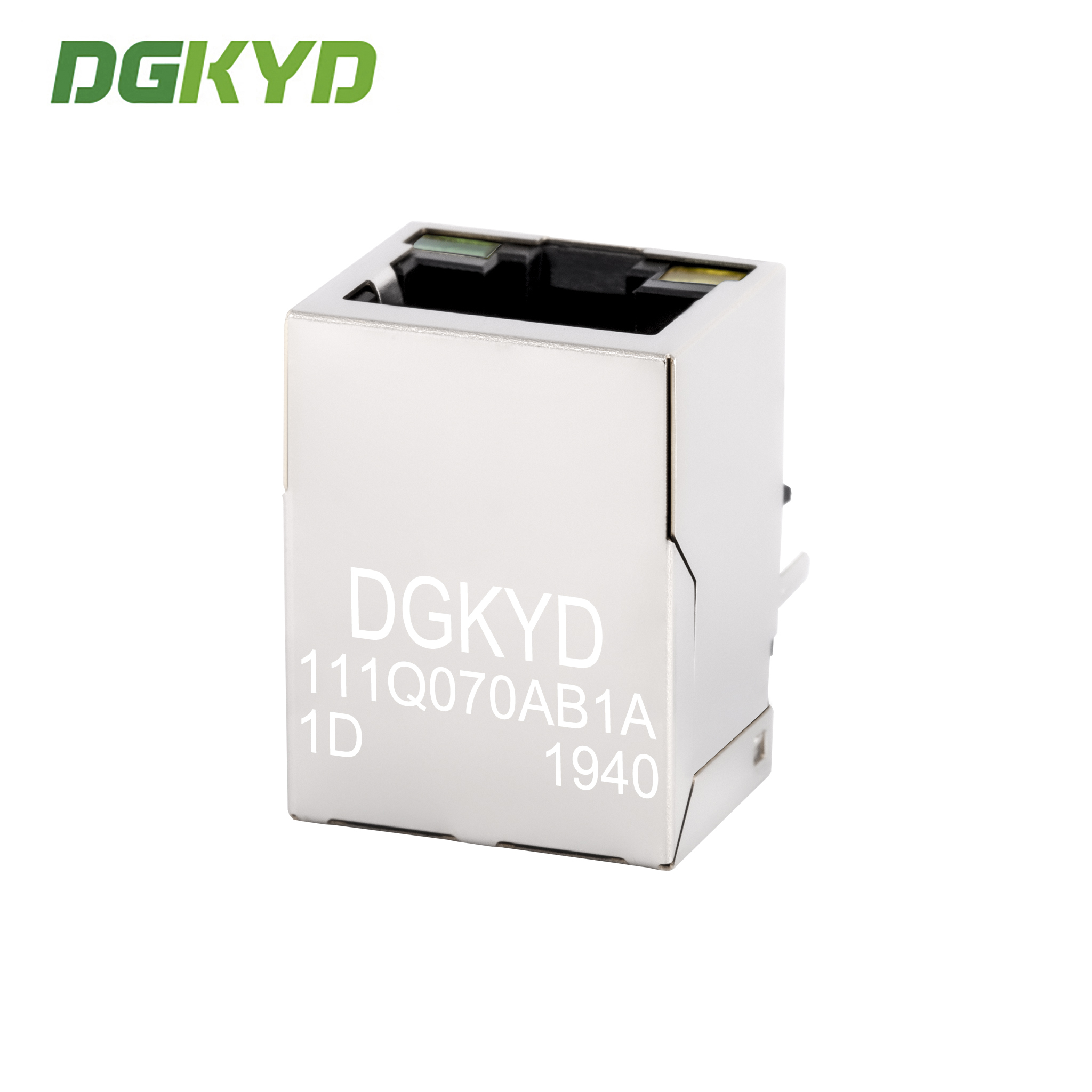

Part Number: DGKYD111Q070AB1A1D

• Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
• Type: RJ45 with built-in magnetics
• Working Frequency: High frequency with filtering and anti-interference characteristics
• Working Temperature: -40°C to 85°C
• Storage Temperature: -40°C to 85°C
• Lead-Free Soldering: Wave soldering height up to 265°C

Full series of integrated circuit RJ45 accessories, available direct from the manufacturer.

• Business Mode: Manufacturer
• Delivery Time: Approximately two weeks for standard orders
• Customization Options:
  • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or without
  • Coil ratio of magnetic core
  • Magnetics circuit diversification options
  • Contact gold plating (FU, 3U, 6U, 15U, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective.
