RJ45 Ethernet Connector Gigabit Integrated Transformer with LED and Metal Shield DGKYD112Q066DA2A1D

Contact Now

RJ45 Ethernet Connector Gigabit Integrated Transformer with LED and Metal Shield DGKYD112Q066DA2A1D

Minimum Order Quantity :	1 piece	Price :	Negotiable
Packaging Details :	1080pcs/carton	Delivery Time :	7-14days
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,	Supply Ability :	60000pcs per day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD112Q066DA2A1D
Document:	DGKYD112Q066DA2A1D.pdf

Detail Information
Product Name:	RJ45 Ethernet Jack	Housing Material:	PBT Black
Number Of Ports:	Double Port	Clamp Direction:	TAB-DOWN
Integrated Transformer:	1000M	PCB Mount Style:	DIP
LED Option:	With LED	Shield:	With Metal Shield
Product Standard:	Meets IEEE 802.3 Specification	Operation Temperature:	-40°C~+85°C
Storage Temperature:	-40°C~+85°C
Highlight:	Gigabit Integrated Transformer RJ45 Ethernet Connector , With LED RJ45 Modular Jack , With Metal Shield RJ45 Network Connector

Product Description

RJ45 Ethernet Port Connector Gigabit Integrated Transformer with Light and Shielding DGKYD112Q066DA2A1D

Product Overview

RJ45 Ethernet port connector featuring Gigabit integrated transformer with LED indicators and shielding. Part number: DGKYD112Q066DA2A1D

Technical Parameters

Part Number	DGKYD112Q066DA2A1D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Double Port	Number of Positions	10
Jack Configuration	1X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

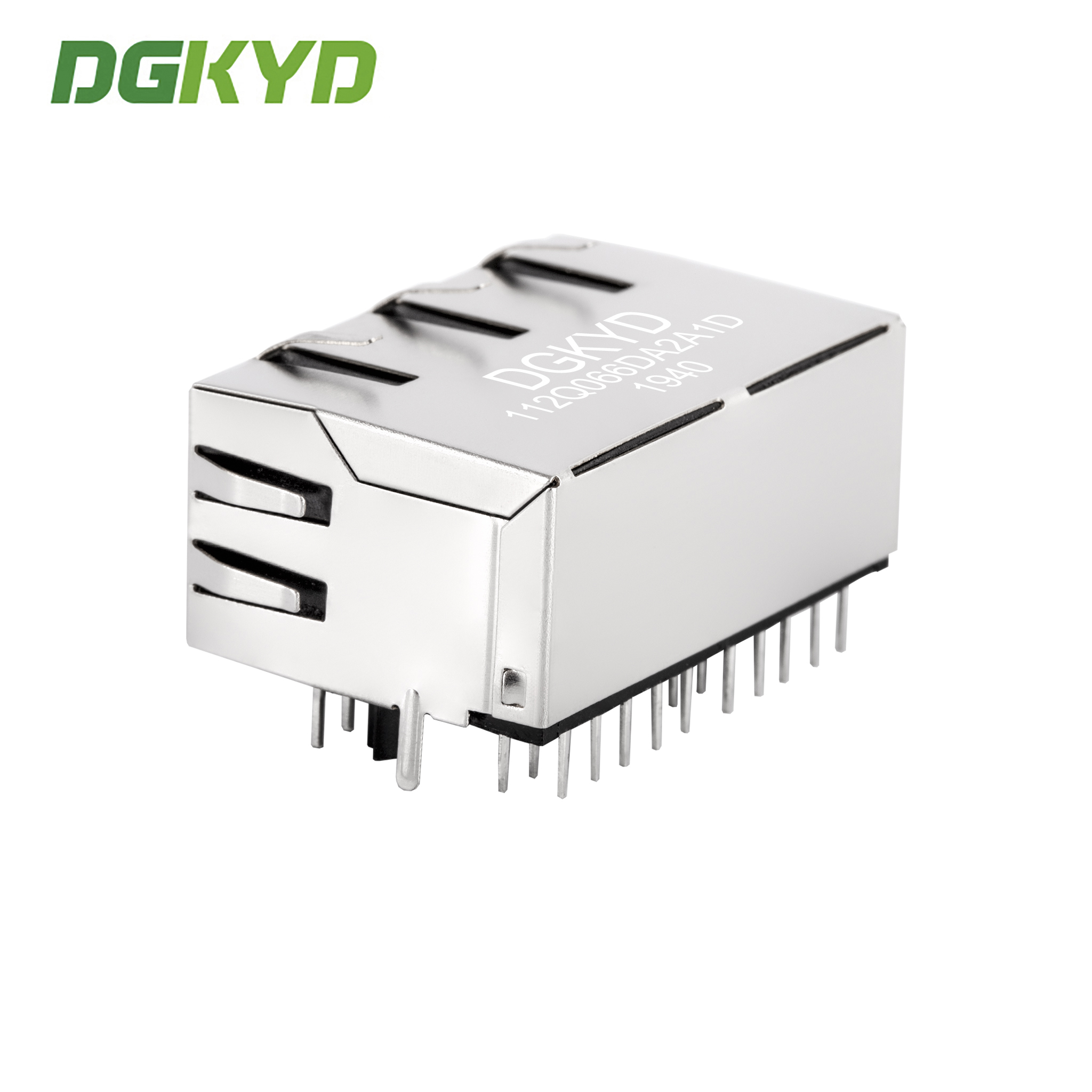

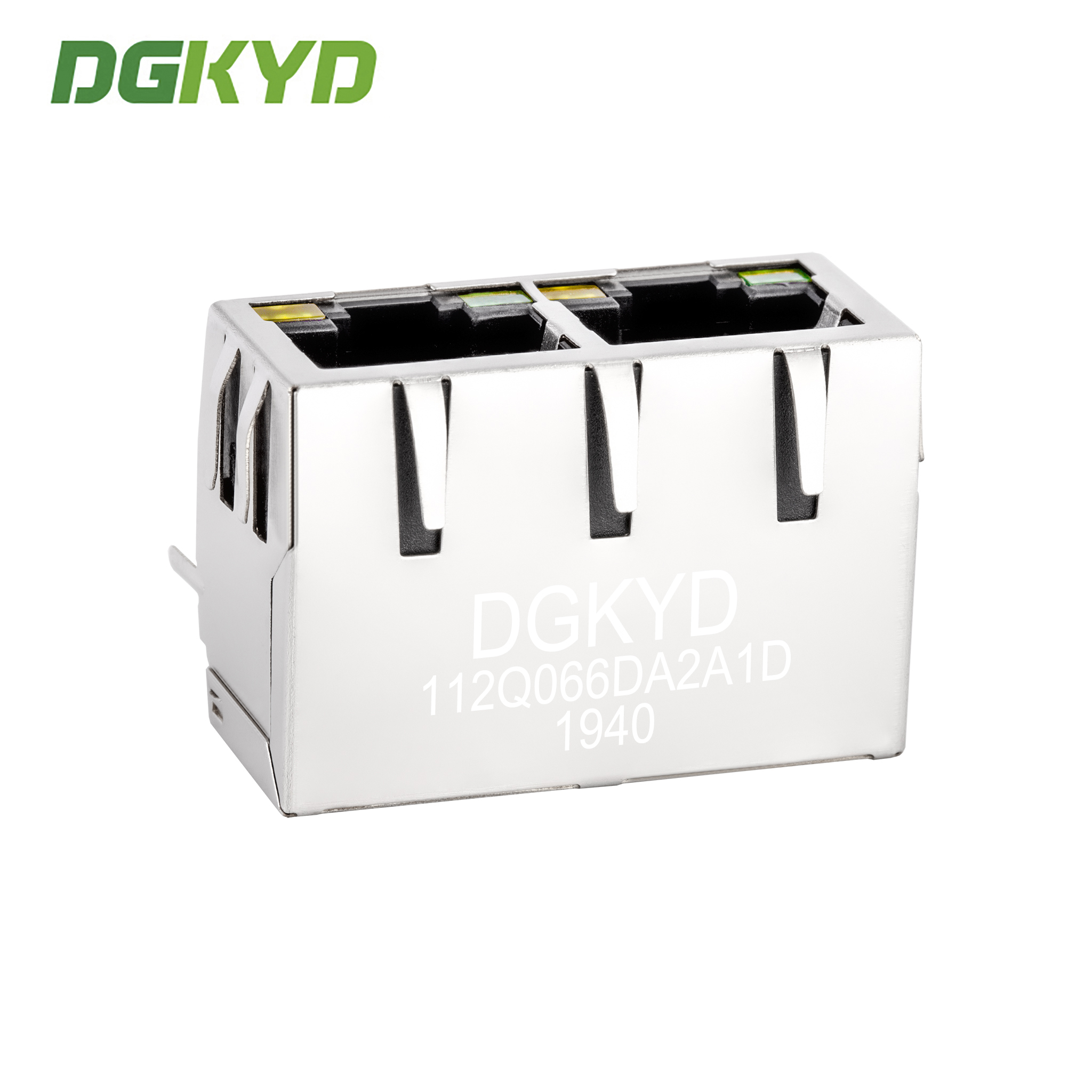

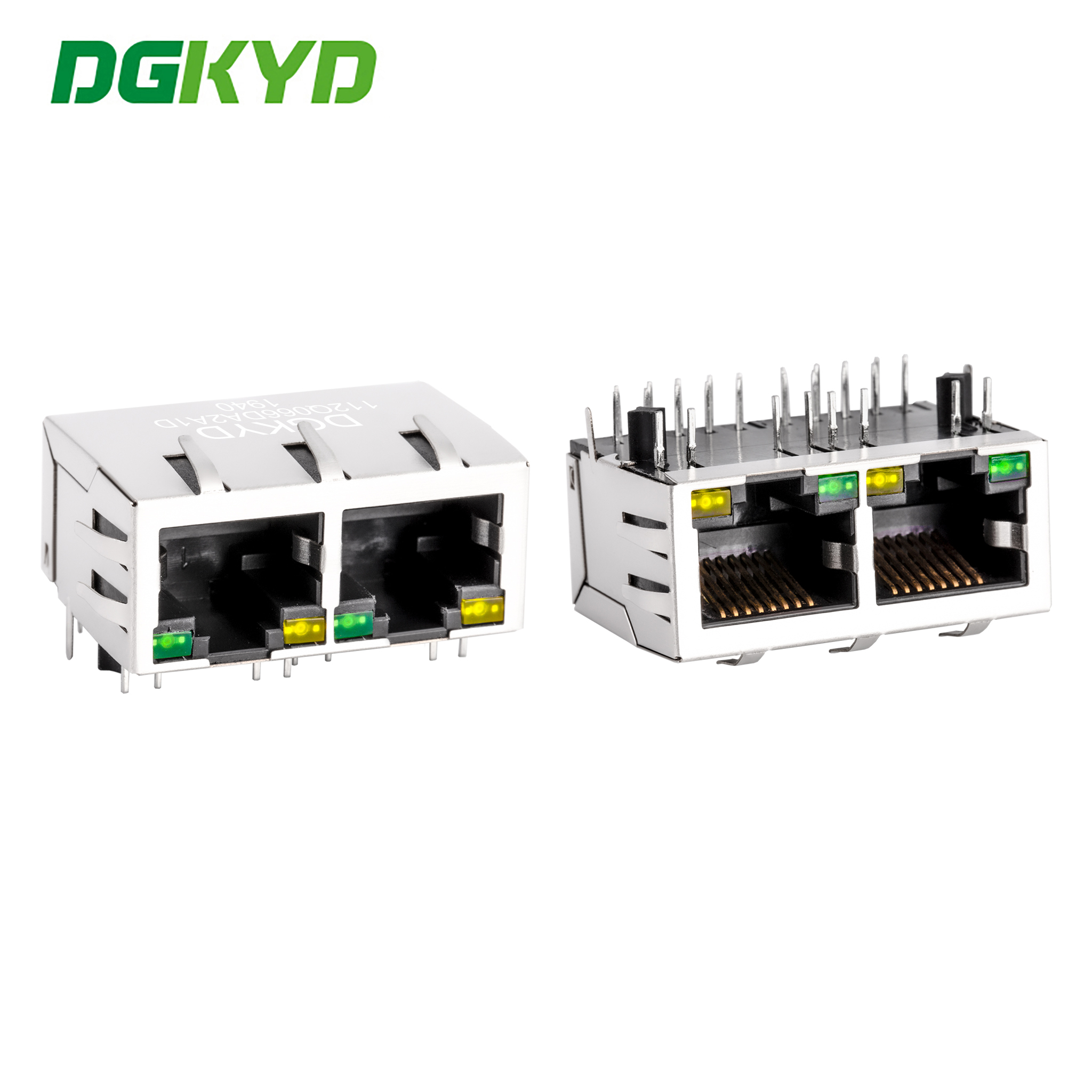

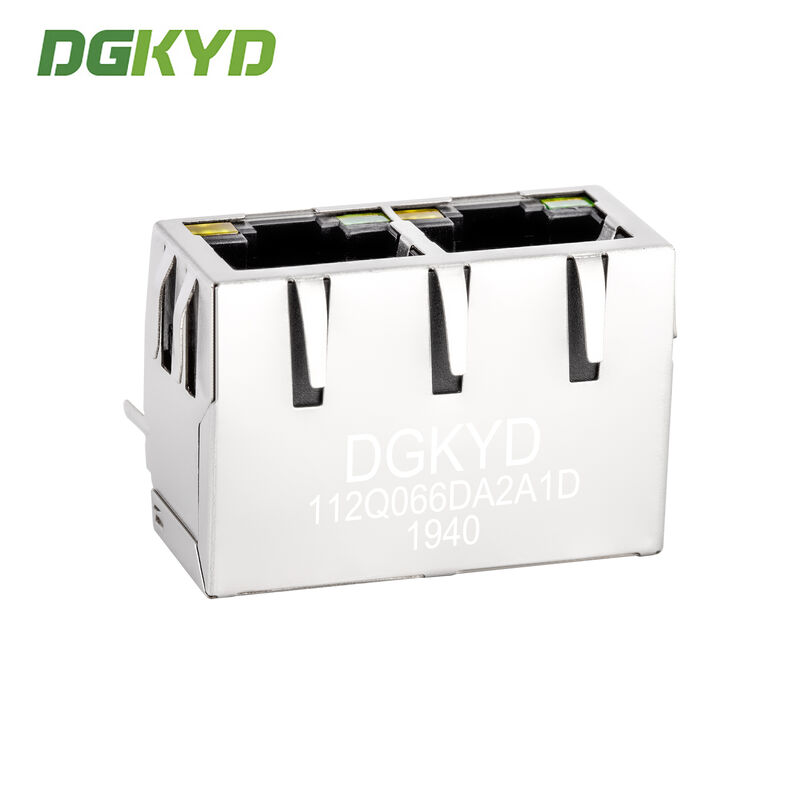

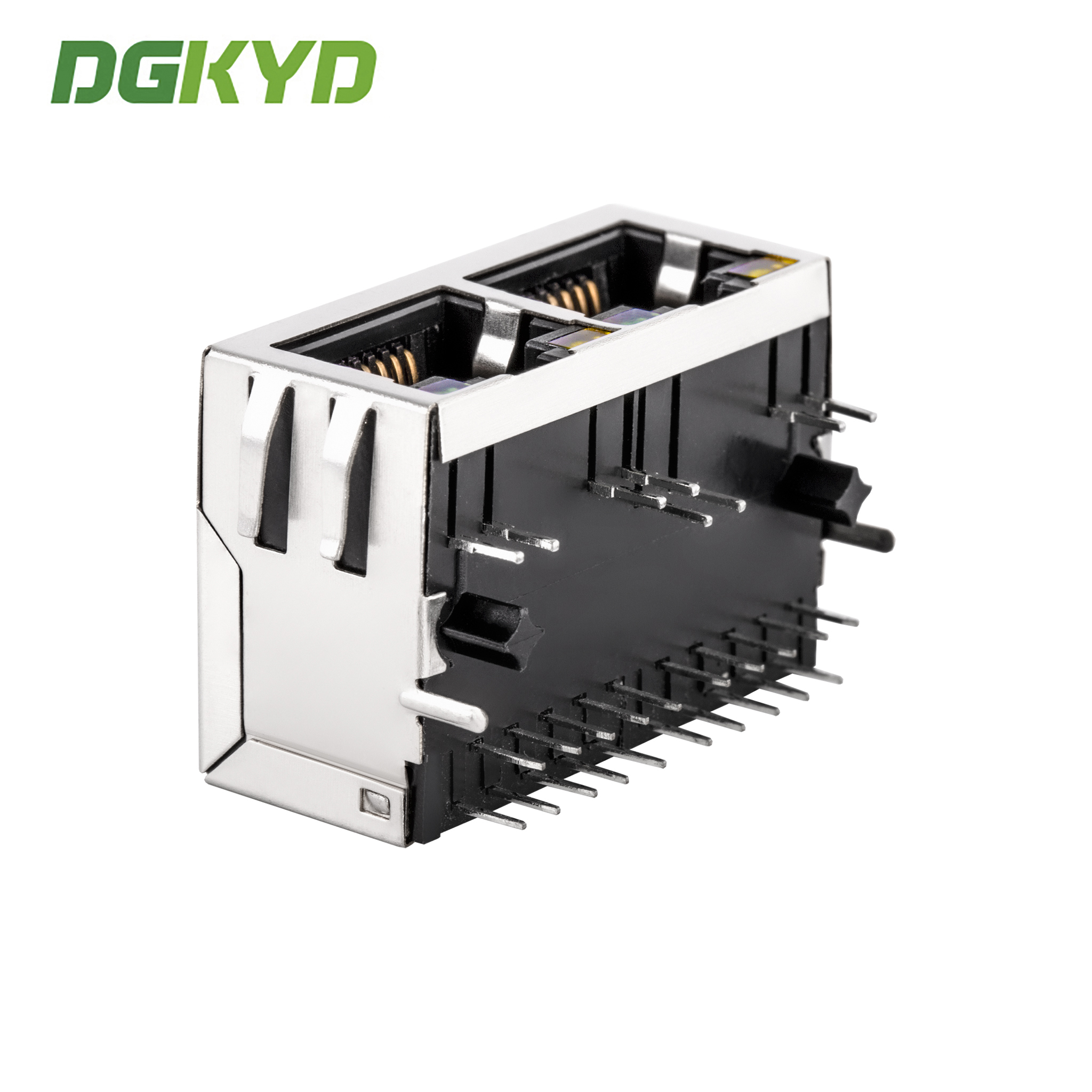

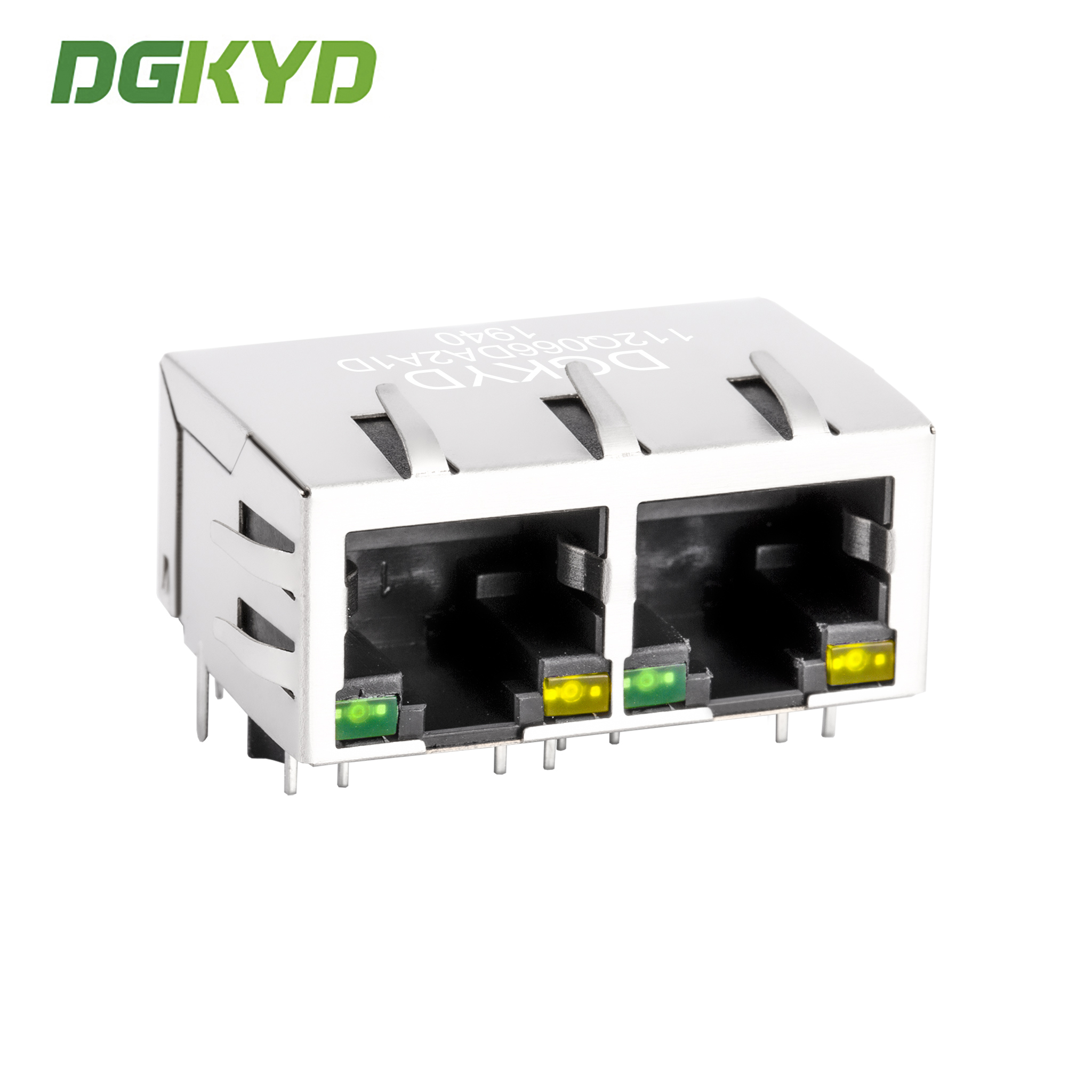

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
