Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking

Contact Now

Industrial-Grade Gigabit RJ45 Ethernet Connector with Built-in Magnetics for High Performance Networking

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD211Q784CB2A4D
Document:	DGKYD211Q784CB2A4D.pdf

Detail Information
Feature:	High Performance,magnetics	RJ45 Suitable:	For CAT5&6 Ethernet Cable Or UTP
Application:	Lan,bridge,PC,router,usb Hub Network Rj45 And Other Ethernet Devices	Gender:	Female RJ45
Product Name:	RJ45 Ethernet Connector	Latch:	Tab-UP
PCB Mount Angle:	SIDE ENTRY	Mount Stlye:	Though Hole
Operation Temperature:	-40°C~+85°C	Storage Temperature:	-40°C~+85°C

Product Description

Gigabit Connector Molded Block Socket Industrial-Grade RJ45 Network Interface DGKYD211Q784CB2A4D

Product Overview

Gigabit connector molded block socket industrial-grade RJ45 network interface DGKYD211Q784CB2A4D

Key Features

Interface type: Crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: High frequency with filtering and anti-interference characteristics
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering: Wave soldering height up to 265℃

Manufacturing Capabilities

Business mode: Manufacturer direct supply
Delivery time: Approximately two weeks
Customization options: LED indicator lights (green, yellow, red, orange, blue, bi-color)
Shield with EMI fingers or standard
Coil ratio of magnetic core options
Magnetics circuit diversification
Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material options (PBT, PA46, PA9T, LCP)

Performance Parameters

Applied to Ethernet with coil ratio: 1CT:1CT
Complies with IEEE 802.3 & ANSI X 3.263 standards
Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8mA DC Bias
Wave soldering process of 265℃ Max meeting EU ROHS standards
Withstand voltage: 2250VDC 1mA max, 60s
Impedance: 100 ohms
RJ45 interface meets FCC 68.5 standard
DC resistance: 1.5 Ω

Technical Specifications

Parameter	Specification
Part Number	DGKYD211Q784CB2A4D
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Green/Yellow
Panel Stops	With Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX
Suitable for welding type	Reflowsolding (Alternative)
Port Configuration	Single Ports
Number of Positions	10
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

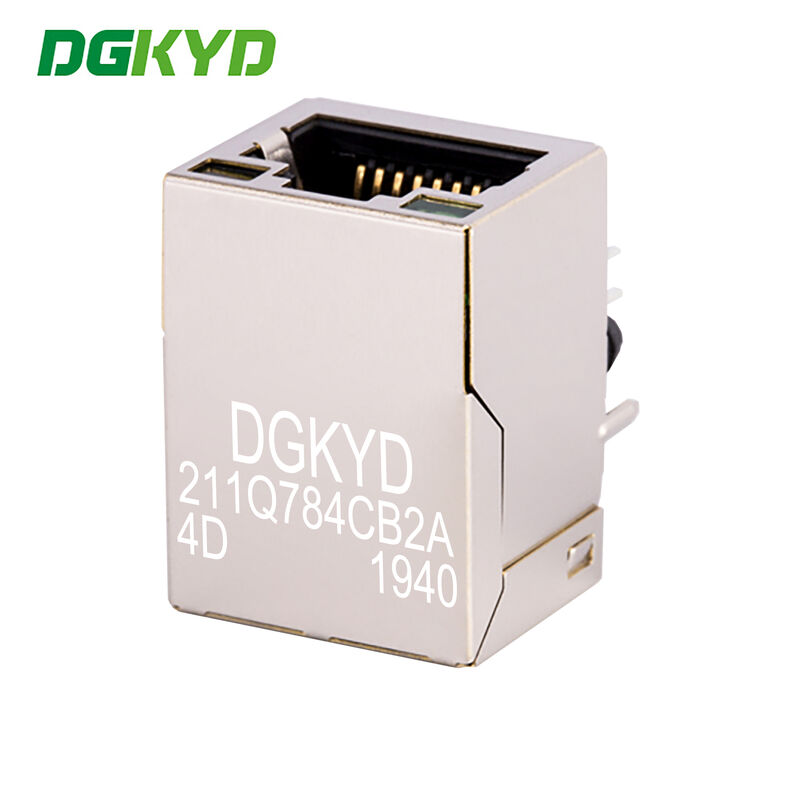

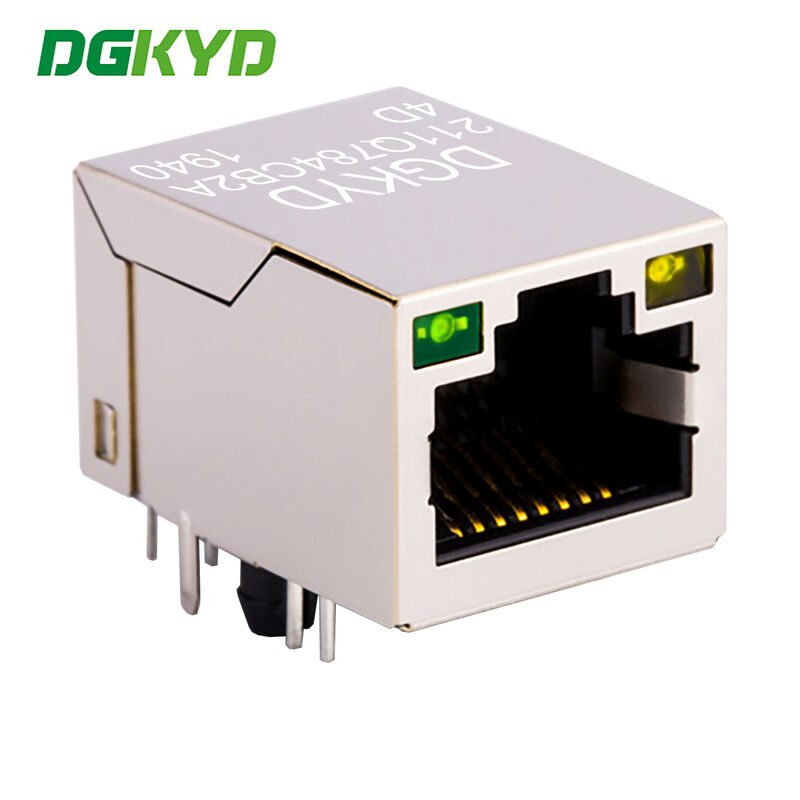

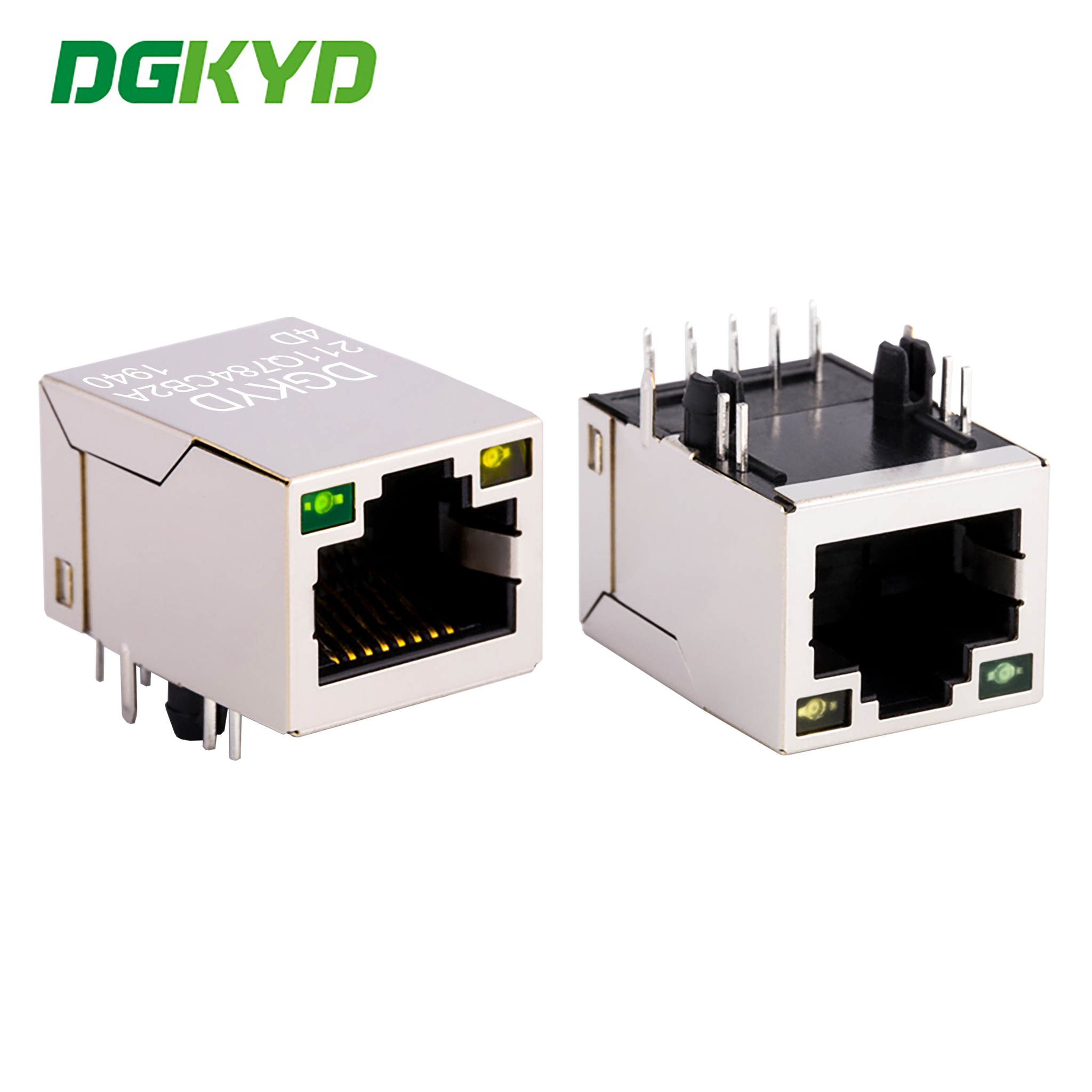

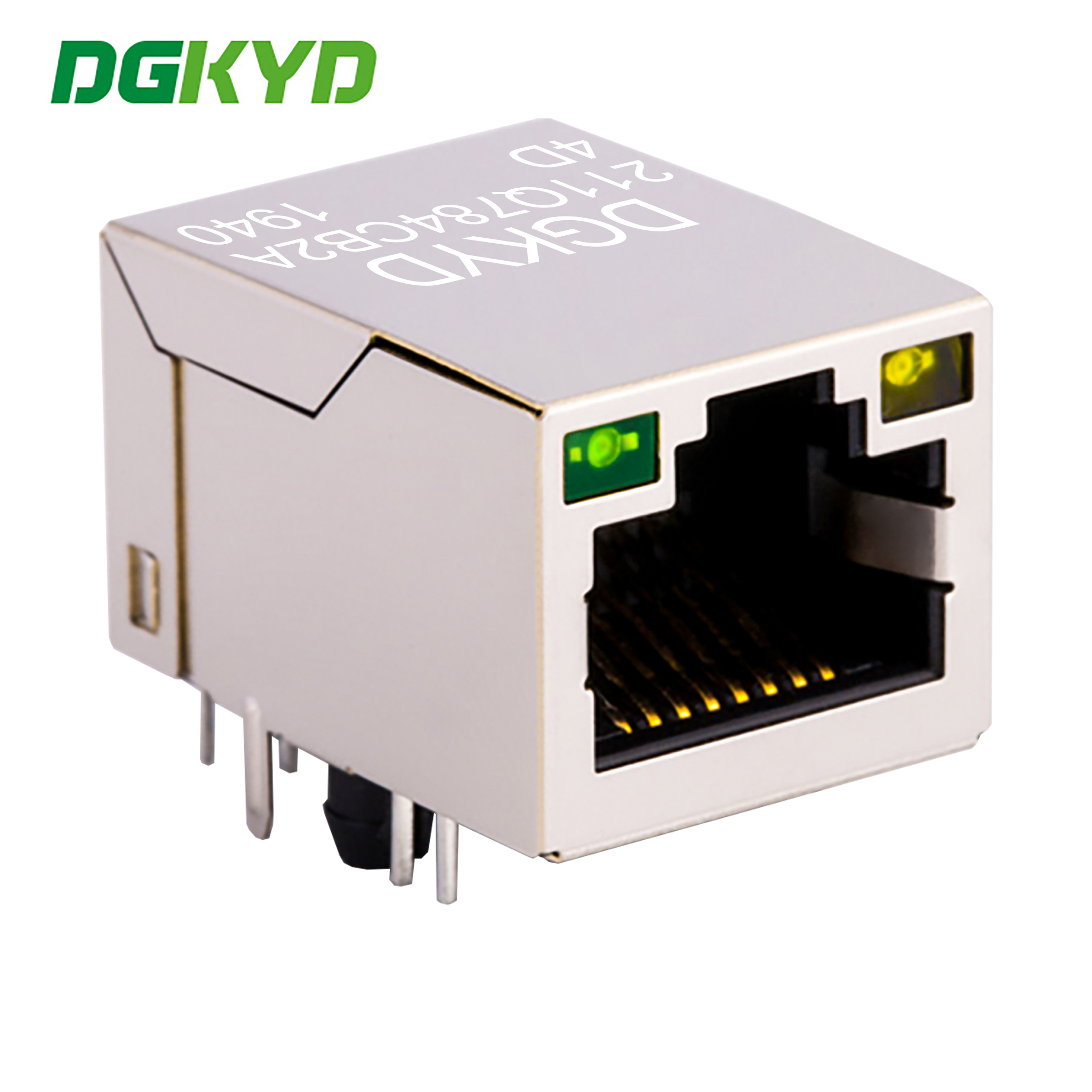

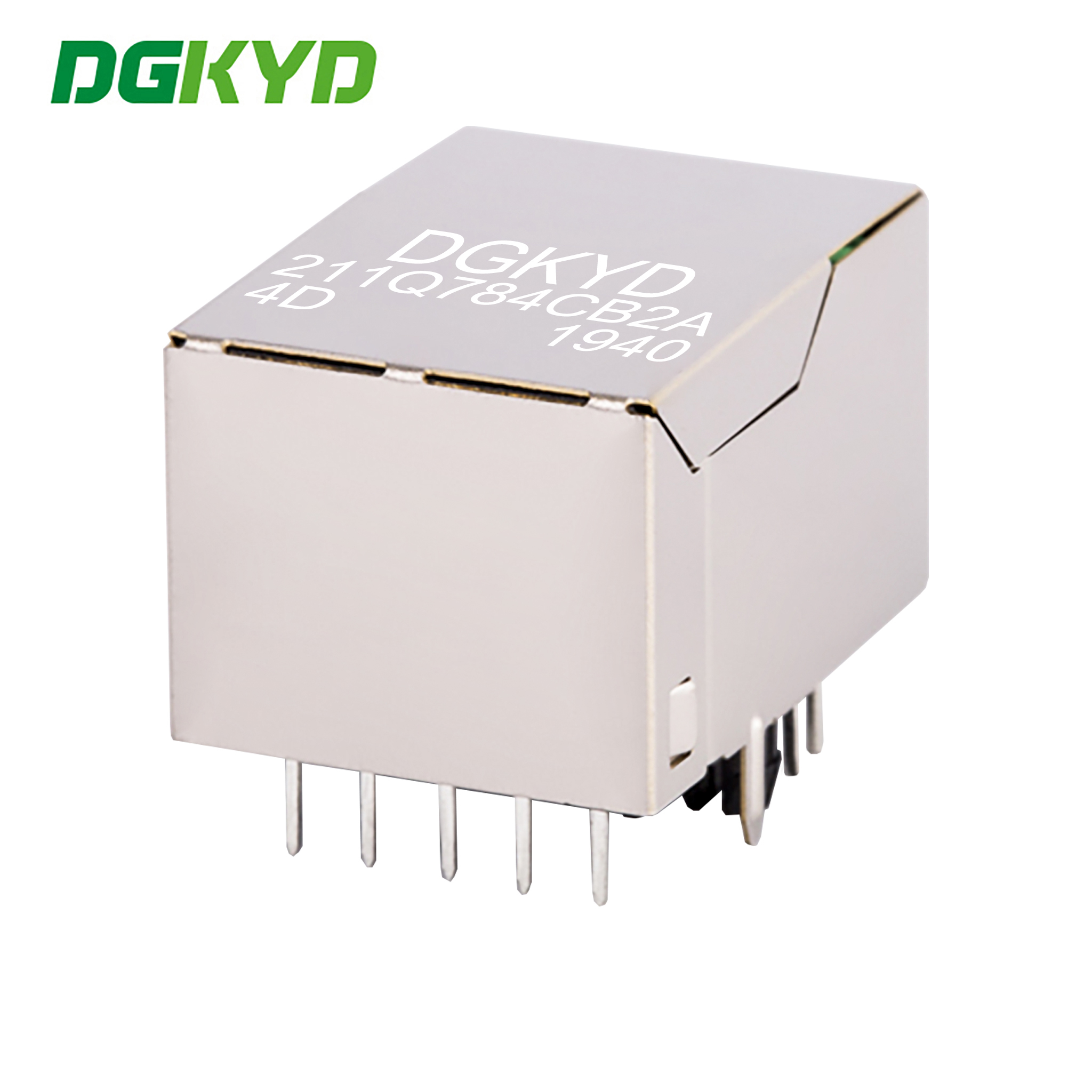

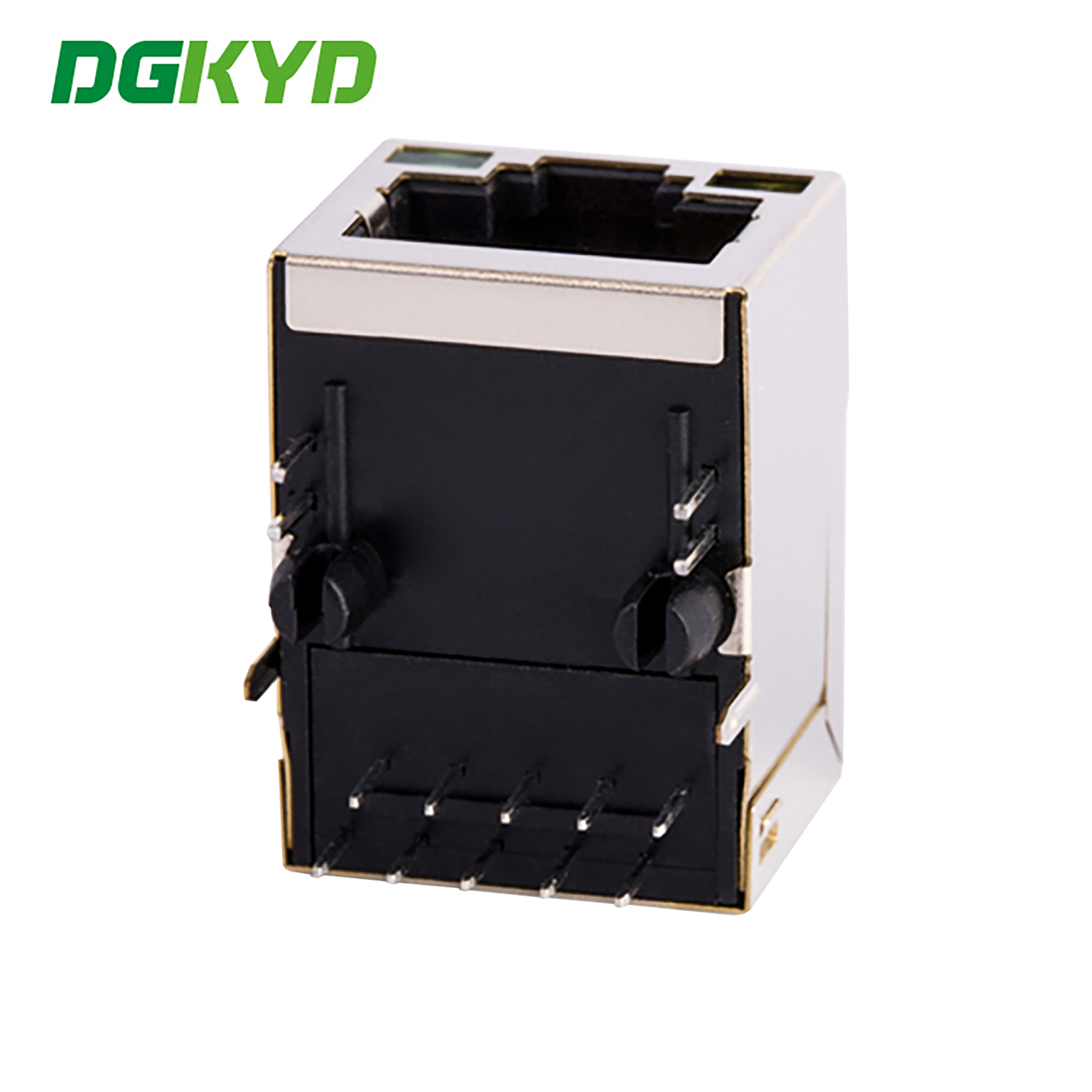

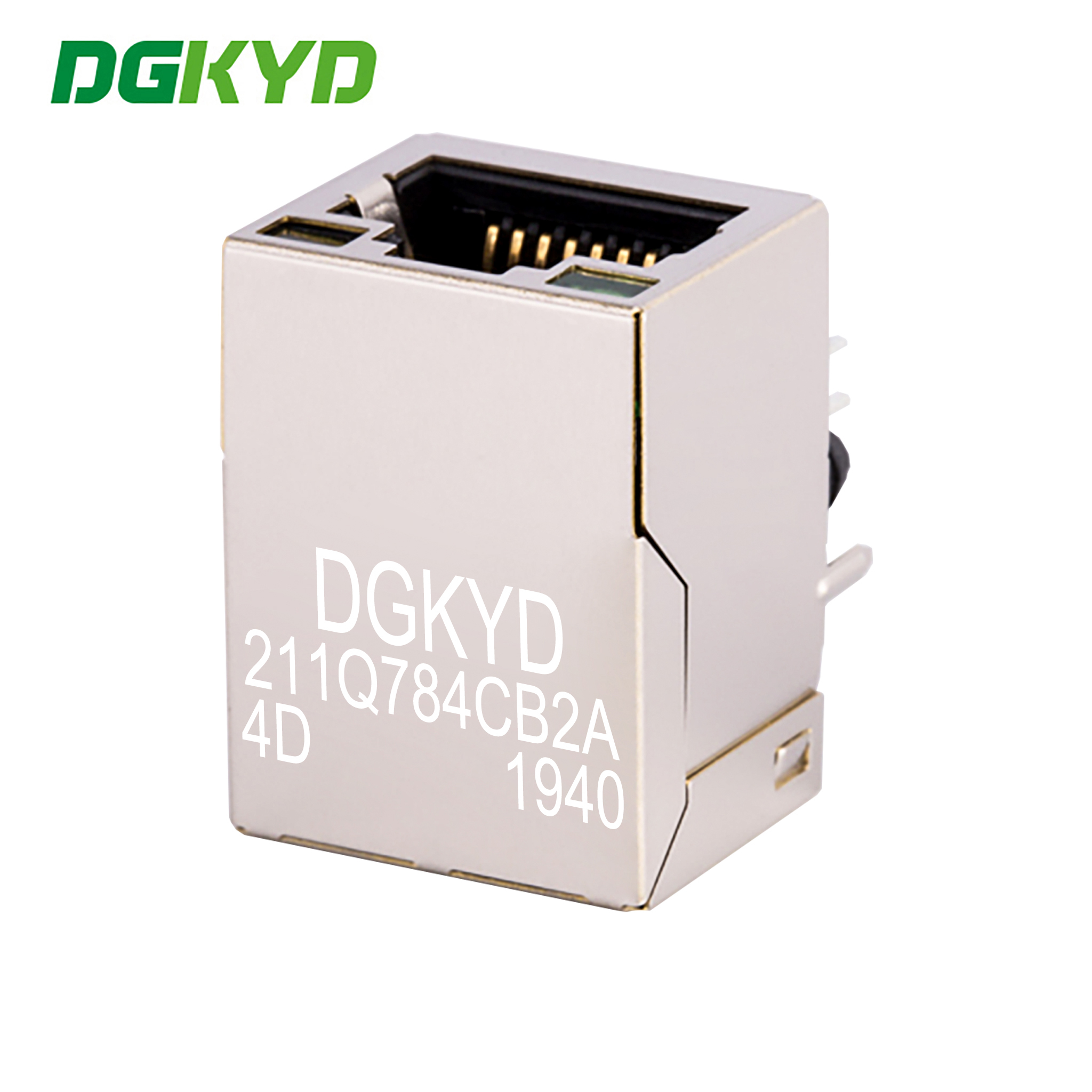

Product Images

Competitive Advantages

Keyouda offers various types of appearance and multiple internal schematic products with high quality. Our key advantages include customer-first approach, 100% testing, zero defects, and short lead times.

Applications

10/100M network cards
PCMCIA network cards
USB Hubs
Network switches and routers
Fiber optic transceivers and optical transceivers
IP phones
Internet set-top boxes
Internet cameras
Network bridges
Computers and telecommunication equipment
MODEMs
HomePNA systems
DSL/ADSL equipment

Our Service Commitment

World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Quality

Manufactured under strict controls
100% tested (not just batch tested)
DGKYD is OEM of FOXCONN for 6 years
Successful customers: FOXCONN, HUAWEI, ZTE

Competitive Price And Service

More competitive pricing than Pulse, Tyco, Halo, and Amphenol
Delivery time: 1-2 weeks after orders
Free samples available
Custom design services for customer requirements

DGKYD Corporate Policy

Corporate goal: Achieve the highest level of customer satisfaction through continuous improvements in quality, delivery, and service
Committed to quality performance from every employee
Company standard: Defect-free products and services
