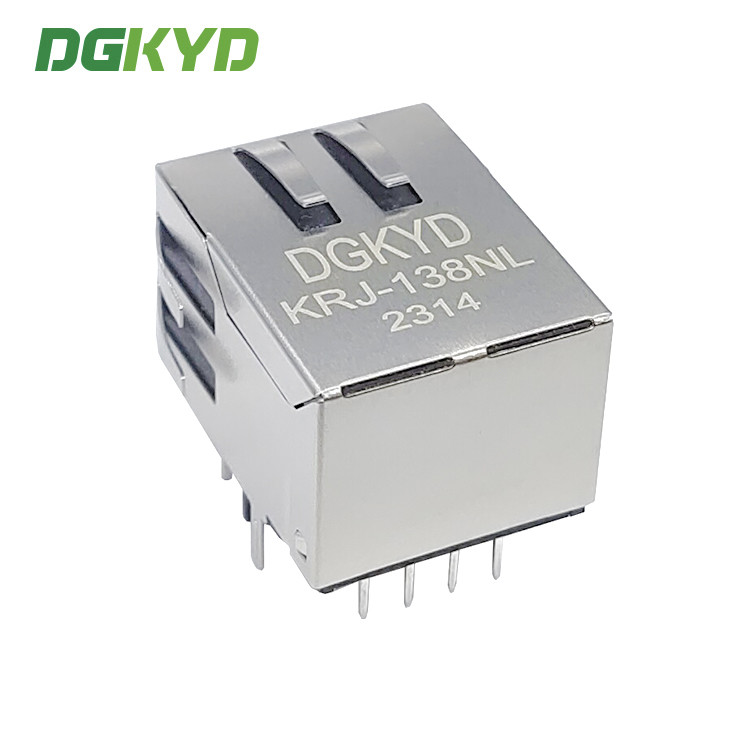

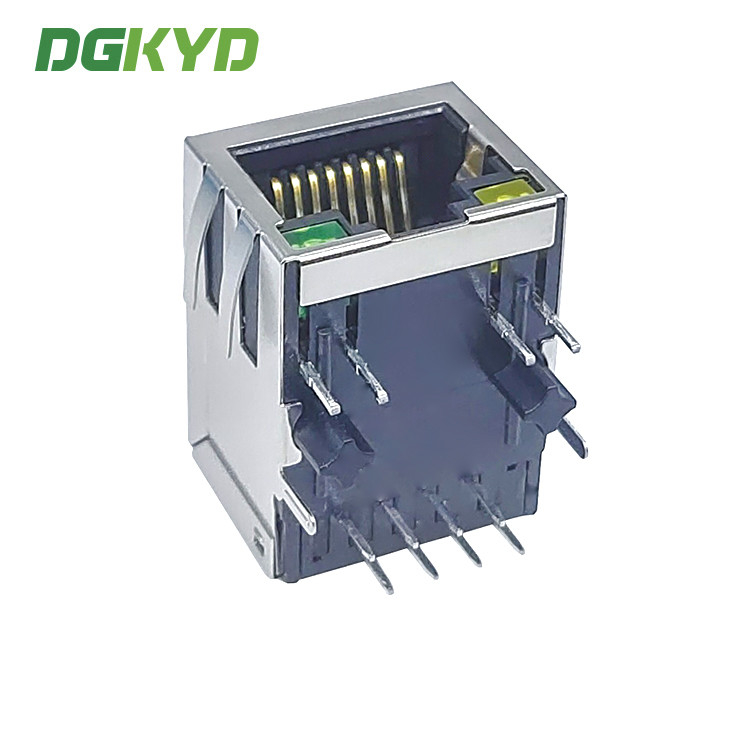

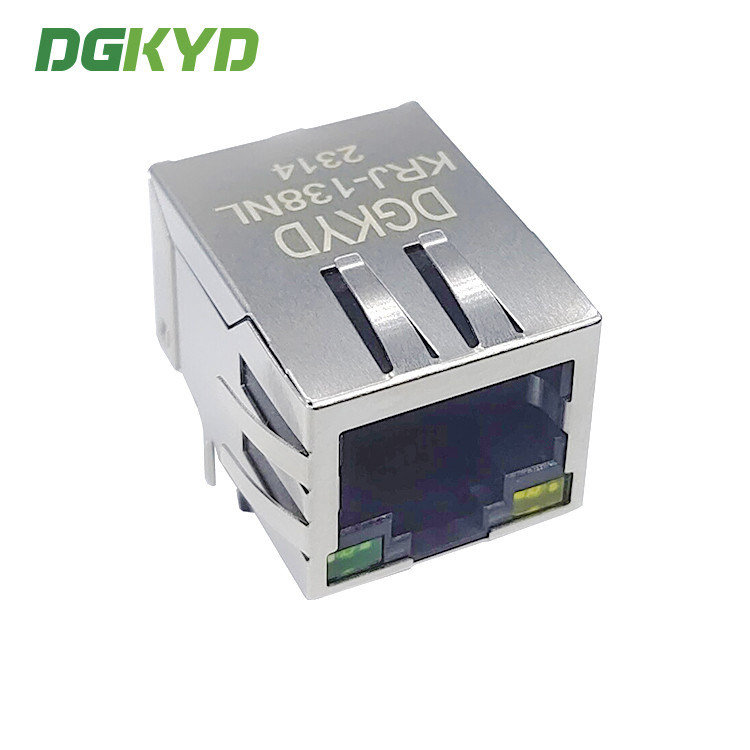

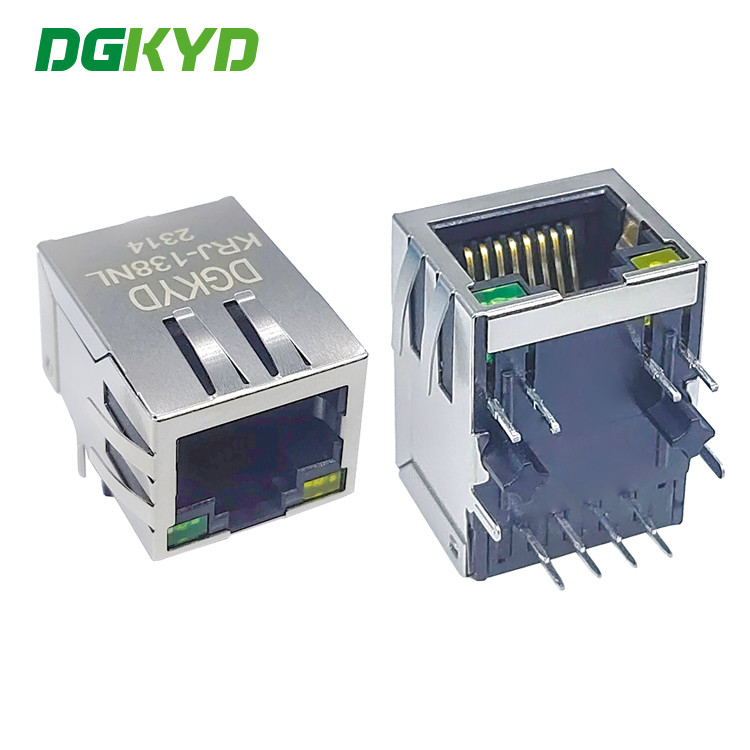

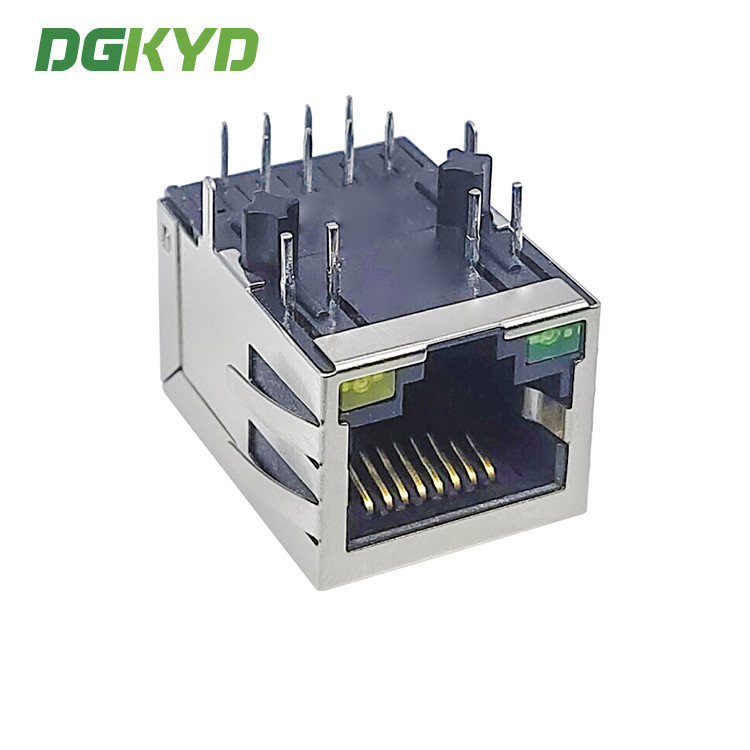

2.5Gbit / s RJ45 Ethernet Connector , high performance industrial grade Modular Rj45 Jack
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-138NL |
|
Detail Information |
|||
| LEDS/EMI Fingers: | Custom,as Your Need | Performance: | CAT5,5E |
|---|---|---|---|
| RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP | Product Name: | Magnetic Jack, Modular Jack 8/8, RJ45 |
| Highlight: | rj45 ethernet port,multi rj45 connector,EMI Magnetic RJ45 Ethernet Connector |
||
Product Description
Parameters
| Part Number | KRJ-138NL | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawings
