DGKYD59212688IWD1DY1G022 2x6 Multi Port RJ45 Connector Without Lamp / Filter 8P8C

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 750Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD59212688IWD1DY1G022

Detail Information

Product Type: RJ45 Encapsulation Method: Multi Port In-line Package
PCB Mount Style: DIP Shape: Rectangle
Shield: Brass Number Of Pins: 8
Number Of Cores: 8 Dimension (mm): 86.34* 27.5* 24.9
Gold Plating On Contact Pins: G/Fu Operating Temperature: - 40 ℃ ~ 85 ℃
Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

RJ45 Connector Without Filter

,

8P8C RJ45 Without Transformer

,

All Plastic RJ45 Without Transformer

Product Description

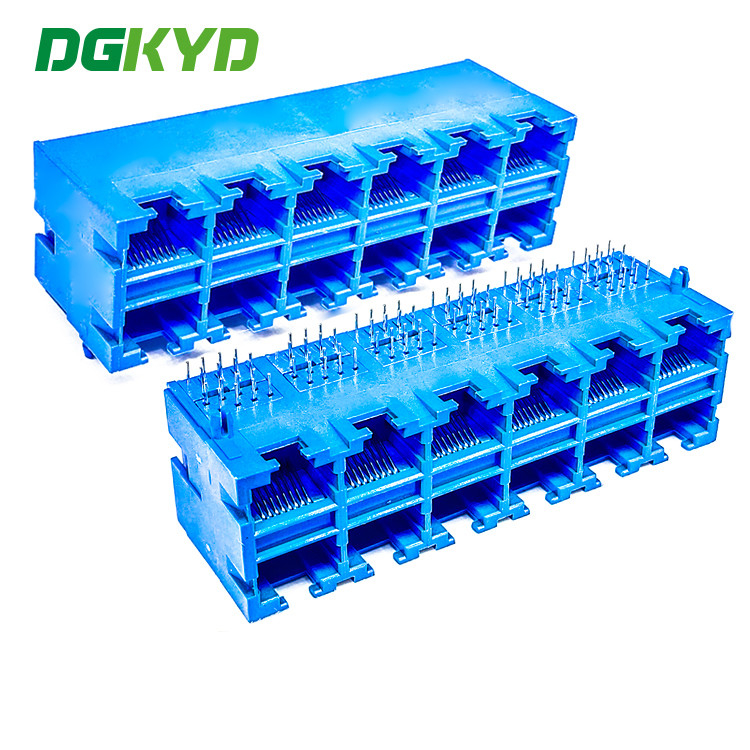

DGKYD59212688IWD1DY1G022 2x6 multi port RJ45 connector all plastic without lamp without filter 8P8C network port module

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature:- 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



 Parameters

Part Number DGKYD59212688IWD1DY1G022 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP/DOWN
Filter Without Filter LED Option Without LED
LED Color No Panel Stops Without Panel Stops
Shielded No Applies To  Printed Circuit Board
Performance Speed   Suitable for welding type Reflowsolding(Alternative).
Port Configuration   2X6 Ports Number of Positions  8
Jack Configuration  2X6 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material   PBT Polyester Housing Color Blue
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0
