DGKYD59212188AB1E1DY1E022 5921 Series Network Socket 2X1 Port 8P8C Modular Jack Multiport DGKYD

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : 560 Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD59212188AB1E1DY1E022

Detail Information

Jack Type : RJ45 Connector Encapsulation Method: 2X1 In-line Package
PCB Mount Style: DIP Application: PCB
Shield: Brass Plastic Housing Material: Black PBT
Number Of Pins: 8 Number Of Cores: 8
Dimension (mm): 16.35*28.25*25.4mm Gold Plating On Contact Pins: G/FU
Operating Temperature: - 40 ℃ ~ 85 ℃ Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

2X1 Port 8P8C Modular Jack

,

Multiport 8P8C Modular Jack

,

DGKYD 8P8C Modular Connector

Product Description

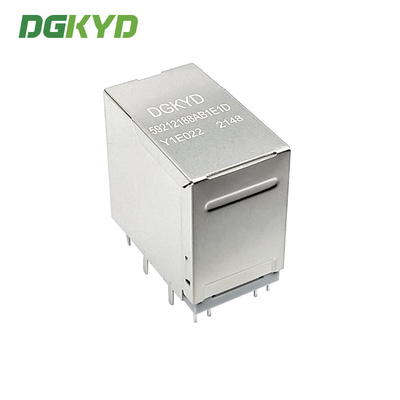

DGKYD59212188AB1E1DY1E022 5921 series network socket 2X1 port 8P8C modular jack Multiport DGKYD

Specification

Part Number

DGKYD59212188AB1E1DY1E022

Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch UP/DOWN
Filter Without Filter LED Option With LED
LED Color L-Yellow/R-Green Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  2X1 Ports Number of Positions  8
Jack Configuration 2X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold G/Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Gray
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6. Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



DGKYD59212188AB1E1DY1E022 5921 Series Network Socket 2X1 Port 8P8C Modular Jack Multiport DGKYD 0
