RJ45 Direct 1X4 With Light Strip Shielding 8P8C Network Interface RJ45 Connector DGKYD561488DE3A8D18B7MH
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 384Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD414Q199DF5A2DPB057(POE+) |
|
Detail Information |
|||
| Product Type: | RJ45 | Encapsulation Method: | 1X4 In-line Package |
|---|---|---|---|
| PCB Mount Style: | DIP | Shape: | Rectangle |
| Shield: | Brass | Plastic Housing Material: | Black PA66 |
| Number Of Pins: | 12 | Number Of Cores: | 8 |
| Dimension (mm): | 58.28 * 32.65* 13.5 | Gold Plating On Contact Pins: | 30U |
| Operating Temperature: | - 40 ℃ ~ 85 ℃ | Storage Temperature: | - 40 ℃ ~ 85 ℃ |
| High Light: | 8p12c RJ45 Multi Port Connectors,Black PA66 Multi Port Connectors,DIP PCB Mount rj45 multi port jack |
||
Product Description

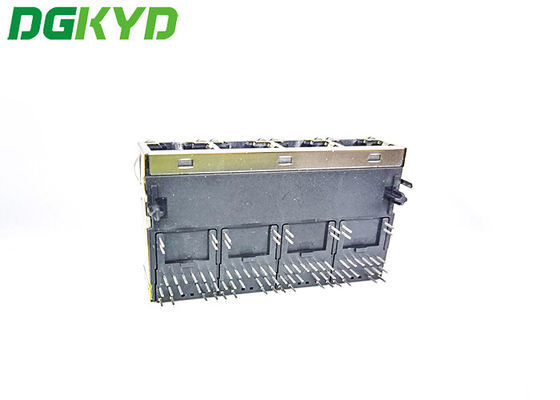

Multi port RJ45 integrated magnetic 8p12c PCB communication Poe filter
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 0 ℃ - 70 ℃,
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Performance parameters:
1. Applied to Ethernet, coil ratio: 1CT: 1CT
2. Meet IEEE 802.3 & ANSI X 3.263 standard
3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
5. Withstand voltage: 2250VDC 1mA max, 60s
6.Impedance: 100 ohms
7. RJ45 interface meets FCC 68.5 standard
8. DC resistance: 1.5 Ω
Parameters
| Part Number | DGKYD414Q199DF5A2DPB057(POE+) | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | L-Green/Orange/R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | 1X4 Ports | Number of Positions | 8 |
| Jack Configuration | 1X4 | Terminals per Port | 12 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PA66 Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
