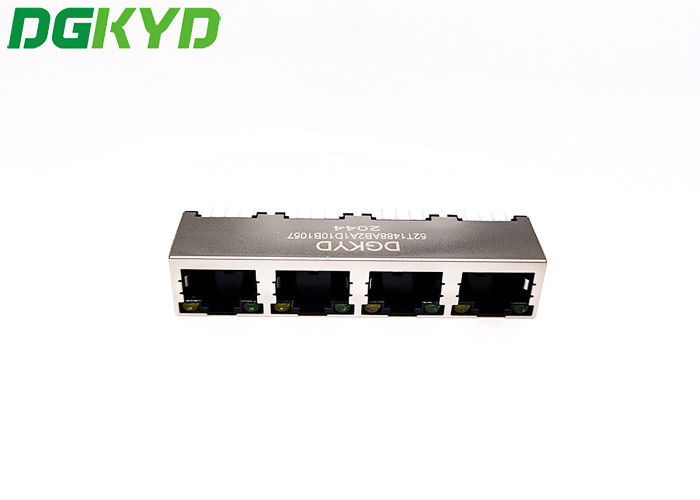

180 Degree 1X4 RJ45 Ethernet Connector With LED

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : 216pcs / carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD52T1488AB2A1D10B1

Detail Information

Product Type: RJ45 Encapsulation Method: Double In-line Package
PCB Mount Style: DIP Shape: Rectangle
Shield: Brass Plastic Housing Material: Black PBT
Number Of Pins: 8 Number Of Cores: 8
Dimension (mm): 63.6 * 15.8 * 13.2 Gold Plating On Contact Pins: G/FU
Operating Temperature: - 40 ℃ ~ 85 ℃ Storage Temperature: - 40 ℃ ~ 85 ℃
Highlight:

1X4 RJ45 Ethernet Connector

,

180 Degree RJ45 Ethernet Connector

,

TAB UP rj45 internet connector

Product Description

1X4 RJ45 Connector 180 Degree Without Filter Outlet With Led



Our strengths:



Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



Performance parameters:



1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



Specification



Part Number DGKYD52T1488AB2A1D10B1 Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter Without Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops Without Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  1X 4 Ports Number of Positions  8
Jack Configuration 1 x 4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



1. Product type: RJ45

2. Encapsulation method: Double In-line Package

3. PCB Mount Style: DIP

4. Shape: rectangle

5. Shield: brass

6. Plastic housing material: Black PBT

7. Number of pins: 8

8. Number of cores: 8

9. Dimension (mm): 63.6 * 15.8 * 13.2

10. Gold plating on contact pins: G/FU

11. Operating temperature: - 40 ℃ ~ 85 ℃

12. Storage temperature: - 40 ℃ ~ 85 ℃



Applications:



Integrated RJ45 connector main used to :



• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.
