1 Gigabit 2x2 RJ45 Network Connector With PA66 Plastic Housing

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : 216pcs / carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD22Q193DB2A2DB

Detail Information

Product Type: RJ45 Encapsulation Method: Double In-line Package
PCB Mount Style: DIP Shape: Rectangle
Shield: Brass Plastic Housing Material: Black PA66
Number Of Pins: 10 Number Of Cores: 8
Dimension (mm): 31.2 * 28.4 * 25.2 Gold Plating On Contact Pins: 30U
Operating Temperature: - 40 ℃ ~ 85 ℃ Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

2x2 RJ45 Network Connector

,

PA66 Housing RJ45 Network Connector

,

ISO14001 RJ45 Ethernet Connector

Product Description

1 gigabit 2x2 ports RJ45 with LED RJ45 network connector





Our strengths:



Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply



1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



Specification



Part Number DGKYD22Q193DB2A2DB Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  2X2 Ports Number of Positions  10
Jack Configuration 2X2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PA66 Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



1. Product type: RJ45

2. Encapsulation method: Double In-line Package

3. PCB Mount Style: DIP

4. Shape: rectangle

5. Shield: Brass

6. Plastic housing material: Black PA66

7. Number of pins: 10

8. Number of cores: 8

9. Dimension (mm): 31.2 * 28.4 * 25.2

10. Gold plating on contact pins: 30U

11. Operating temperature: - 40 ℃ ~ 85 ℃

12. Storage temperature: - 40 ℃ ~ 85 ℃



Applications:



Integrated RJ45 connector main used to :



• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.

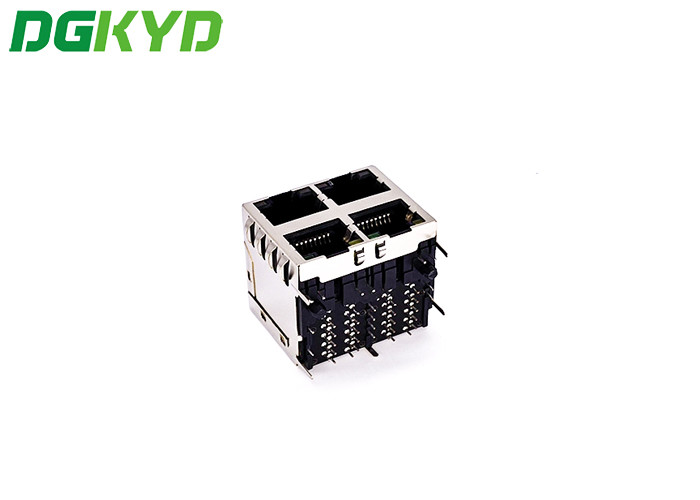

1 Gigabit 2x2 RJ45 Network Connector With PA66 Plastic Housing 01 Gigabit 2x2 RJ45 Network Connector With PA66 Plastic Housing 11 Gigabit 2x2 RJ45 Network Connector With PA66 Plastic Housing 2





1 Gigabit 2x2 RJ45 Network Connector With PA66 Plastic Housing 3
