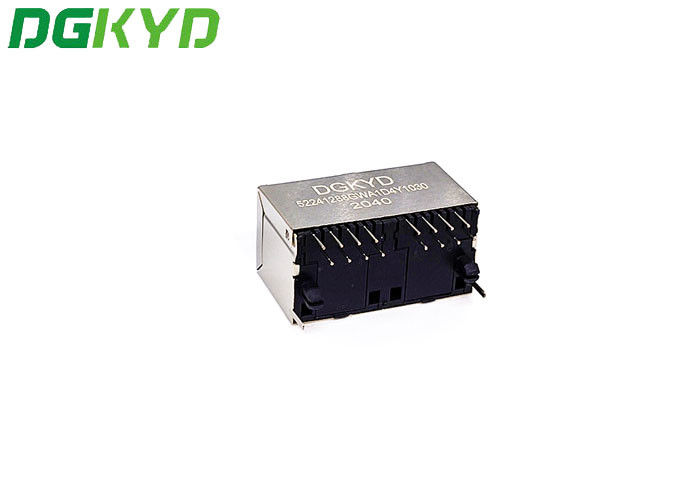

Modular 180 Degree 1X2 Ethernet RJ45 Connector

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD52241288GWA1D4Y1

Detail Information

Housing Material: PBT Black Connector Type: RJ45
Number Of Ports: Double Port Clamp Direction: TAB-UP
LED Option: Without LED PCB Mount Style: DIP
Shield: With Metal Shield Product Standard: Meets IEEE 802.3 Specification
High Light:

1X2 Ethernet RJ45 Connector

,

180 Degree Ethernet RJ45 Connector

,

IEEE 802.3 RJ45 Ethernet Connector

Product Description

1X2 RJ45 Connector 180 Degree Without Filter Outlet





Specification



Part Number DGKYD511B109AB2A1D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Yes, L-Green / R-Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  single Port Number of Positions  8
Jack Configuration 1 x 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Electrical Specifications at 25℃



.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH @100KHZ 100Mv 8mA DC
