Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP

Contact Now

Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP

Minimum Order Quantity :	1 piece	Price :	Negotiable
Packaging Details :	1080pcs/carton	Delivery Time :	7-14days
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram	Supply Ability :	60000pcs per day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD411Q117DF5A1DP

Detail Information
Product Name:	RJ45 Ethernet Jack	Housing Material:	PA9T Black
Number Of Ports:	Single Port	Clamp Direction:	TAB-UP
Integrated Transformer:	2.5G	PCB Mount Style:	DIP
LED Option:	With LED	Shield:	With Metal Shield
Product Standard:	Meets IEEE 802.3 Specification	Operation Temperature:	-40°C~+85°C
Storage Temperature:	-40°C~+85°C
Highlight:	ISO14001 RJ45 Ethernet Connector , POE 12 Pin RJ45 Ethernet Connector , IEEE 802.3 rj45 ethernet jack

Product Description

Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP

Part Number: DGKYD411Q117DF5A1DP

Product Documentation

Technical Parameters

Part Number	DGKYD411Q117DF5A1DP	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Orange-Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	12
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

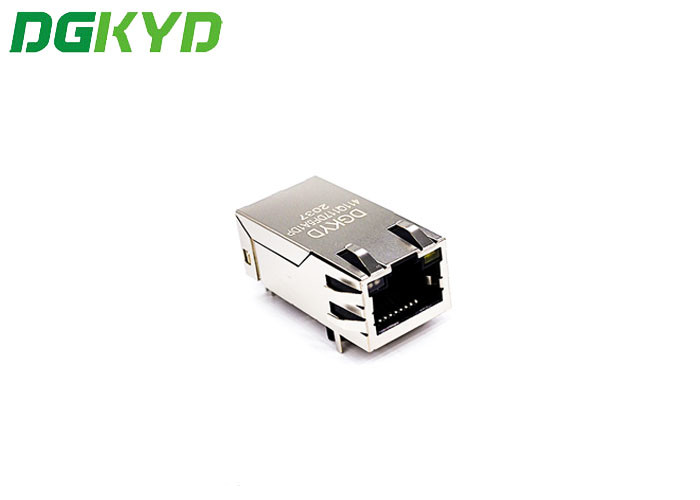

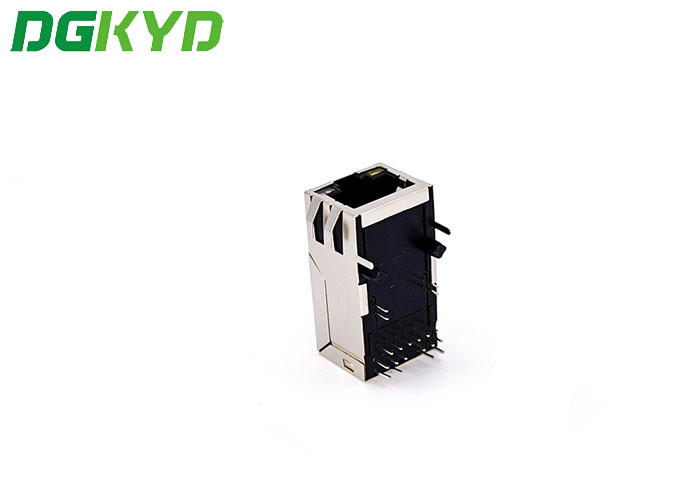

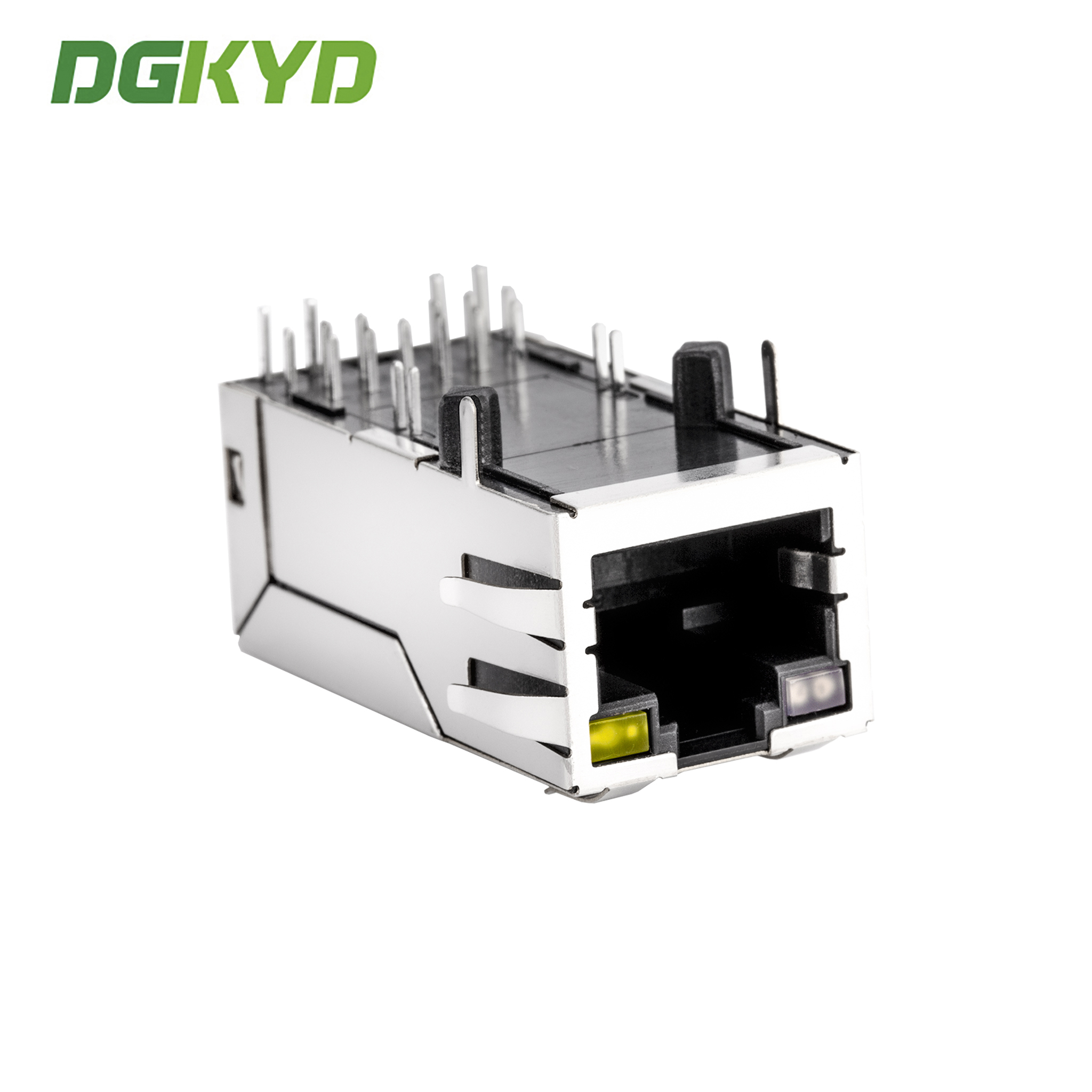

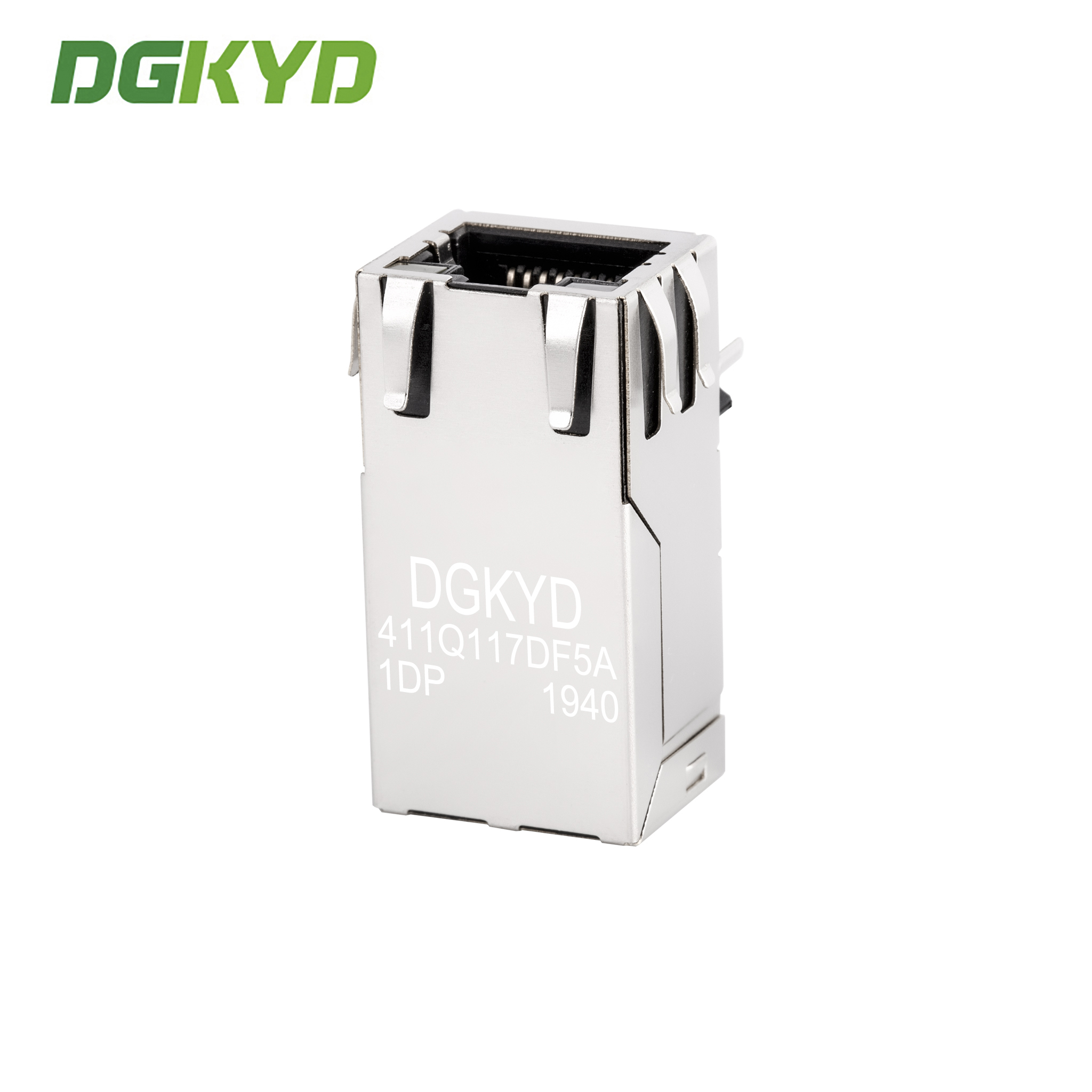

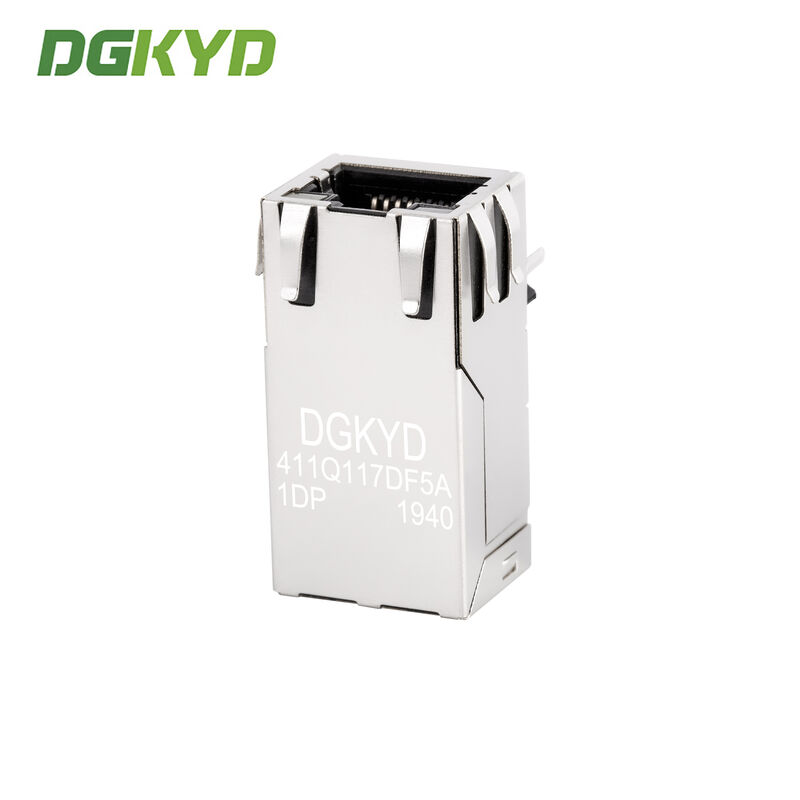

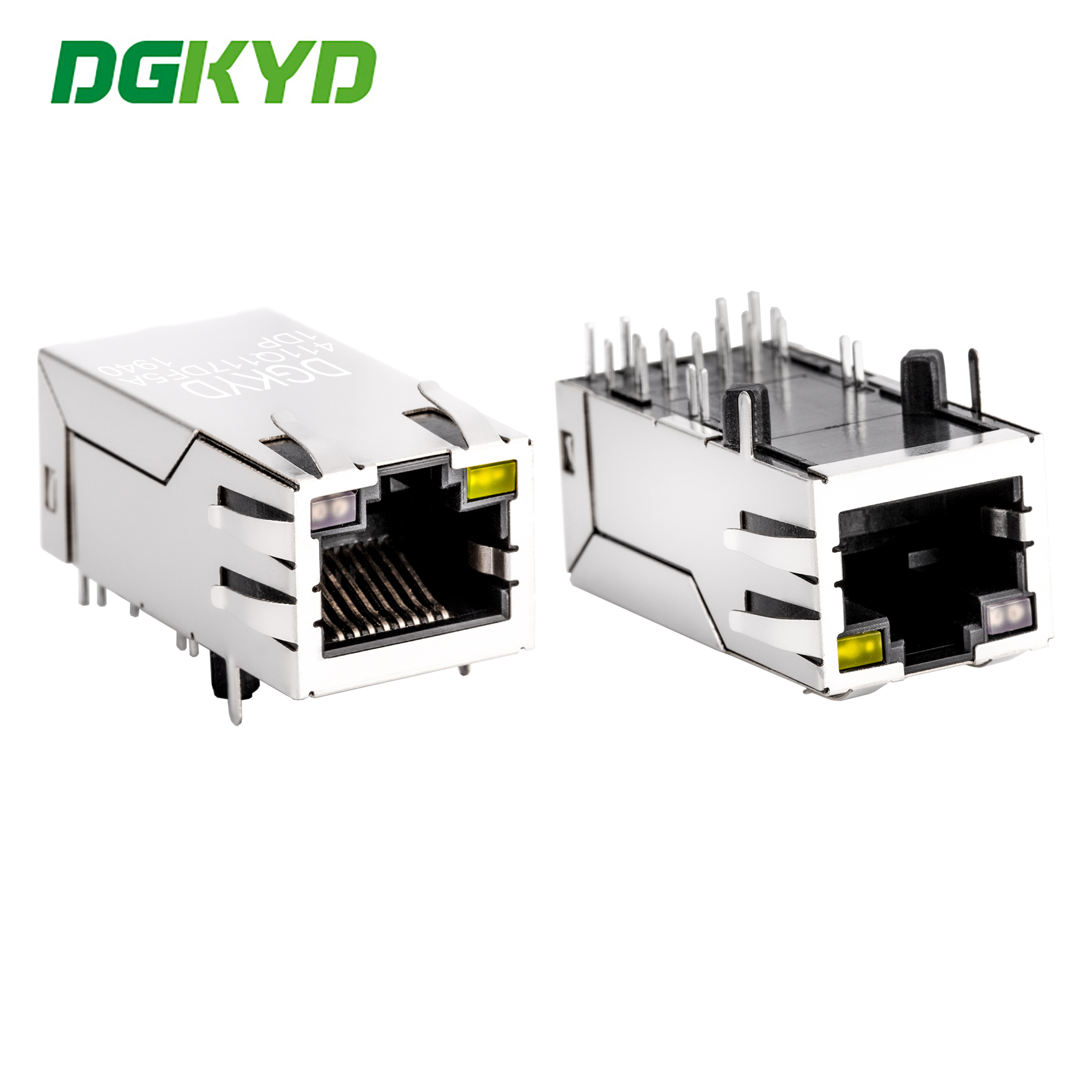

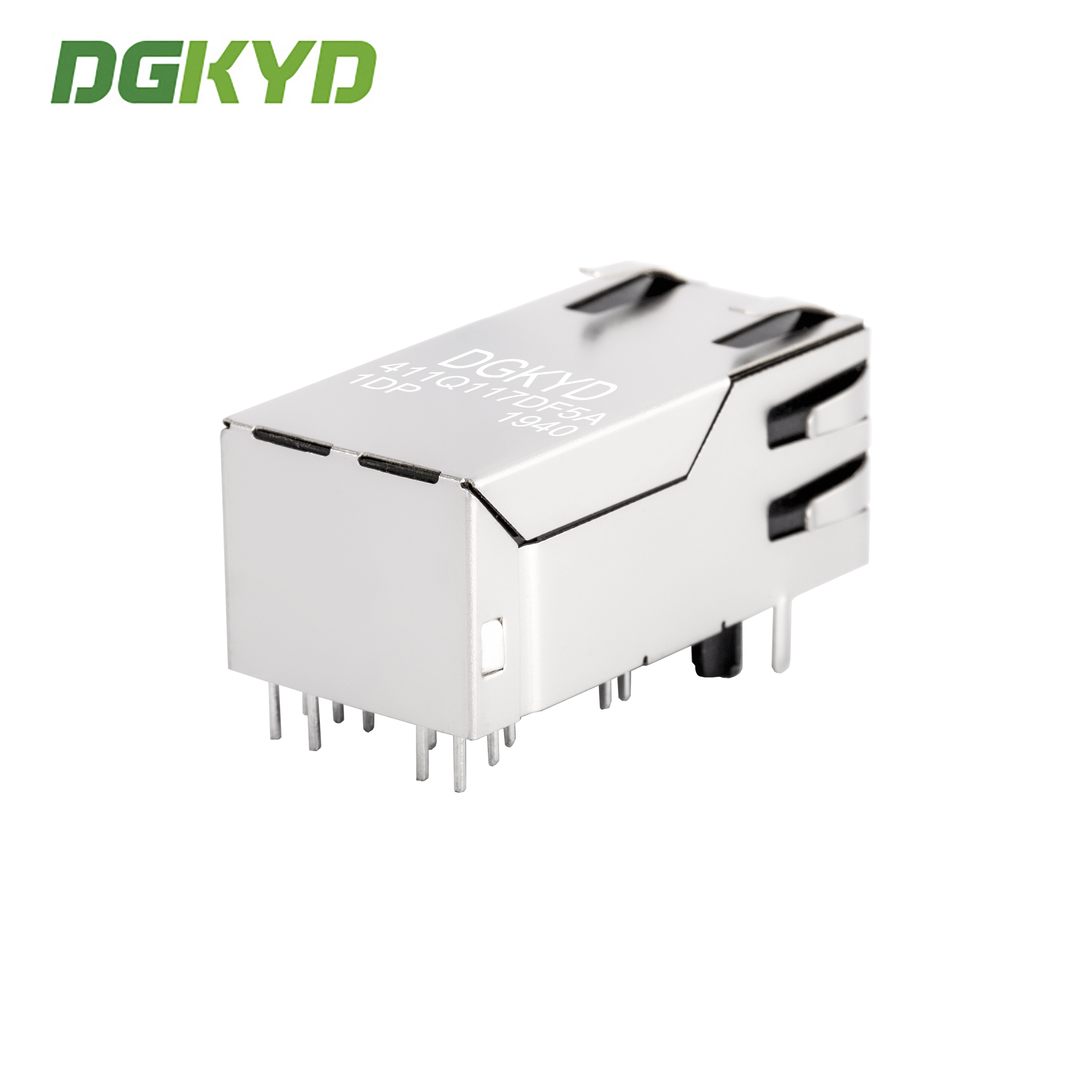

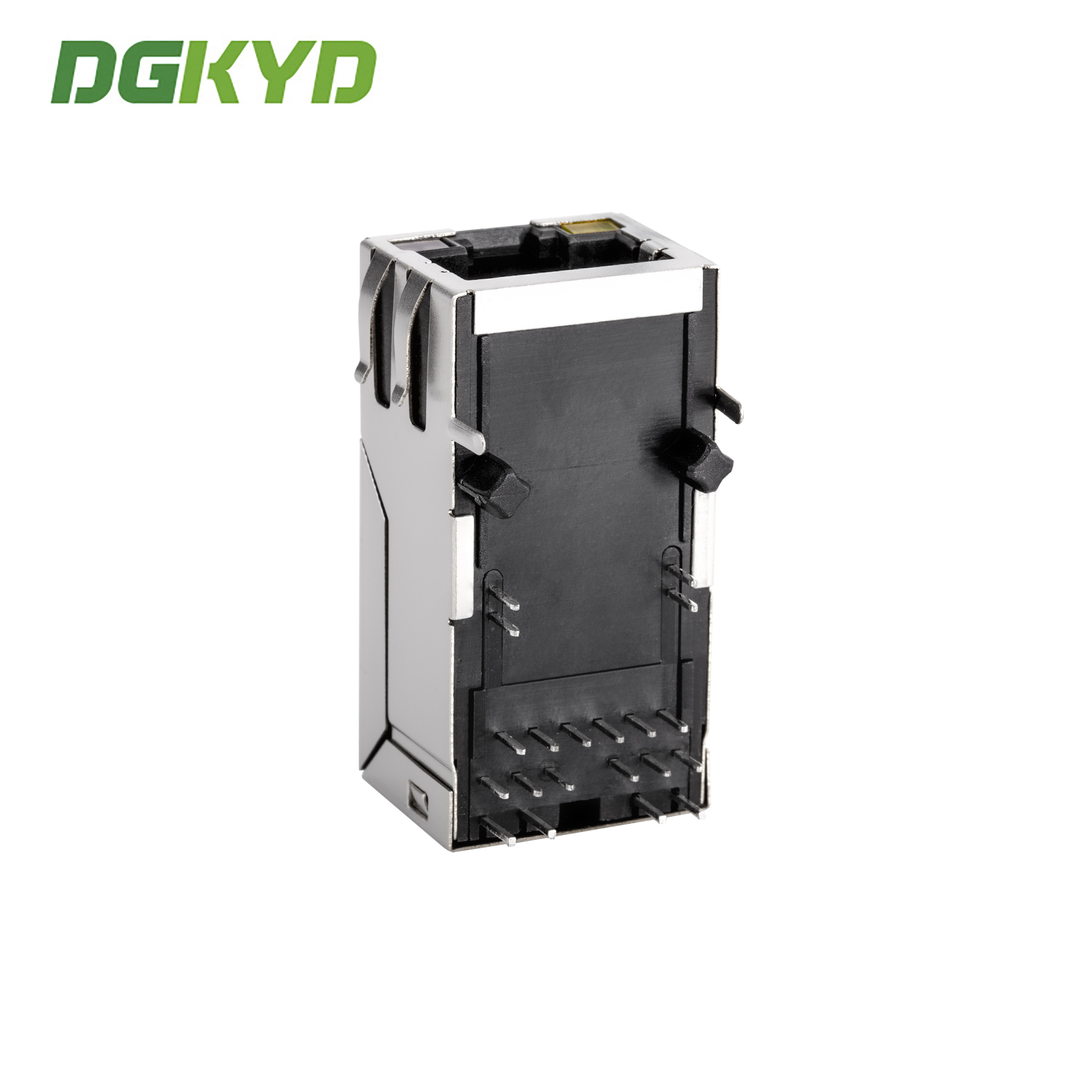

Product Images

Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP 0

Gigabit Band POE 12 Pin Single Port RJ45 Ethernet Connector LED G/O/Y DGKYD411Q117DF5A1DP 1

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
