1X4 8P10C TAB Down RJ45 Network Jack Without LED

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD114Q066IWB1D

Detail Information

Product Name: RJ45 Ethernet Jack Housing Material: PA9T Black
Number Of Ports: Single Port Clamp Direction: TAB-UP
Integrated Transformer: 2.5G PCB Mount Style: DIP
LED Option: Without LE Shield: With Metal Shield
Product Standard: Meets IEEE 802.3 Specification
Highlight:

TAB Down RJ45 Network Jack

,

8P10C RJ45 Network Jack

,

1X4 RJ45 Network Connector

Product Description

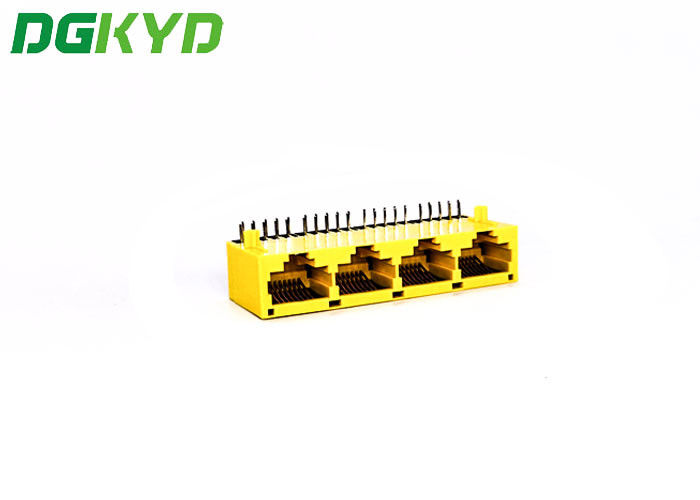

1X4 RJ45 8p10c Without LED TAB-Down RJ45 Network Connector







Applications:



Integrated RJ45 connector main used to :



• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.



Specification

Part Number DGKYD114Q066IWB1D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Without metal shield Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  1X4 Port Number of Positions  8
Jack Configuration 1 x 4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Yellow
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Electrical Specifications at 25℃



.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH @100KHZ 100Mv 8mA DC
