Modular Single Port TAB Down RJ45 Network Jack

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD211B035GWA4D

Detail Information

Product Name: RJ45 Ethernet Jack Housing Material: PA9T Black
Number Of Ports: Single Port Clamp Direction: TAB-UP
Integrated Transformer: 2.5G PCB Mount Style: DIP
LED Option: Without LED Shield: With Metal Shield
Product Standard: Meets IEEE 802.3 Specification
High Light:

Single Port RJ45 Network Jack

,

Modular RJ45 Network Jack

,

ISO9001 RJ45 Network Connector

Product Description

Single Port RJ45 Without LED TAB-Down RJ45 Network Connector​







Applications:



Integrated RJ45 connector main used to :



• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.



Specification



Part Number DGKYD60S1188GWA6DY1 Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter Without Filter LED Option Without LED
LED Color No. Panel Stops Without Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  single Ports Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Electrical Specifications at 25℃



.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH @100KHZ 100Mv 8mA DC

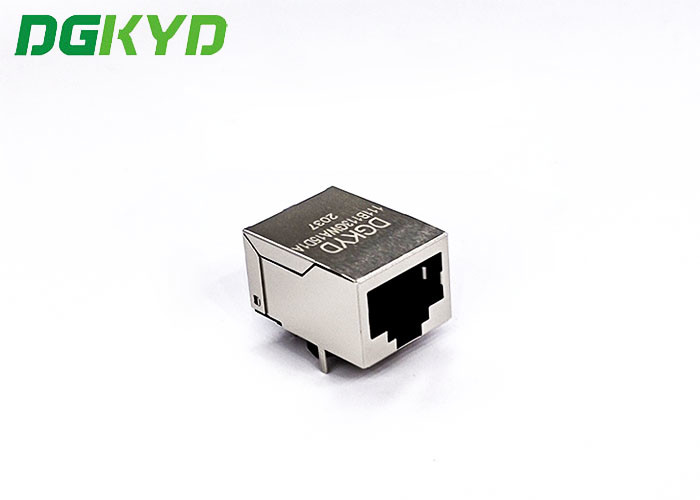

Modular Single Port TAB Down RJ45 Network Jack 0

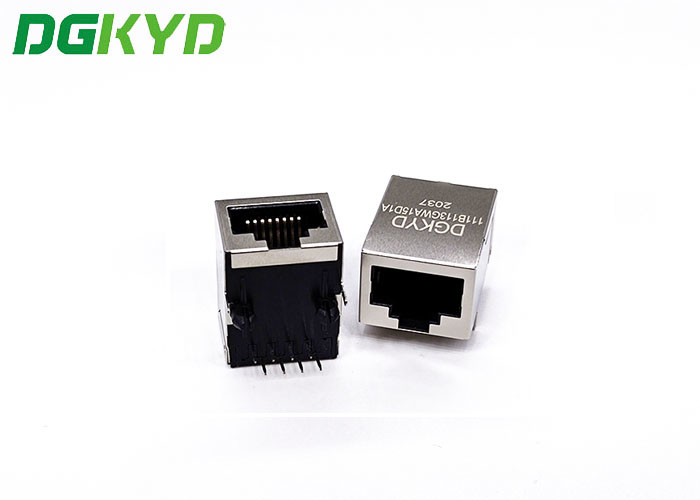

Modular Single Port TAB Down RJ45 Network Jack 1
