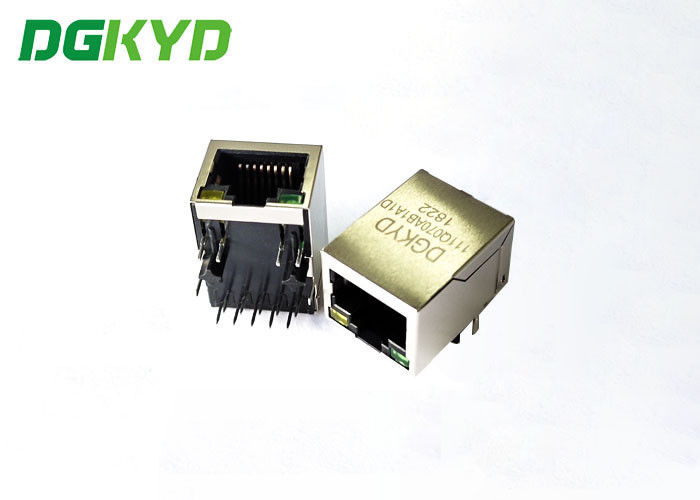

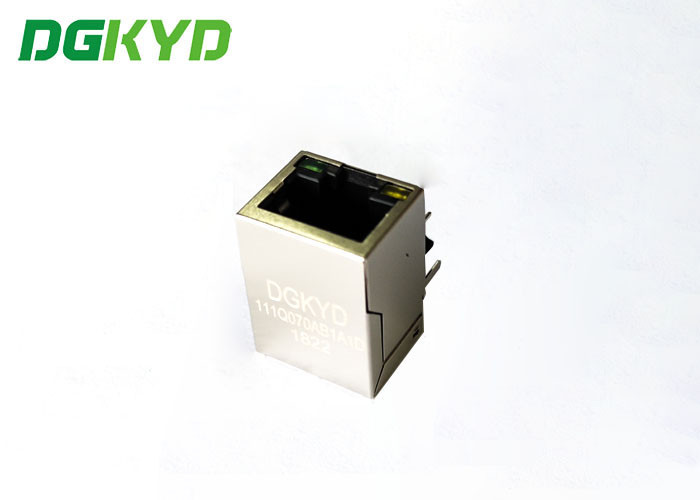

DIP Mount Single Port TAB Down RJ45 Network Connector

Name: DIP Mount Single Port TAB Down RJ45 Network Connector
Brand: DGKYD
SKU: DGKYD111Q070AB1A1D
Rating: 4.8 (119 reviews)

Minimum Order Quantity :	1 piece	Price :	Negotiable
Packaging Details :	1080pcs/carton	Delivery Time :	7-14days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Supply Ability :	60000pcs per day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD111Q070AB1A1D

Detail Information
Product Name:	RJ45 Ethernet Jack	Connector Type:	RJ45
Number Of Ports:	Single Port	Clamp Direction:	TAB-DOWN
Integrated Transformer:	2.5G	PCB Mount Style:	DIP
Highlight:	TAB Down RJ45 Connector , DIP Mount RJ45 Connector , Modular RJ45 Network Jack

Product Description

Single Port RJ45 DIP Mount Style With LED TAB-Down RJ45 Network Connector

Product Description

Part Number	DGKYD111Q070AB1A1D	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down
Filter	With Filter	LED Option	With LED
LED Color	L-Yellow,R-Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Port	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Applications:

Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL／ADSL and so on.

Specifications

1.Place of origin:Guangdong ,China

2.Type:Cat6 Cat5e Cat5 jack

3.Colors: Black

4. Shield: Copper alloy

5.Rate: 1000MHz

6.Connect: RJ-45-male
