10P8C 2.5G RJ45 Ethernet Connector With Lamp Belt Wing Transformer

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD112Q285DA2A1DA2 2.5G

Detail Information

Product Name: RJ45 Ethernet Connector Number Of Ports: Double Port
Clamp Direction: TAB-DOWN Integrated Transformer: 2.5G
Applies To : Printed Circuit Board LED Color: L-Green/R-Yellow
High Light:

10P8C ethernet connector rj45

,

2.5G ethernet rj45 connector

Product Description

RJ45 Connector With lamp belt wing transformer high performance 10P8C 2.5G



Surface treatment


Vibration grinding,Polishing,Brushing.or according to customer’s requests.



Paramters



Part Number DGKYD112Q285DA2A1DA2(2.5G) Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 2.5G BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Double Port Number of Positions  10
Jack Configuration 1 x 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6/15/30/50 Microinch Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Drawing

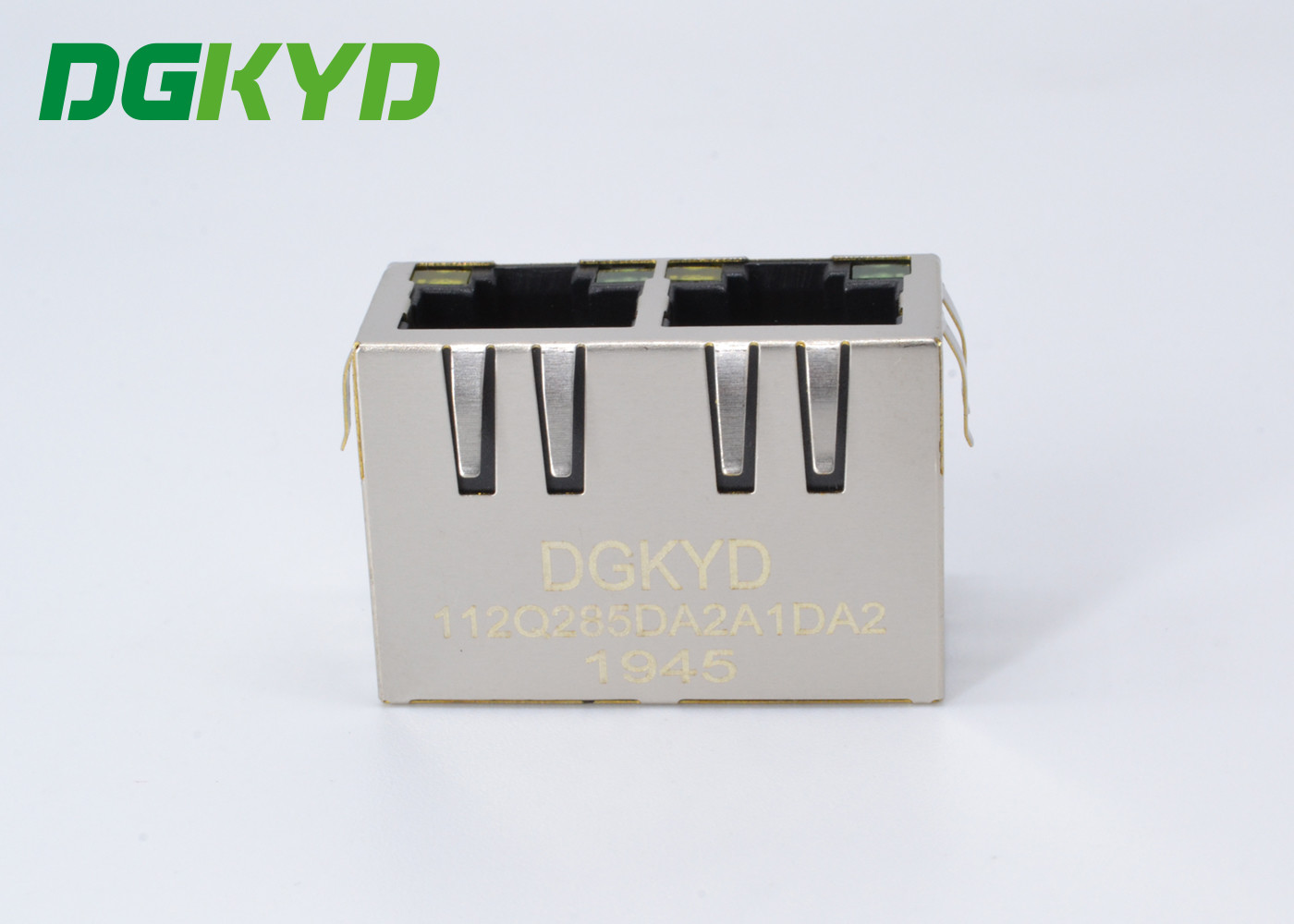

10P8C 2.5G RJ45 Ethernet Connector With Lamp Belt Wing Transformer 0

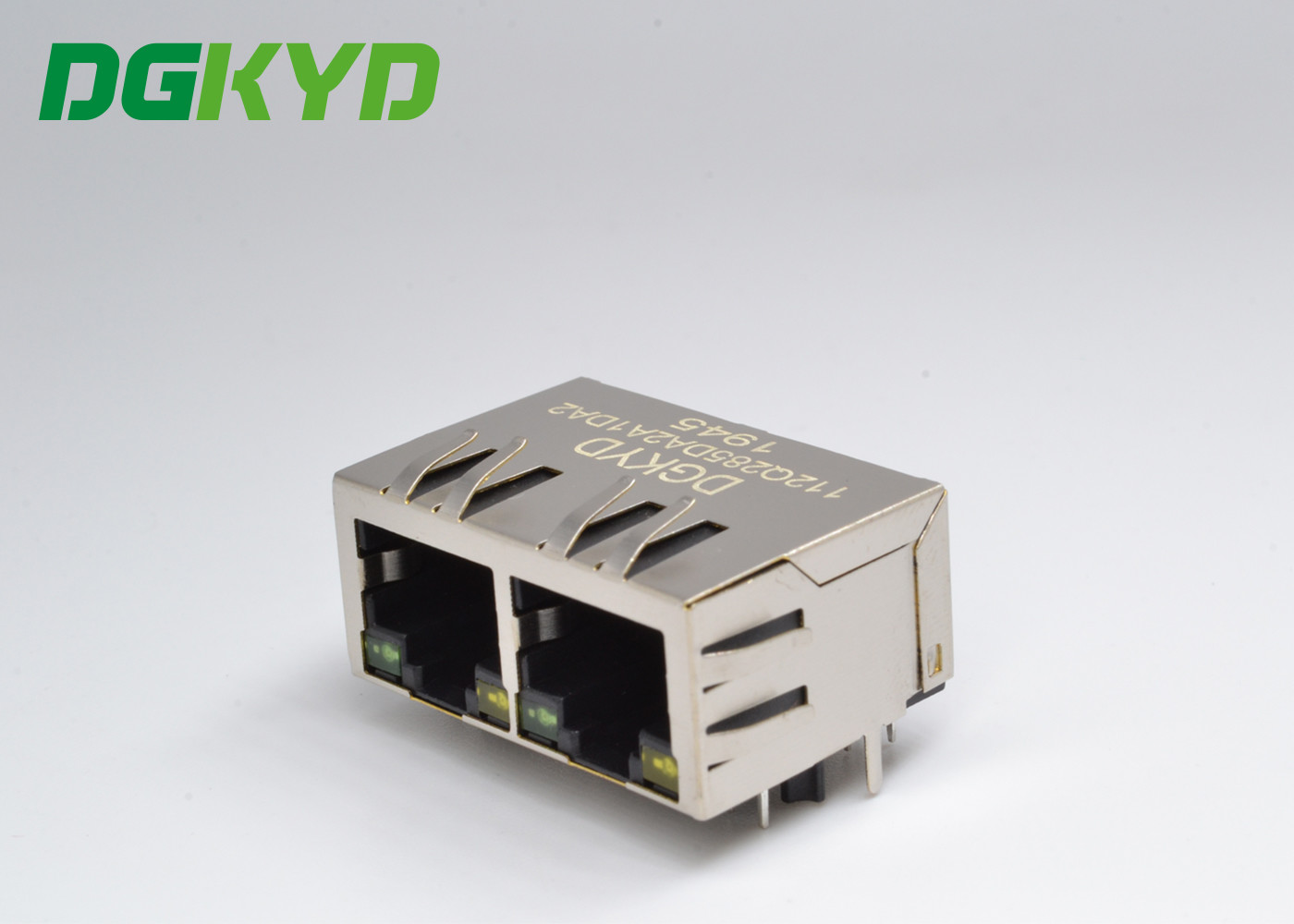

10P8C 2.5G RJ45 Ethernet Connector With Lamp Belt Wing Transformer 1

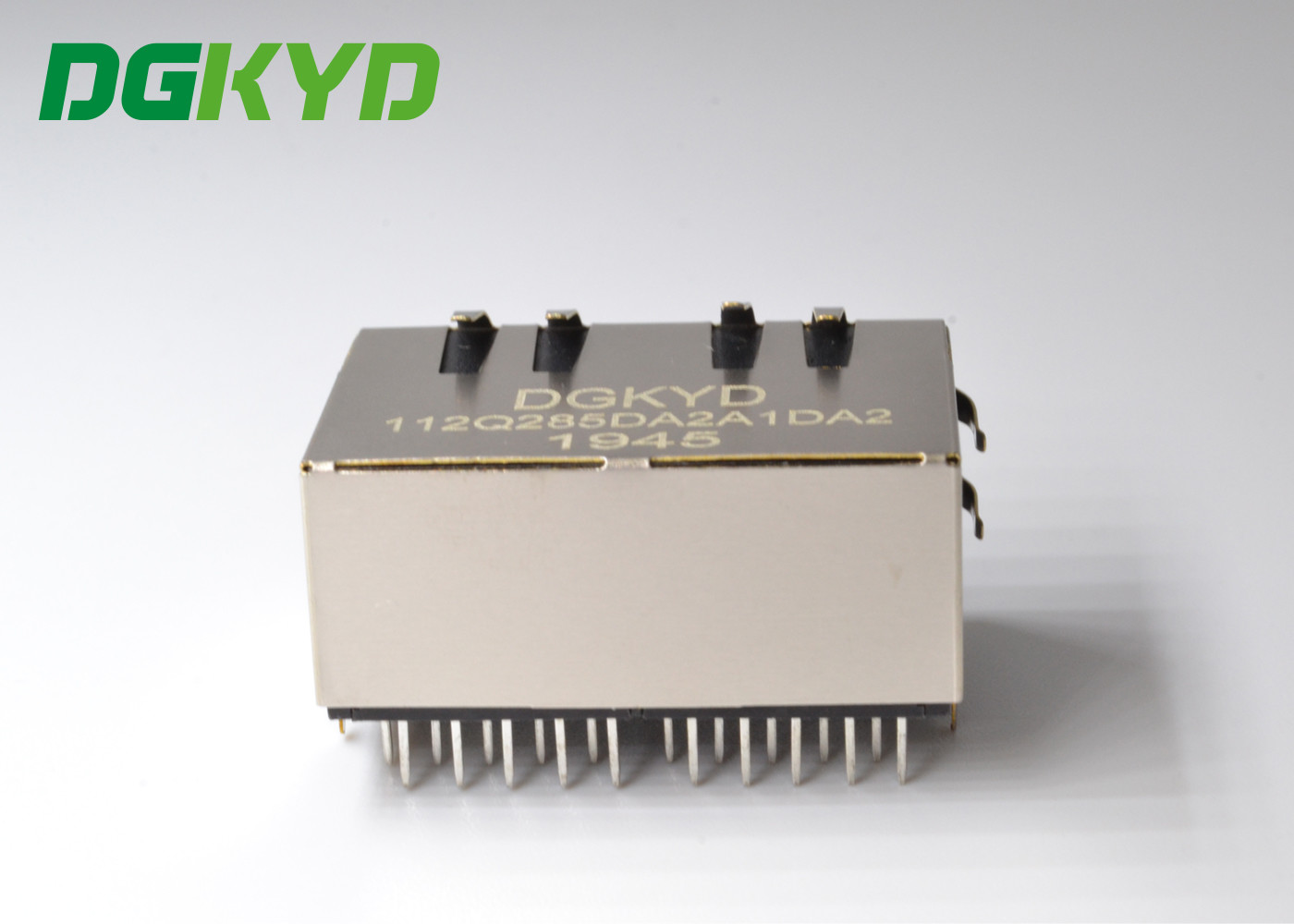

10P8C 2.5G RJ45 Ethernet Connector With Lamp Belt Wing Transformer 2



Pictures

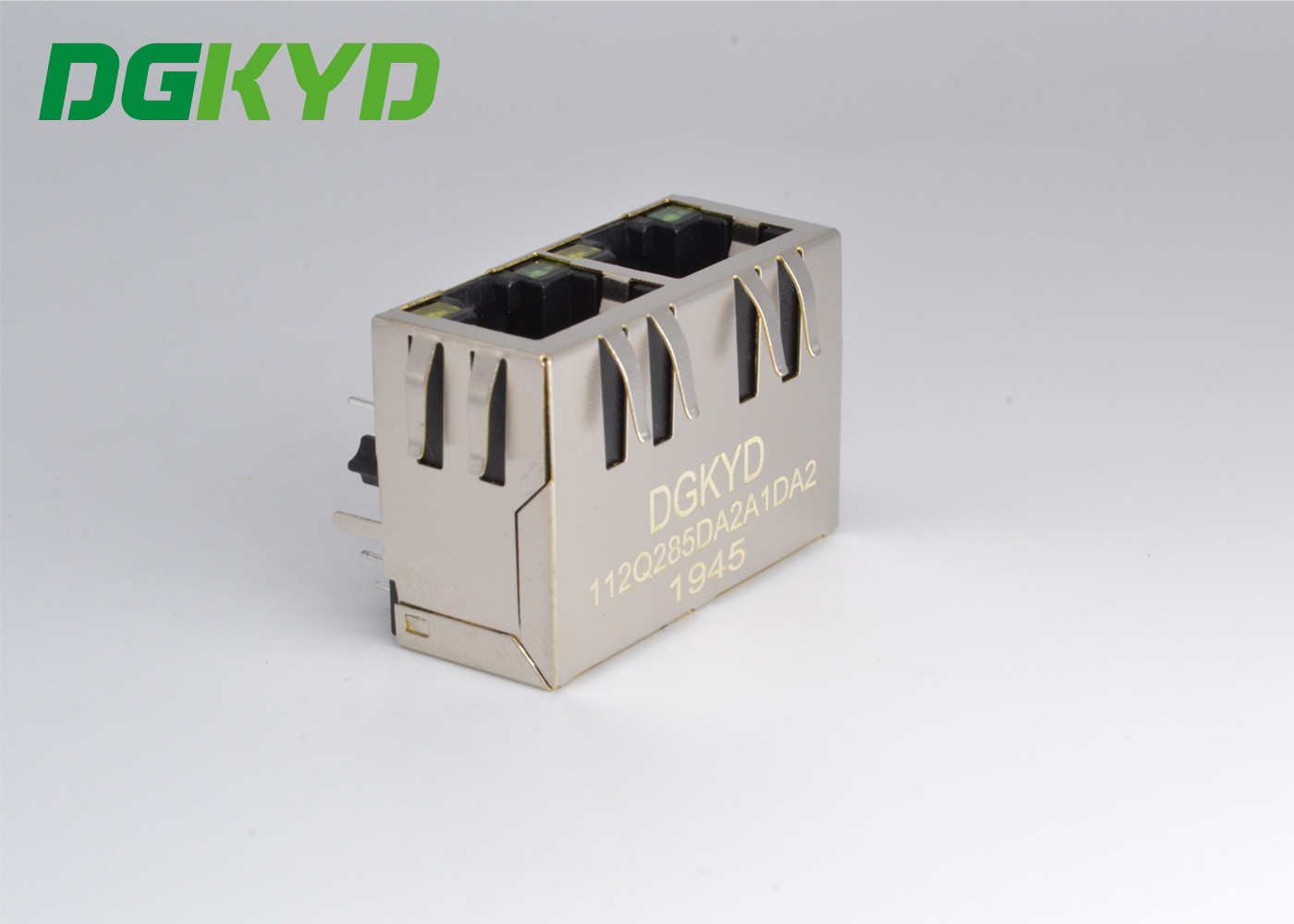

10P8C 2.5G RJ45 Ethernet Connector With Lamp Belt Wing Transformer 3
