2.5Gbit / s RJ45 Ethernet Connector , high performance industrial grade Modular Rj45 Jack
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1080pcs/carton | Delivery Time : | 7-14days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD112Q285AA2A1DA2 2.5G |
|
Detail Information |
|||
| Product Name: | RJ45 Ethernet Connector | Number Of Ports: | Single Port |
|---|---|---|---|
| Clamp Direction: | TAB-DOWN | Integrated Transformer: | 2.5G |
| PCB Mount Style: | DIP | ||
| High Light: | 2.5G ethernet connectors rj45,Dual Link rj45 ethernet jack,Dual Link RJ45 Ethernet Connector |
||
Product Description
2.5G Dual Link RJ45 Network Connector High Performance Band Filter
Surface treatment
Texture,Plating,Painting,Powder coating,Anodization,Ball blasting
Paramters
| Part Number | DGKYD112Q285AA2A1DA(2.5G) | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | L-Green/R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 2.5G BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Double Port | Number of Positions | 10 |
| Jack Configuration | 1 x 2 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6/15/30/50 Microinch | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawing

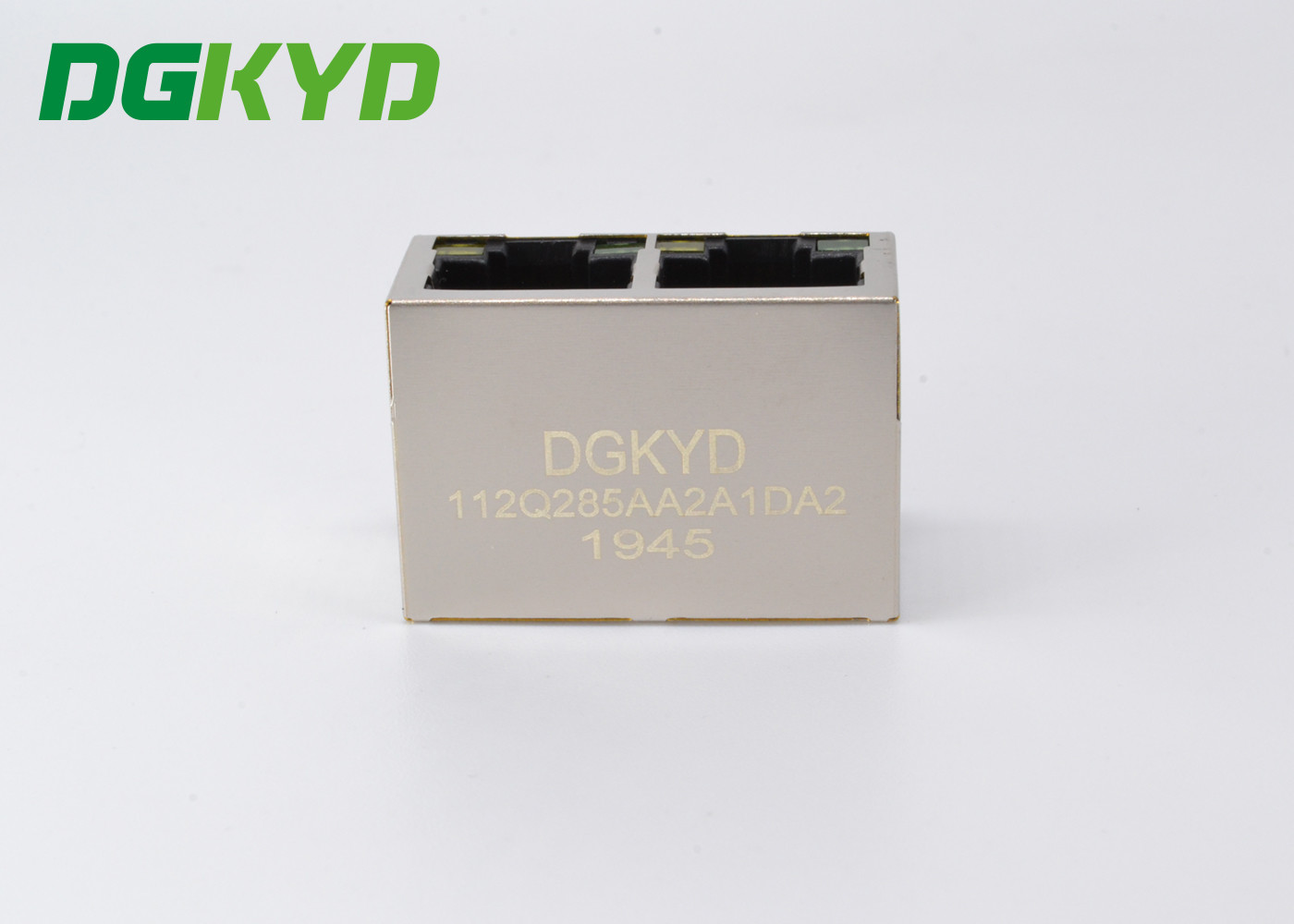

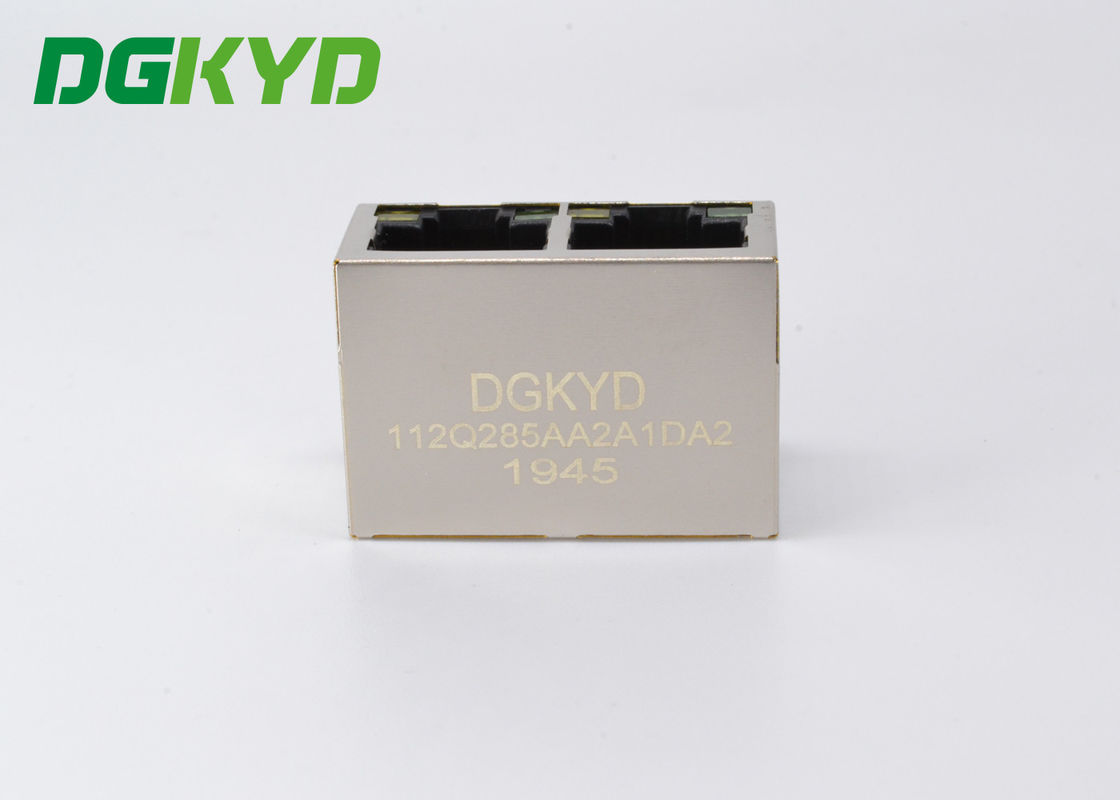

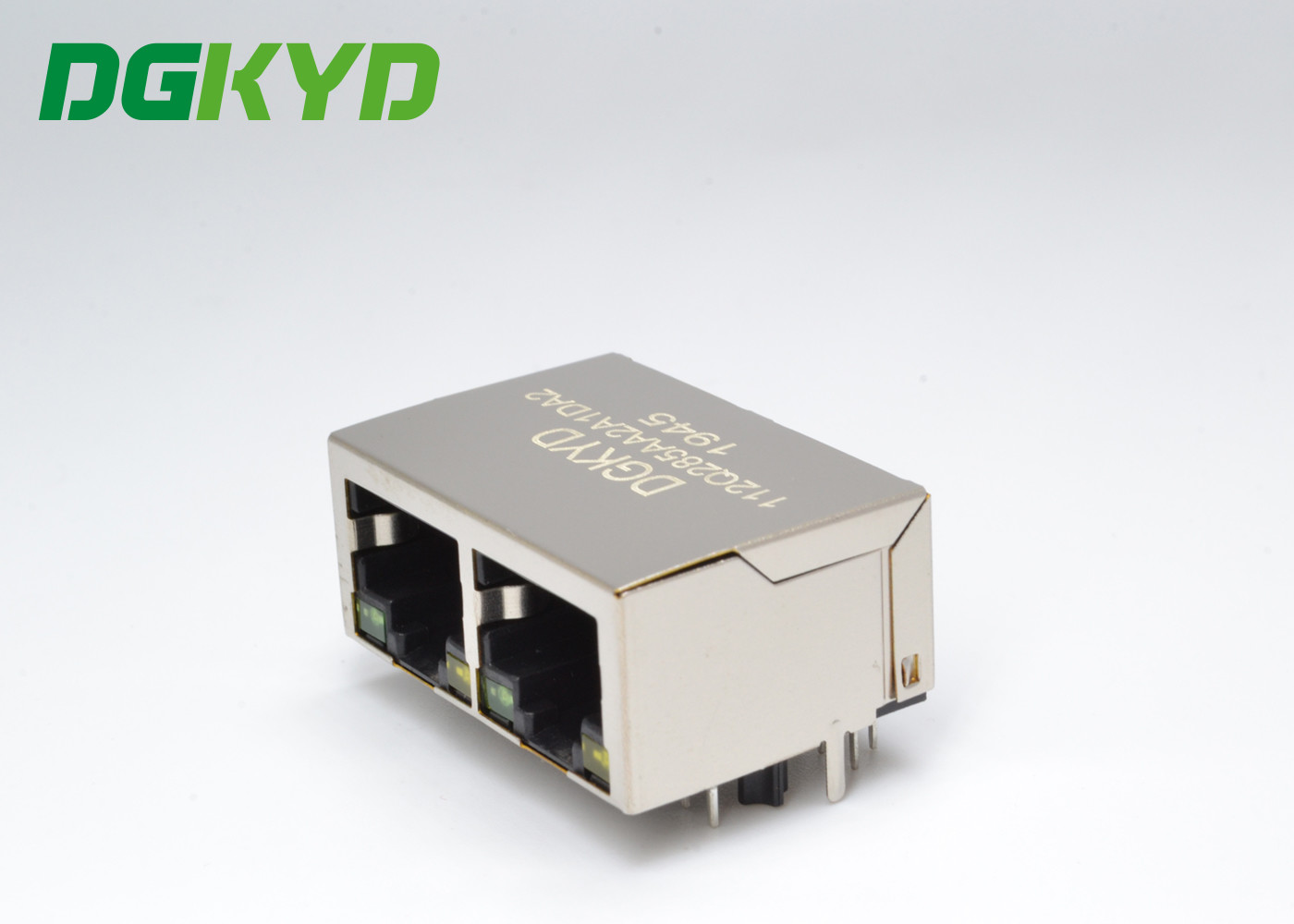

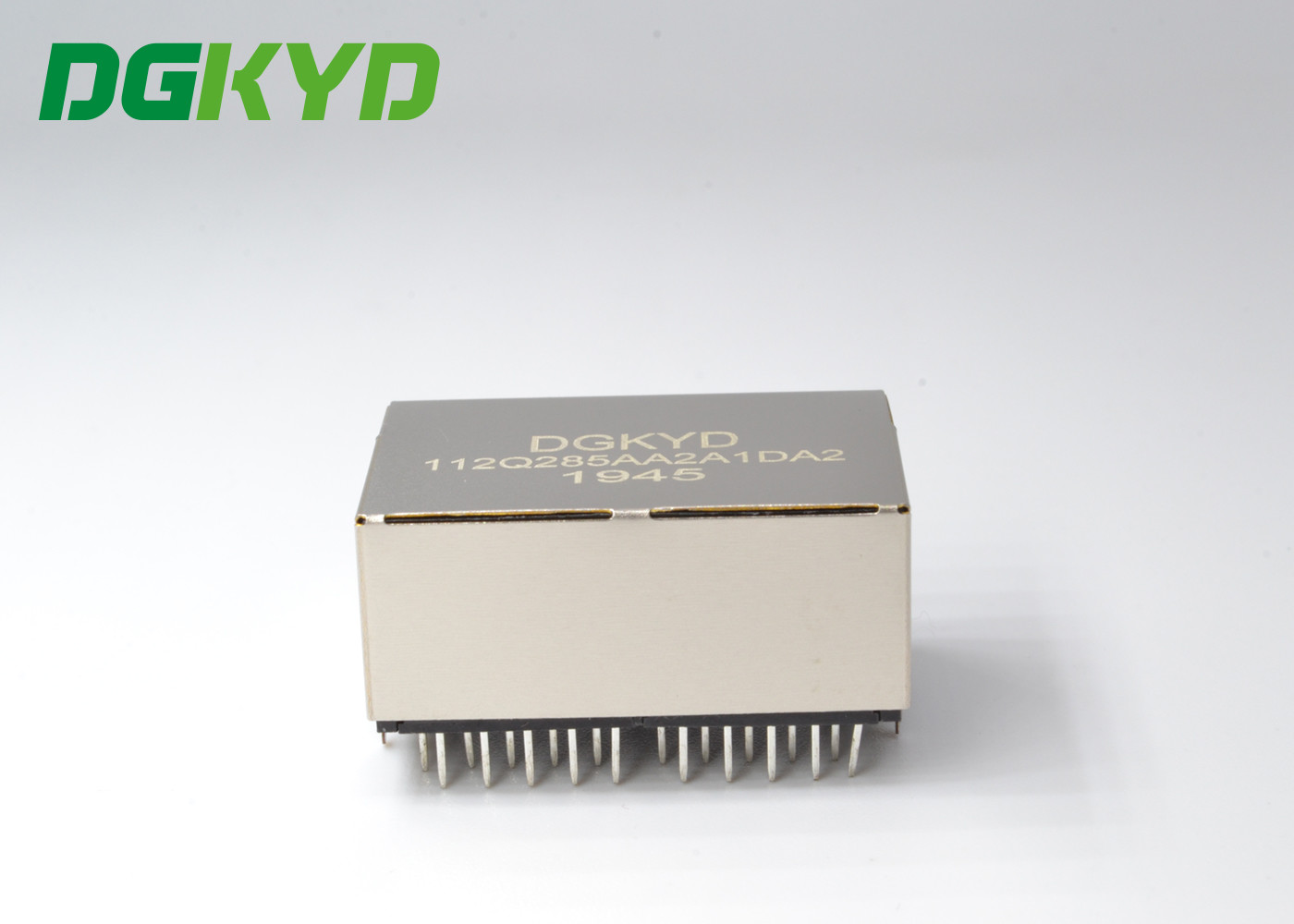

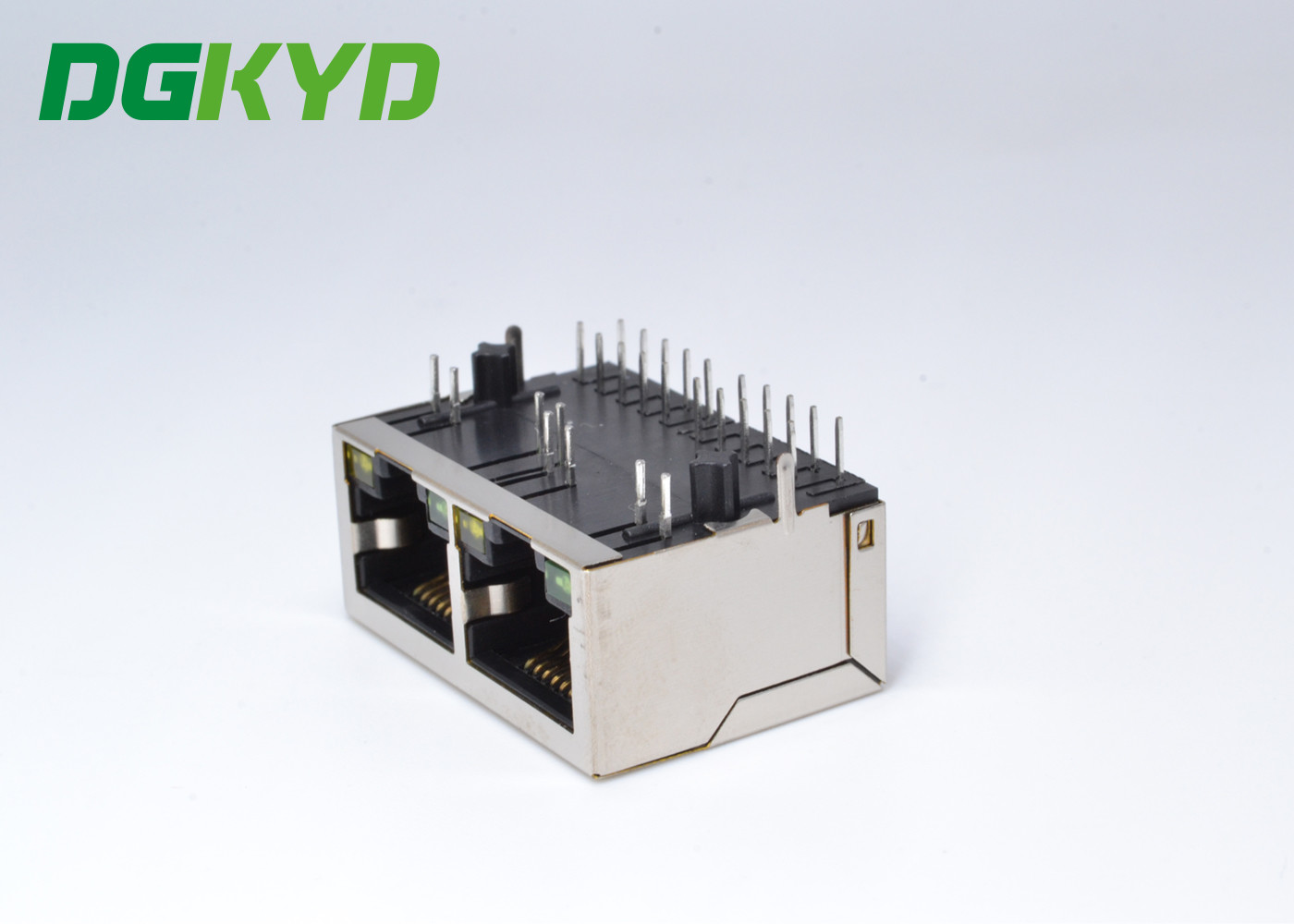

Pictures
