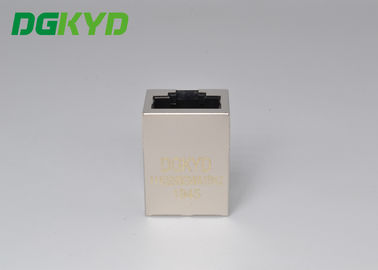

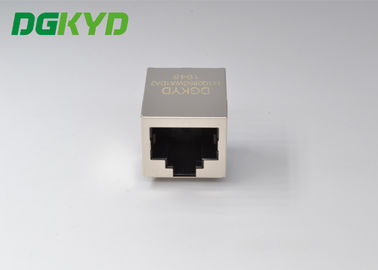

Shield 2.5G TAB-Down 21.3mm RJ45 Ethernet Jack

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111Q285GWA1DA2 2.5G

Detail Information

Product Name: RJ45 Ethernet Jack Number Of Ports: Single Port
Clamp Direction: TAB-DOWN Integrated Transformer: 2.5G
Panel Stops: Without Panel Stops Shield EMI Tabs: Yes
High Light:

ethernet cable connections

,

multi rj45 connector

,

21.3mm RJ45 Ethernet Jack

Product Description

RJ45 2.5G TAB-Down L=21.3mm Without LED With shield



Application



Electronic:auto part,CNC machining parts,Wireless receiver plastic part, 3G/4G Modem Wireless Network Cards,USB housing connector, navigation frame, car key. All kinds of connectors, digital parts.



Paramters



Part Number DGKYD111Q285GWA1DA2(2.5G) Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option Without LED
LED Color N/A Panel Stops Without Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 2.5G BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Port Number of Positions  10
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6/15/30/50 Microinch Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Drawing



Shield 2.5G TAB-Down 21.3mm RJ45 Ethernet Jack 0

Shield 2.5G TAB-Down 21.3mm RJ45 Ethernet Jack 1

Shield 2.5G TAB-Down 21.3mm RJ45 Ethernet Jack 2



Pictures



Shield 2.5G TAB-Down 21.3mm RJ45 Ethernet Jack 3
