1 x 4 Multiple Port cat5 RJ45 PCB Socket Connector Female For Communication

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-415WENL

Detail Information

Port Configuration: Ganged 4 Port Performance: Cat5
High Light:

rj45 connector pcb mount

,

rj45 pcb jack

,

Multiple Port cat5 RJ45

Product Description

Multiple Port  RJ45 PCB Socket Connector Female For Communication

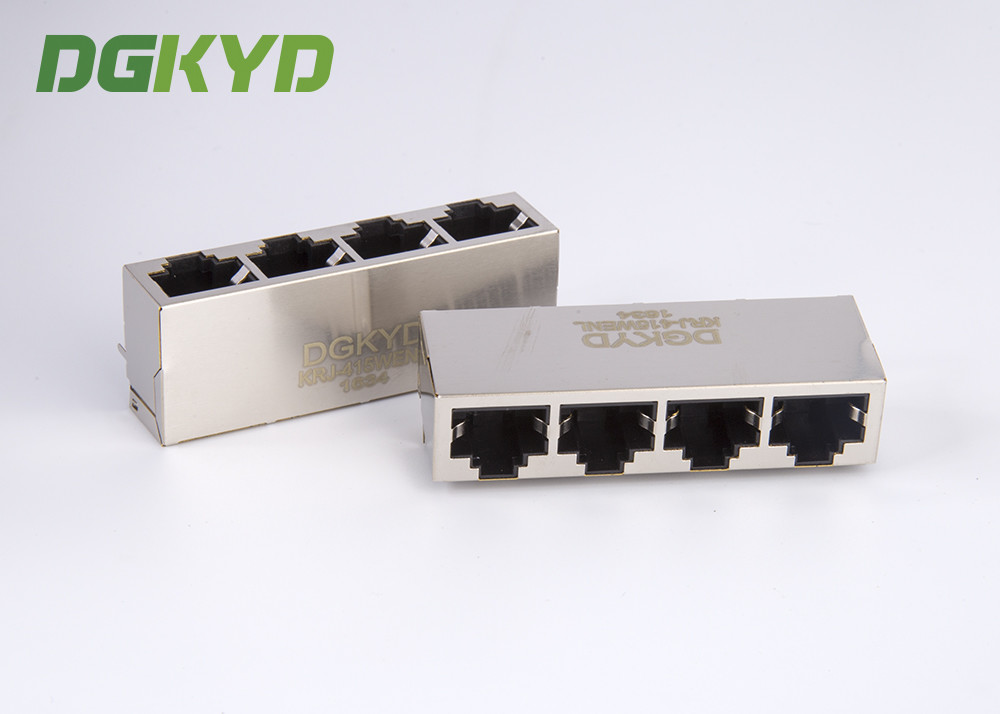

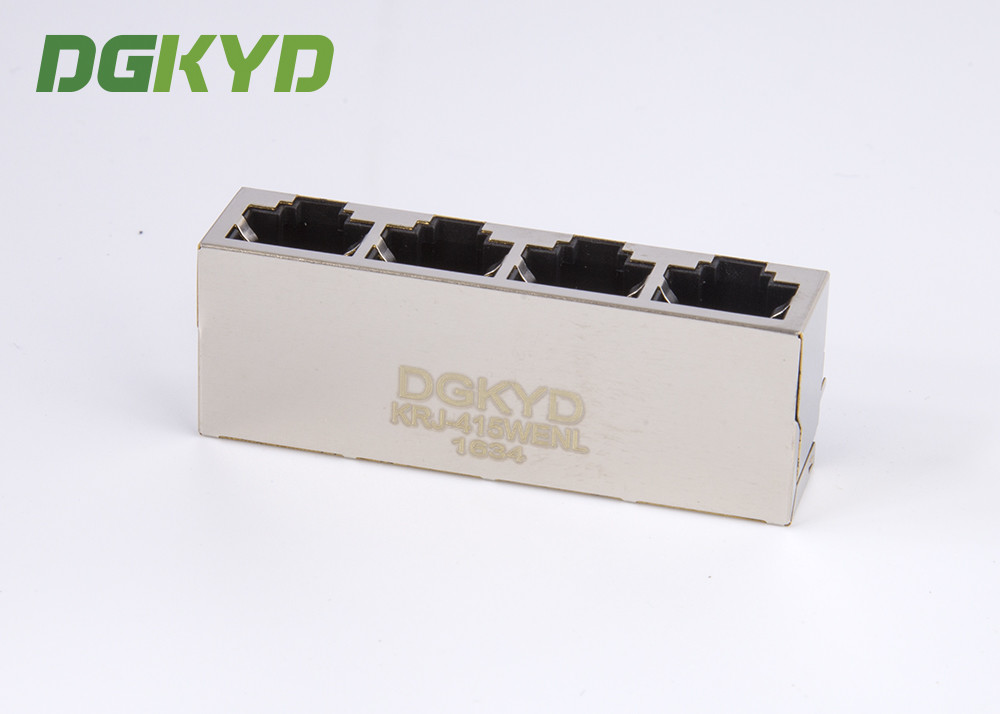

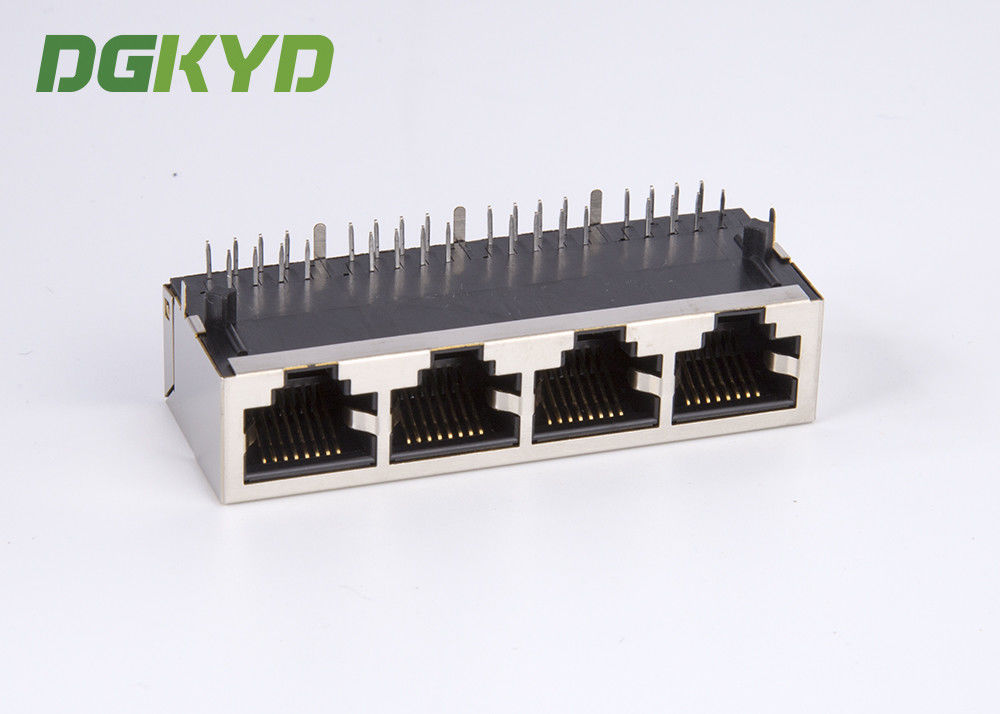

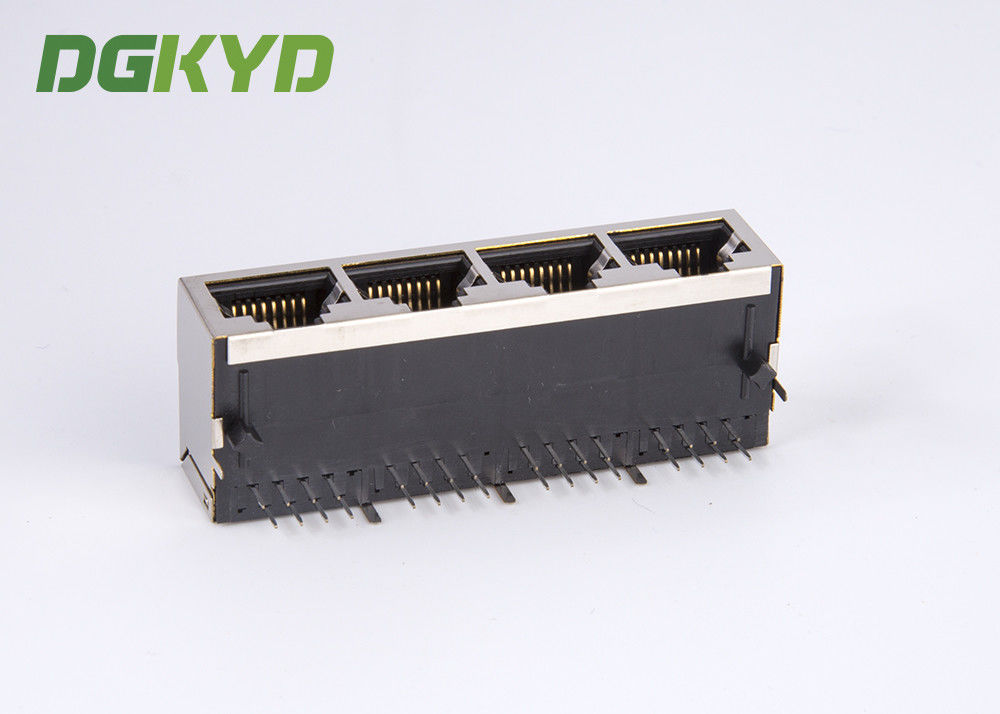

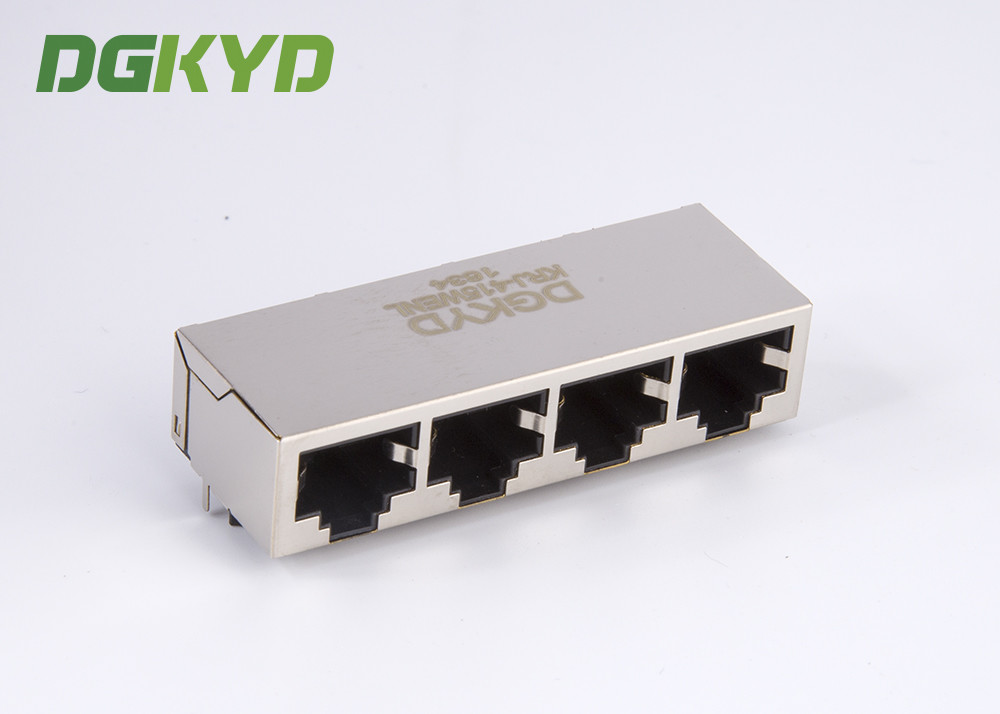

1 x 4 Multiple Port cat5 RJ45 PCB Socket Connector Female For Communication 01 x 4 Multiple Port cat5 RJ45 PCB Socket Connector Female For Communication 1



  • 10/100Base-Tx RJ45 4 port 1X4 Vertical without LED
  • 4 port 1X4 Tab-Down 90 degree RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3mm



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,customer firstly ,100% test, 0 defect, short lead time are our best advantages
