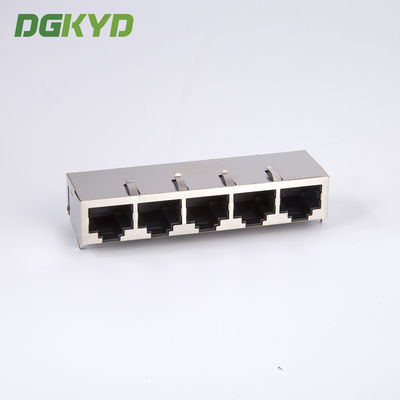

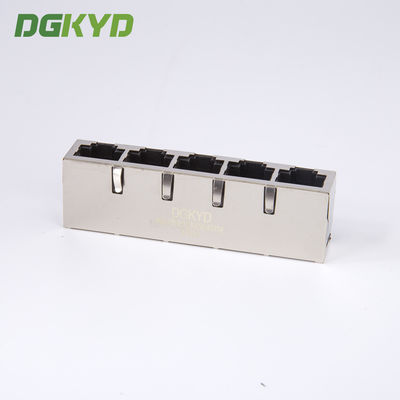

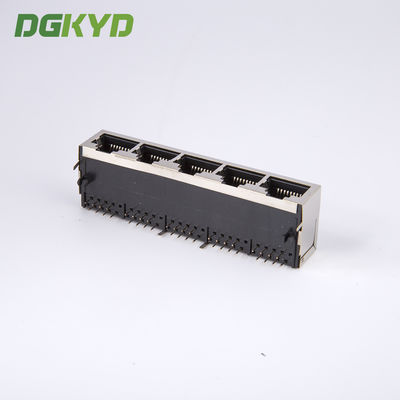

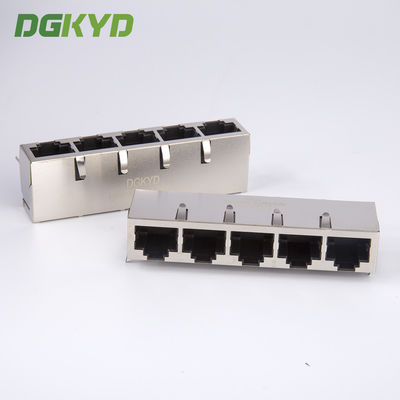

PCB Mount 1x5 Shield Five Ports RJ45 Connector Multiple Port Lan Modular Jacks

PCB Mount 1x5 Shield Five Ports RJ45 Connector Multiple Port Lan Modular Jacks

Product Details:
Place of Origin:	DongGuan of China
Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number:	DGKYD59211518HWA1D7Y1DB022
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Price:	Please contact us to get the latest price.
Packaging Details:	Tray in Carton
Delivery Time:	10 days
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	100K pcs/day

Contact Now

Detail Information
Housing:	PBT Black (UL94V-0)	Product Name:	Five Ports Rj45 Connector
Rohs:	Yes	Shield:	Yes
Type:	RJ45	No.Port:	1x5
Highlight:	multi rj45 connector , plug modular rj45

Product Description

PCB mount 5 Ports 90° side entry RJ45 Connector ethernet switch socket

PCB Mount 1x5 Shield Five Ports RJ45 Connector Multiple Port Lan Modular Jacks 0

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver, IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on,For example:

PCB Mount 1x5 Shield Five Ports RJ45 Connector Multiple Port Lan Modular Jacks 1
