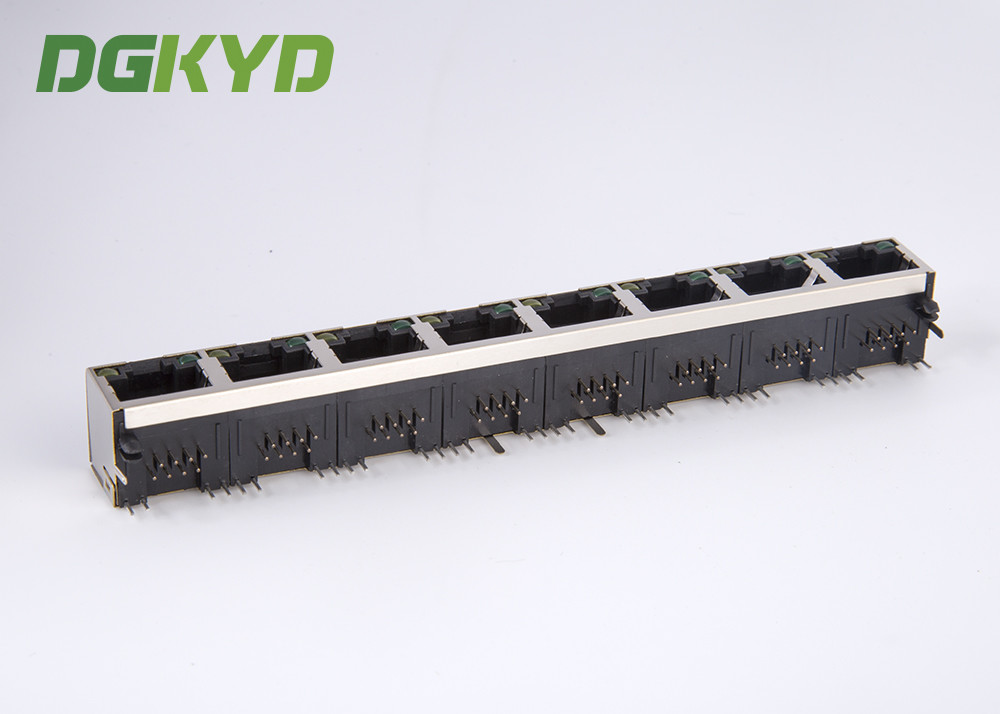

Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-56S1X8YGNL

Detail Information

Modular Jack & Plug Interface Type: RJ45 Without Transformer Port Configuration: 1x8
Connector Style: Jack Gender: Female
Shielded: Yes Speed: 10/100/100 Base-tx
Status Indicator: Y/G LED Latch Orientation: TAB UP
High Light:

multi rj45 connector

,

plug modular rj45

,

Combo PCB Mount RJ45

Product Description

Customized Shield tab up 1x8 port combo PCB mount RJ45 ethernet jack with Y/G LED



ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40℃ to +85℃
SHIELD PLATING MATERIAL NICKEL
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X8
NUMBER OF CONTACTS 8
LED OPTION Y/G LED
LATCH ORIENTATION LATCH UP
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK





















































  • Minimum product life requirement of 10 years
  • 260 degrees C PIP soldering reflow capability
  • Plating thickness 0,76µm [30µinch] gold over 1,27µm [50µinch] nickel

Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity

Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED 0
