Stack RJ45 Connector Dual Deck 2X4 Y/G RoHS 0879-2D4R-56 Plug Modular jack Rj45

Contact Now

Stack RJ45 Connector Dual Deck 2X4 Y/G RoHS 0879-2D4R-56 Plug Modular jack Rj45

Name: Stack RJ45 Connector Dual Deck 2X4 Y/G RoHS 0879-2D4R-56 Plug Modular jack Rj45
Brand: DGKYD
SKU: KRJ-5921S2X4YGENL
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (152 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921S2X4YGENL

Detail Information
JACK TYPE:	RJ45	MAGNETICS:	Without Magnetics
Connector Type :	Connector Assembly	PCB MOUNT STYLE:	DIP
NUMBER OF PORTS:	2x4	SPEED:	10/100
High Light:	multi rj45 connector , plug modular rj45 , Stack RJ45 Connector Dual Deck

Product Description

Stack RJ45 connector , dual deck, 2X4, Y/G, RoHS, 0879-2D4R-56
ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
SPEED	Cat 3
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
NUMBER OF POSITIONS	8
NUMBER OF PORTS	2X4
NUMBER OF CONTACTS	8
LED OPTION	Y/G
LATCH	UP & DOWN
KEYED	NO
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Plastic Materials: UL 94V-0 rated
Contact Material: Copper Alloy
Contact Plating: 50 micro-inch selective hard gold or as specified
Mechanical dimensions comply with IEC 61076-3-110
Electrical performance as defined by IEC 60603-7-71 and IEEE802.3
Operating Temperature: 0°C to 70°C or as specified

ICMs designed for 10/100BT, 1GBT, 10GBT and PoE(plus)
Port configurations ranging from 1×1 to 2×8 (16 ports)
Some port configurations available in vertical mount, low-profile and compressed-mid-plane mounted options.
Entire line of integrated USB-A 2.0 connector options
Optional LEDs, EMI tab-shields and EMI-gasket options
Board-mount options: thru-hole, SMT, pin-and-paste and limited press-fit configurations
Multiple footprint and pin-out configurations available.

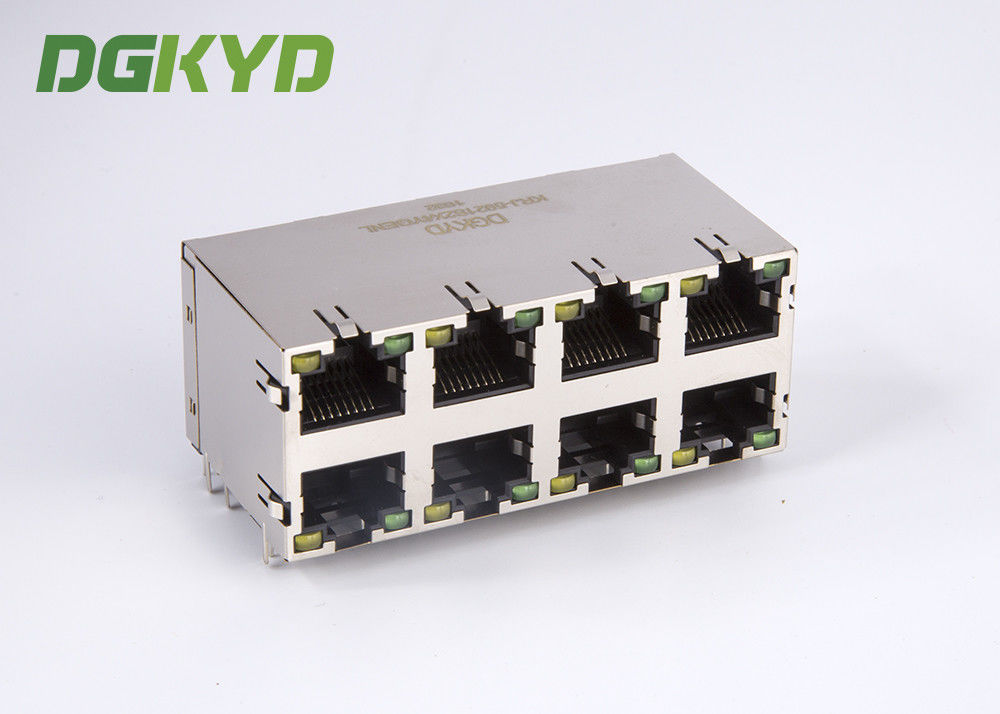

Stack RJ45 Connector Dual Deck 2X4 Y/G RoHS 0879-2D4R-56 Plug Modular jack Rj45 0
