Shielded pcb mount female rj45 keystone Jack 10p8c connector , side entry

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-5621S10P8CENL

Detail Information

Aplication: PCB Type: RJ45
Housing Material: PBT Polyester Integrated Transformer: No
High Light:

female ethernet connector

,

cat5 female connector

,

rj45 keystone Jack 10p8c connector

Product Description

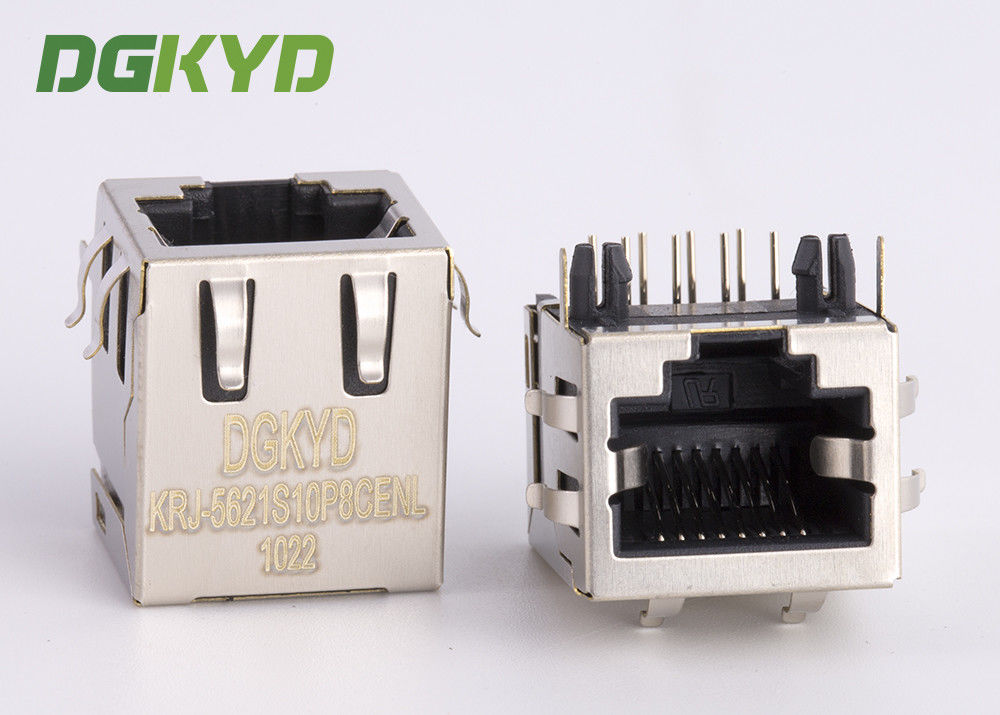

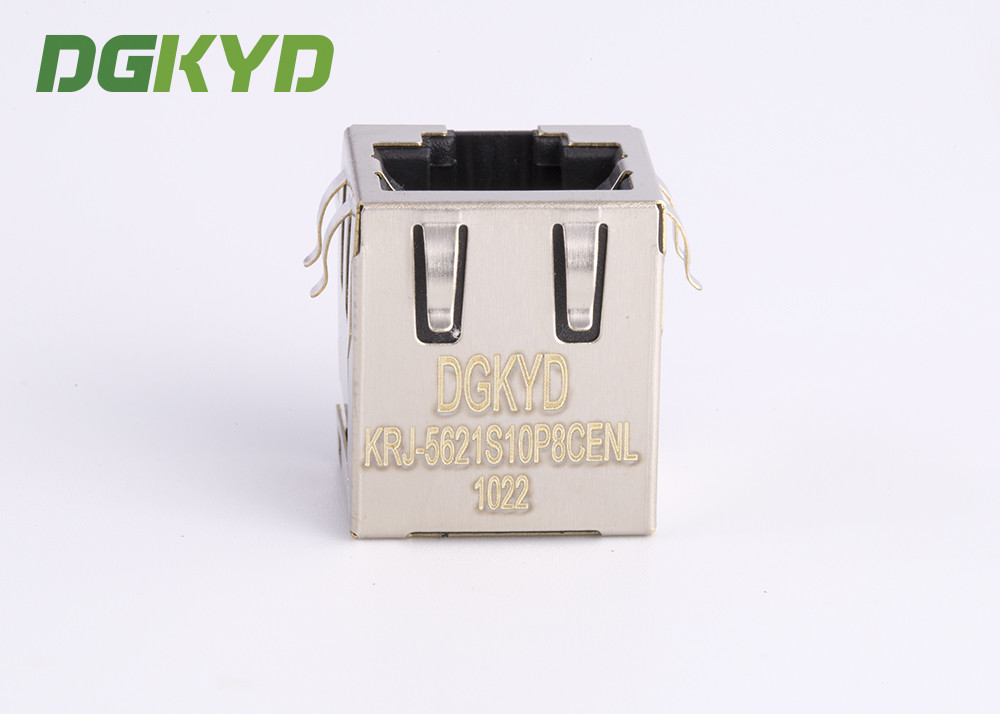

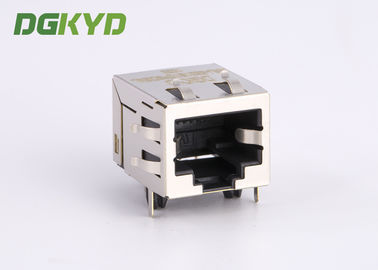

Female shielded pcb mount rj45 keystone connector KRJ -5621S10P8CENL




Part Number
KRJ-5621S10P8CENL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Down
Magnetics No
LED Option
Without LED
LED Color
N/A
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100/1000 BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
10
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

Shielded pcb mount female rj45 keystone Jack 10p8c connector , side entry 0
