Product Name: RJ45 Female Jack Number Of Positions: 10
Number Of Contacts Loaded: 8 Port: 1
Metal Shell RJ45: Copper Alloy RJ45 PCB Terminal: Phosphor Bronze
Highlight:

cat5 female connector

,

rj45 female connector

,

modular rj45 jack Metal shielded

Product Description

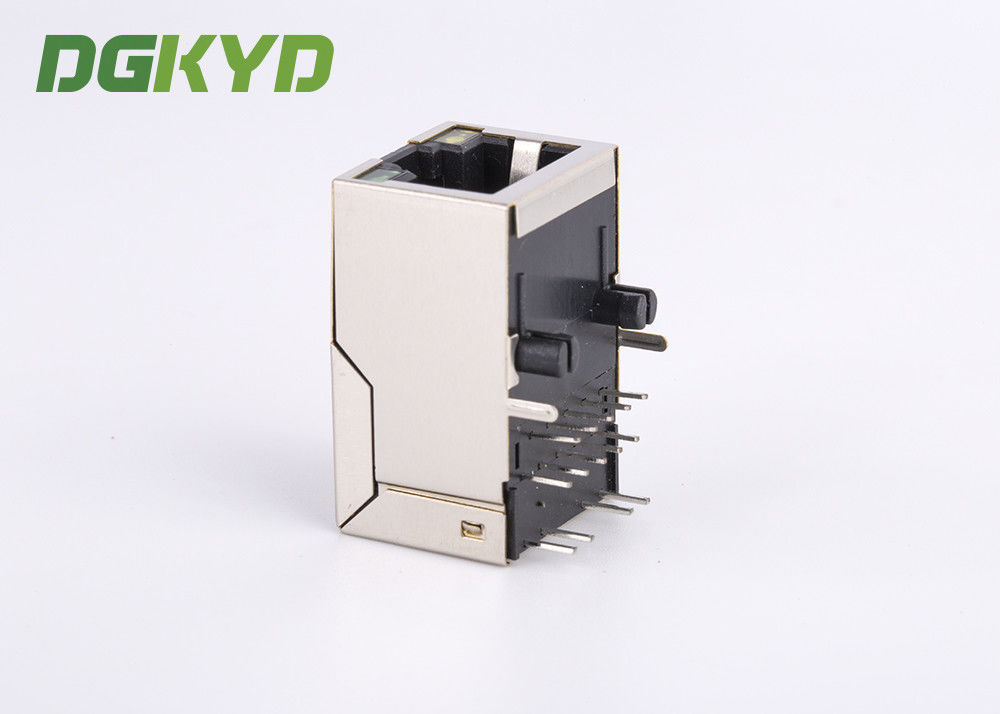

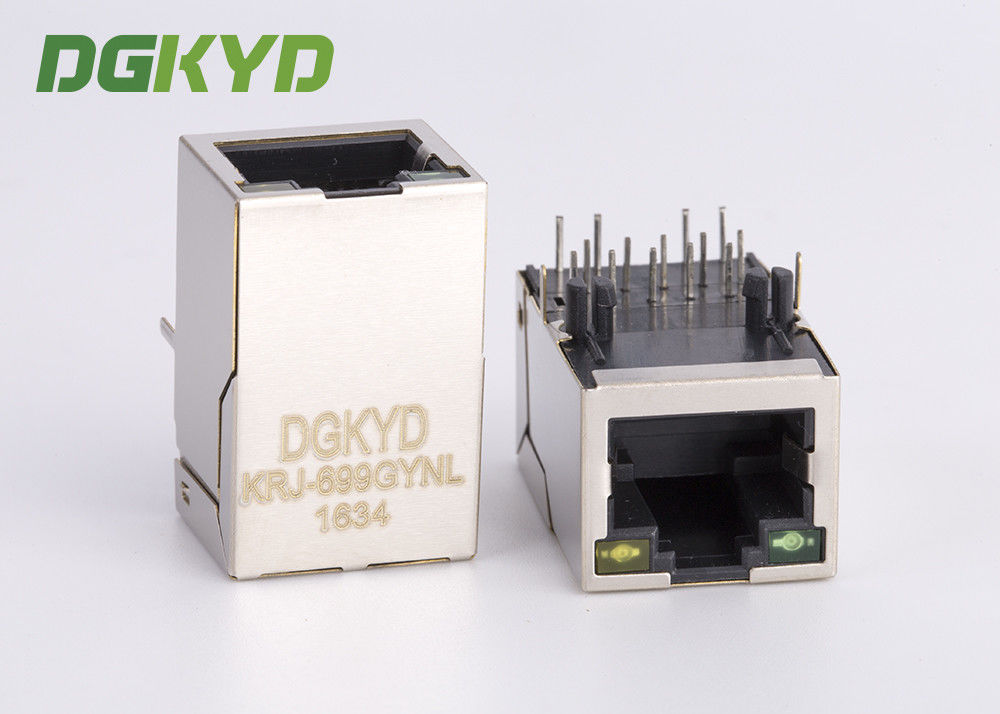

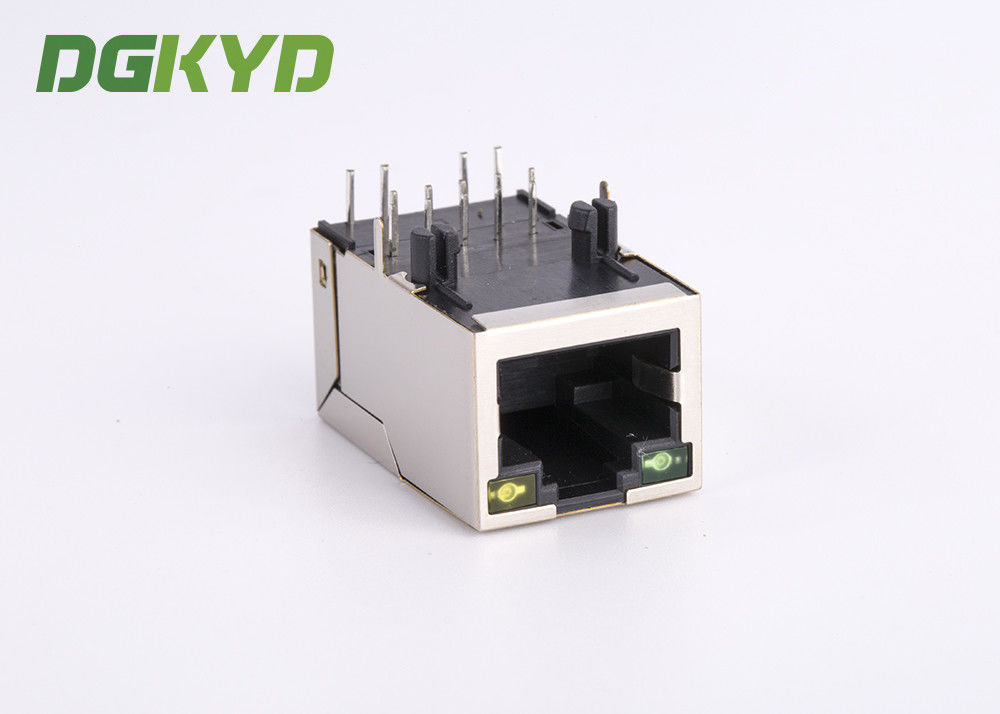

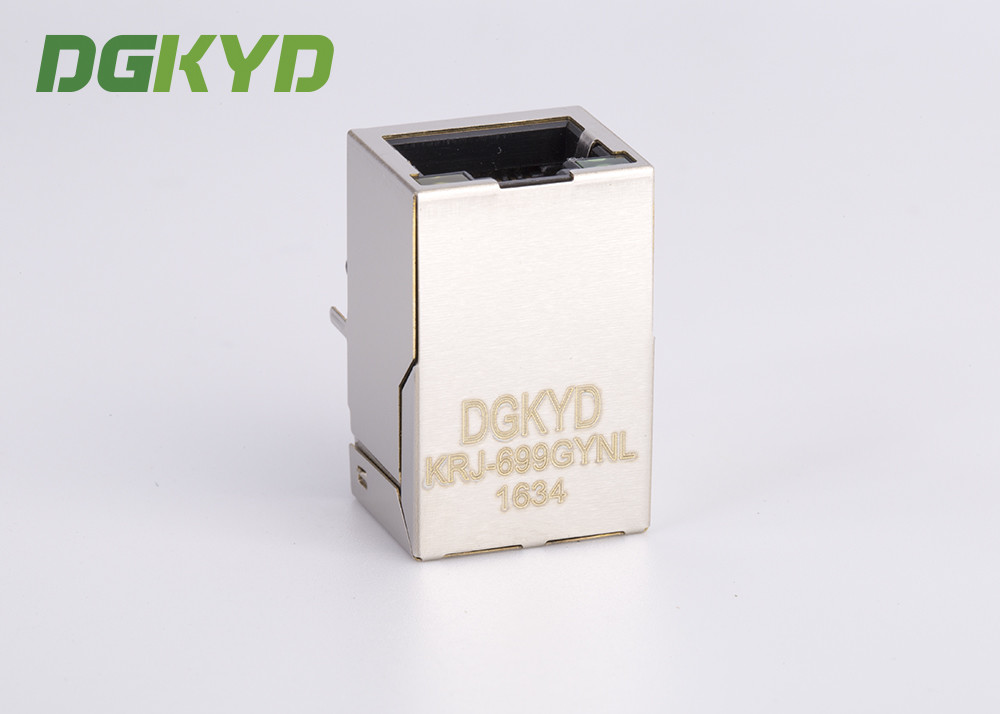

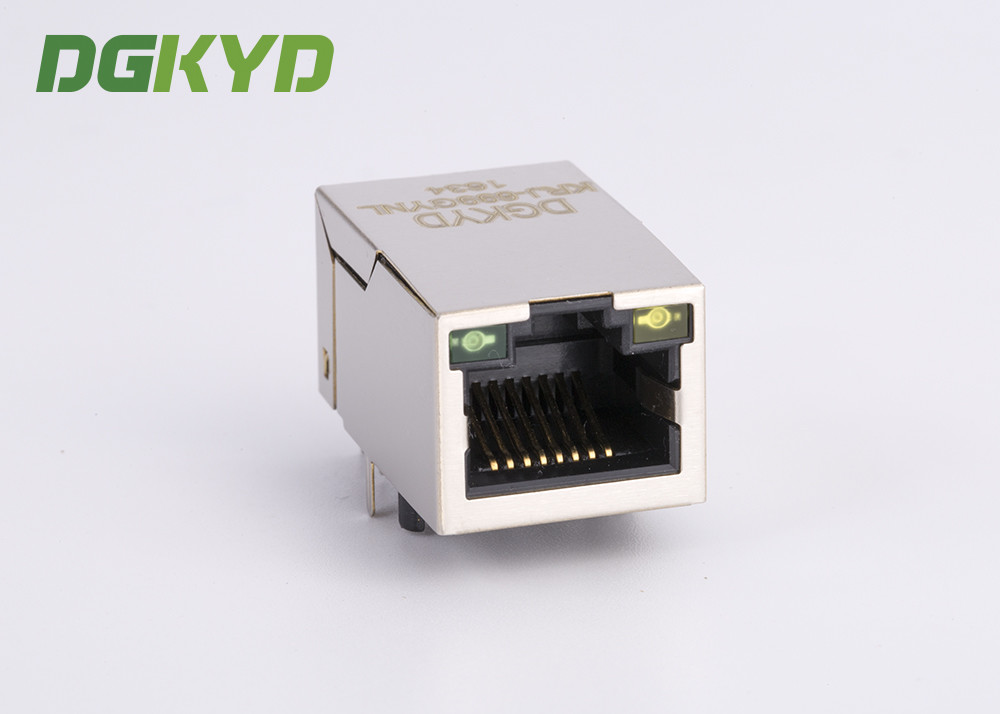

Metal shielded cat6 rj45 connectors , 1000 Gigabit female rj45 modular jack

Metal shielded cat6 rj45 connectors , 1000 Gigabit female rj45 modular jack 0Metal shielded cat6 rj45 connectors , 1000 Gigabit female rj45 modular jack 1Metal shielded cat6 rj45 connectors , 1000 Gigabit female rj45 modular jack 2

ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss: -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk: -30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 800 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 3u inch,6u inch,15u inch,30u inch,50u inch
5.LED Specification LED Color: LED Wavelength: Forward(V MAX): Typical (V TYP): Luminous Intensity:
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30 MCD
LED intensity/wave length measured with Photo Research PR-650 Colormeter
With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C)
6.RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature: -40°C to 85°C
Working Temperature -40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.



Integrated RJ45 connector main used to :



• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL/ADSL and so on.
