DGKYD311B029DB1A4DN PCB Mount Integrated Magnetics RJ45 Jack Module Tab Up Cat5 Ethernet Socket OEM

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD311B029DB1A4DN

Detail Information
Product Name:	Integrated RJ45 Jack	Number Of Positions:	8
Number Of Contacts Loaded:	8	RJ45 PCB Terminal:	Phosphor Bronze ,Tail-Tin Over Nickl
Metal Shell RJ45:	Copper Alloy ,Tin And Nickel Plated	Port:	1
Brand Name:	DGKYD	Operating Temperature:	- 40 ℃ ~ 85 ℃
Model Number:	Jack Connectors	Housing Material:	PBT Polyester
LED Color:	Green-Yellow	Plating:	Glod Plating 6u
Highlight:	female ethernet connector , cat5 female connector , Tab Up Cat5 Ethernet Socket

Product Description

DGKYD311B029DB1A4DN PCB Female connector Integrated magnetics RJ45 Jack megabit with transformer 8 Pin

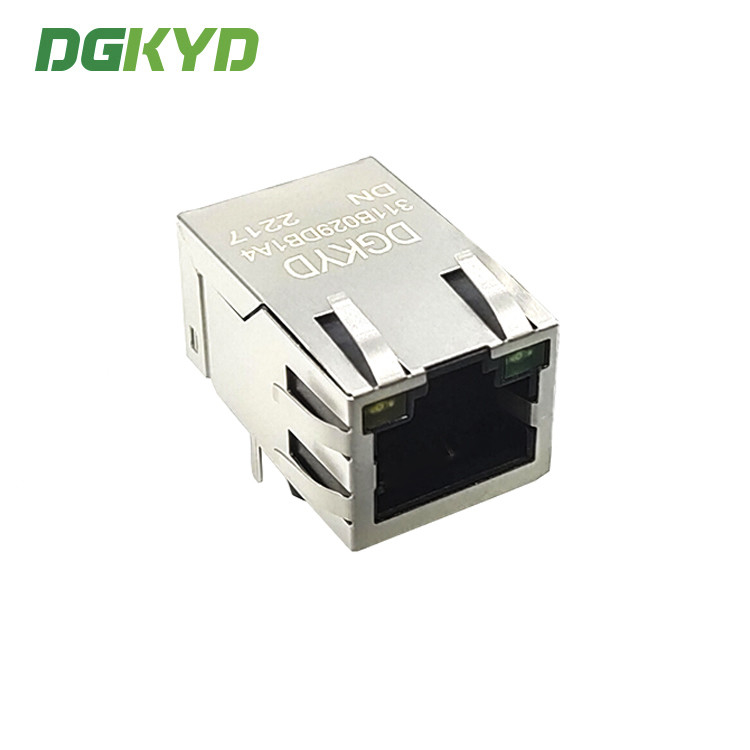

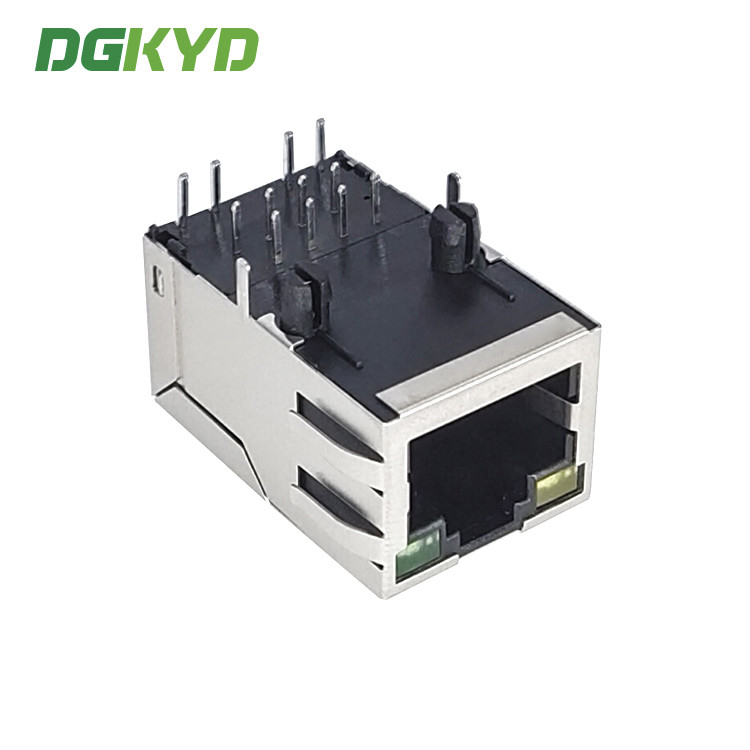

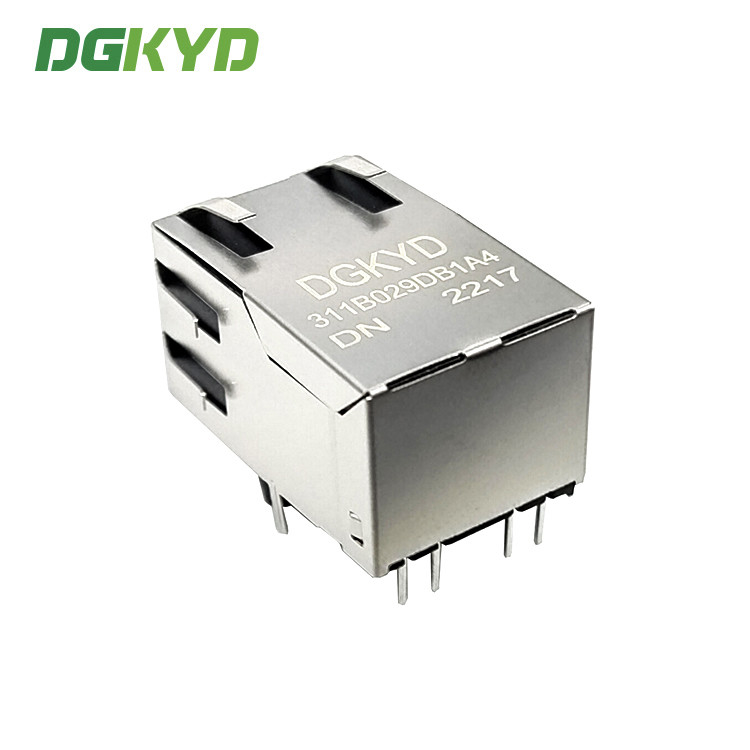

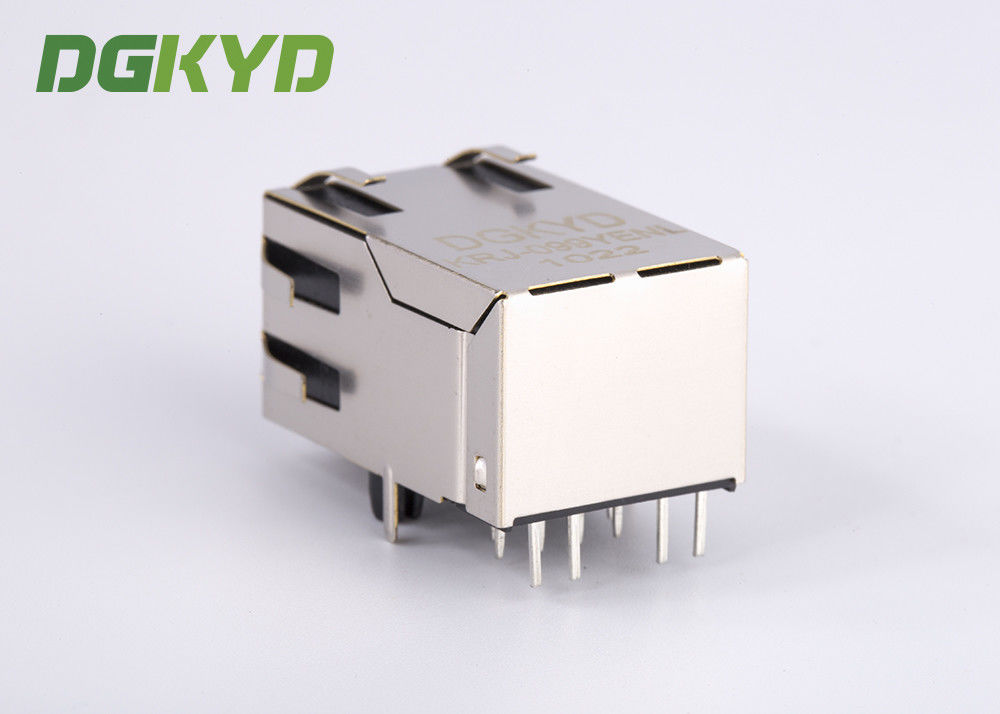

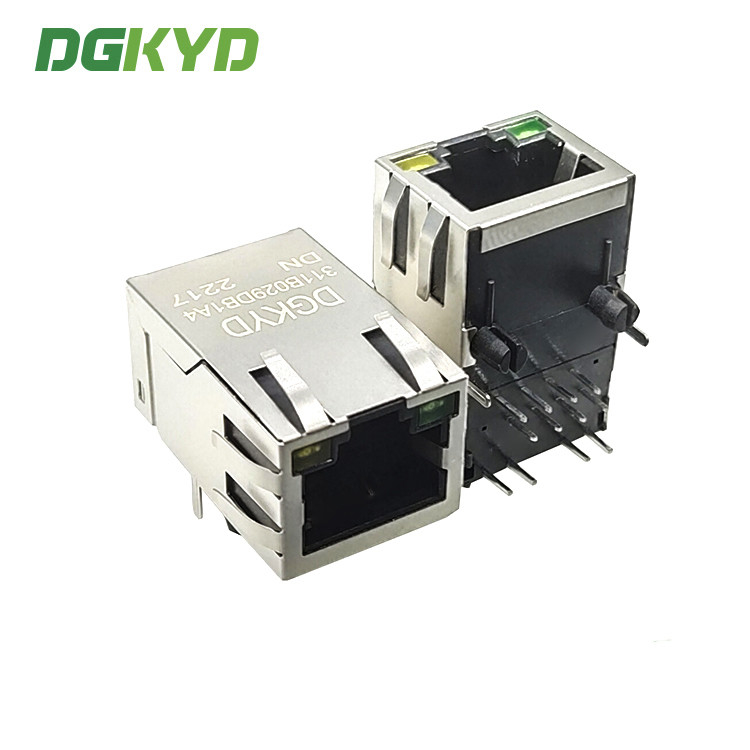

DGKYD311B029DB1A4DN PCB Mount Integrated Magnetics RJ45 Jack Module Tab Up Cat5 Ethernet Socket OEM 0

10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with LEDS
Single port 1X1 Tab-up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions: 8
Number of contacts loaded: 8
Shieded:YES
Rohs compliant

Applications:

Integrated RJ45 connector main used to :

10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera, net bridge, computer, telecommunication, MODEM,HomePNA, DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
