8P8C Gigabit RJ45 Connector with Integrated Transformer RJ45 Jack for 10/100/1000 Base-T Ethernet

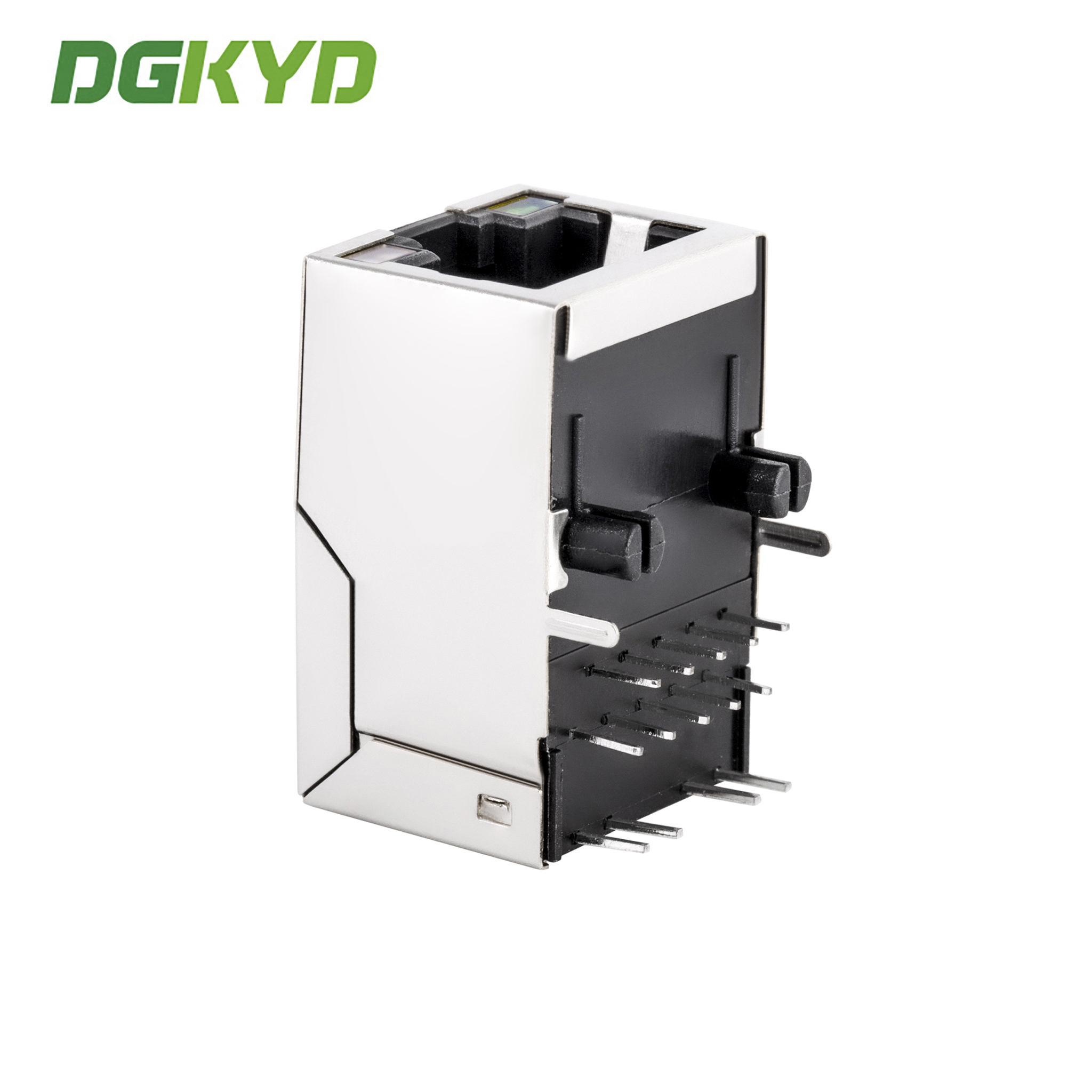

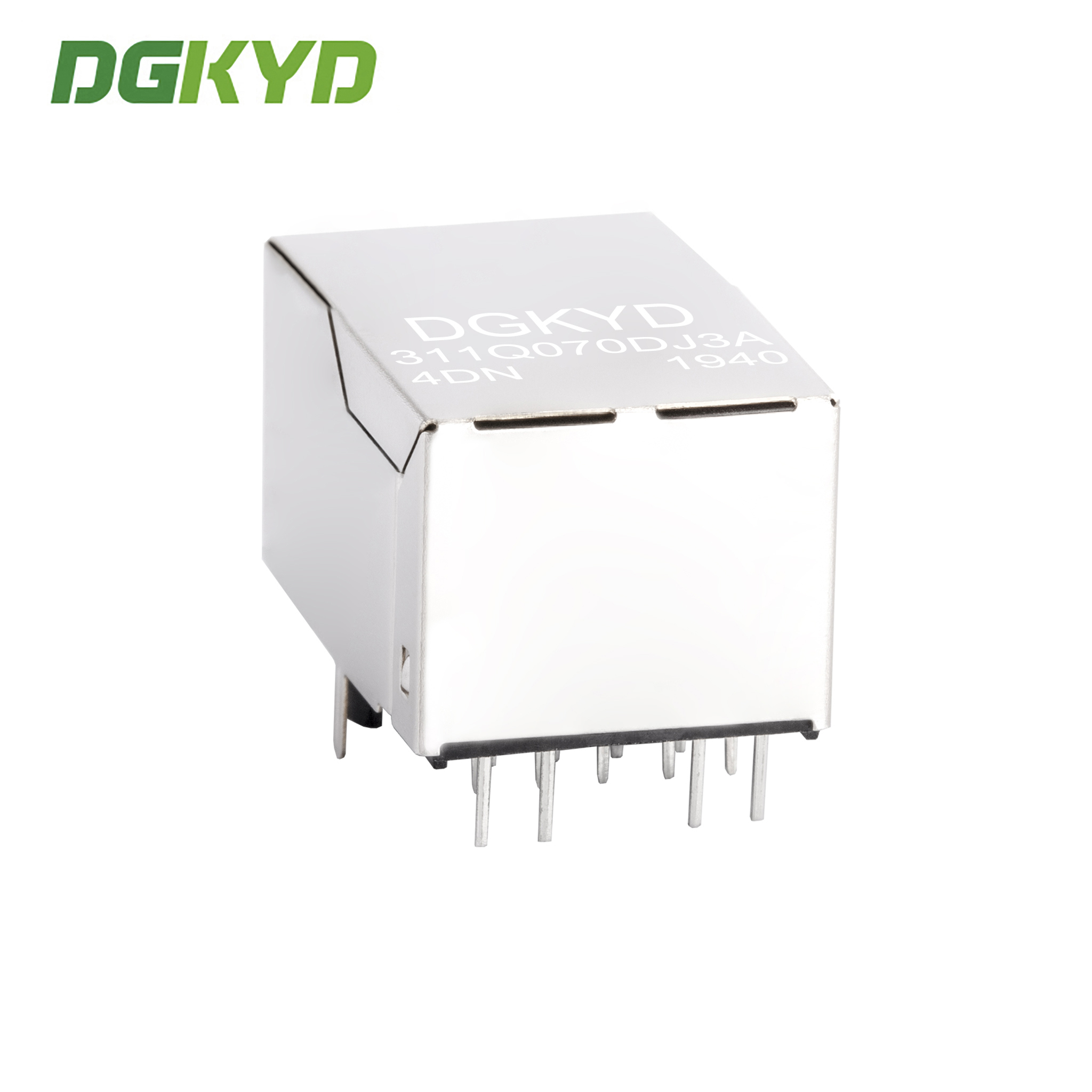

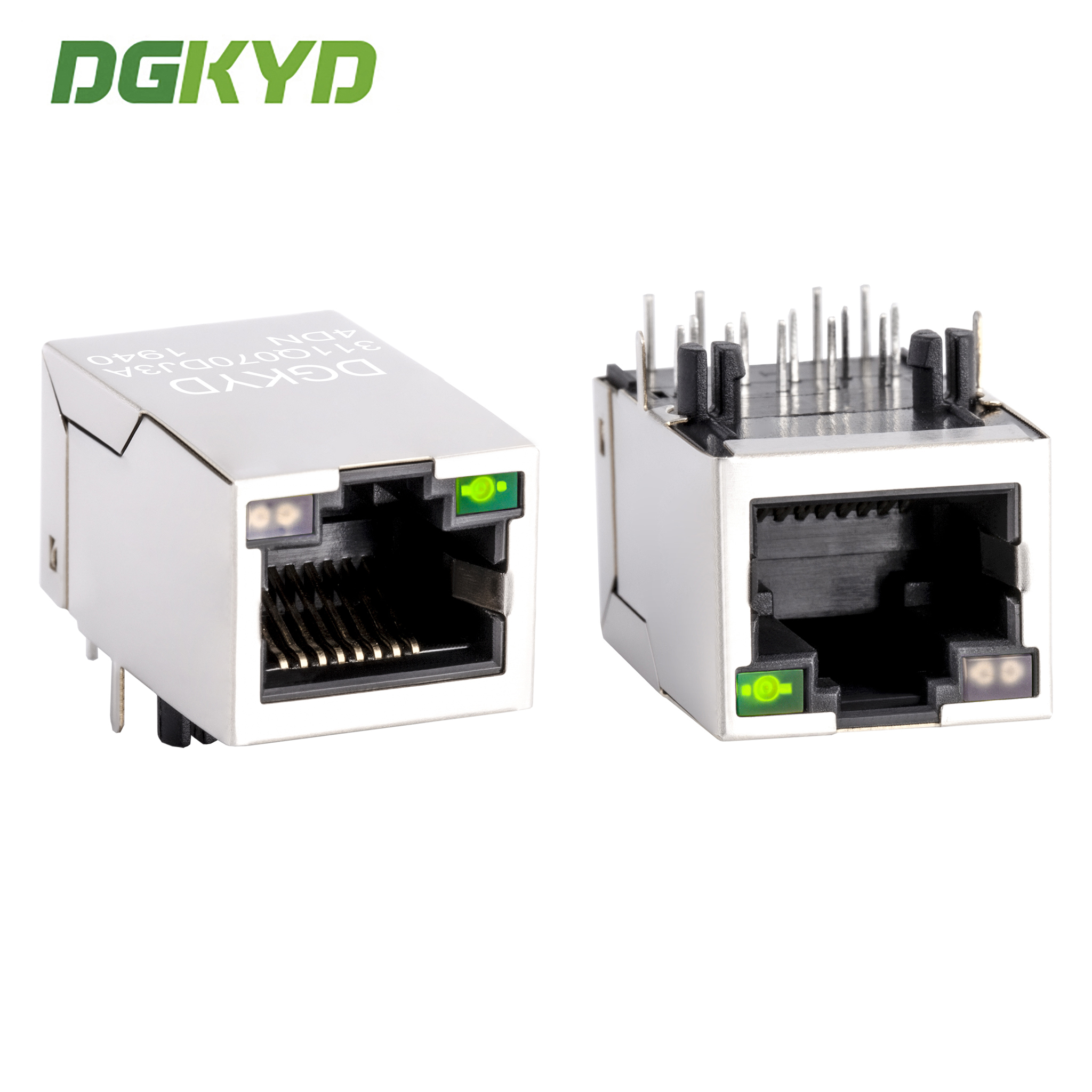

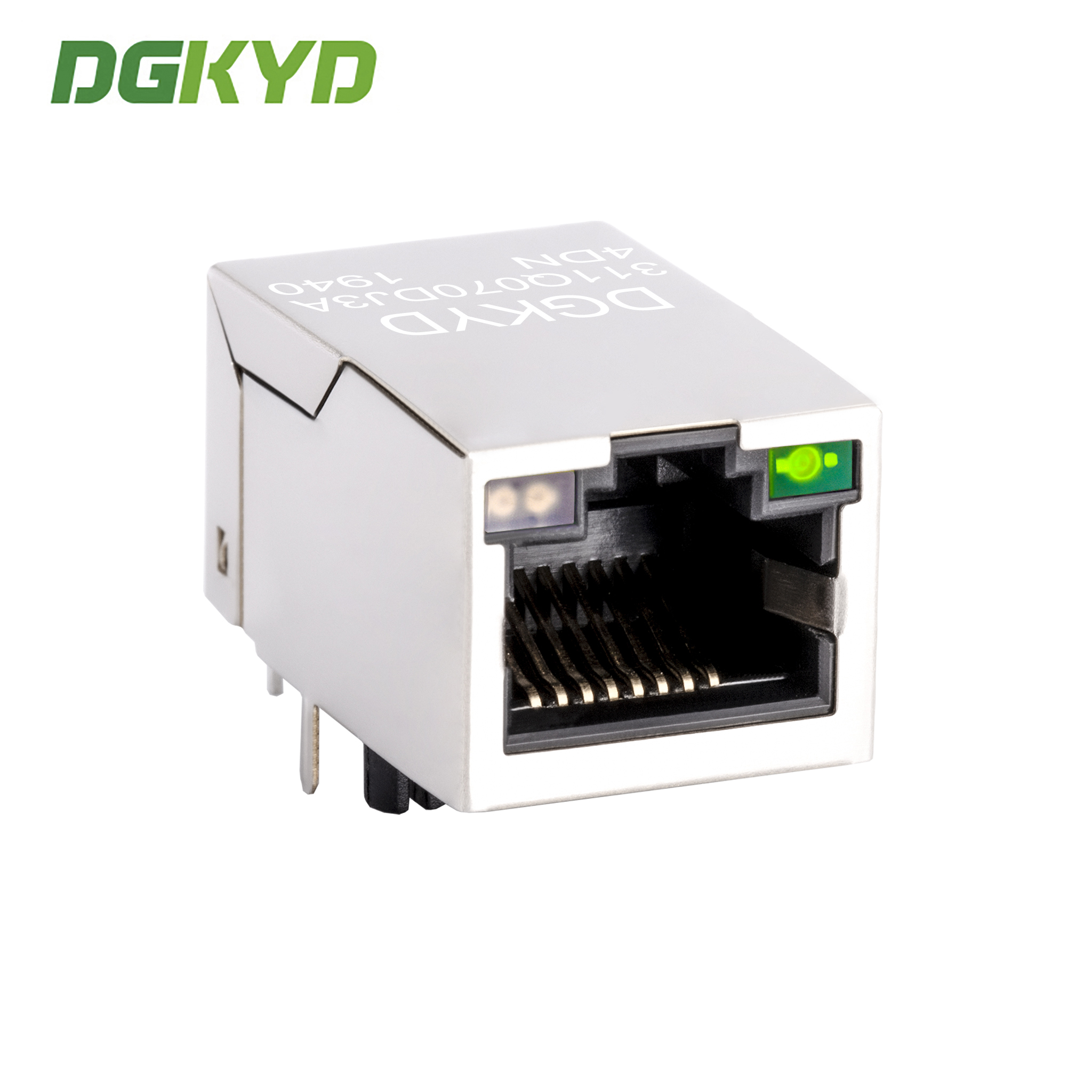

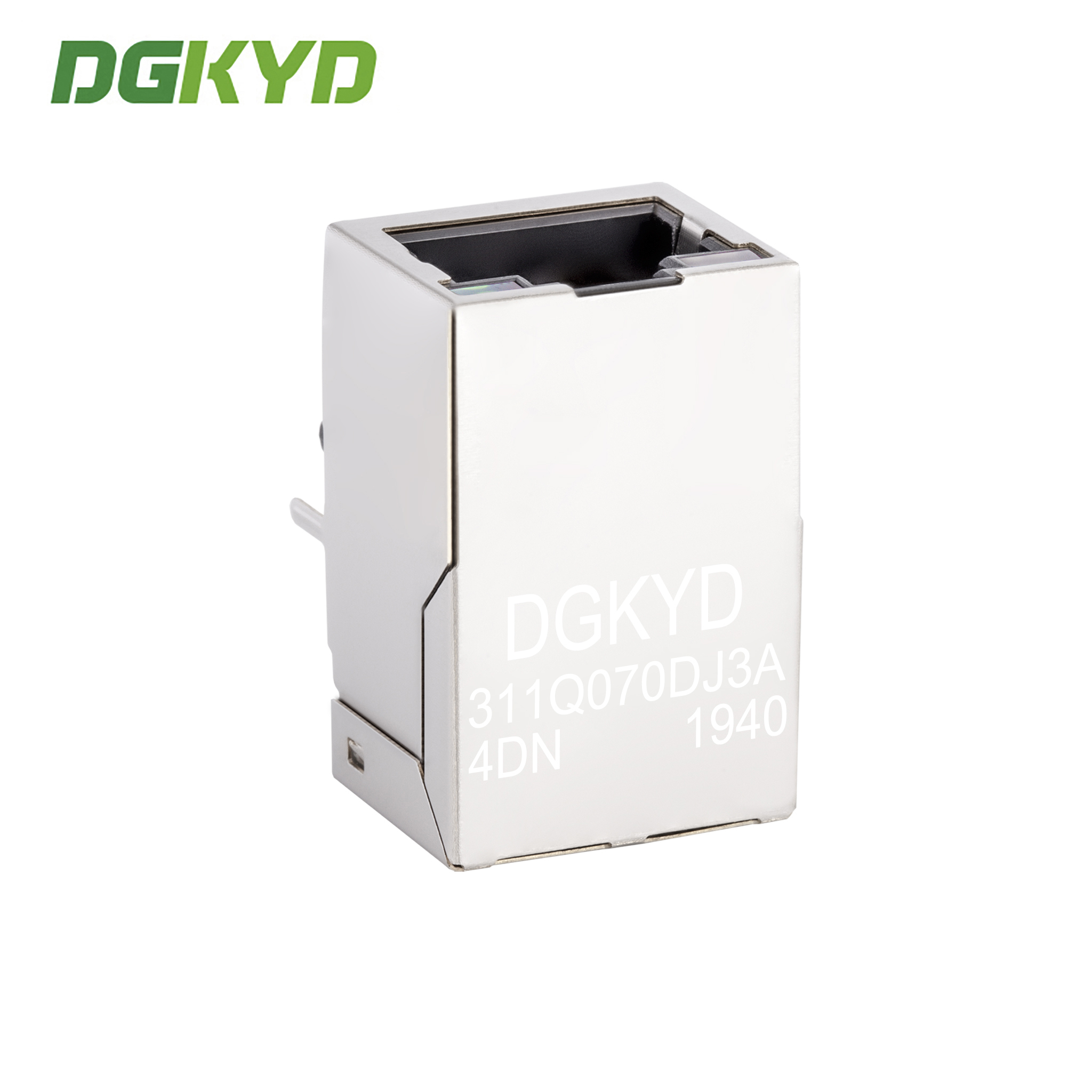

The DGKYD311Q070DJ3A4DN is an 8P8C RJ45 network port connector with an integrated gigabit transformer, designed for reliable 10/100/1000BASE-T Ethernet connectivity. It combines a modular jack with built-in magnetics, delivering high-frequency filtering and anti-interference performance for demanding industrial and networking applications.

Part Number: DGKYD311Q070DJ3A4DN

Product Documentation: DGKYD311Q070DJ3A4DN.pdf

• Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
• Type: RJ45 with built-in magnetics
• Working Frequency: High frequency with filtering and anti-interference characteristics
• Working Temperature: -40°C to 85°C
• Storage Temperature: -40°C to 85°C
• Lead-Free Soldering: Wave soldering height up to 265°C

Full series of RJ45 integrated circuit accessories, available through direct manufacturer supply.

• Business Mode: Manufacturer
• Delivery Time: Approximately two weeks for standard orders
• Customization Options:
  • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or without
  • Coil ratio of magnetic core
  • Magnetics circuit diversification options
  • Contact gold plating (FU, 3U, 6U, 15U, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective.
