100Mbps RJ45 Connector with Integrated Transformer and Shielded Housing for Network Interface

Contact Now

100Mbps RJ45 Connector with Integrated Transformer and Shielded Housing for Network Interface

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD111B083DB1A1D
Document:	DGKYD111B083DB1A1D.pdf

Detail Information
Number Of Contacts Loaded:	8	Product Name:	RJ45 Female Jack
Port:	Single Port	Number Of Positions:	8
RJ45 PCB Terminal:	Phosphor Bronze ,Tail-Tin Over Nickl	Metal Shell RJ45:	Copper Alloy ,Tin And Nickel Plated
Performance:	Cat5	Plating:	Glod Plating 6u/15u/30u/50u
Application:	PCB	LED Color:	Yellow/Green
Housing Material:	PBT Black	Operation Temperature:	-40°C~+85°C
Storage Temperature:	-40°C~+85°C
Highlight:	100Mbps RJ45 Connector , Integrated Transformer RJ45 Modular Jack , Shielded Housing RJ45 Network Interface

Product Description

RJ45 Ethernet Port Connector 100Mbps Integrated Transformer with LED and Shielding

Industrial-grade Gigabit Network Interface RJ45 Connector with LED+Shielded Housing DGKYD111Q070CA2A1D

Part Number: DGKYD111B083DB1A1D

Product Documentation (DGKYD111B083DB1A1D.pdf)

Technical Parameters

Parameter	Specification
Part Number	DGKYD111B083DB1A1D
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-DOWN
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Port
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

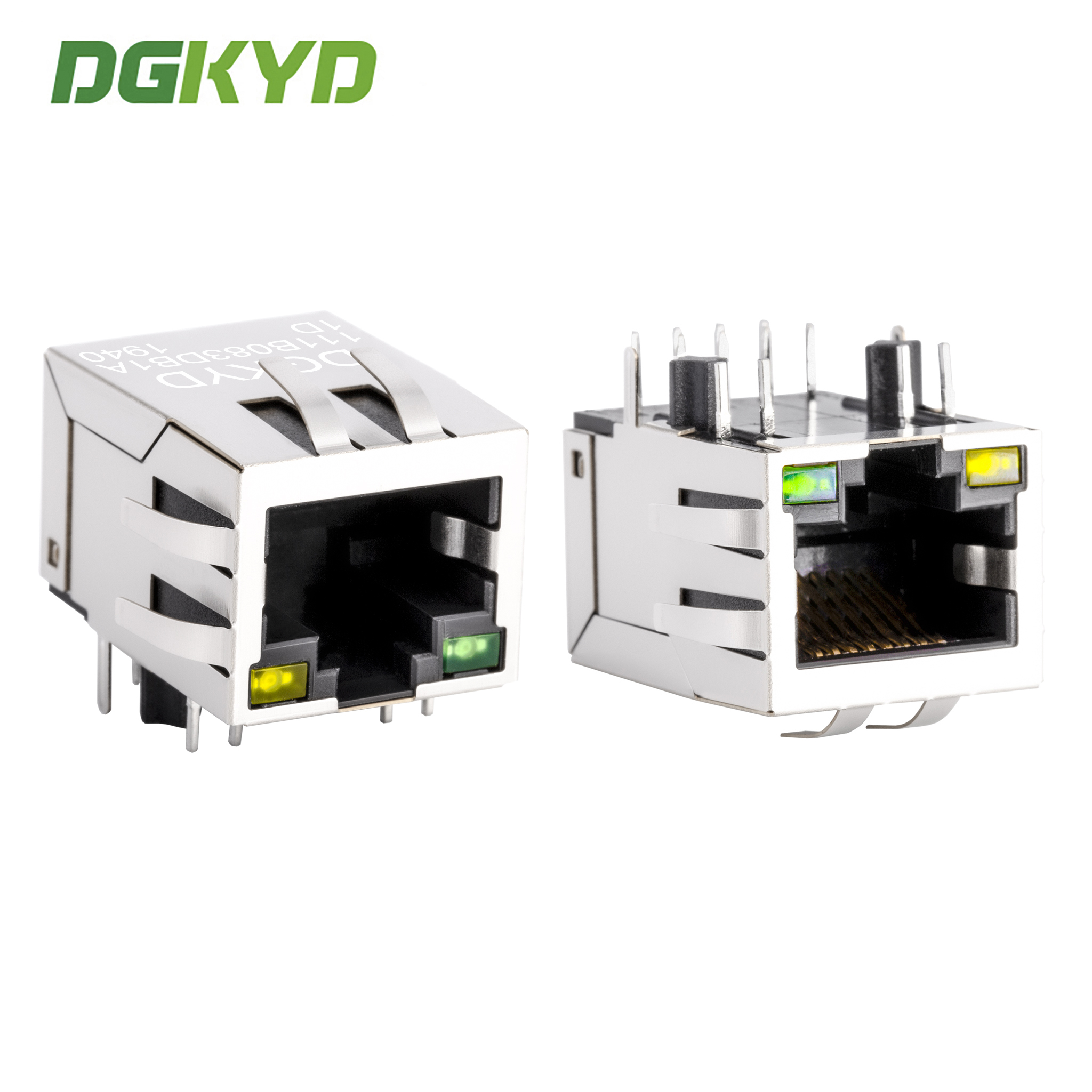

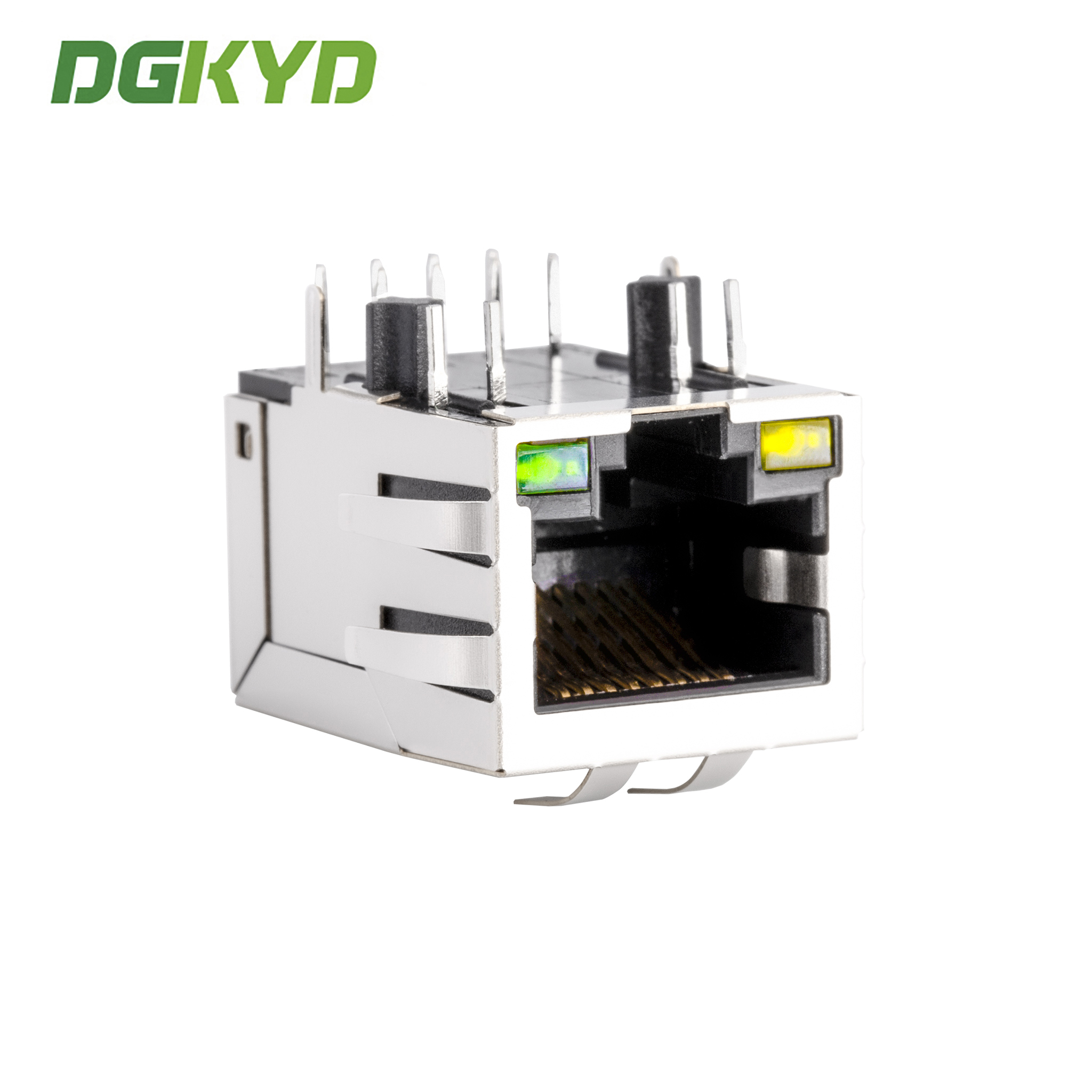

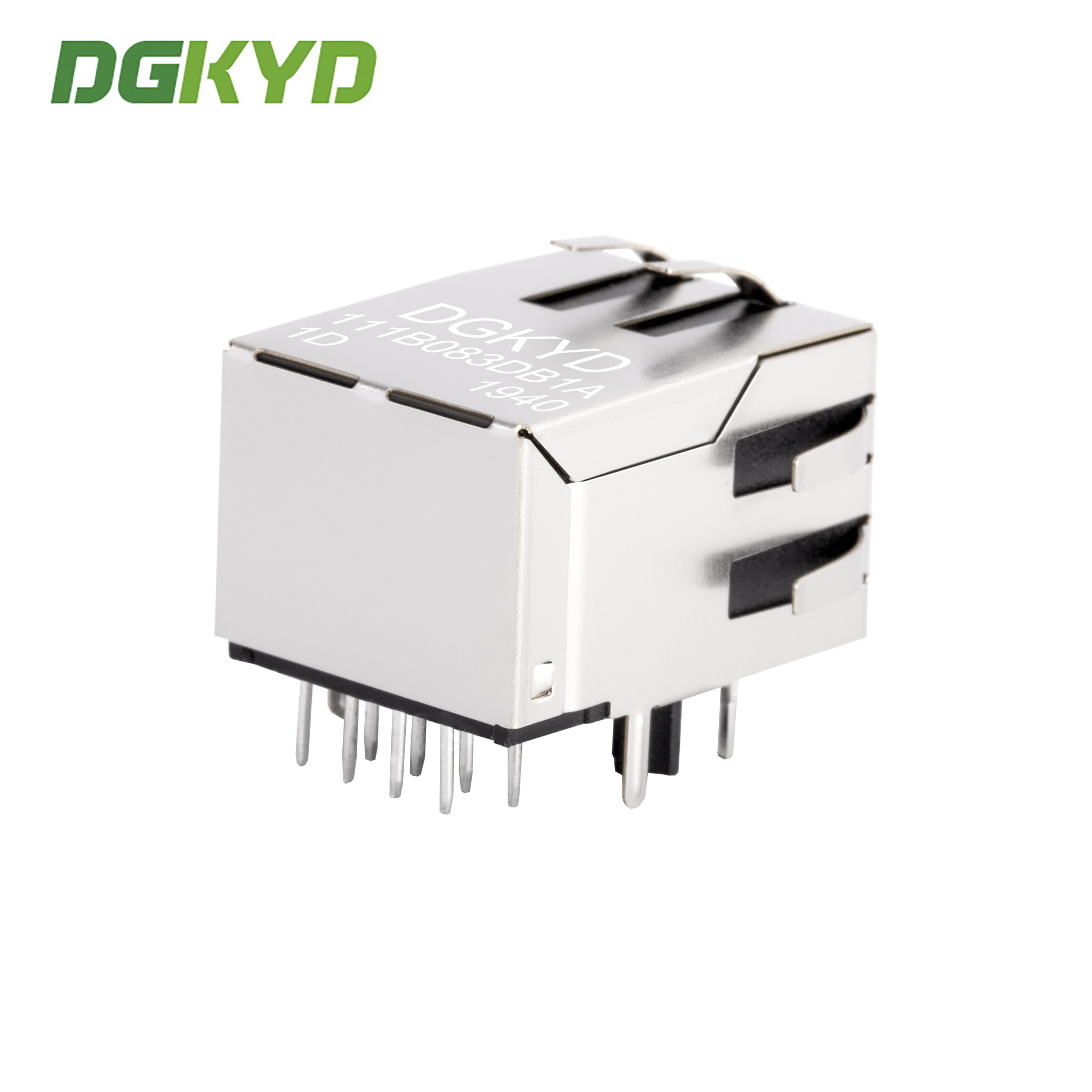

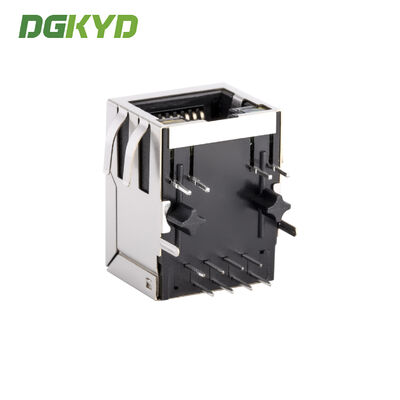

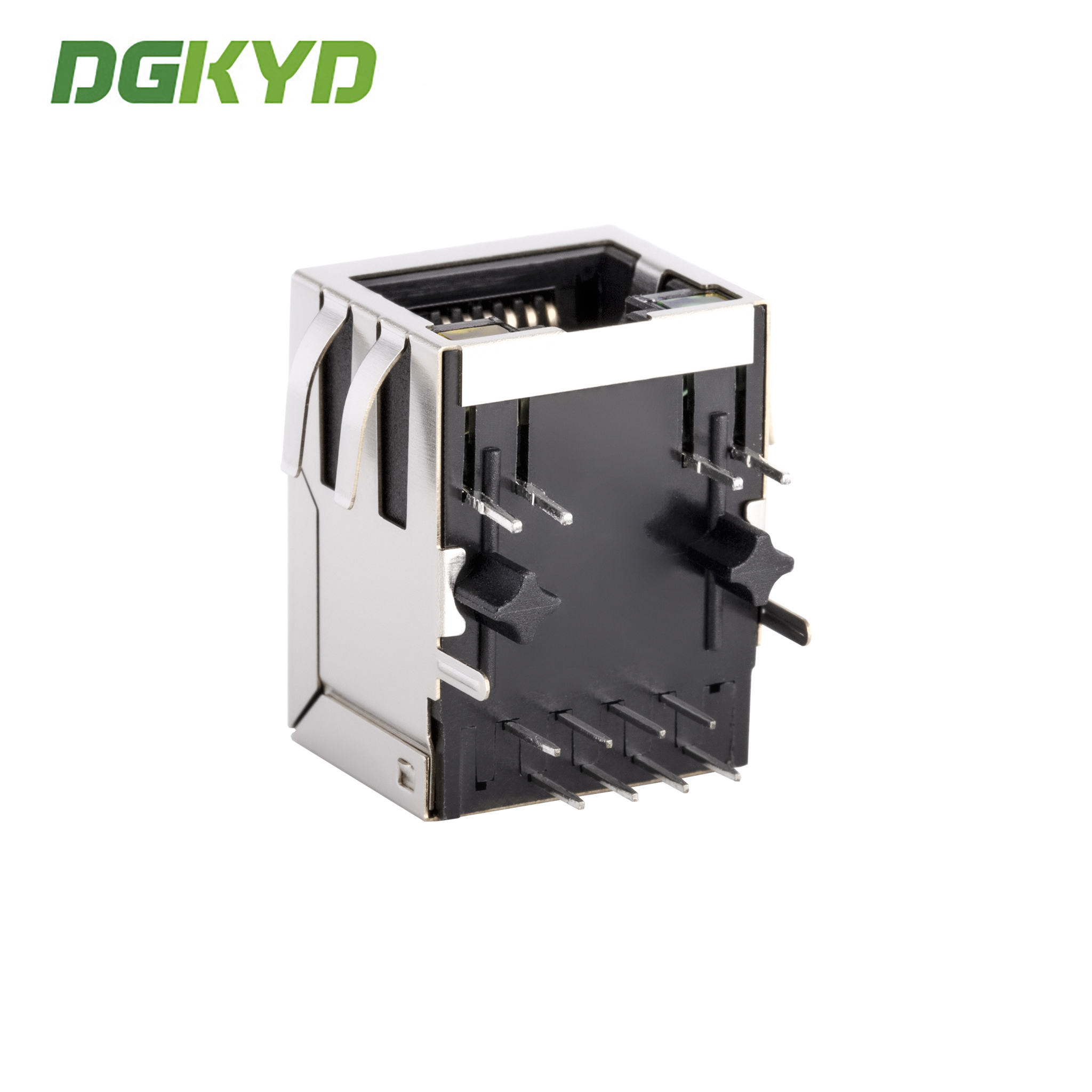

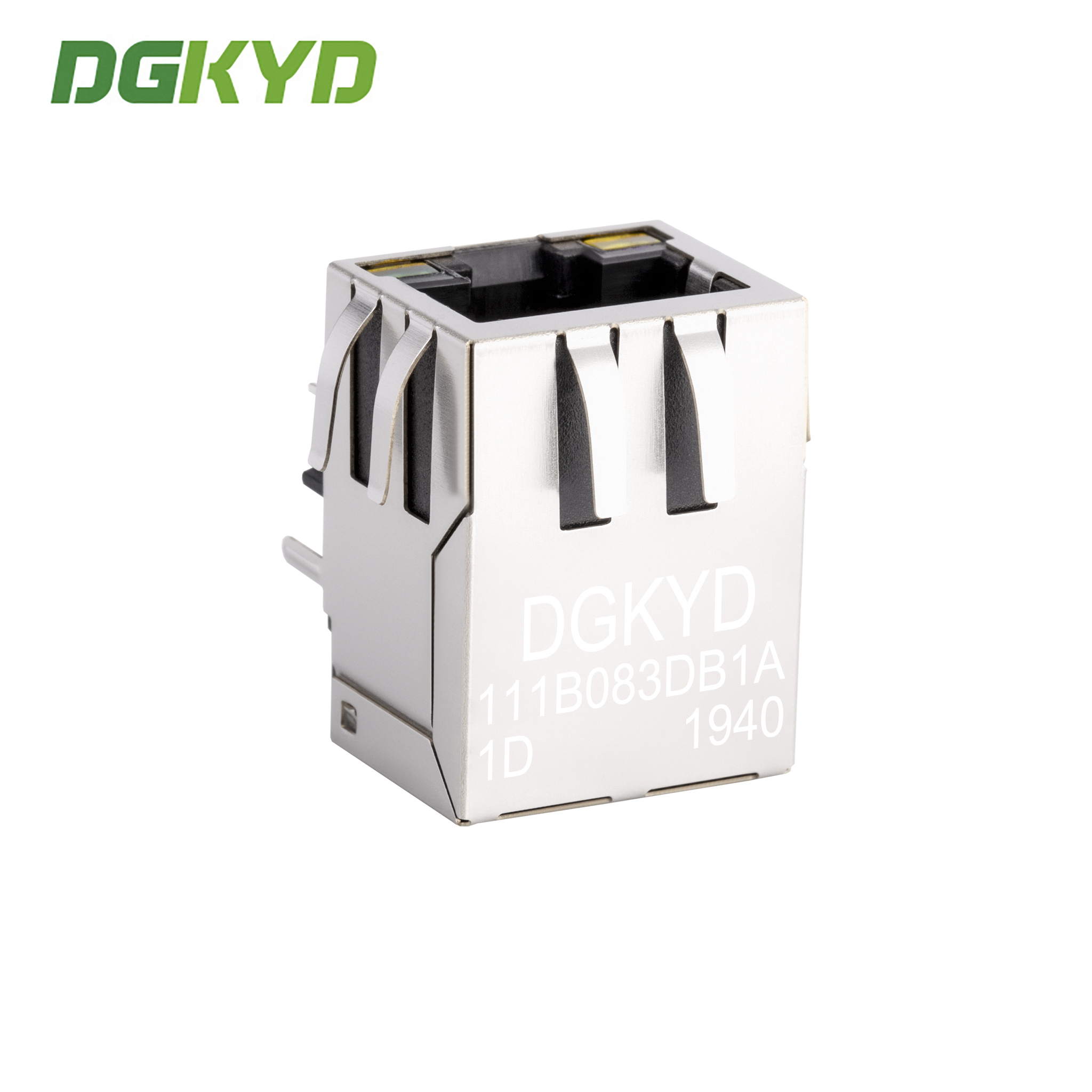

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply
Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
