Single Port RJ45 Connector with Transformer 10/100 Base-T RJ45 Jack Modular Jack for Ethernet Network

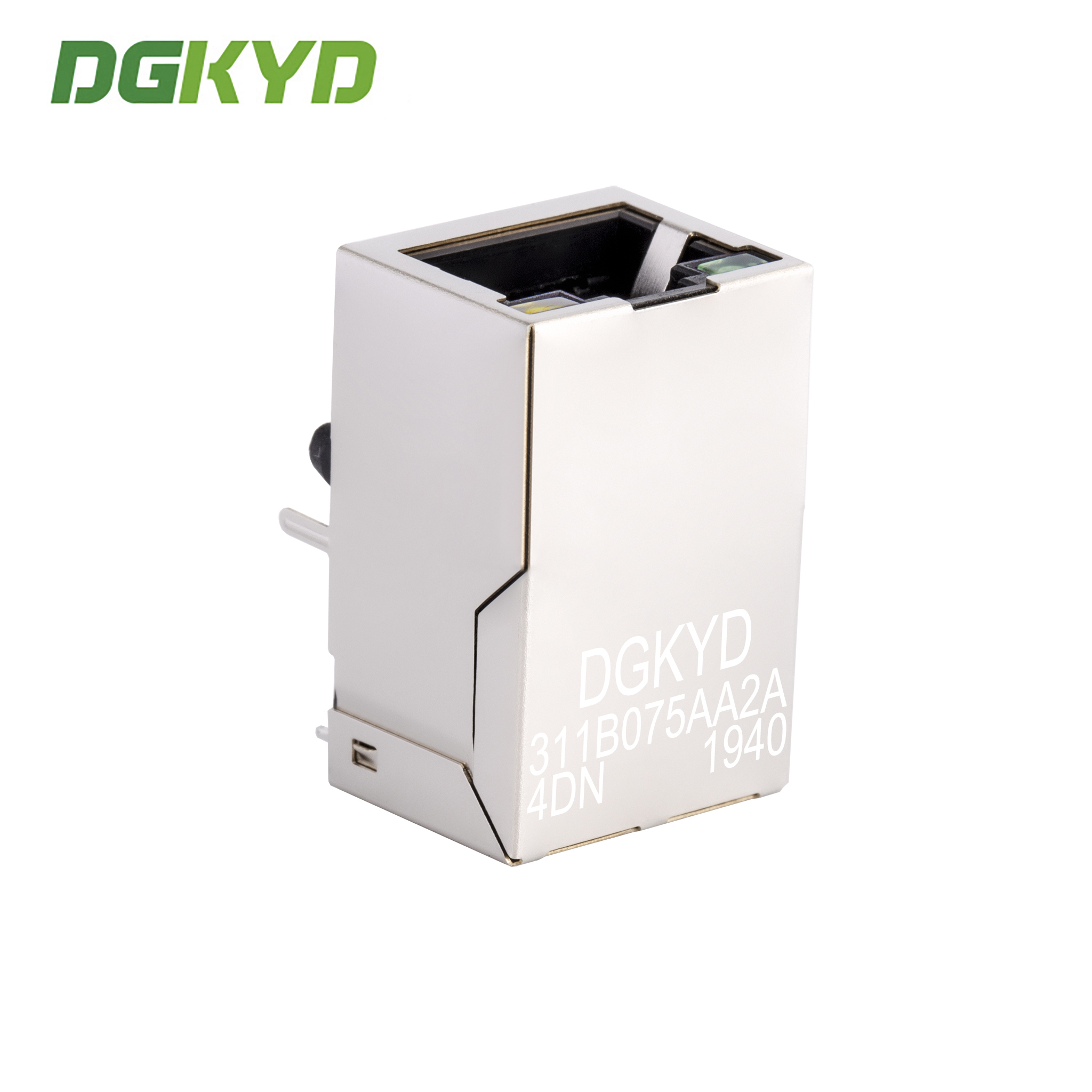

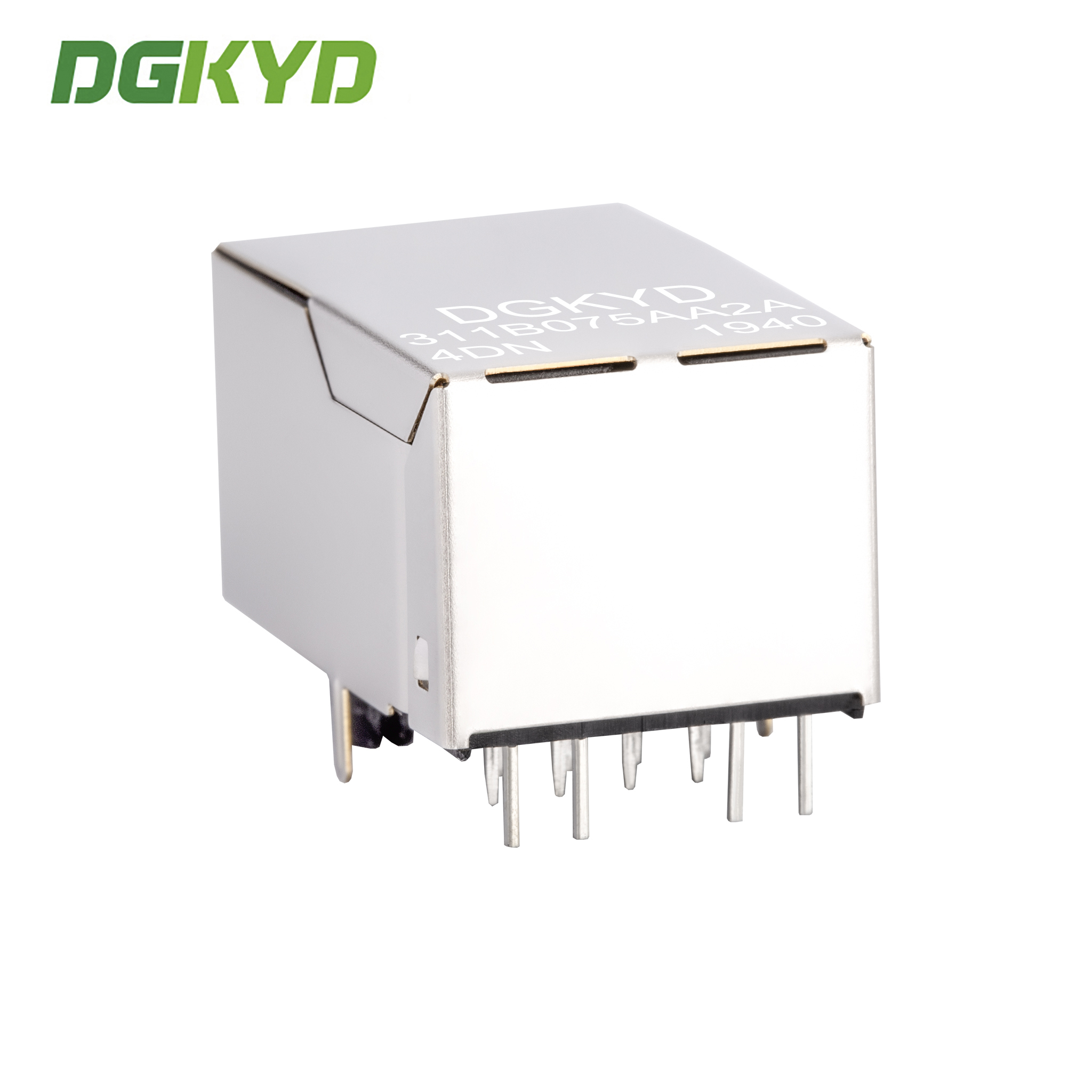

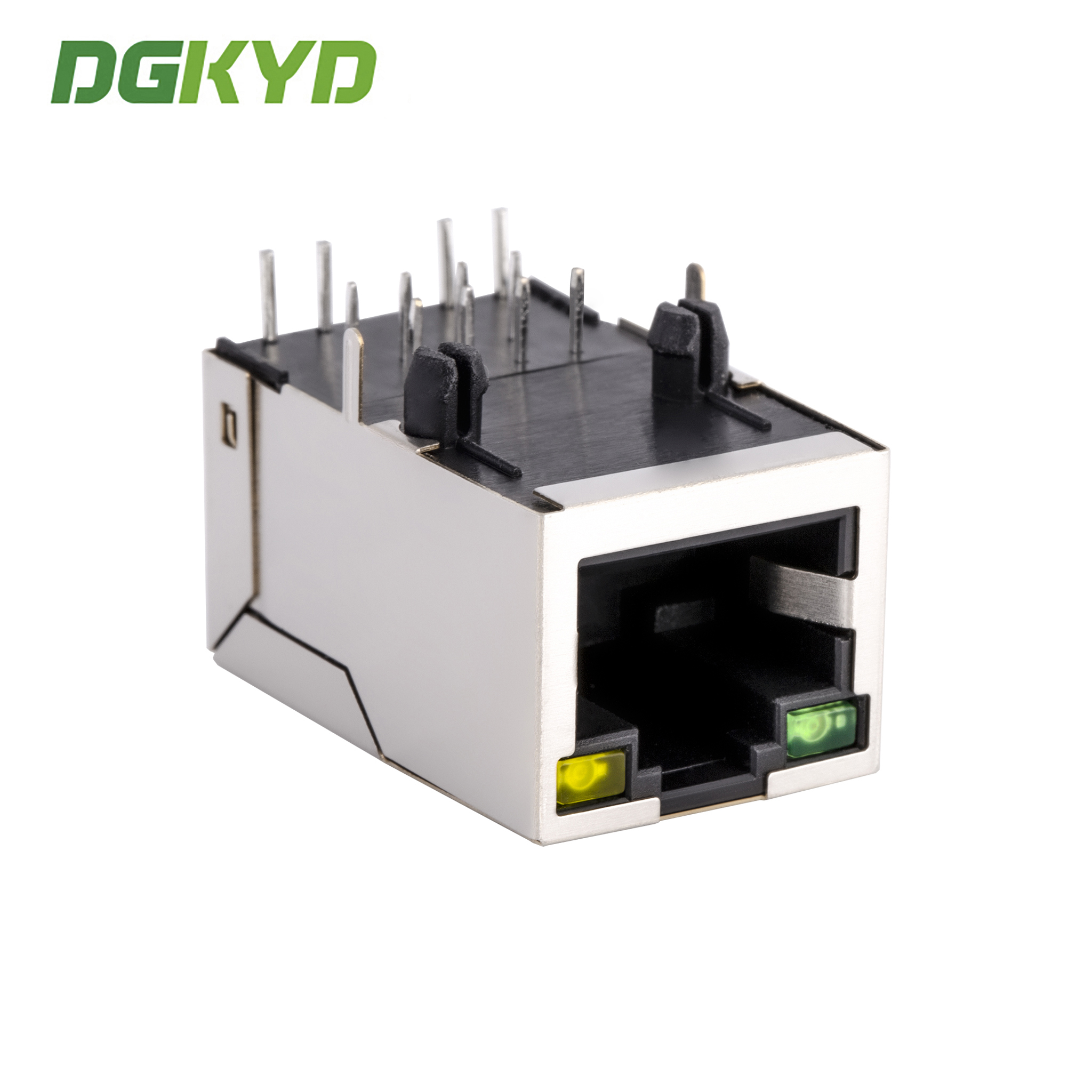

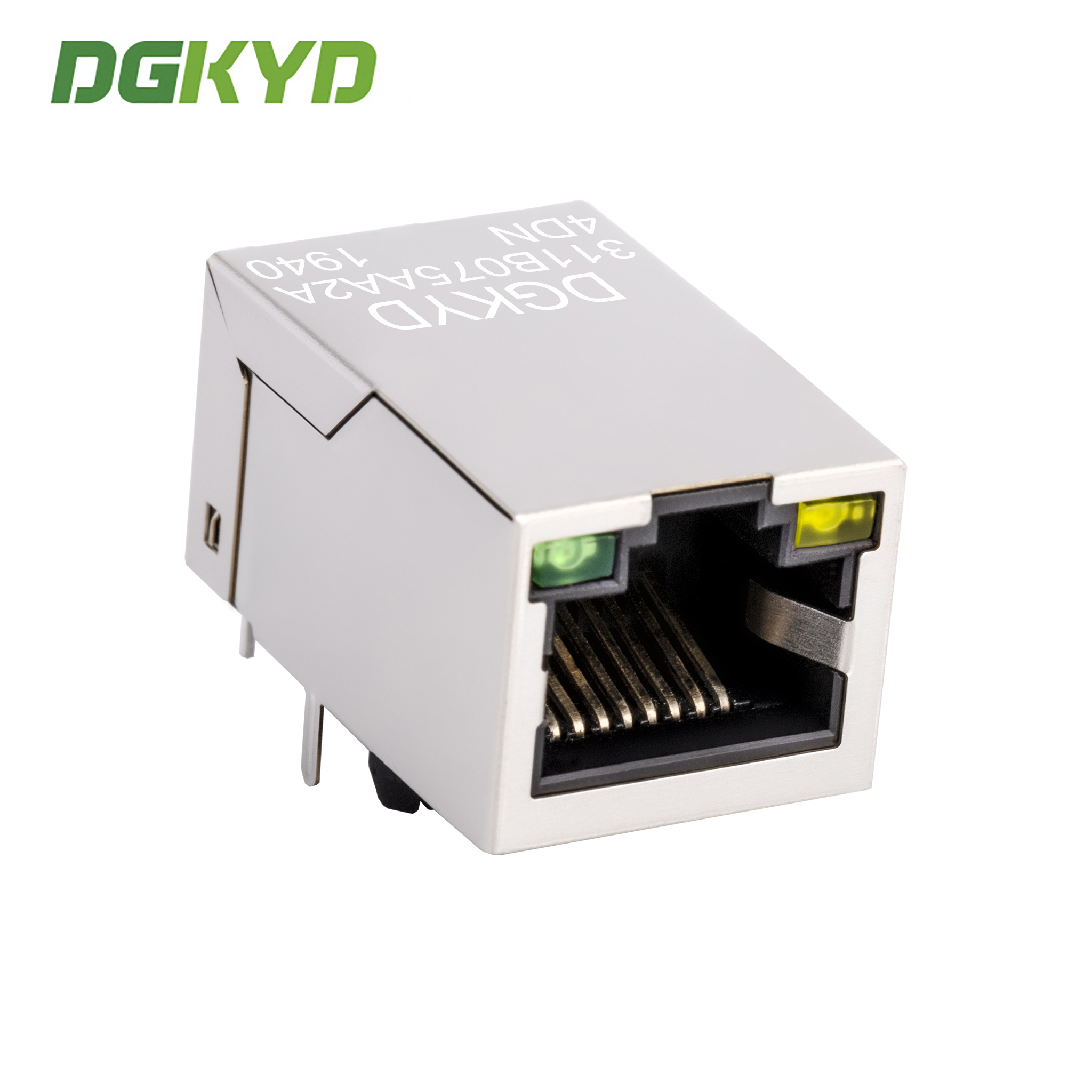

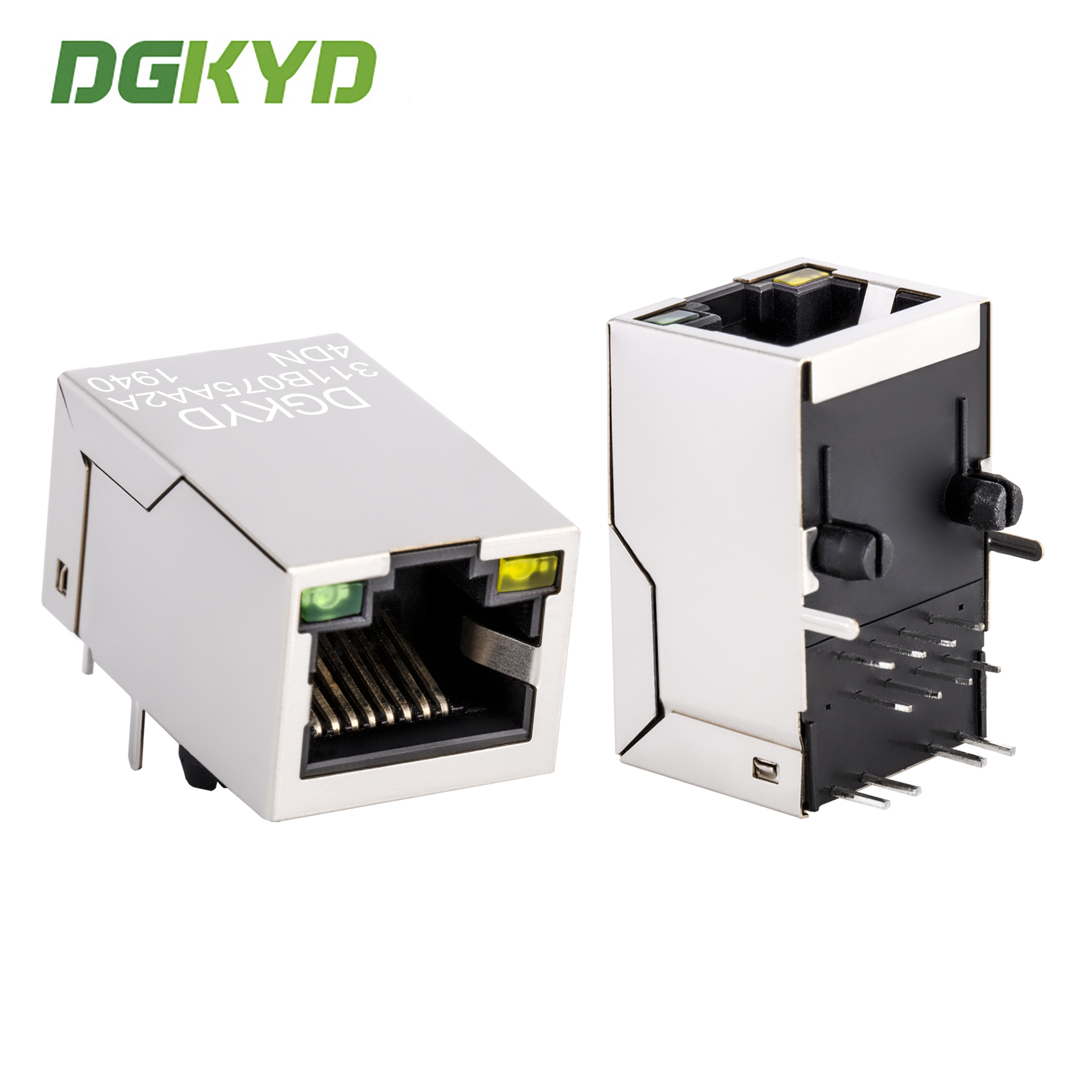

The DGKYD311B075AA2A4DN is a single-port RJ45 modular jack connector with integrated magnetics, designed for 10/100/1000BASE-T Ethernet applications. It combines a standard TAB-UP latch, built-in filter transformer, and dual-color LED indicators in a compact, right-angle PCB-mount package. The shielded construction and high-frequency filtering characteristics ensure reliable signal integrity and anti-interference performance in demanding industrial environments.

Part Number: DGKYD311B075AA2A4DN

• Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
• Type: RJ45 with built-in magnetics
• Working Frequency: High frequency with filtering and anti-interference characteristics
• Working Temperature: -40°C to 85°C
• Storage Temperature: -40°C to 85°C
• Lead-Free Soldering: Wave soldering height up to 265°C

As a direct manufacturer, we supply the full series of RJ45 integrated circuit accessories with flexible customization options to meet your specific design requirements.

• Business Mode: Manufacturer
• Delivery Time: Approximately two weeks for standard orders
• Customization Options:
  • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or without
  • Coil ratio of magnetic core
  • Magnetics circuit diversification options
  • Contact gold plating (FU, 3U, 6U, 15U, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective.
