RJ45 Connector with Gigabit Integrated Transformer Gold Plating 6u Right Angle PCB Mount

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD112Q235IWE1DDJ
Document:	DGKYD112Q235IWE1DDJ.pdf

Detail Information
Performance Category:	CAT 5	Circuit Application:	Signal
Port Configuration:	1X2	PCB Mount Orientation:	Right Angle
Housing Material:	PBT White	Shielded:	Yes
Plating:	Glod Plating 6u/15u/30u/50u	Application:	PCB
LED Color:	No	Operation Temperature:	-40°C~+85°C
Storage Temperature:	-40°C~+85°C
Highlight:	Gigabit Integrated Transformer RJ45 Connector , Gold Plating 6u RJ45 Modular Jack , Right Angle PCB Mount RJ45 PCB Connector

Product Description

RJ45 Network Connector Gigabit Integrated Transformer Full Plastic Network Port

Part Number: DGKYD112Q235IWE1DDJ

Product Overview

RJ45 network connector with Gigabit integrated transformer and full plastic network port design.

Product Documentation: DGKYD112Q235IWE1DDJ.pdf

Technical Parameters

Part Number	DGKYD112Q235IWE1DDJ	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Without metal shield	Applies To	Printed Circuit Board
Port Configuration	Double Port	Number of Positions	10
Jack Configuration	1X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Grey
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

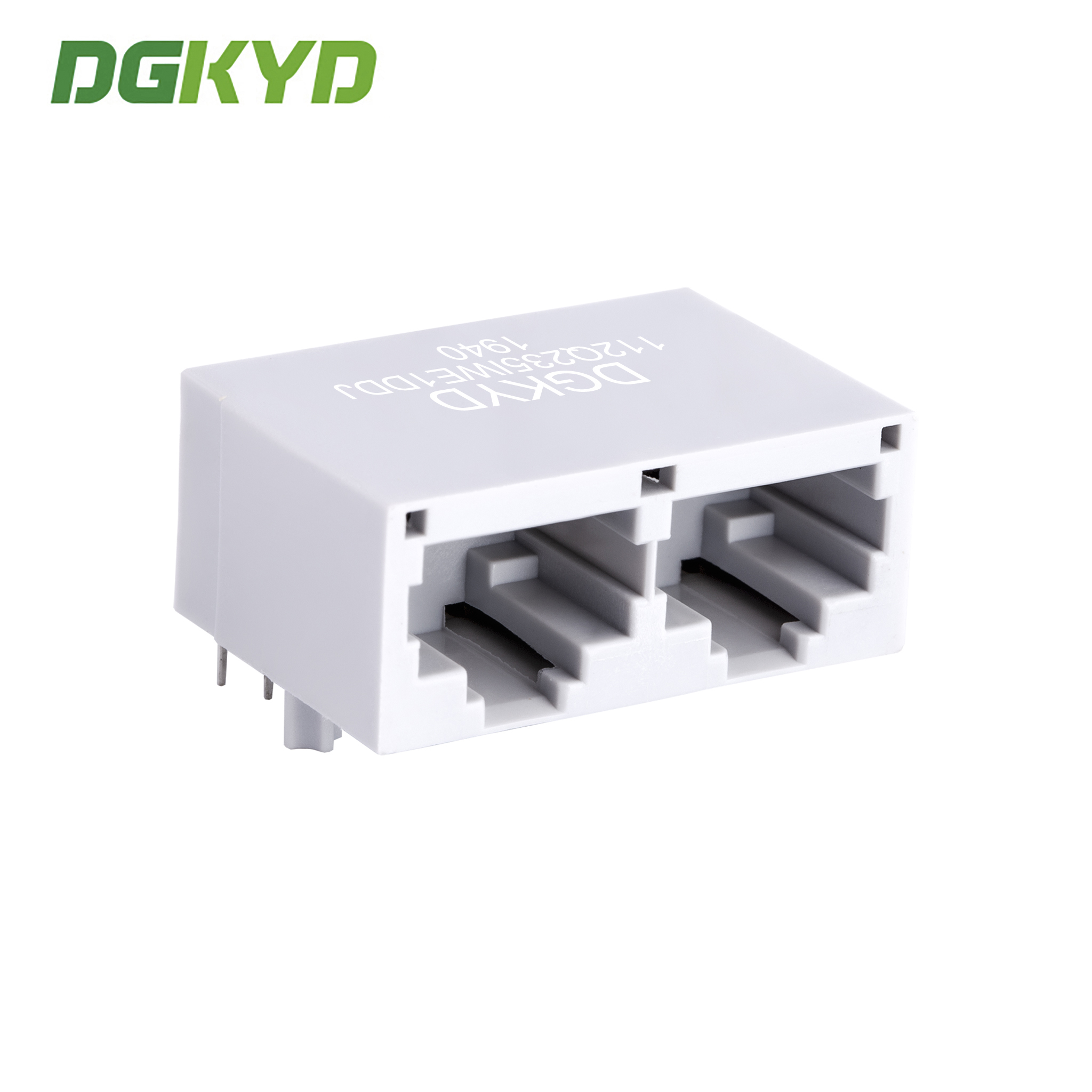

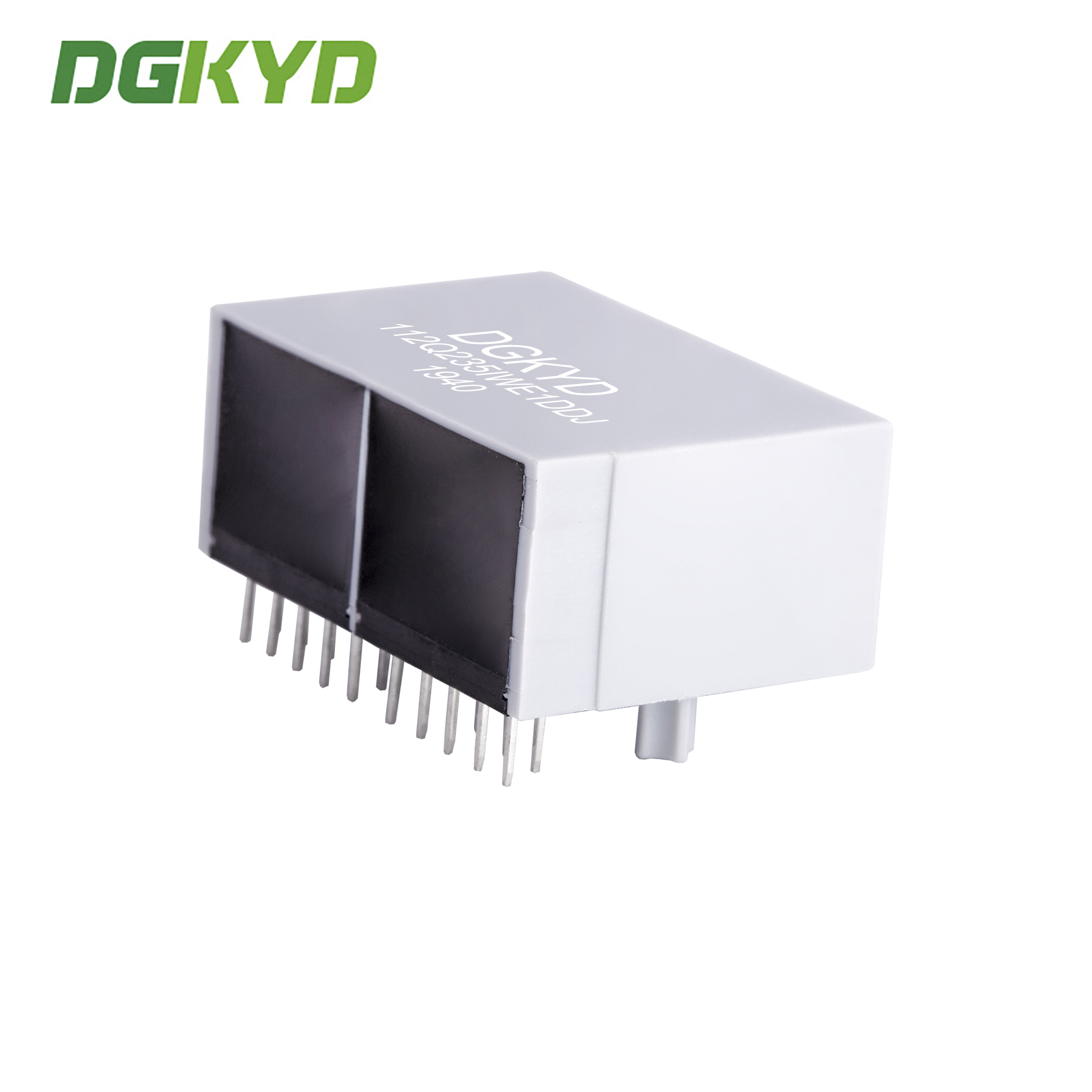

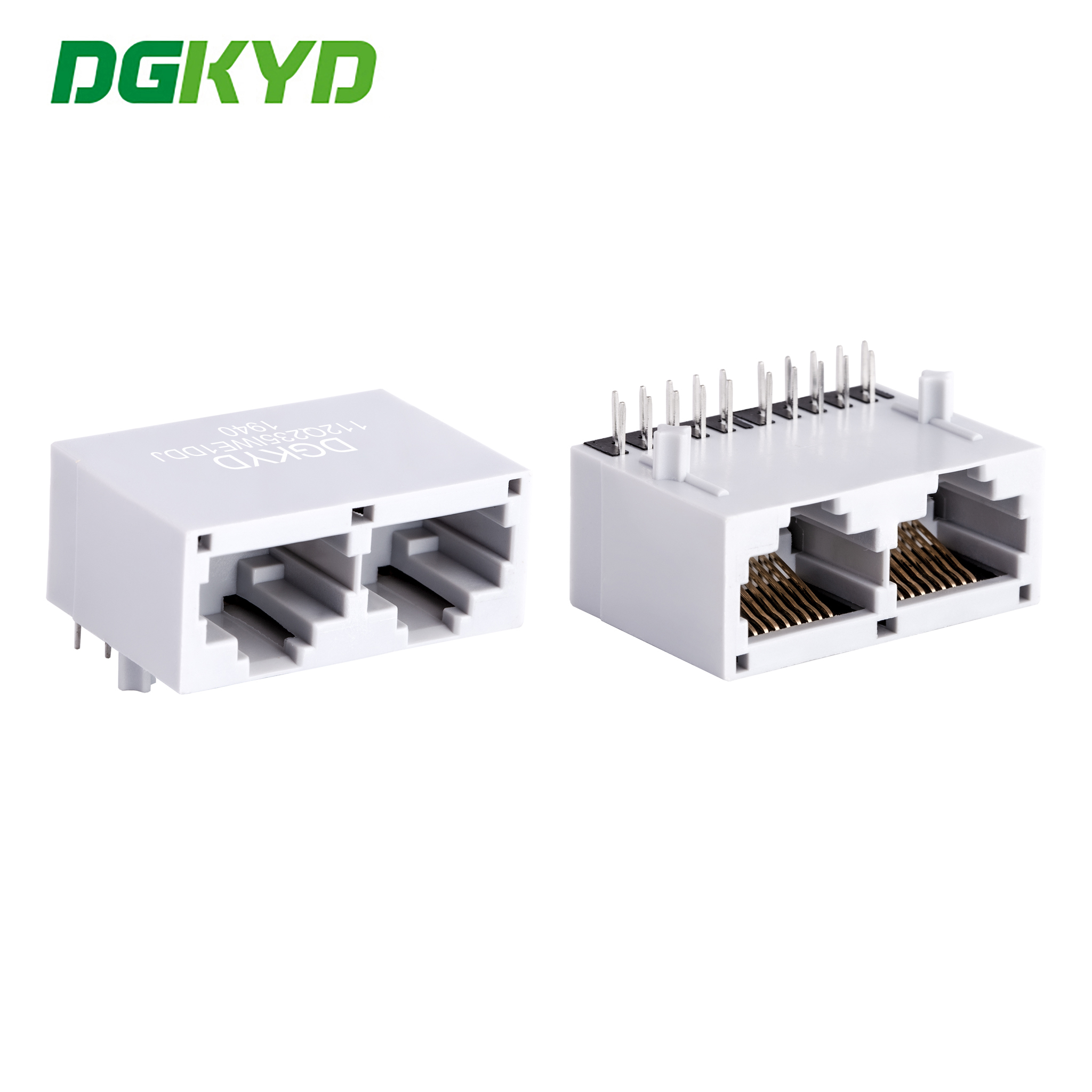

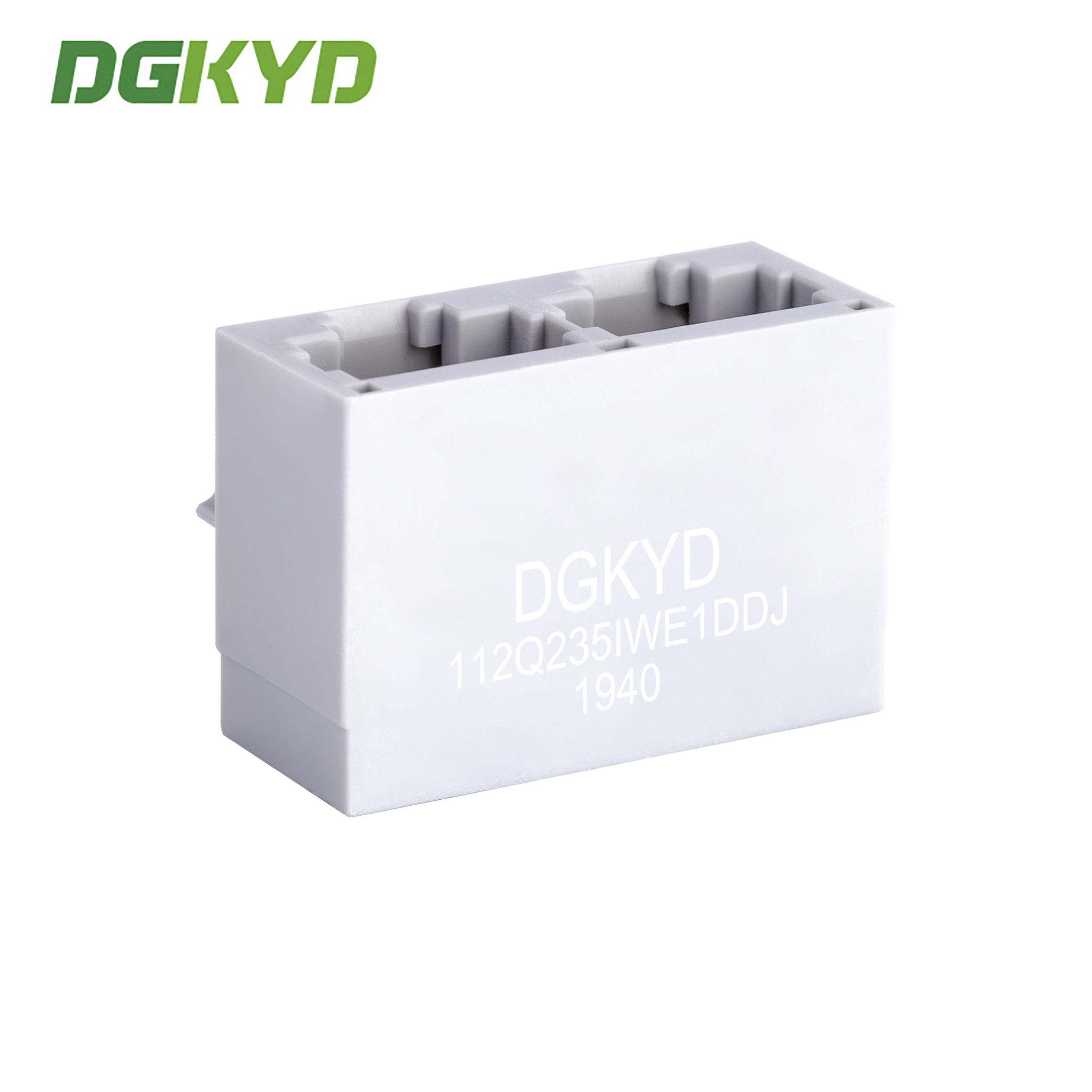

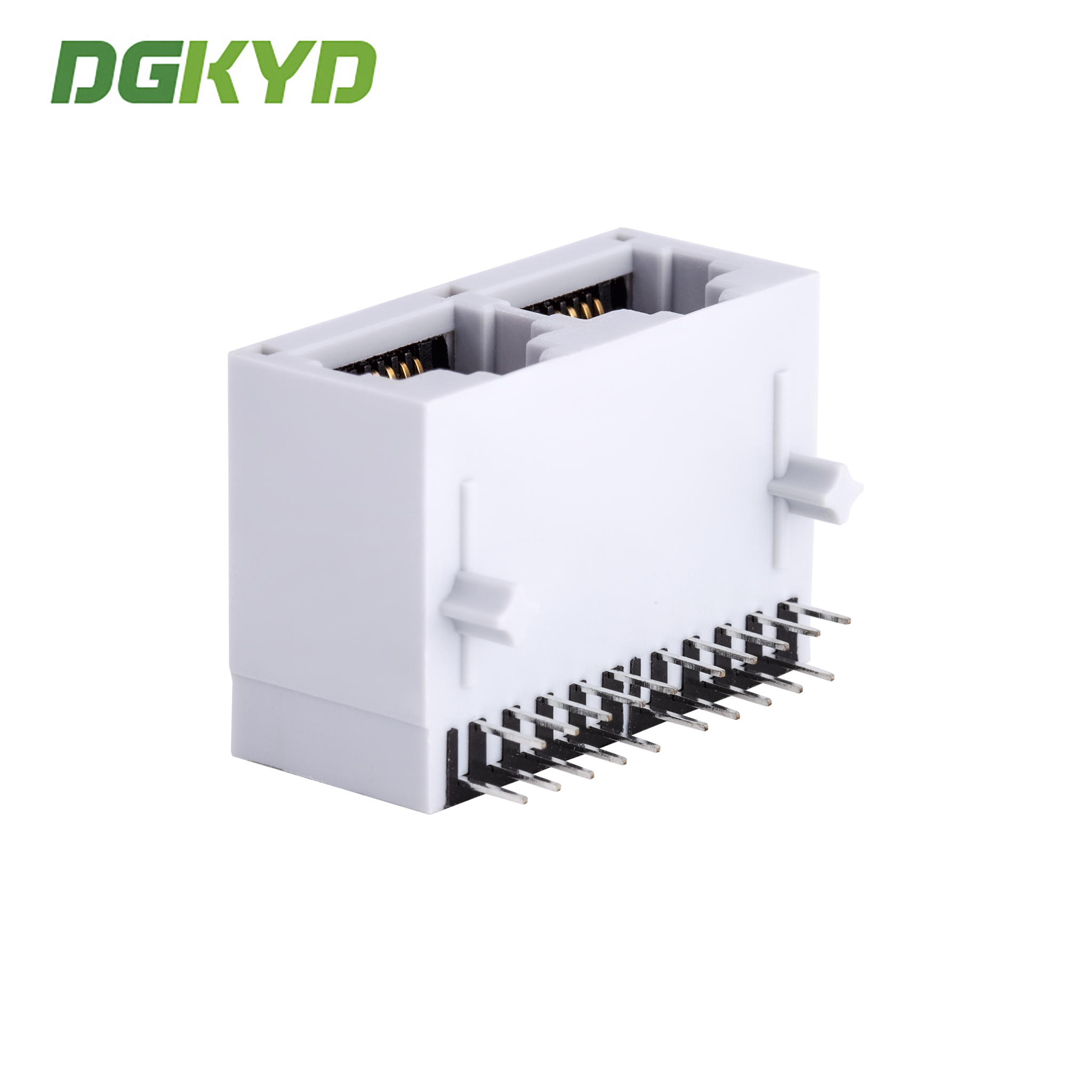

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a manufacturer. Welcome to visit our factory.

What about your lead time?
For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?
Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?
Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
