DGKYD111B002IWC4D single port RJ45 connector, 100Mbps, integrated filtering, fully plastic, without light network socket

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111B002IWC4D

Detail Information

Operation Temperature: -40°C~+85°C Storage Temperature: -40°C~+85°C
Application: PCB Gender: Female
LED Color: N/A Plating: Glod Plating 6u/15u/30u/50u
Housing Material: PBT Black Filter: With Filter
Latch: TAB-DOWN Brand Name: DGKYD
High Light:

rj45 connector pcb

,

rj45 pcb jack

,

Single Port RJ45 PCB Connector

Product Description

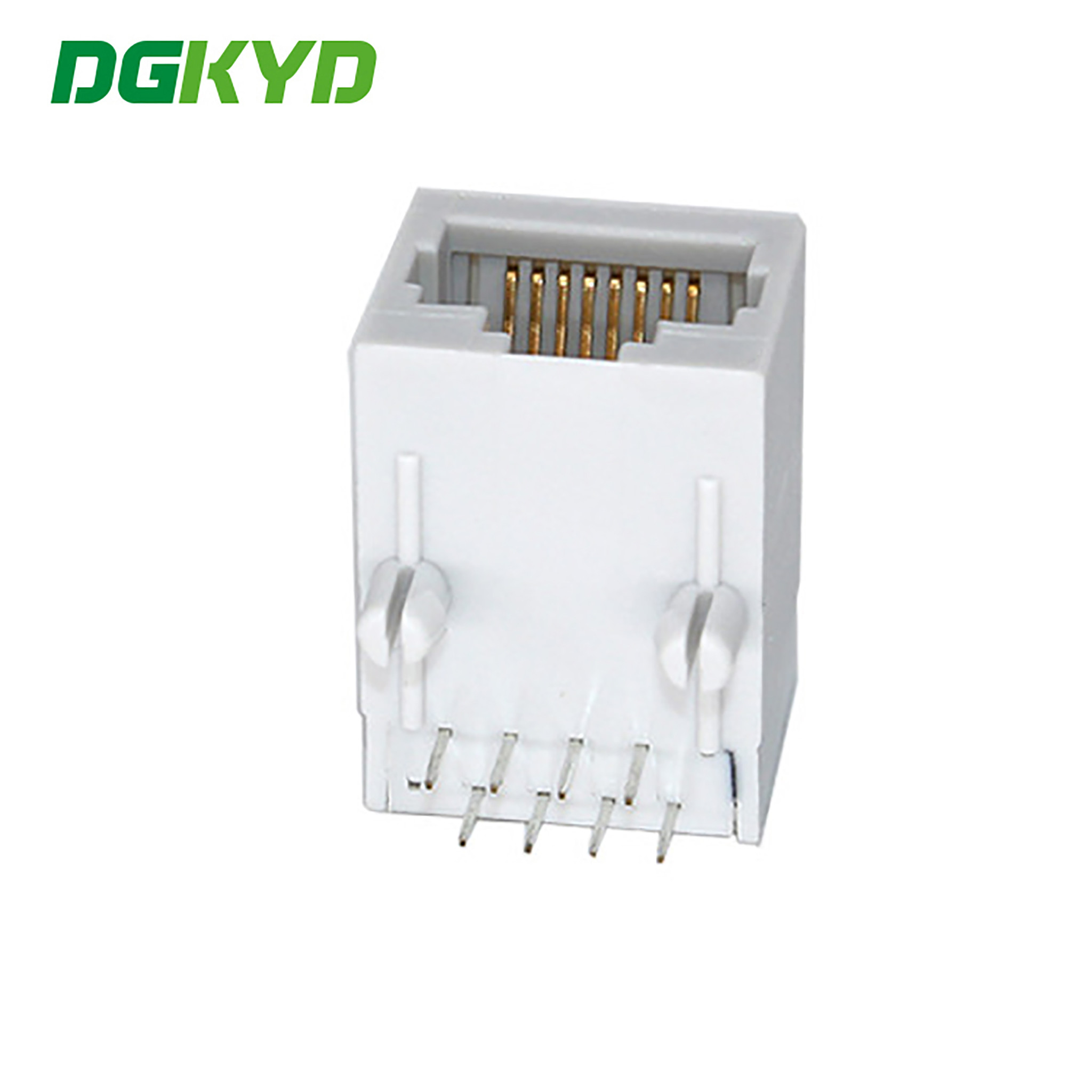

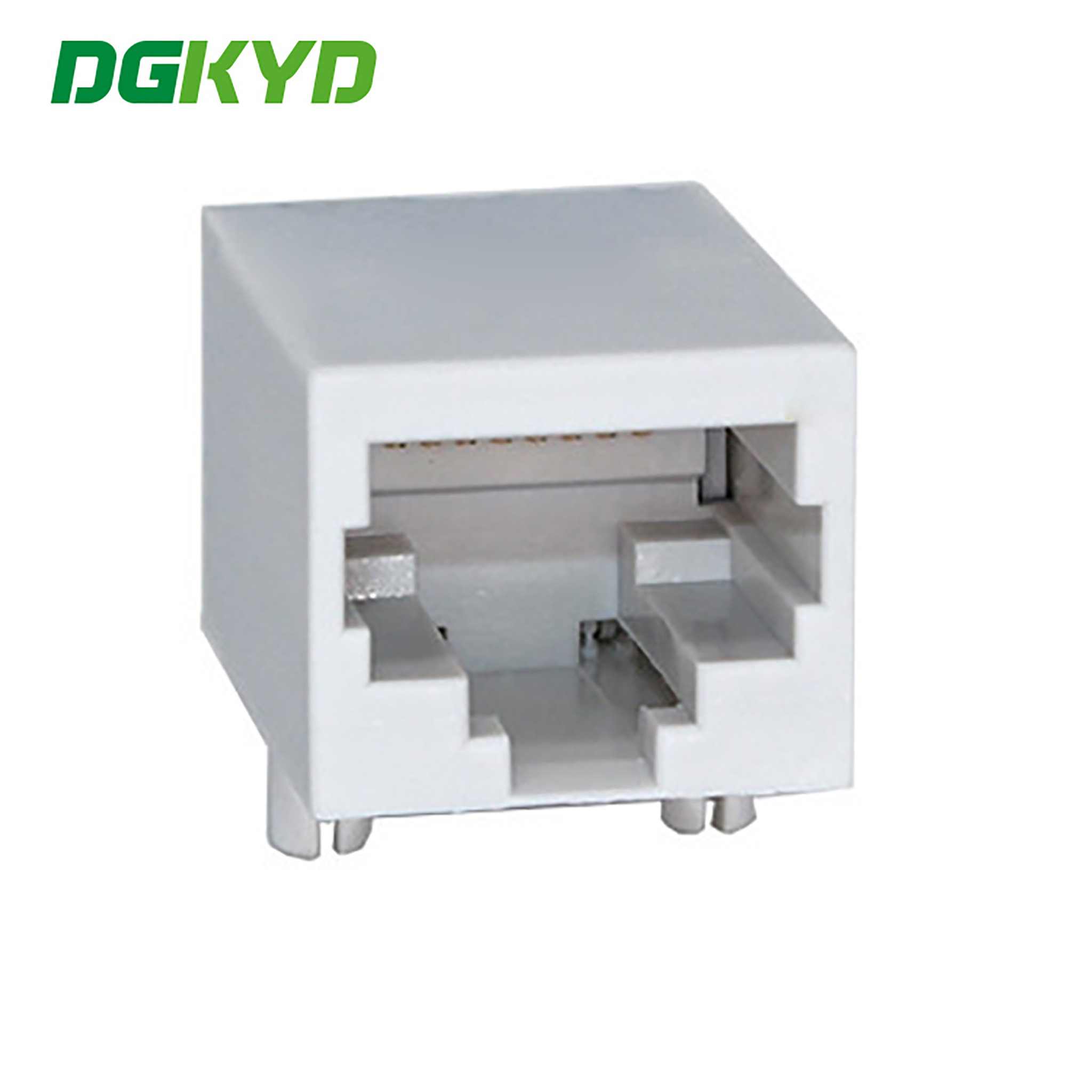

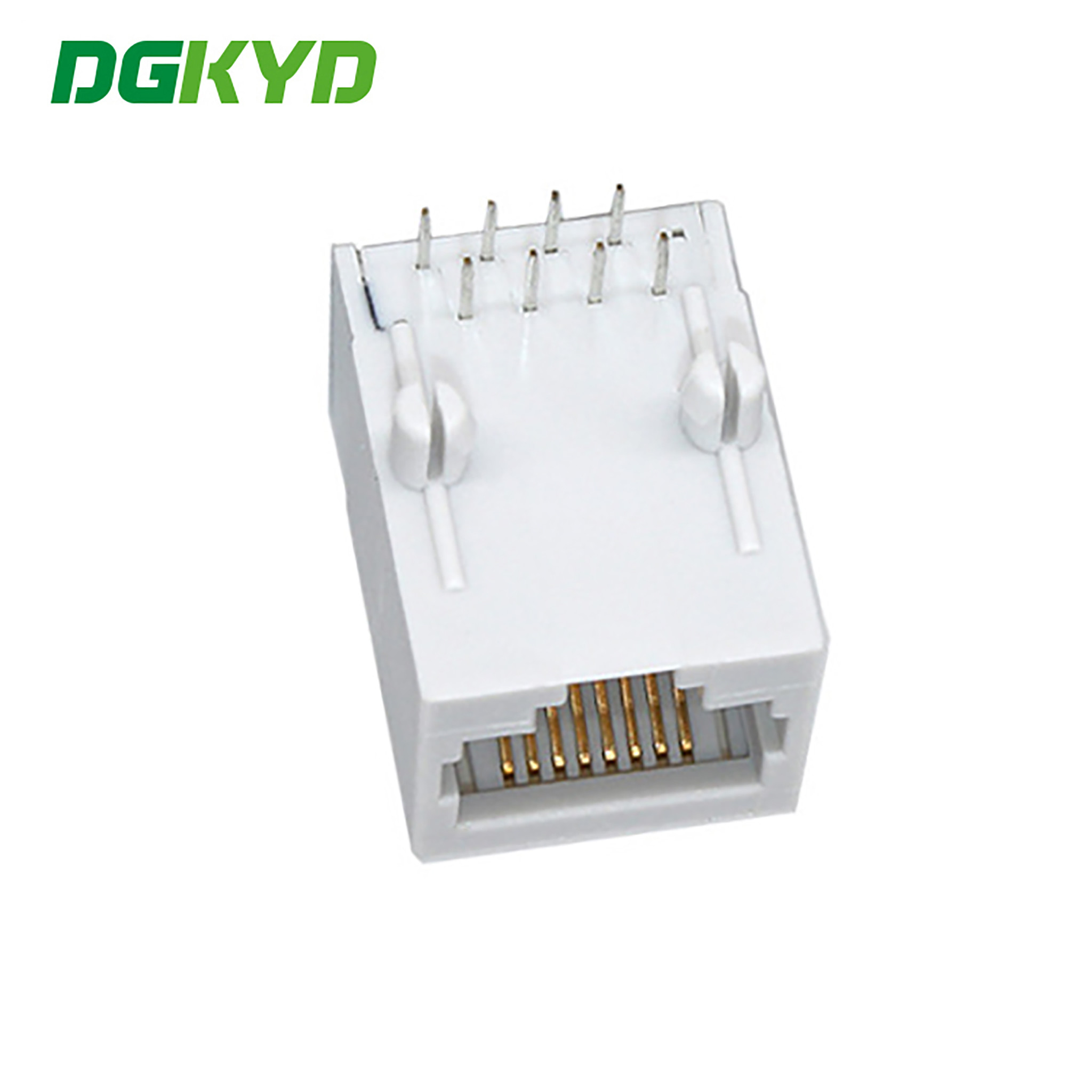

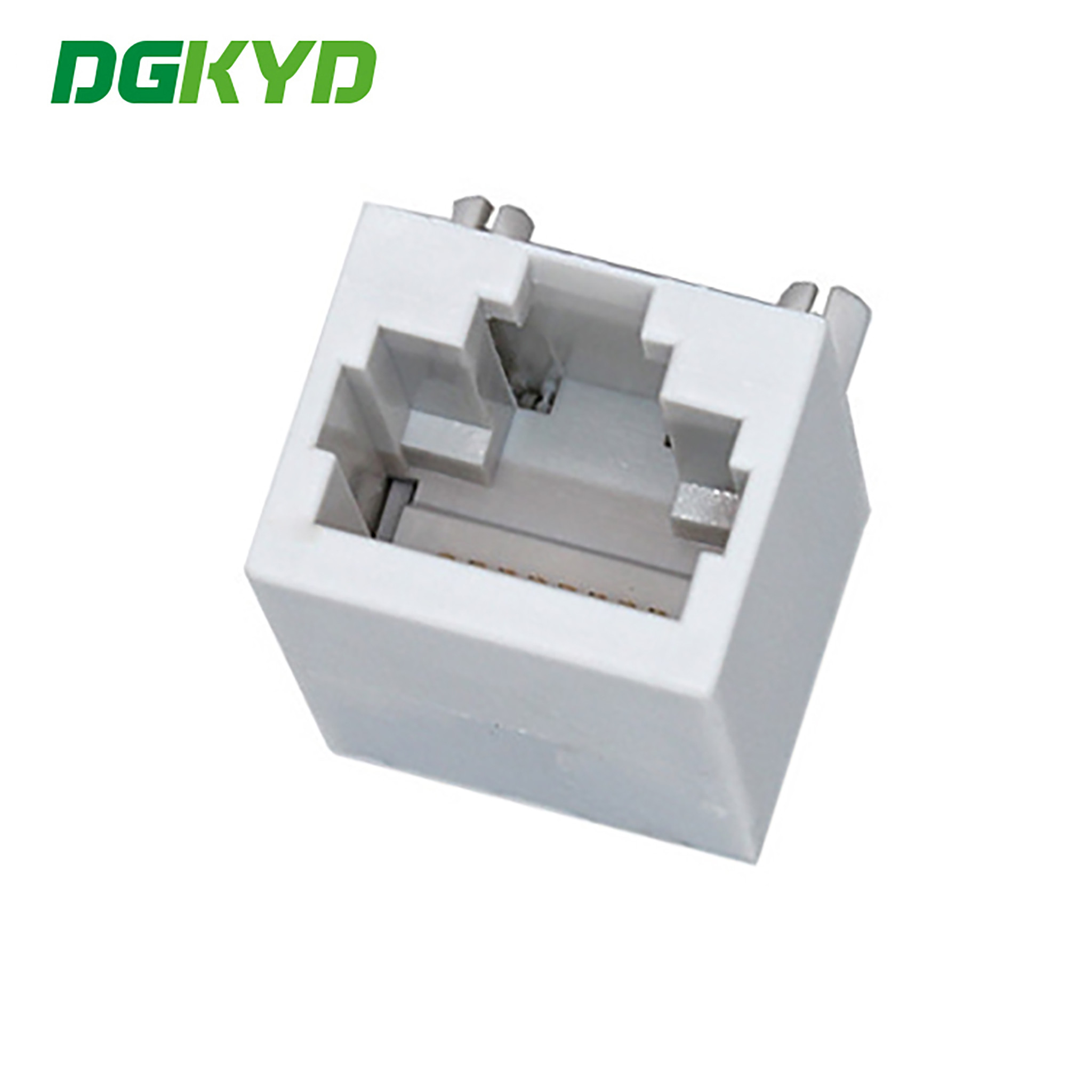

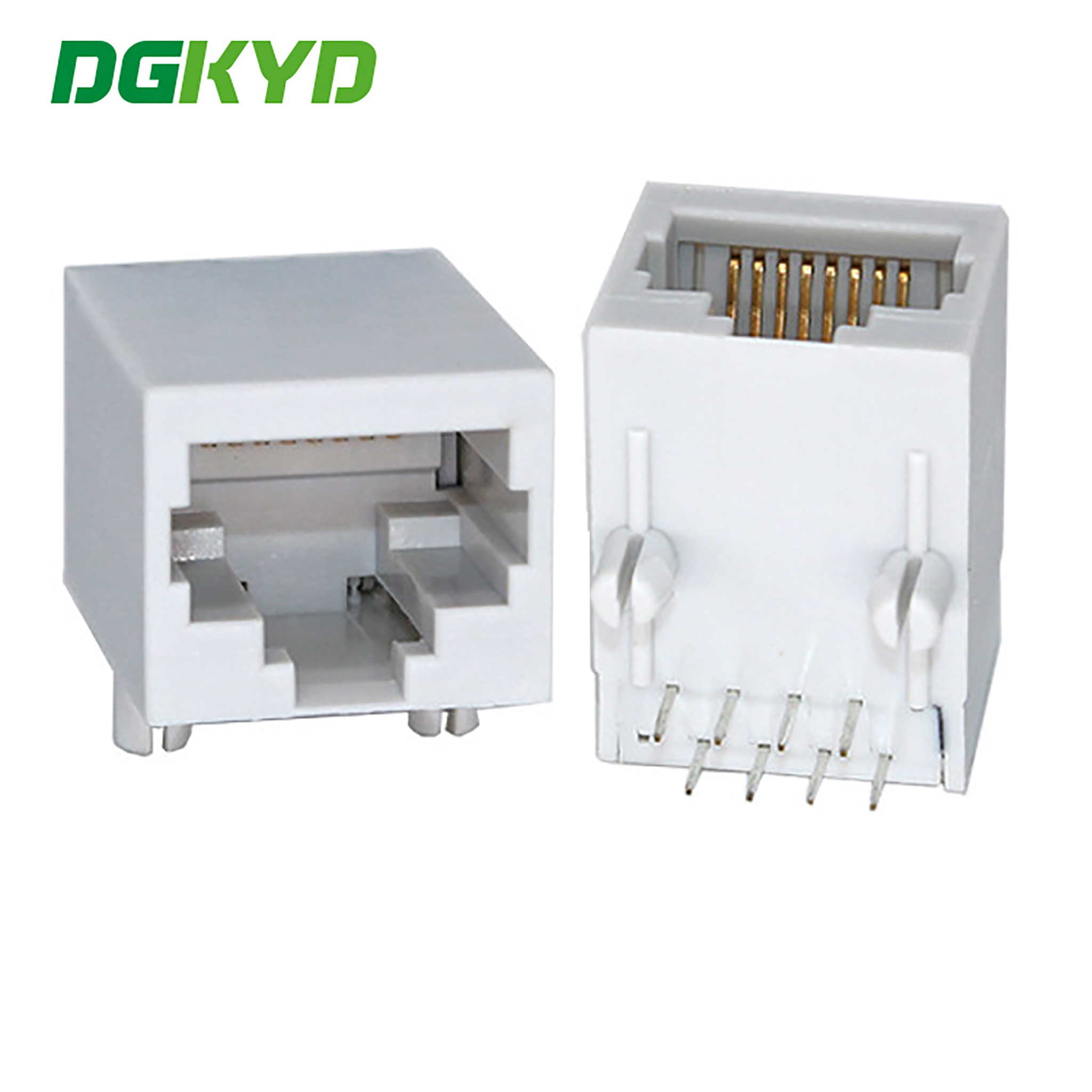

DGKYD111B002IWC4D single port RJ45 connector, 100Mbps, integrated filtering, fully plastic, without light network socket

DGKYD111B002IWC4D.pdf



Parameters

Part Number DGKYD111B002IWC4D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Down
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded No Applies To  Printed Circuit Board
Performance Speed 10/100/1000BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Vertical without LED with side entry
  • Single port 1X1 Tab-Down RJ45 with internal magnetics,C=4700PF
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shielded:NO
  • Rohs compliant
  • Length:20.5mm
  • LEDS:NO
  • Usage:DGKYD111B002IWC4D-4700PF



Electrical Specifications at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA  DC



Material specifications:

  • Plastic core:Glass fiber filler PBT White(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT White (UL94V-0)

Applications:

Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA, DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
