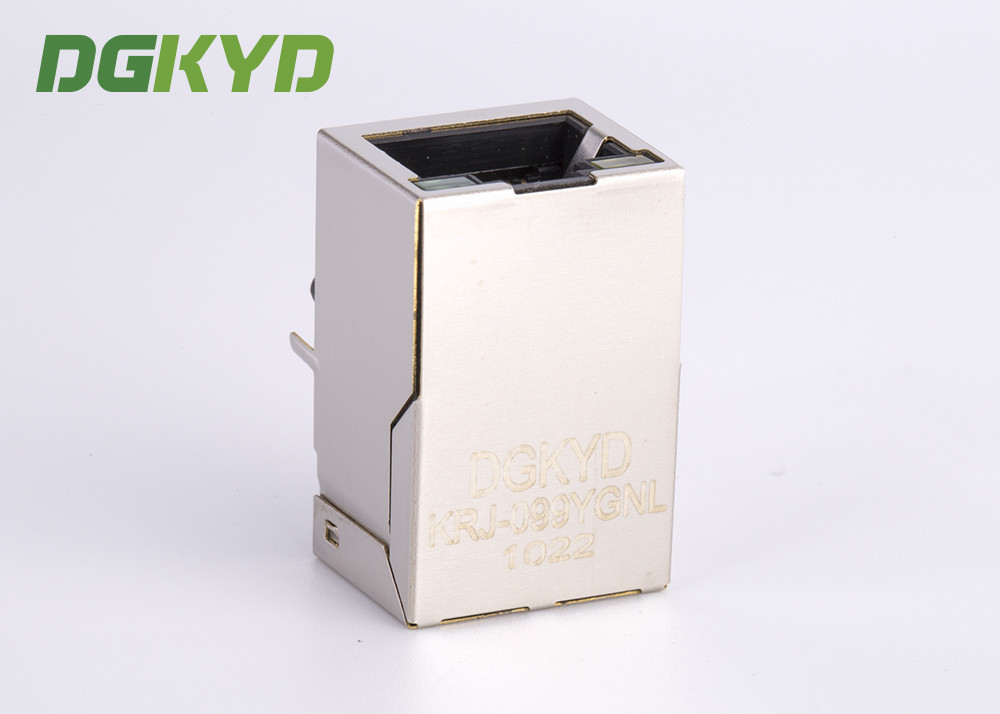

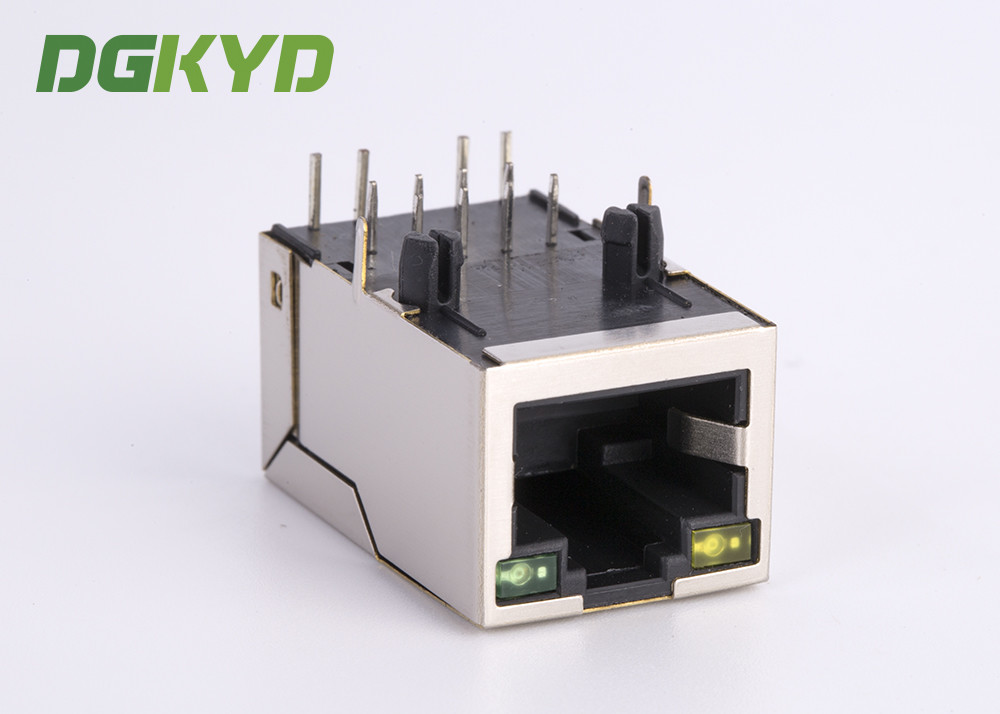

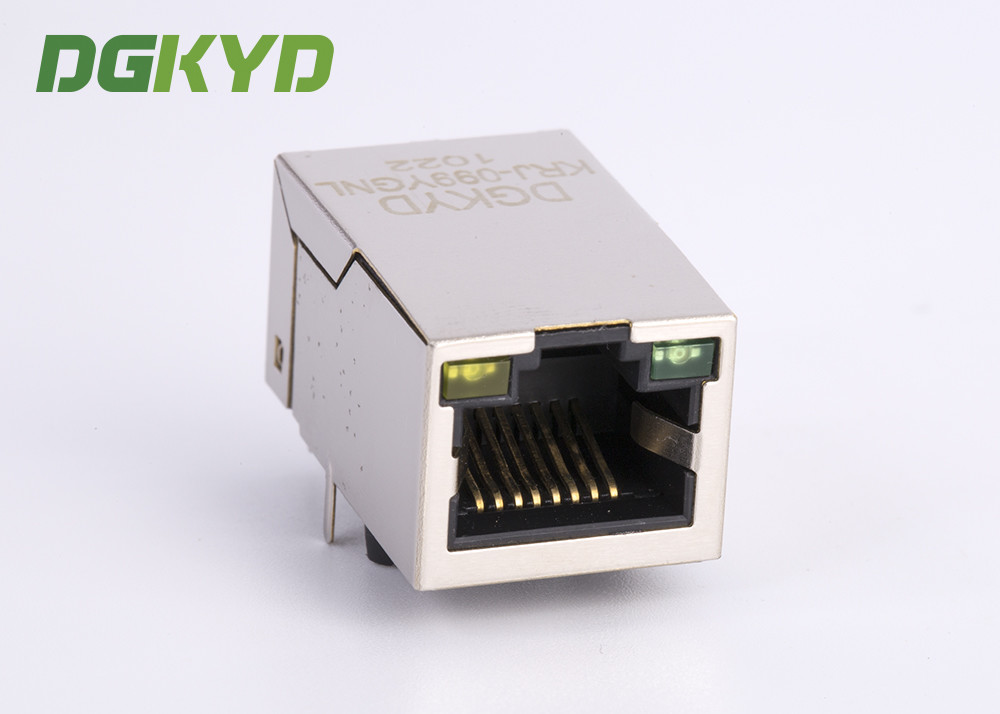

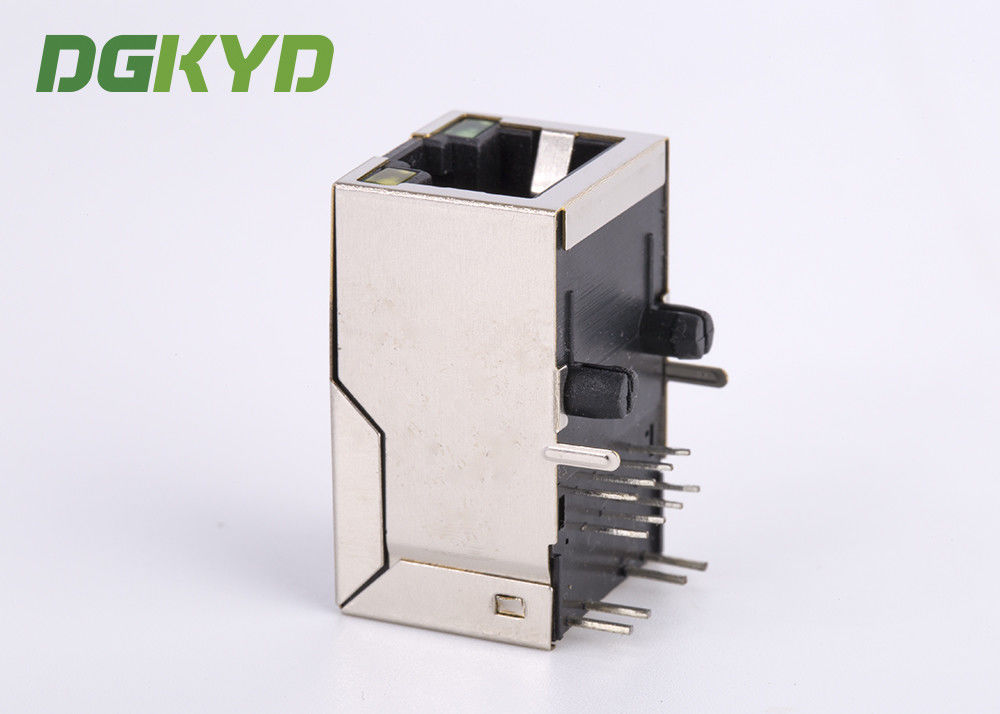

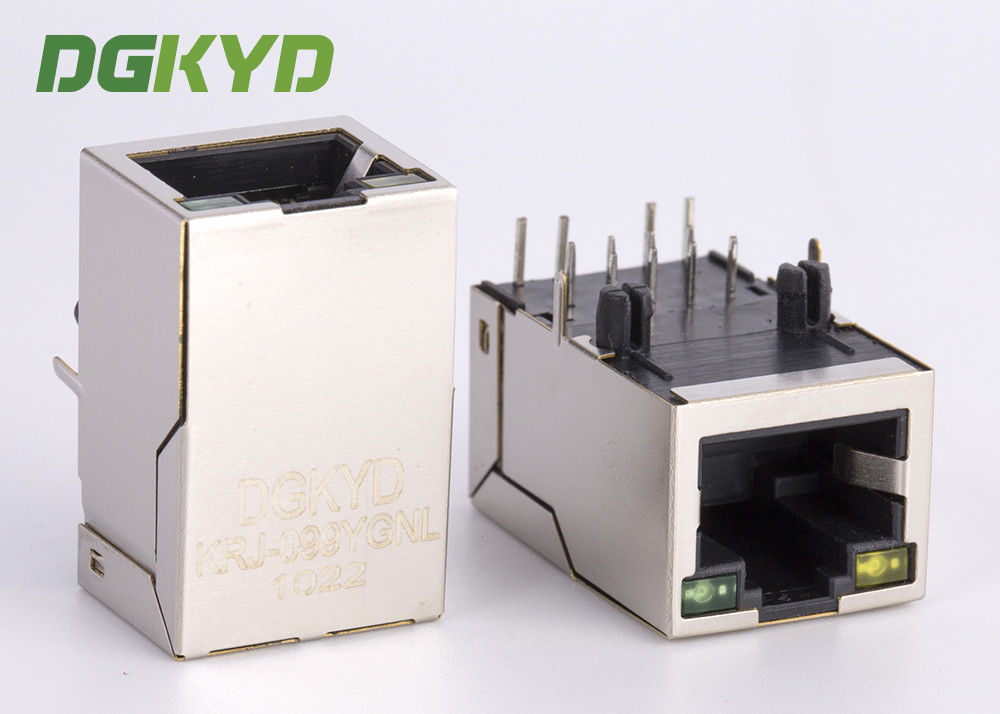

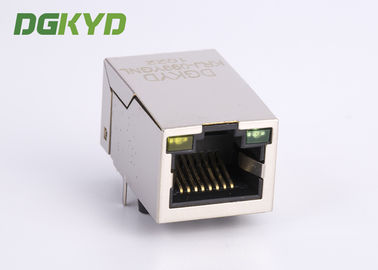

100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection
100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection 100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection 100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection 100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection 100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection
Contact Now

100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-099YGNL

Detail Information
Speed: Cat5 Latch: Tab Up
Mount Style: PCB Mount Length: 25.4mm
High Light:

rj45 connector pcb mount

,

rj45 pcb jack

Product Description

100BASE single port tab up RJ45 PCB Connector Transformer for Network connection

  • 10/100Base-Tx RJ45 single port 1X1 right angle with LEDS
  • 1X1 Tab-up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range : -40℃ to +85℃
  • Storage temperature range : -40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant

100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection 0100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection 1100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection 2

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
