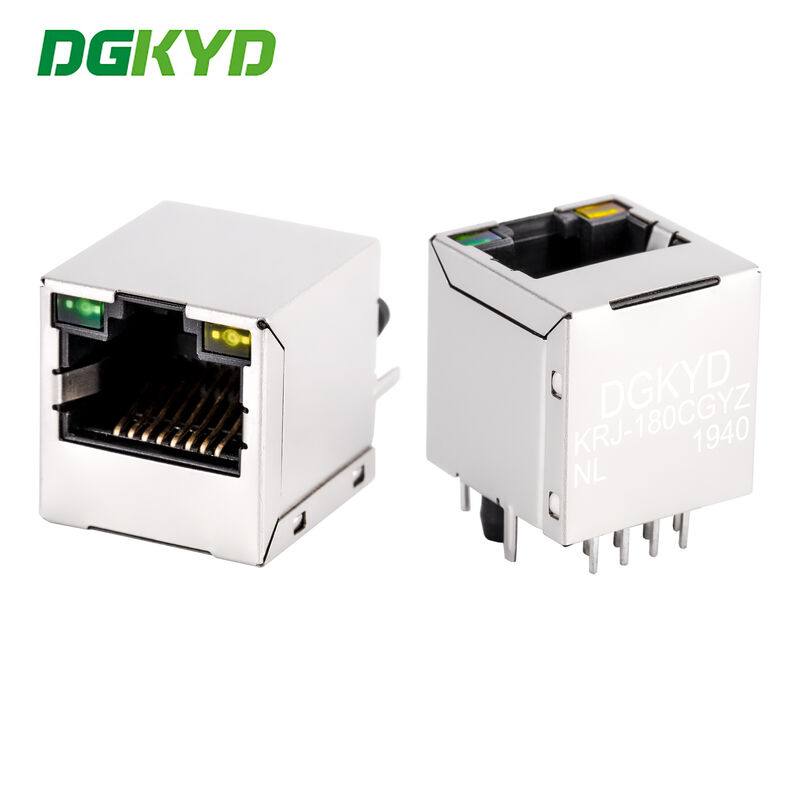

180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount KRJ-180CGYZNL

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-180CGYZNL

Detail Information
Type:	RJ45 Jack	Product Name:	RJ45 With Transformer
Housing:	Phenolic, PBT Black (UL94V-0)	Plastic Core:	Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shielded:	Yes	No.Port:	Single Port
Status Indicator:	Green/Yellow	Latch Orientation:	Top Entry
Number Of Positions/Contacts:	8p8c (RJ45, Ethernet)	Gold Plating On Contact Pins:	6U
Storage Temperature:	-40°C~+85°C	Operating Temperature:	-40°C~+85°C
Highlight:	180 degree RJ45 connector PCB mount , TOP ENTRY RJ45 jack with transformer , KRJ-180CGYZNL magnetic LAN jack

Product Description

180° Top Entry Magnetics Jack RJ45 Connector with Transformer

PCB Mount KRJ-180CGYZNL - Integrated magnetic filtering for reliable network connectivity

Product Overview

Part Number: KRJ-180CGYZNL

Technical Specifications

Part Number	KRJ-180CGYZNL
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard TAB-UP
Filter	With Filter
LED Option	With LED (Green/Yellow)
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester (Black)
UL Flammability Rating	UL 94V-0

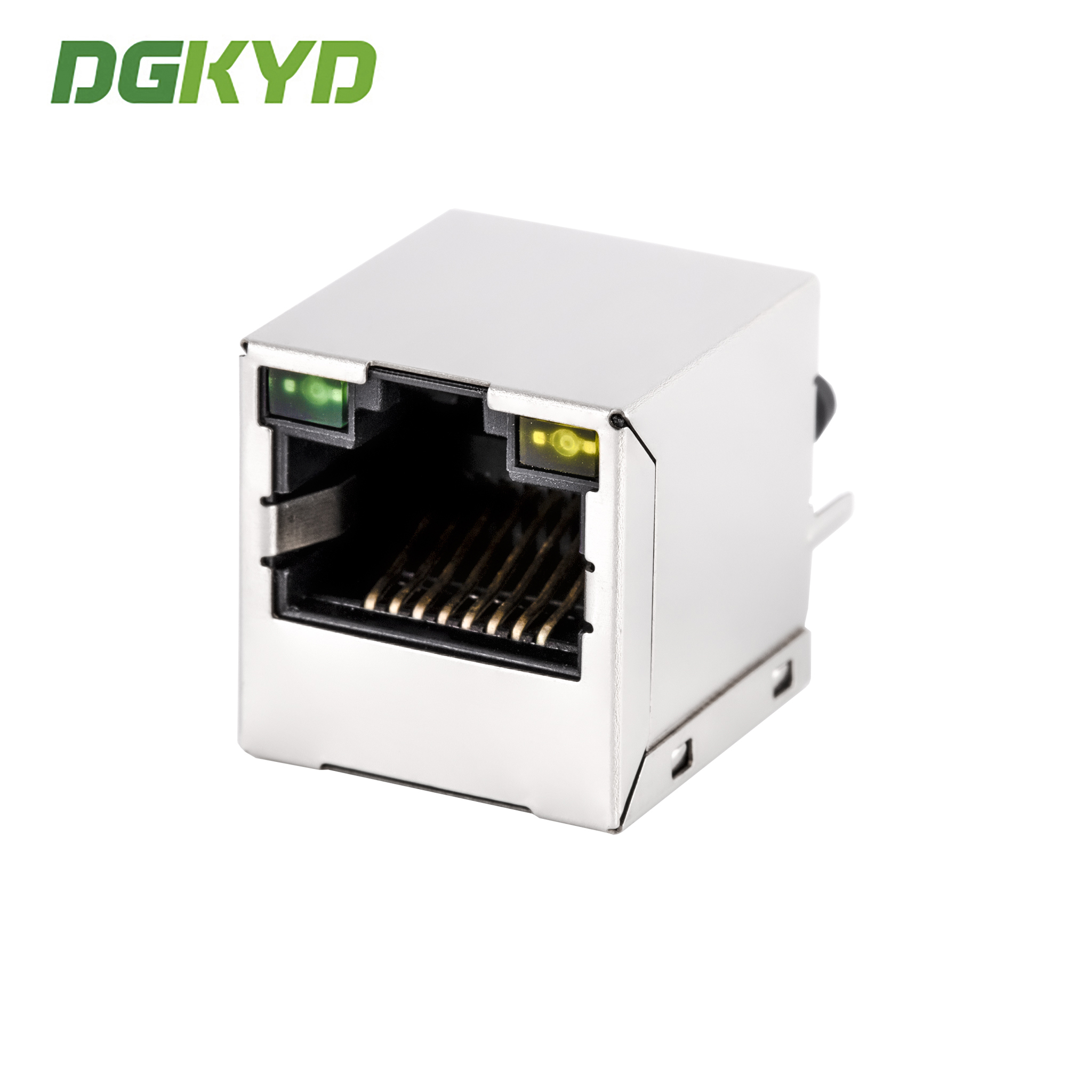

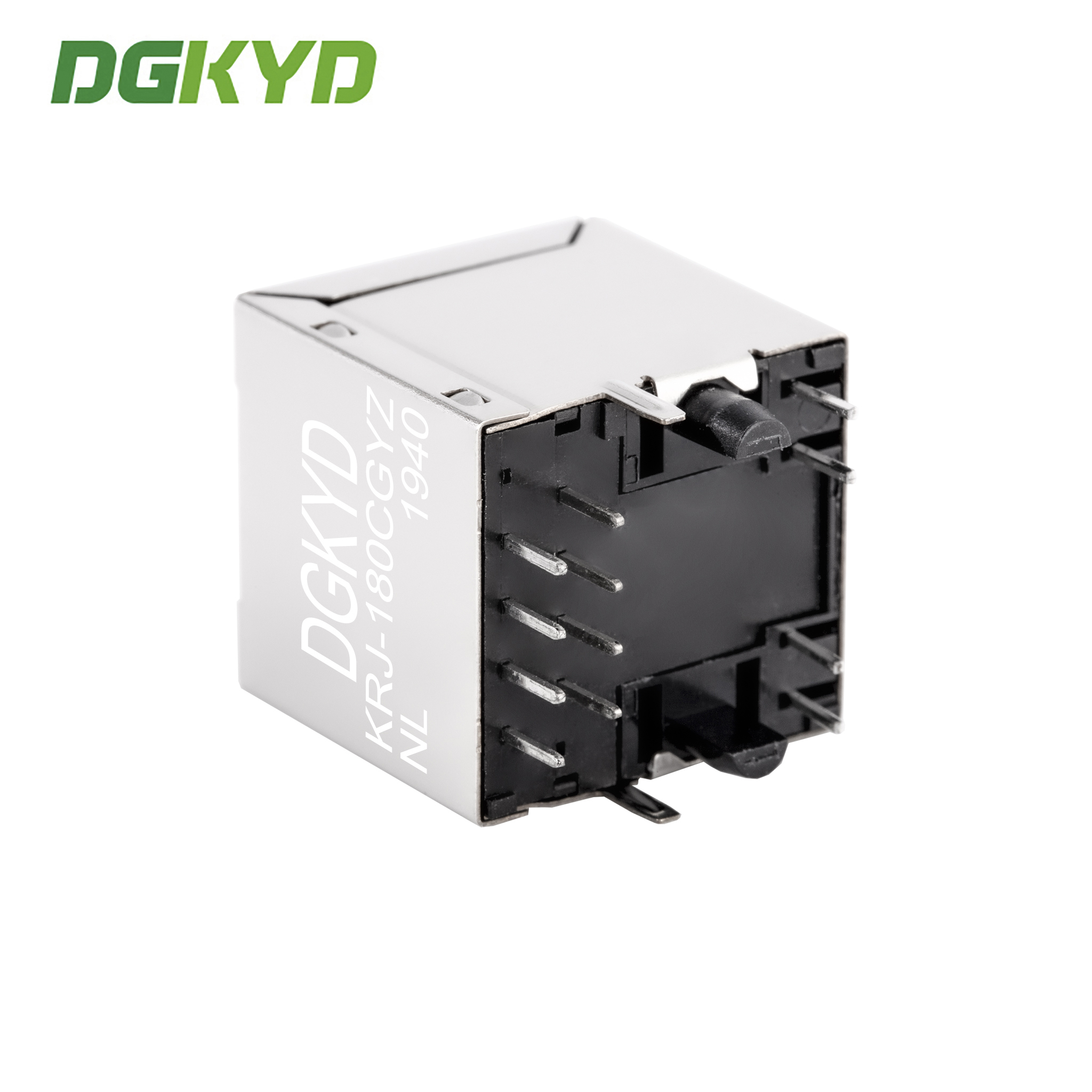

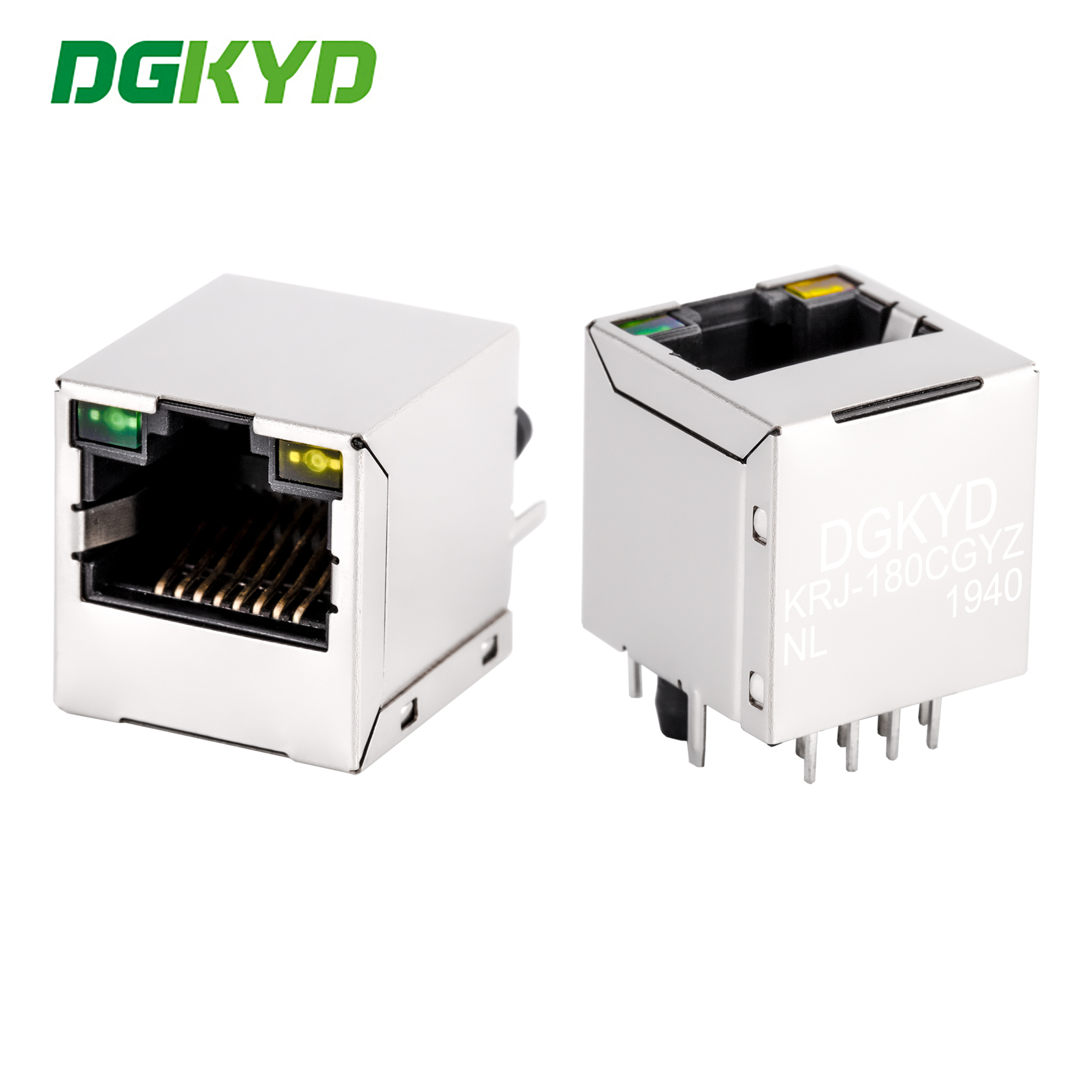

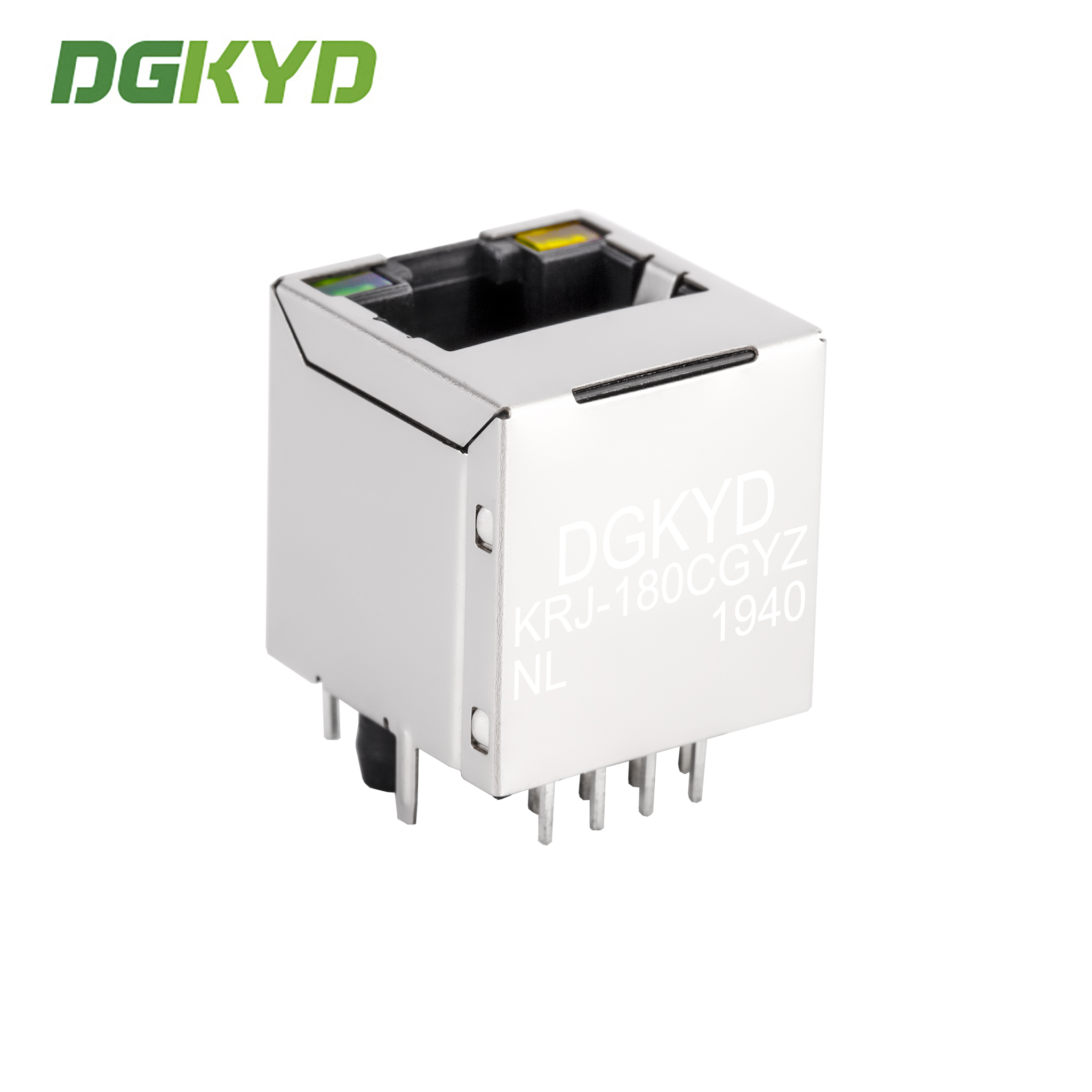

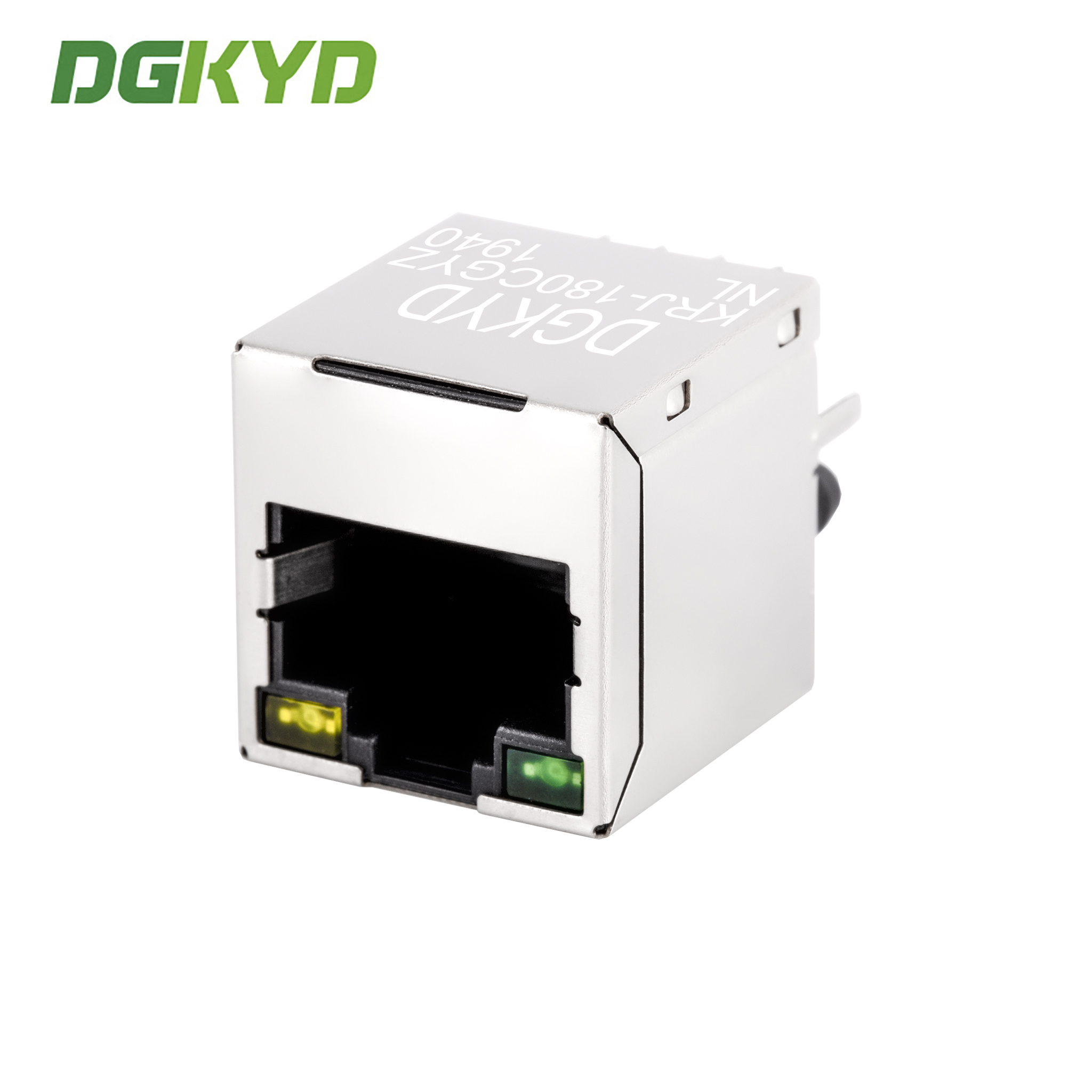

Product Images

Manufacturer Information

Company Profile 180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount KRJ-180CGYZNL 3

Factory Show 180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount KRJ-180CGYZNL 4

Factory Interior 180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount KRJ-180CGYZNL 5

Factory Equipment 180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount KRJ-180CGYZNL 6

Product Showcase 180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount KRJ-180CGYZNL 7

Product Features

Interface type: RJ45 crystal head application for 10/100/1000BASE-T Ethernet
Built-in magnetics for filtering and anti-interference
High frequency characteristic for optimal performance
Operating temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering compatible with wave soldering up to 265℃
Complete RJ45 integrated circuit accessories series
Manufacturer direct supply with 11-year OEM experience
Standard delivery: approximately two weeks
Customizable options: LED indicators (green, yellow, red, orange, blue, bi-color)
EMI shield fingers optional
Magnetic core coil ratio customization available
Diverse magnetics circuit options
Contact gold plating options: FU, 3U, 6U, 15u, 30U, 50U
Housing materials: PBT, PA46, PA9T, LCP

All products meet industry standards for electrical properties, mechanical dimensions, manufacturing specifications, and environmental compliance. Your satisfaction is our primary service objective.

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are the manufacturer. Welcome to visit our factory.

Q: What is your lead time?

A: Stock items ship within 5-7 working days after payment. Customized and out-of-stock items depend on order quantity - we'll confirm specific delivery times.

Q: Can you provide samples? Are they free?

A: Yes, we typically provide 2-3 standard product samples free for testing purposes.

Q: Can I put my own logo on the products?

A: Yes, as a manufacturer with 11 years of OEM experience, we are fully equipped to customize products with your branding.
