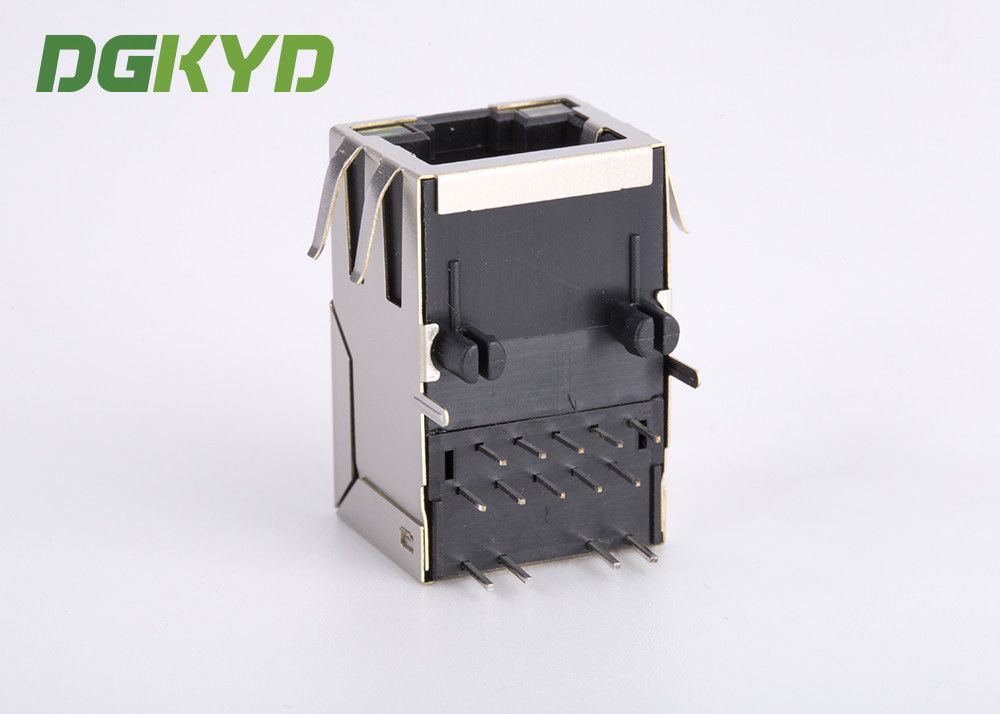

1x1 Tab up gigabit network jack rj45 with Transformer / internal magnetics Rj45

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD

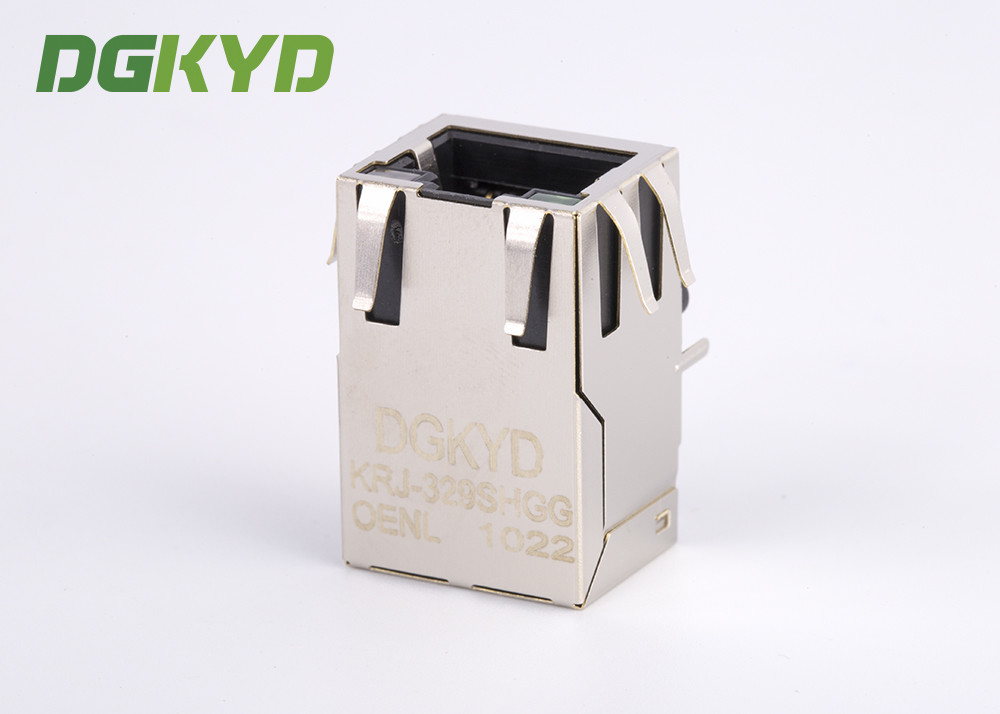

Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-329SHGGOENL

Detail Information

Performance: Gigabit Number Of Positions: 10
Circuit Application: Signal Entry Locationm: Side
High Light:

rj45 lan connector

,

rj45 8p8c connectors

Product Description

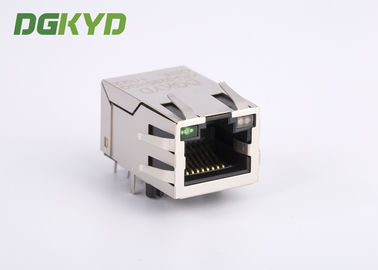

1x1  network connector with Transformer, internal magnetics Rj45 Lan Jack with led and fingers

1x1 Tab up gigabit network jack rj45 with Transformer / internal magnetics Rj45 0

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications at 25℃:

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA   DC



Applications:

Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

 transceiver,IP phone,internet settop box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL/ADSLand so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,customer

firstly ,100% test, 0 defect, short lead time are our best advantages
