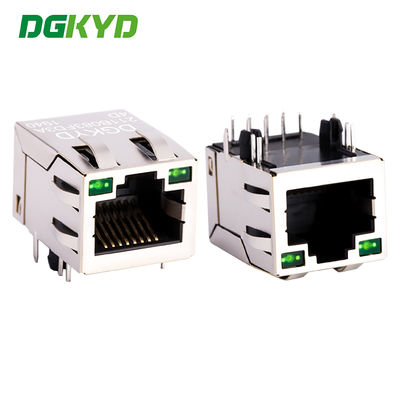

100Mbps Ethernet port connector RJ45 interface dual green network socket DGKYD211B083FD3A4D

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD211B083FD3A4D

Detail Information

Product Name: RJ45 With Transformer No.Port: Single Port
Type: RJ45 Housing: Phenolic, PBT Black (UL94V-0)
Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS Shielded: Yes
Number Of Positions/Contacts: 8p8c (RJ45, Ethernet) Gold Plating On Contact Pins: 6U
Operating Temperature: -40°C~+85°C Storage Storage Temperature: - 40 ℃ ~ 85 ℃
Highlight:

RJ45 dual green network socket

,

100Mbps Ethernet port connector

,

RJ45 interface Ethernet port connector

Product Description

100Mbps Ethernet port connector RJ45 interface dual green network socket DGKYD211B083FD3A4D

Product Specification Document

DGKYD211B083FD3A4D.pdf



Parameters

Part Number DGKYD211B083FD3A4D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Green/Green Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

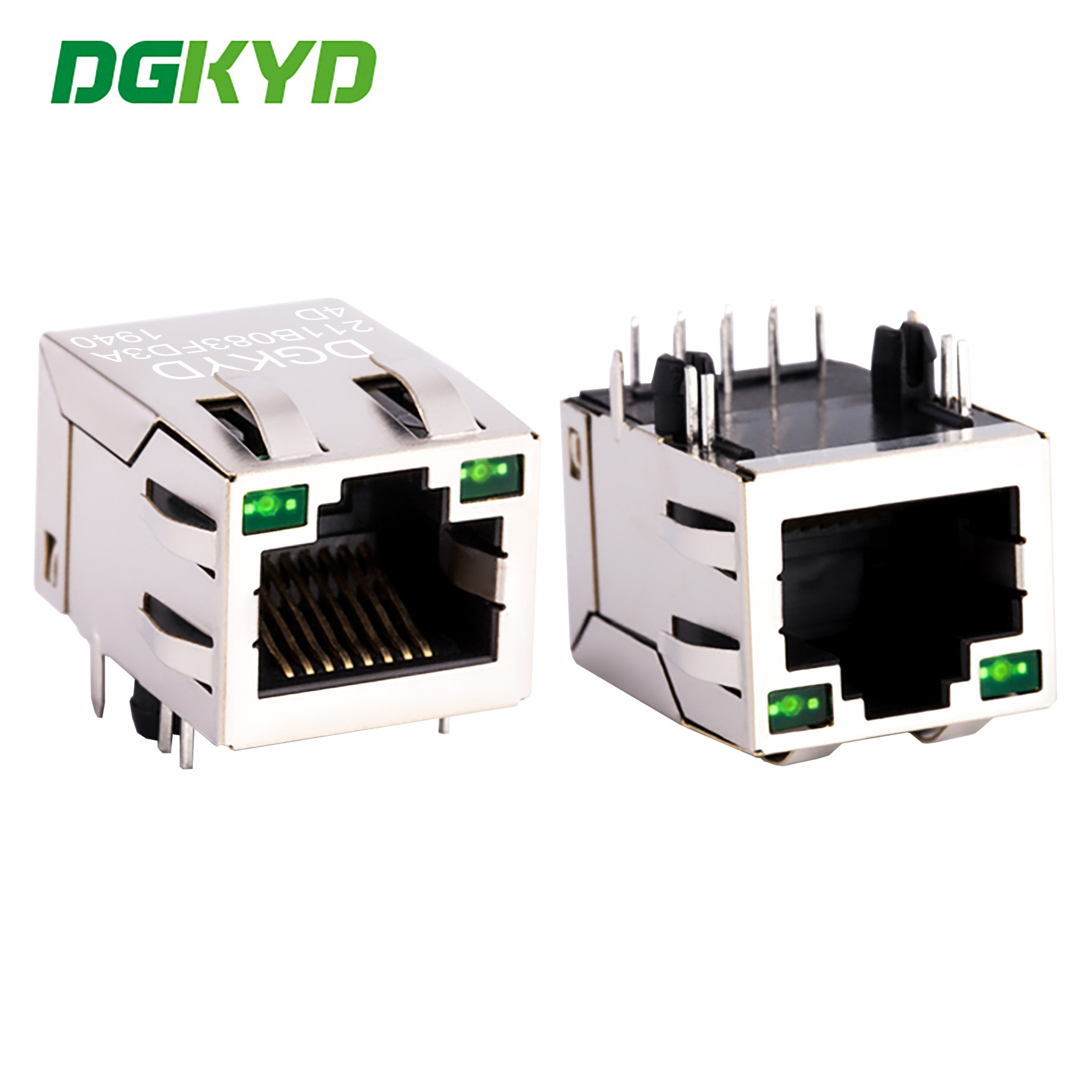

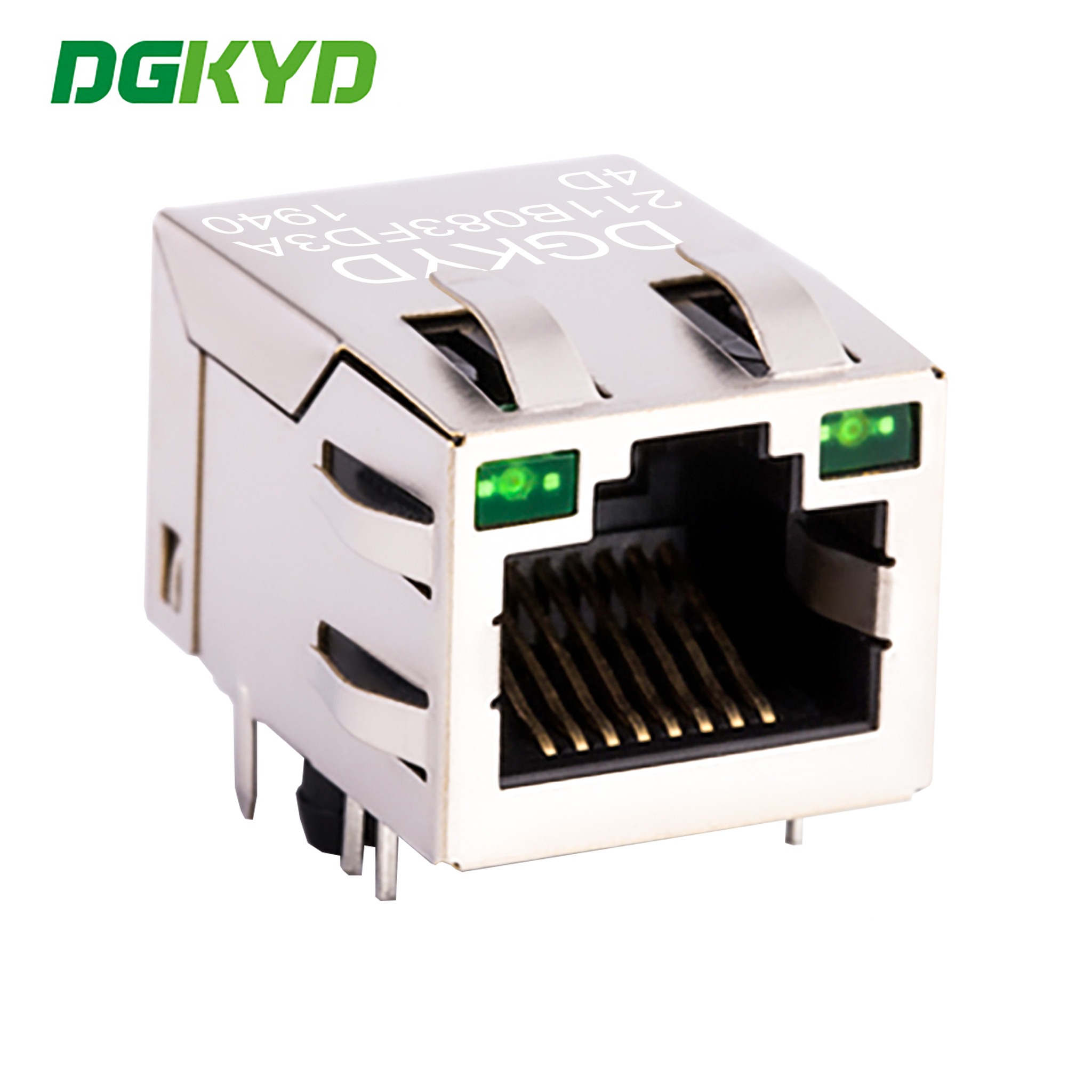

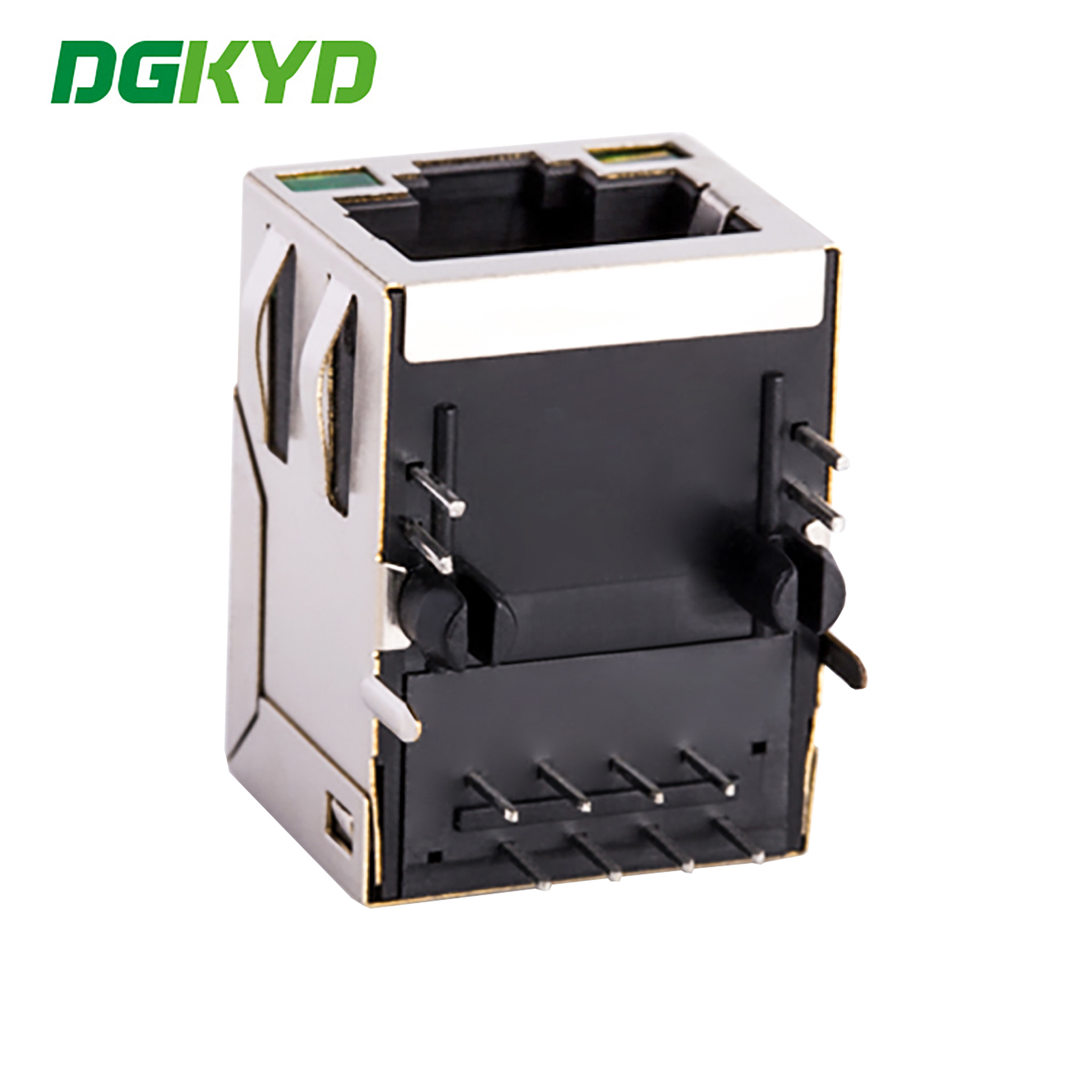

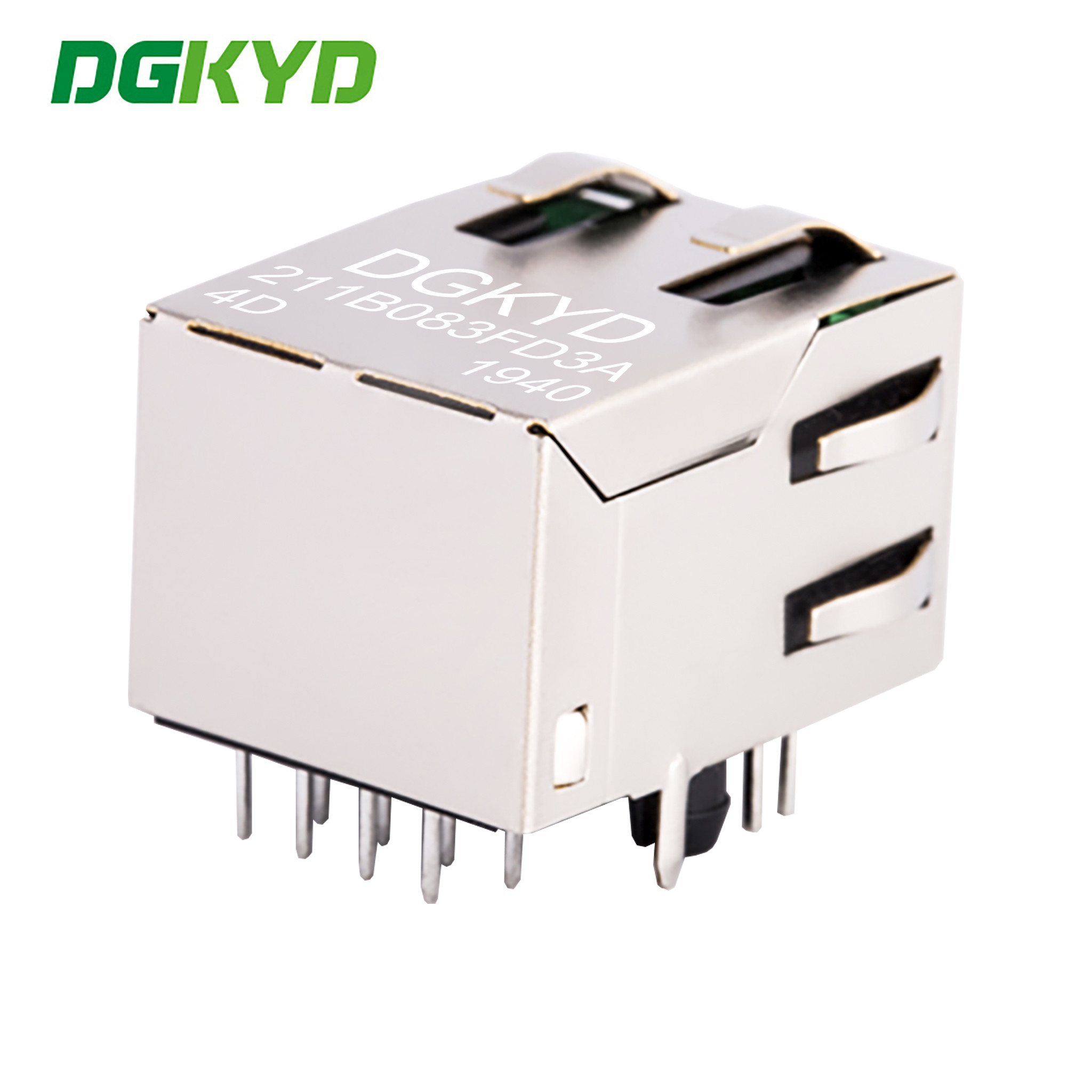

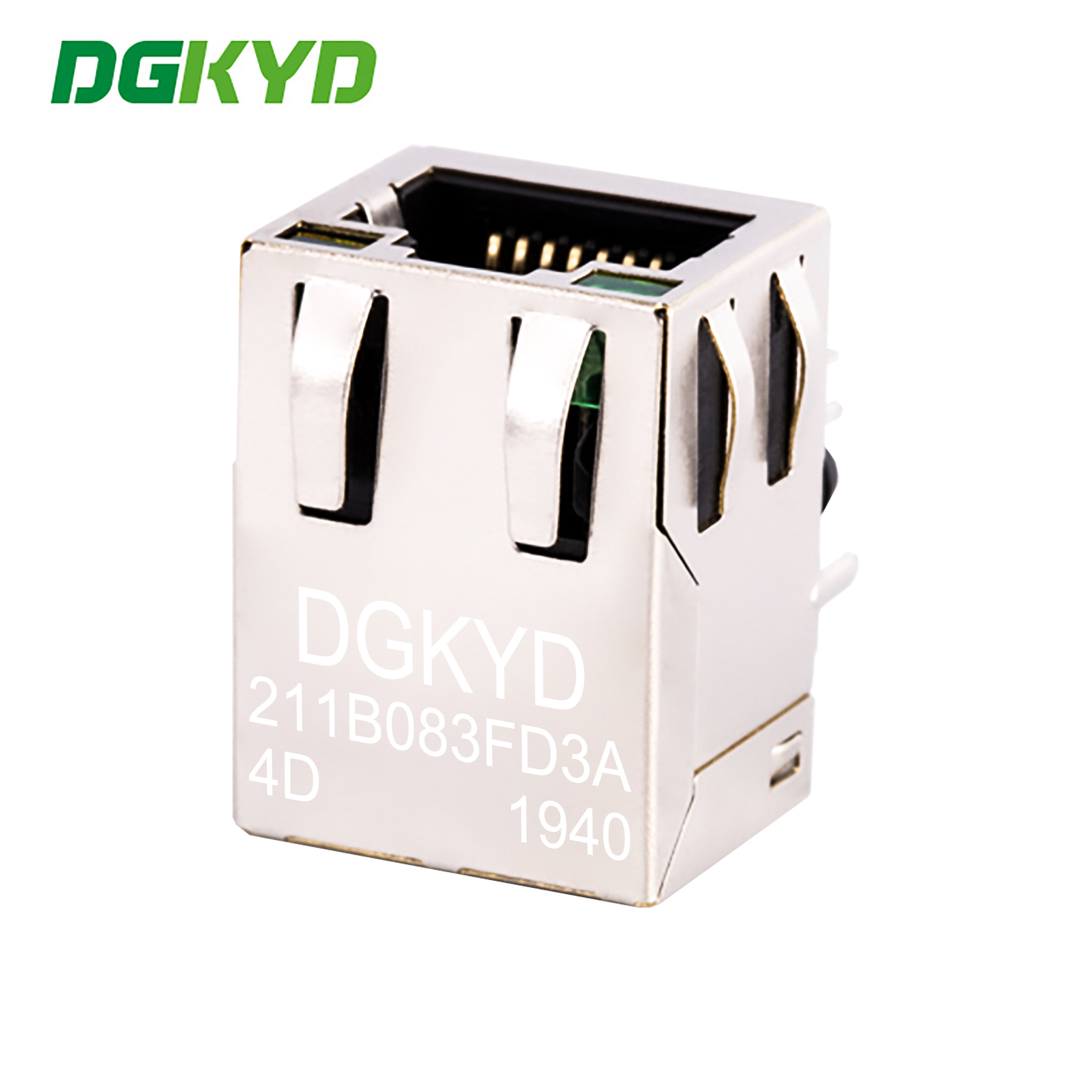

100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 0100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 1

100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 2

100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 3

100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 4

100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 5

100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 6

100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 7





100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 8



100Mbps Ethernet port connector RJ45 interface dual green network socket  DGKYD211B083FD3A4D 9



FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.



2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.



3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.



4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
