RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111B049AB2A1DP

Detail Information

Data Rate: 100 Base-T PoE: With PoE
LED: Green/Yellow Operating Temperature: -40 °C Up To +85 °C
Gold-plating: 6U Shielded: Metal Shielded
Connector Style: Jack Port Configuration: SIngle Port
Modular Jack & Plug Interface Type: RJ45 With Transformer Storage Temperature: -40°C~+85°C
Number Of Stitches: 8P8C
Highlight:

integrated filter RJ45 Ethernet socket

,

POE RJ45 Ethernet socket

,

100Mbps RJ45 Ethernet socket

Product Description

RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP



Product Specification Document

DGKYD111B049AB2A1DP.pdf



Part Number DGKYD111B049AB2A1DP Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color Green/Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  1X1 Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

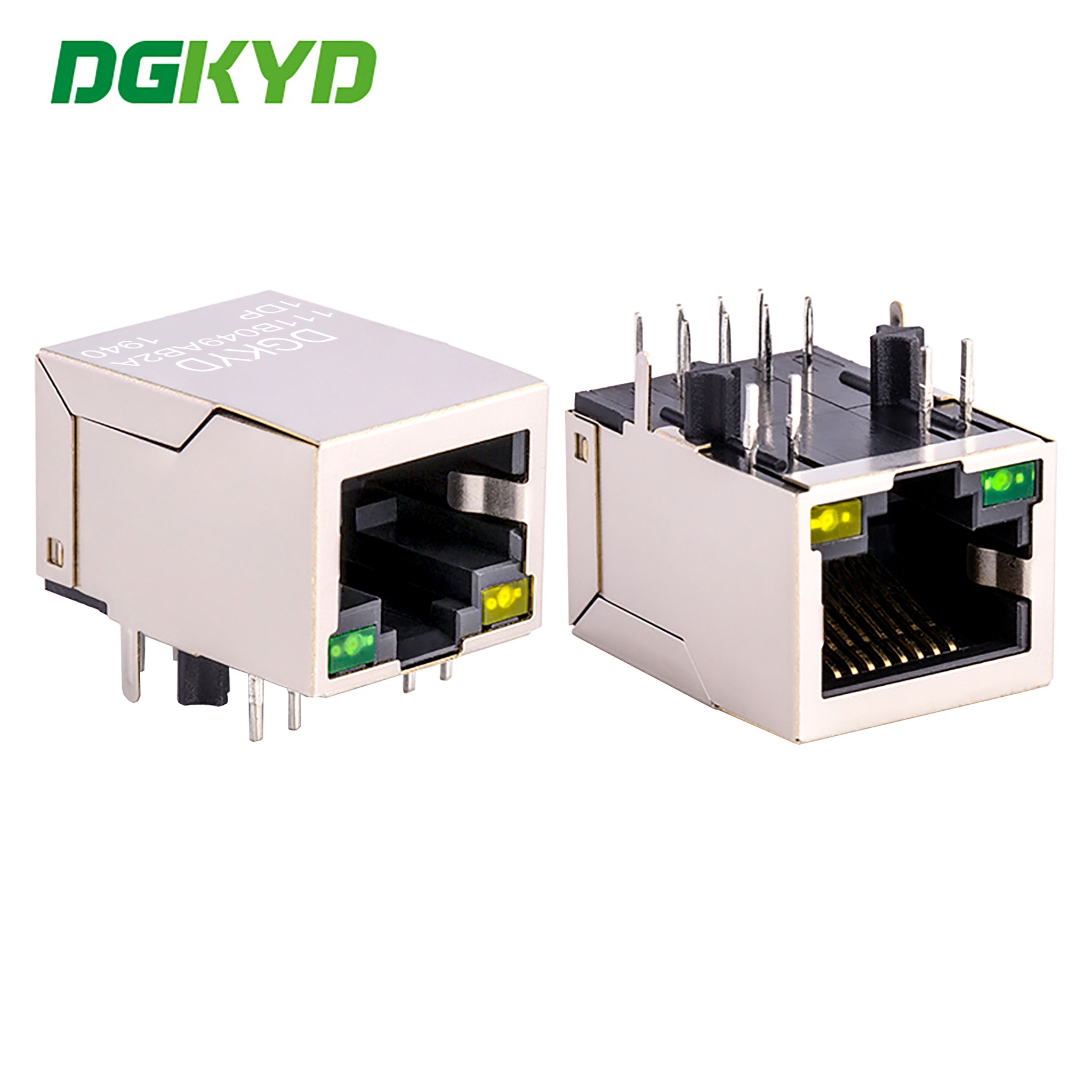

RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 0

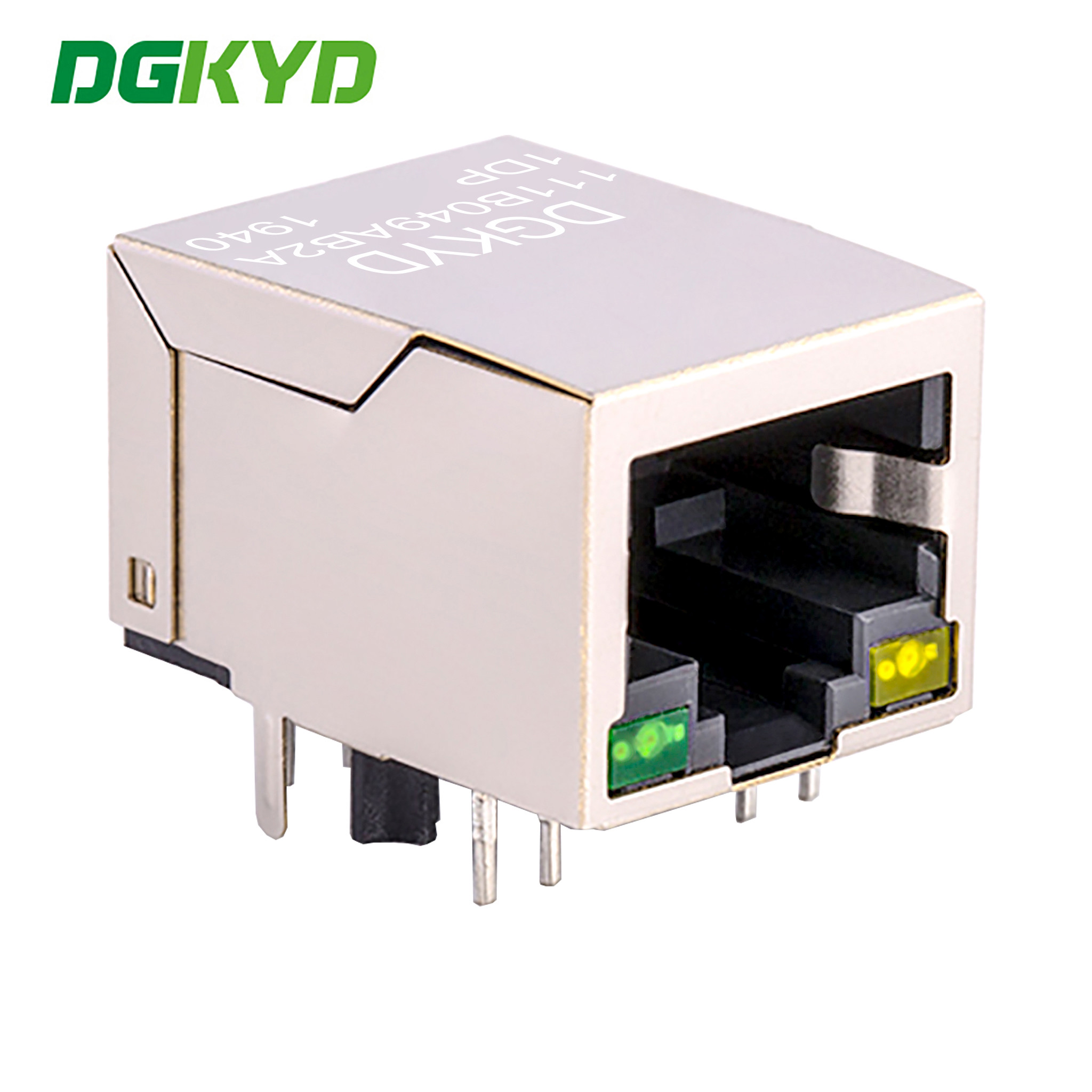

RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 1

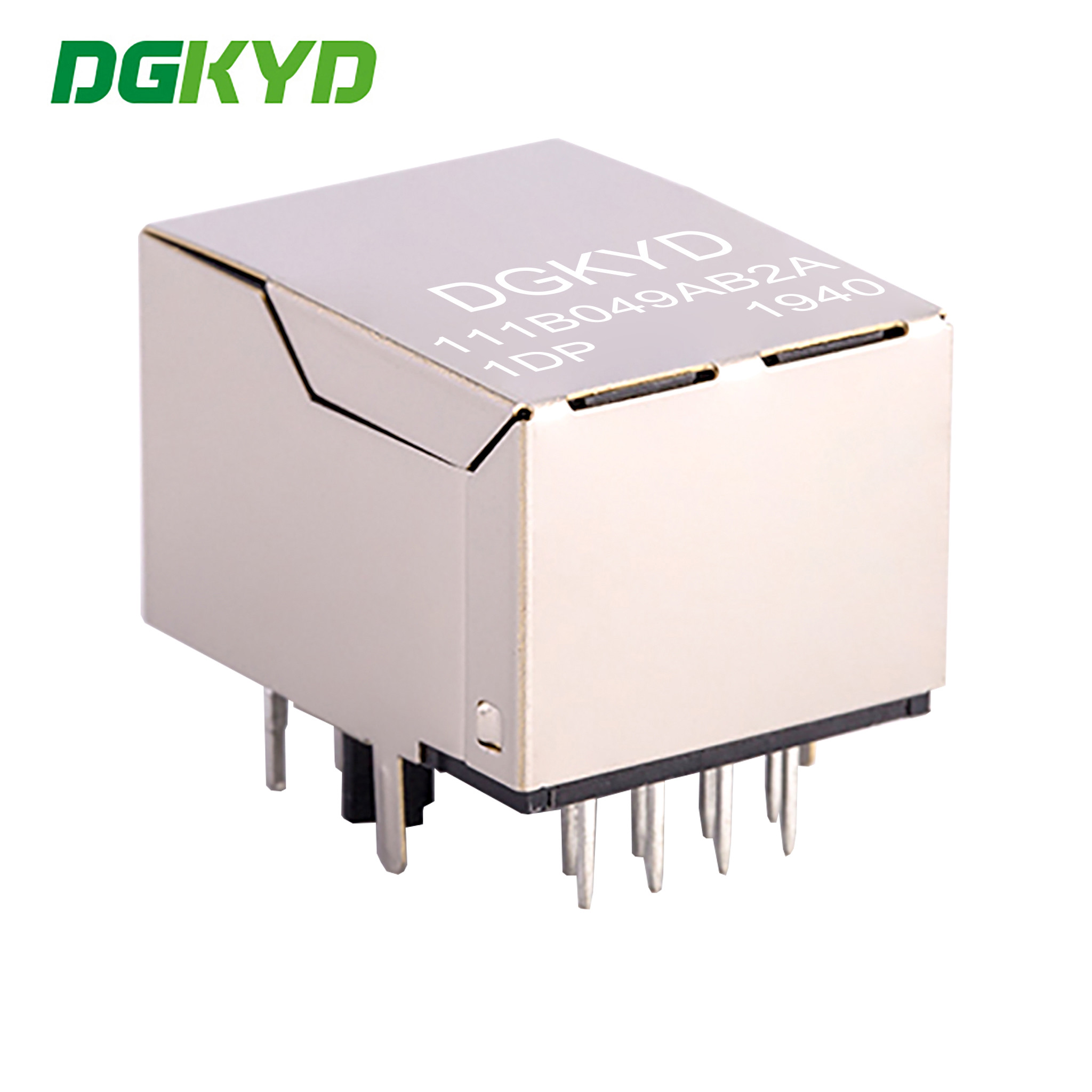

RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 2

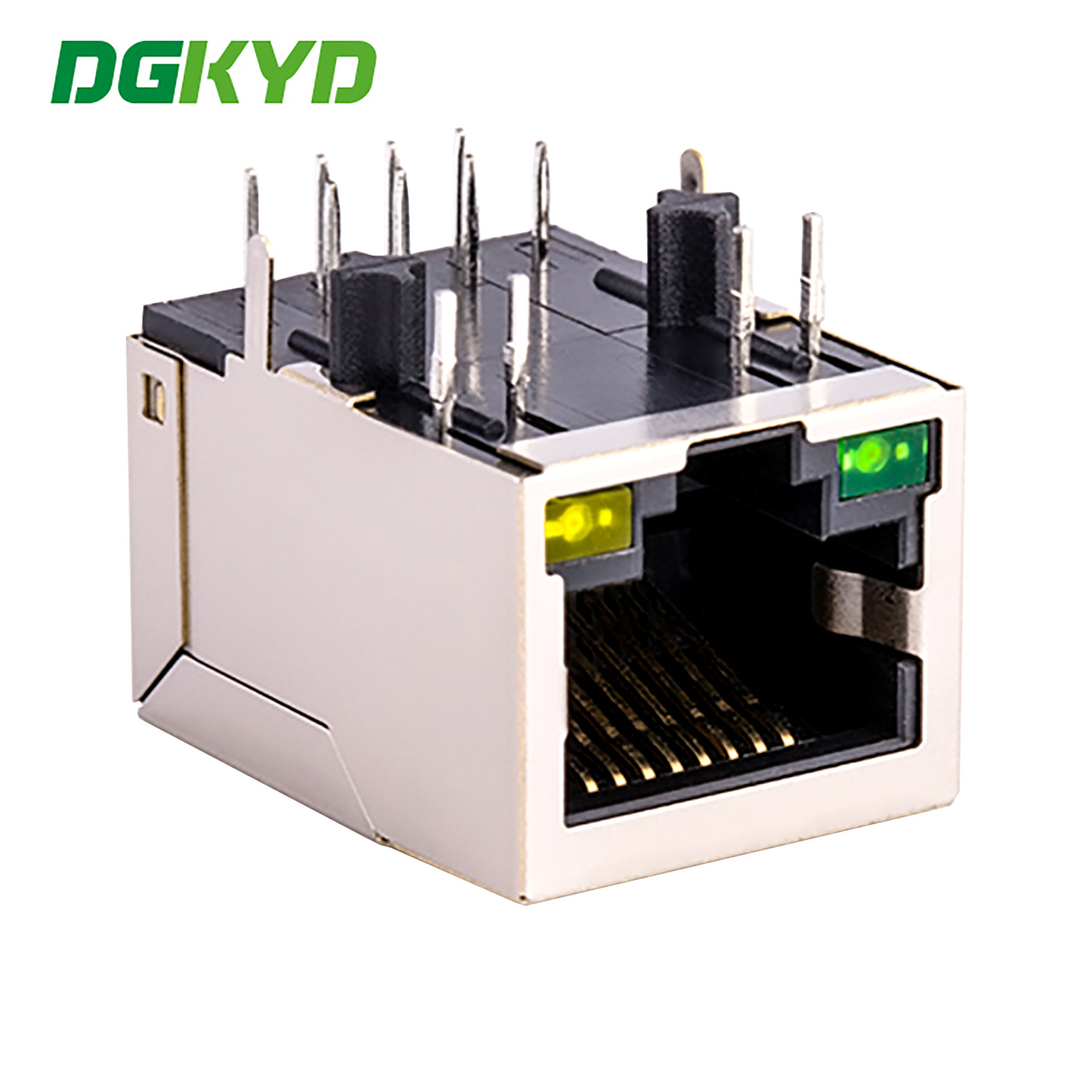

RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 3

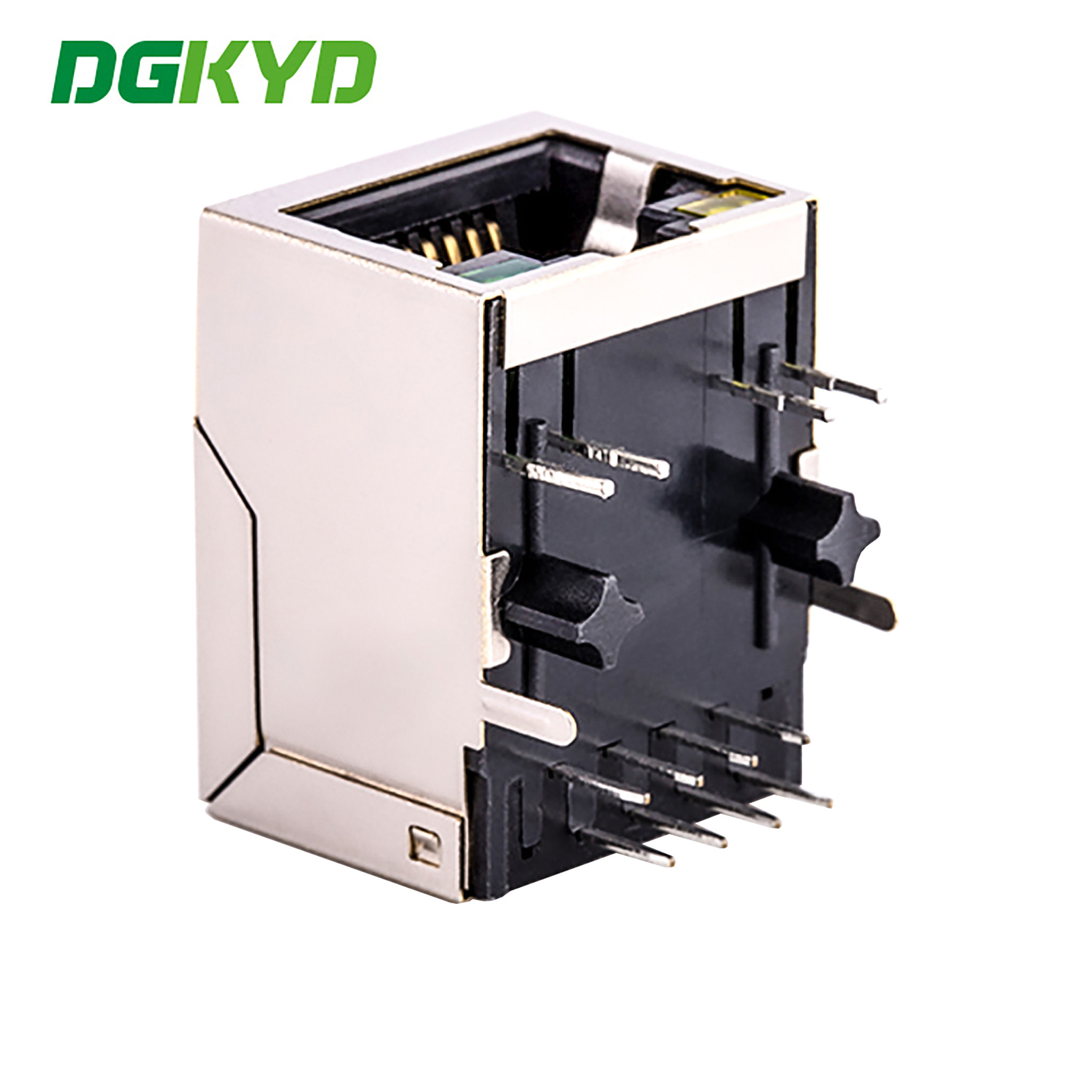

RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 4

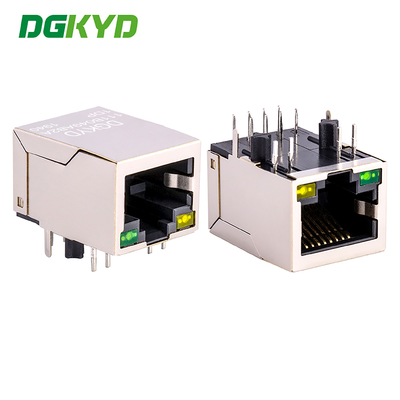

RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 5

RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 6





RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 7



RJ45 Ethernet socket 100Mbps integrated filter with POE network interface DGKYD111B049AB2A1DP 8



FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
