Custom Shield Rj45 Female To Female Ethernet Cable Network Ethernet Extension Cable
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYDRJ111166F1A1Y1W041 |
|
Detail Information |
|||
| HOUSING: | P C | CURRENT RATING: | 1.5 AMP |
|---|---|---|---|
| CONTACT RESISTANCE: | 50 MILLIOHMS MAX. | TERMINAL: | 1U"GOLD PLATED. |
| OPERATING TEMPERATURERESISTANCE: | -40℃～+80℃. | VOLTAGE RATINGVOLTAGE: | 125 VAC RMS . |
| INSULATION RESISTANCE: | 1000 MEGOHMS MIN @ 500 VDC. | DIELECTRIC STRENGTH: | 1000 VAC RMS 50HZ, 1MIN. |
| SHELL: | C2680R-H,T=0.20MM,20~50U" MIN | Type: | Crystal Head |
| Highlight: | Category 5e RJ11 Ethernet plug,6P6C RJ11 Ethernet plug,RJ11 Ethernet plug |
||
Product Description

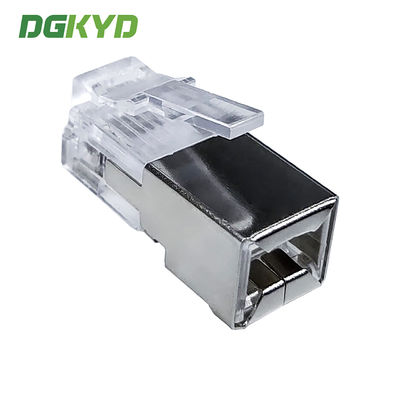

RJ11 crystal head 6P6C Category 5e RJ11 Ethernet plug DGKYDRJ111166F1A1Y1W041
Product Specification Document
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: - 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
Parameters
| Part Number | DGKYDRJ111166F1A1Y1W041 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ11 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | |
| Filter | Without internal filter | LED Option | Without LED |
| LED Color | 1 | Panel Stops | Without Panel Stops |
| Shielded | 1 | Applies To | Printed Circuit Board |
| Performance Speed | 1 | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | 1 port | Number of Positions | 6 |
| Jack Configuration | 1 x 1 | Terminals per Port | 6 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit
|
Board Lock | With/Without Board Lock |
| Housing Material | PC Polyester | Housing Color | White |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
