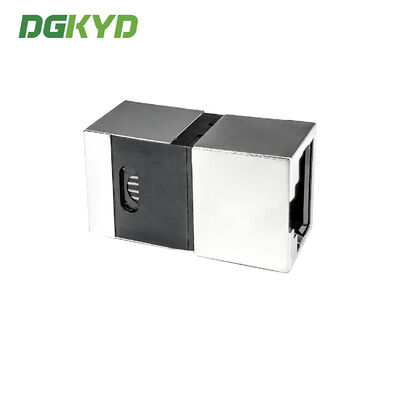

Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD-US030-006E
Document:	DGKYD-US030-006E.pdf

Detail Information
Shell:	PBT, UL94V-0, Black.	Terminal:	Phosphor Bronze, 15u "gold-plated
Shielding:	Brass, T=0.20MM， Nickel Plating For 20 Minutes	Durability:	Minimum 750 Cycles, 12.5MM/MIN.
Insertion Force:	Maximum 2.2KG. F.	Holding Force:	7.7KG. F Is Between The Socket And Plug.
STORAGE:	-40℃~+85℃	OPERATION:	-40℃~+85℃
Highlight:	Shielded RJ45 connector without buckle , Straight through module side copper shell , RJ45 wire harness with warranty

Product Description

Shielded RJ45 Straight Through Module Side Copper Shell Without Buckle DGKYD-US030-006E

Product Documentation

Product Specifications

Part Number	DGKYD-US030-006E	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Filter	Without internal filter
LED Option	Without LED	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	Standard	Grounding Options	Panel Ground and PCB Ground
Port Configuration	1 port	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 15u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	White
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

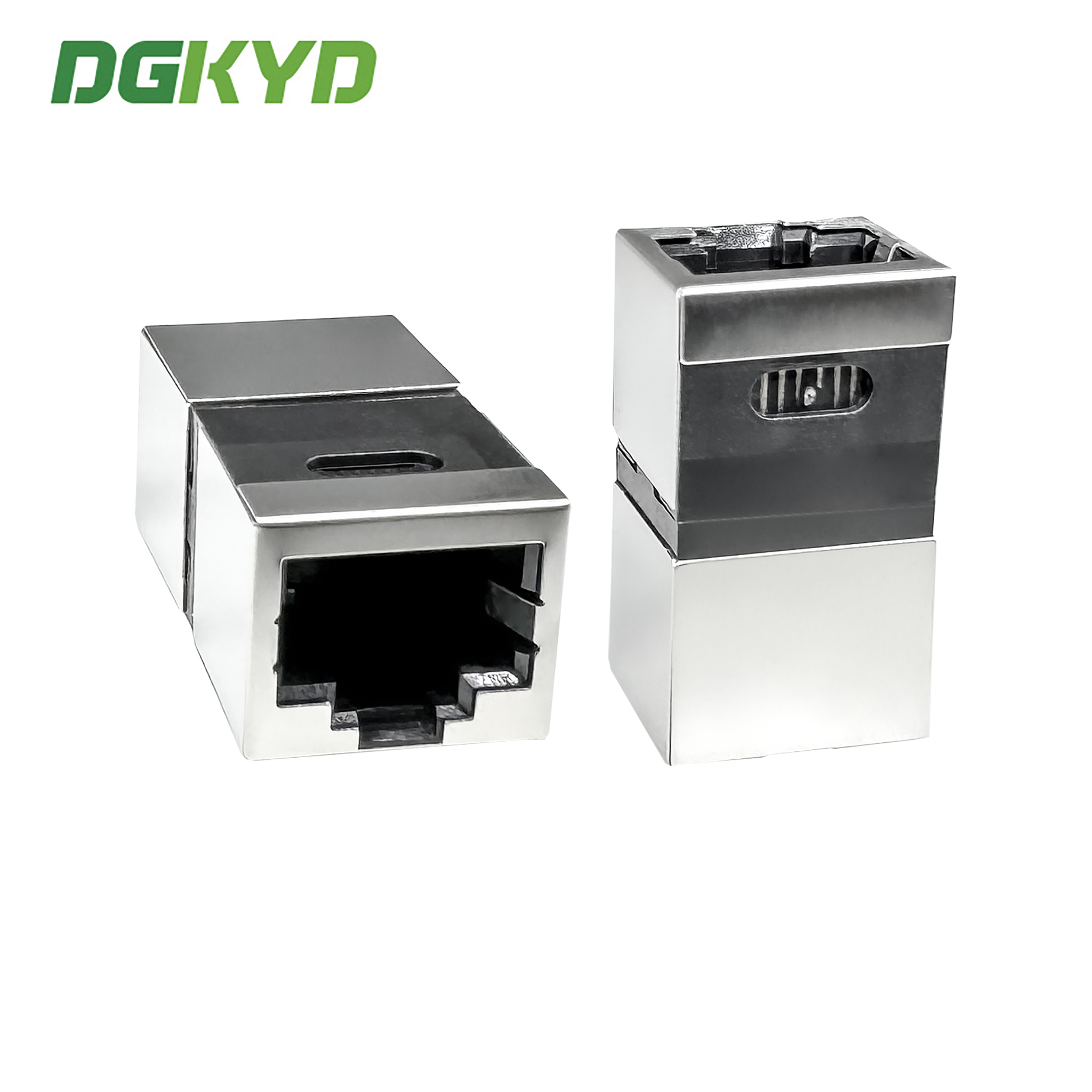

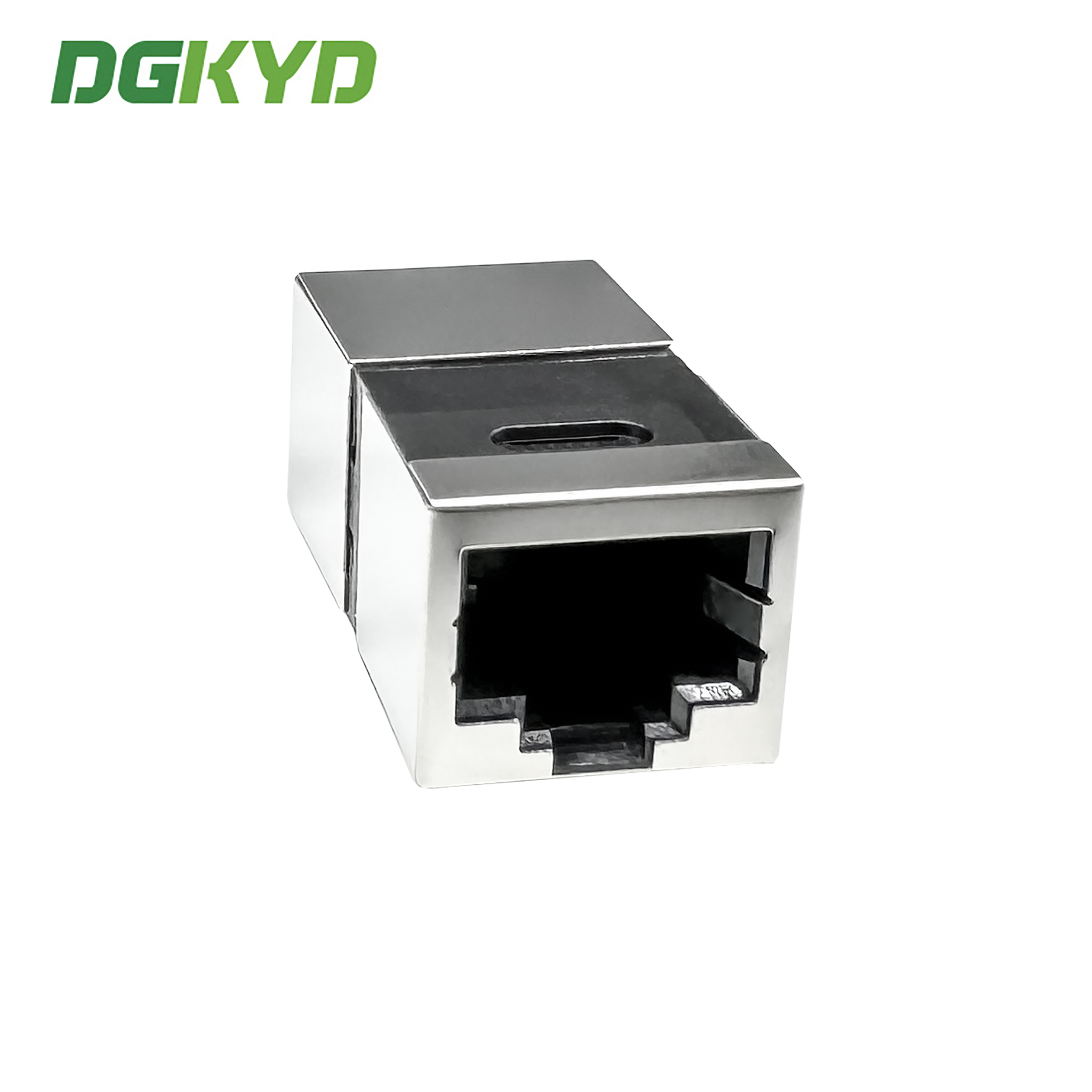

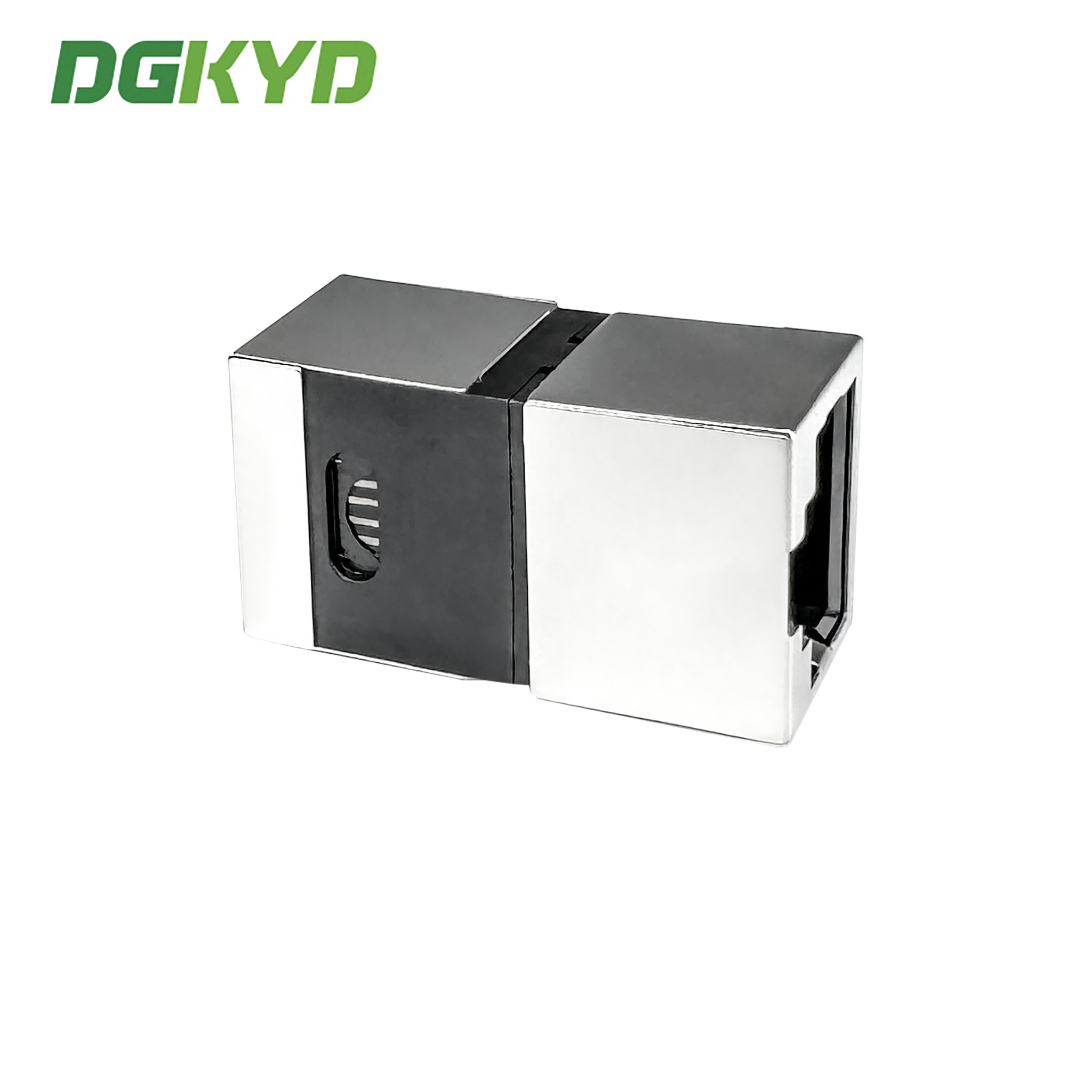

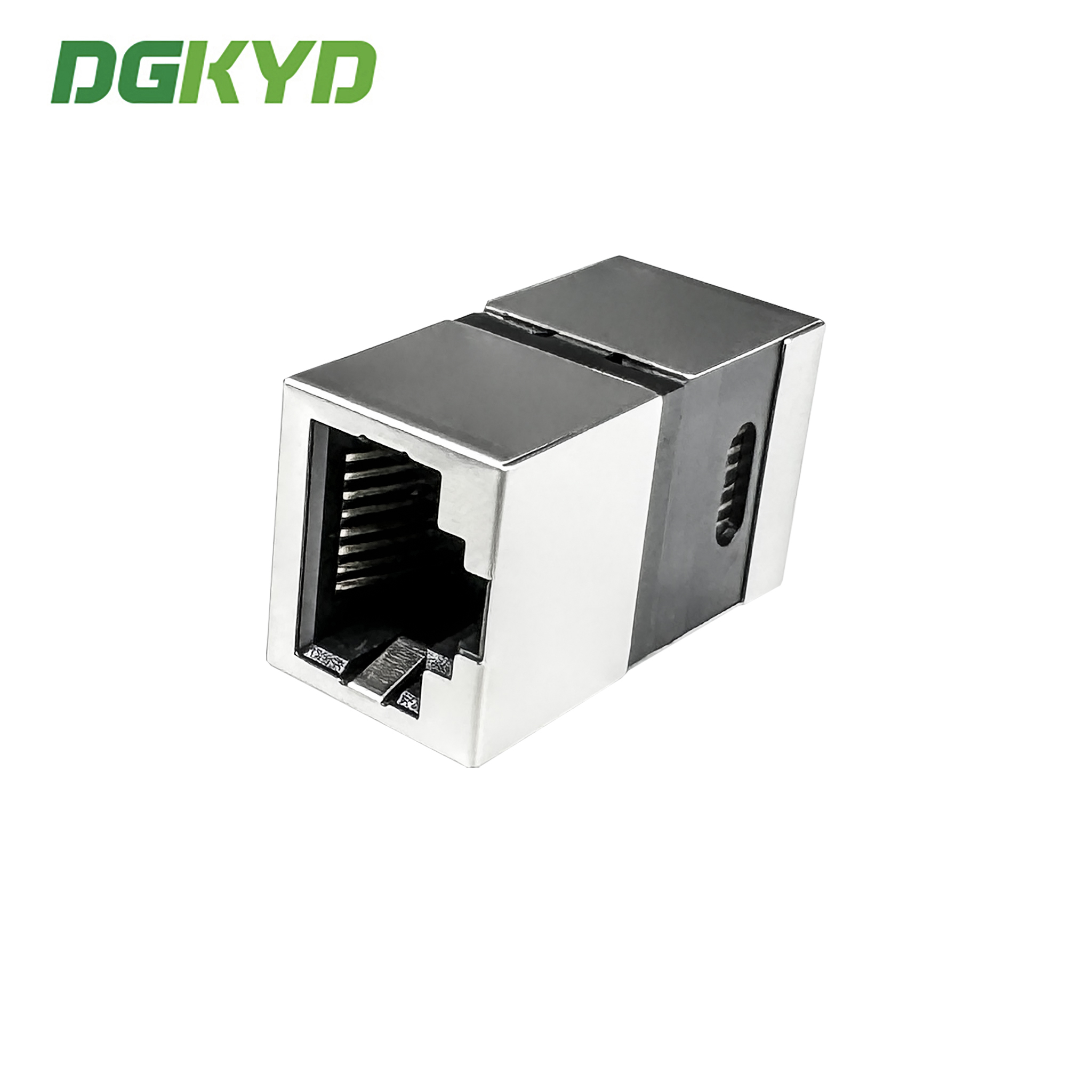

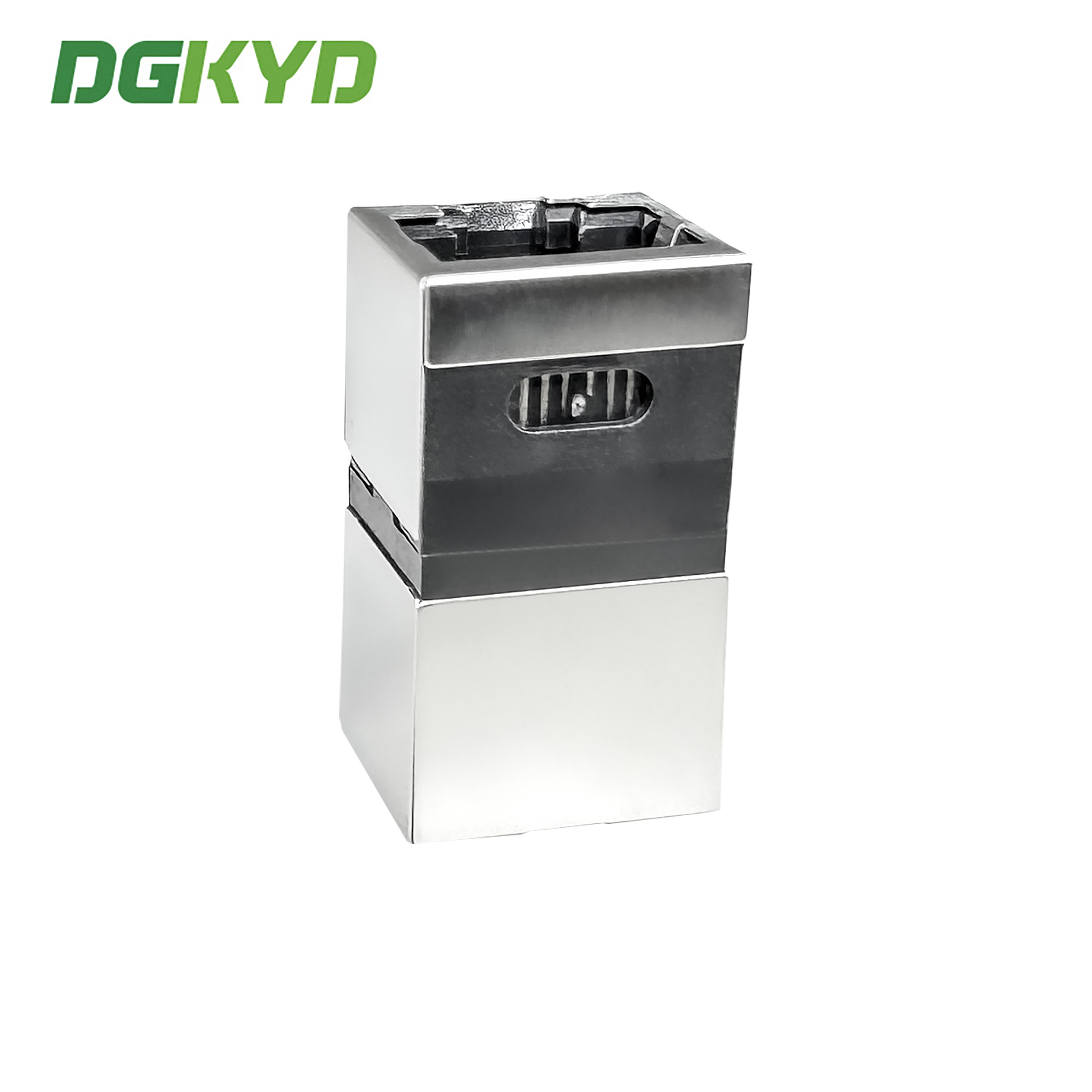

Product Image

Our Service Commitment

World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Quality

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
DGKYD Is OEM Of FOXCONN For 6 Years
Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE

Competitive Price And Service

More Competitive Price Than Pulse Tyco Halo And Amphenol
Delivery Time: 1-2 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements

DGKYD Corporate Policy

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
DGKYD Is Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services
