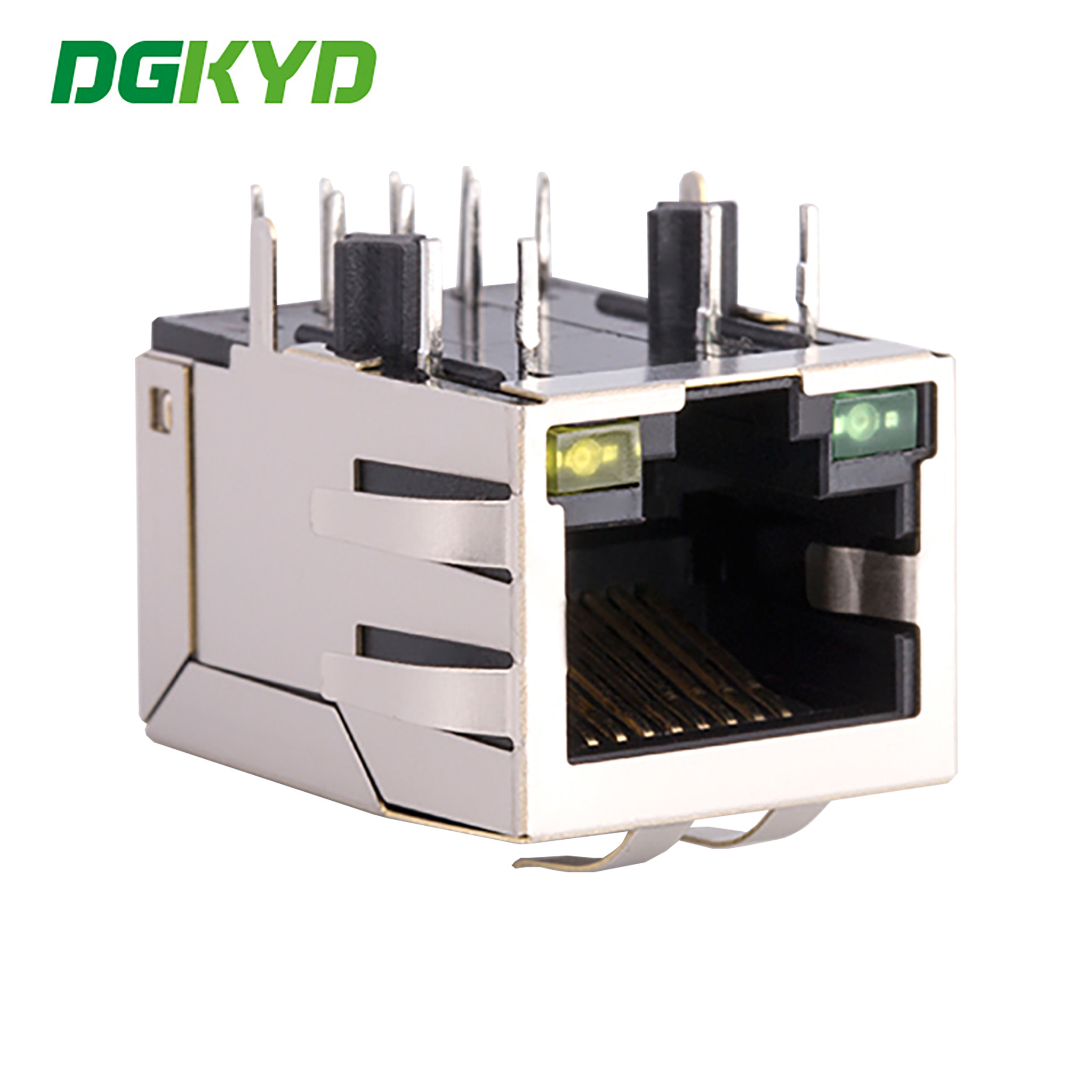

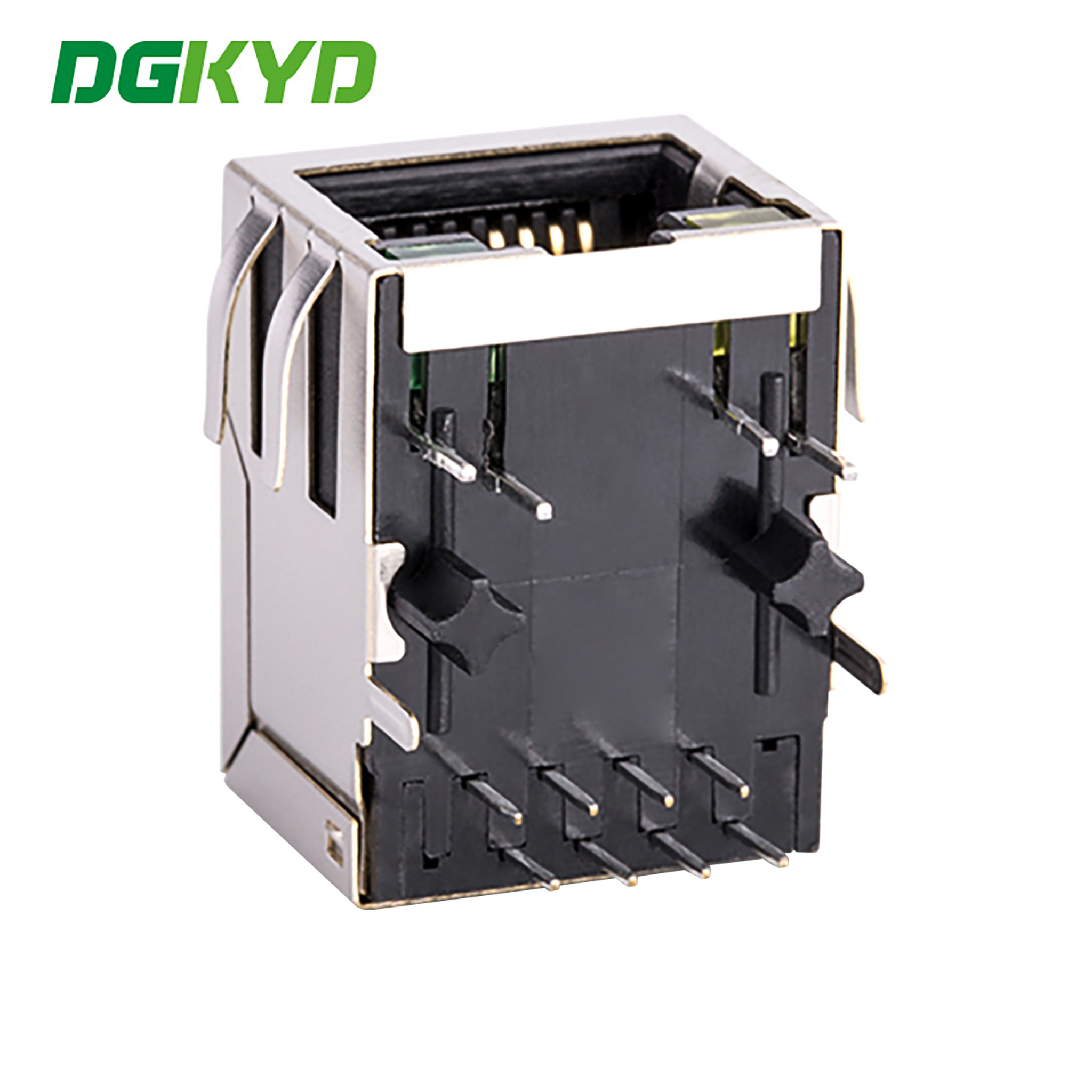

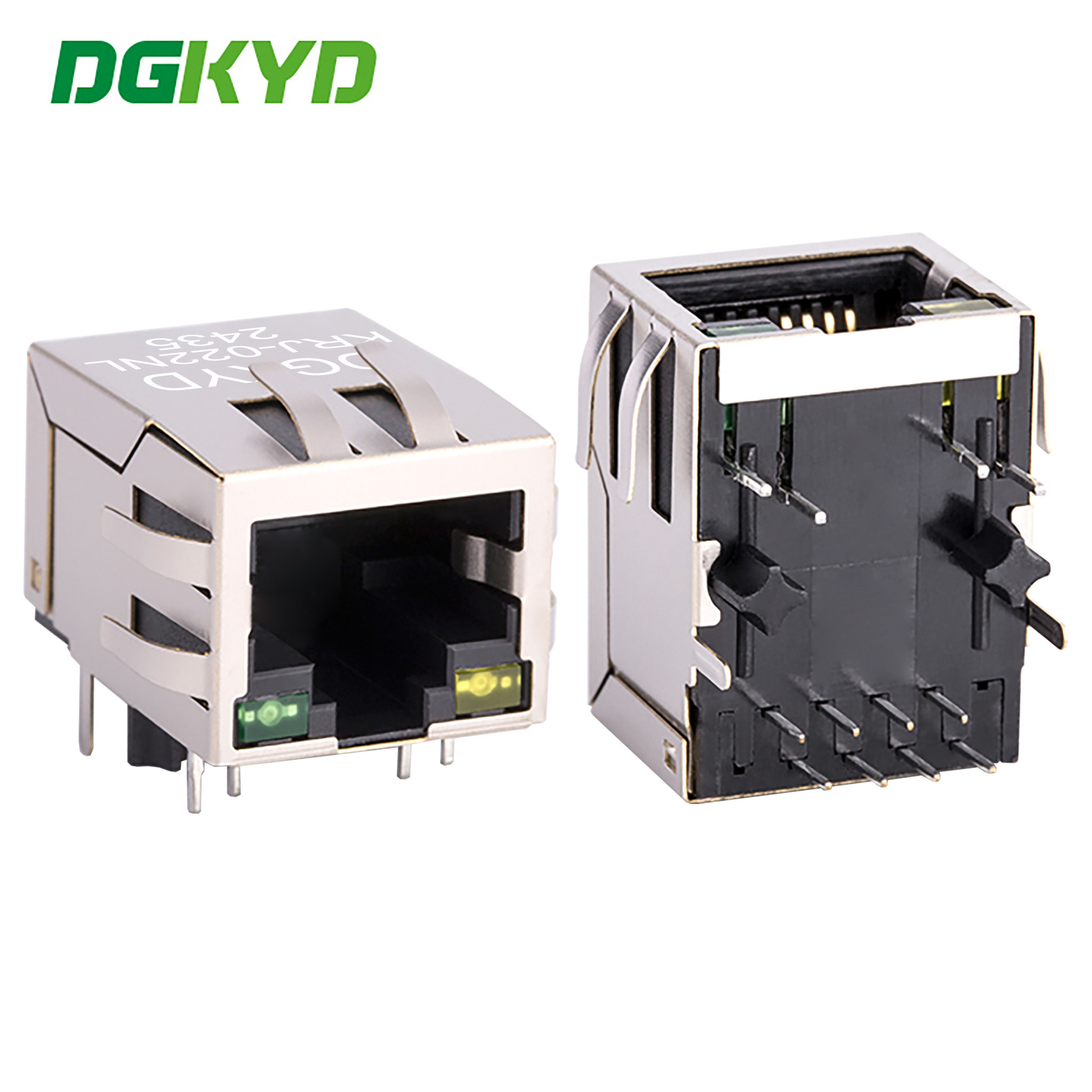

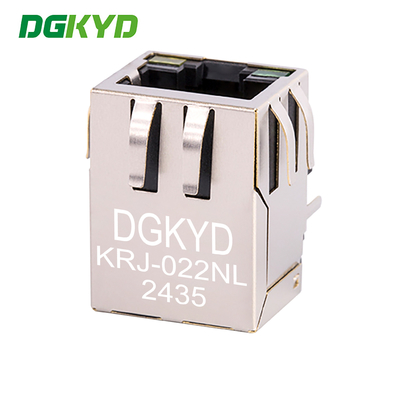

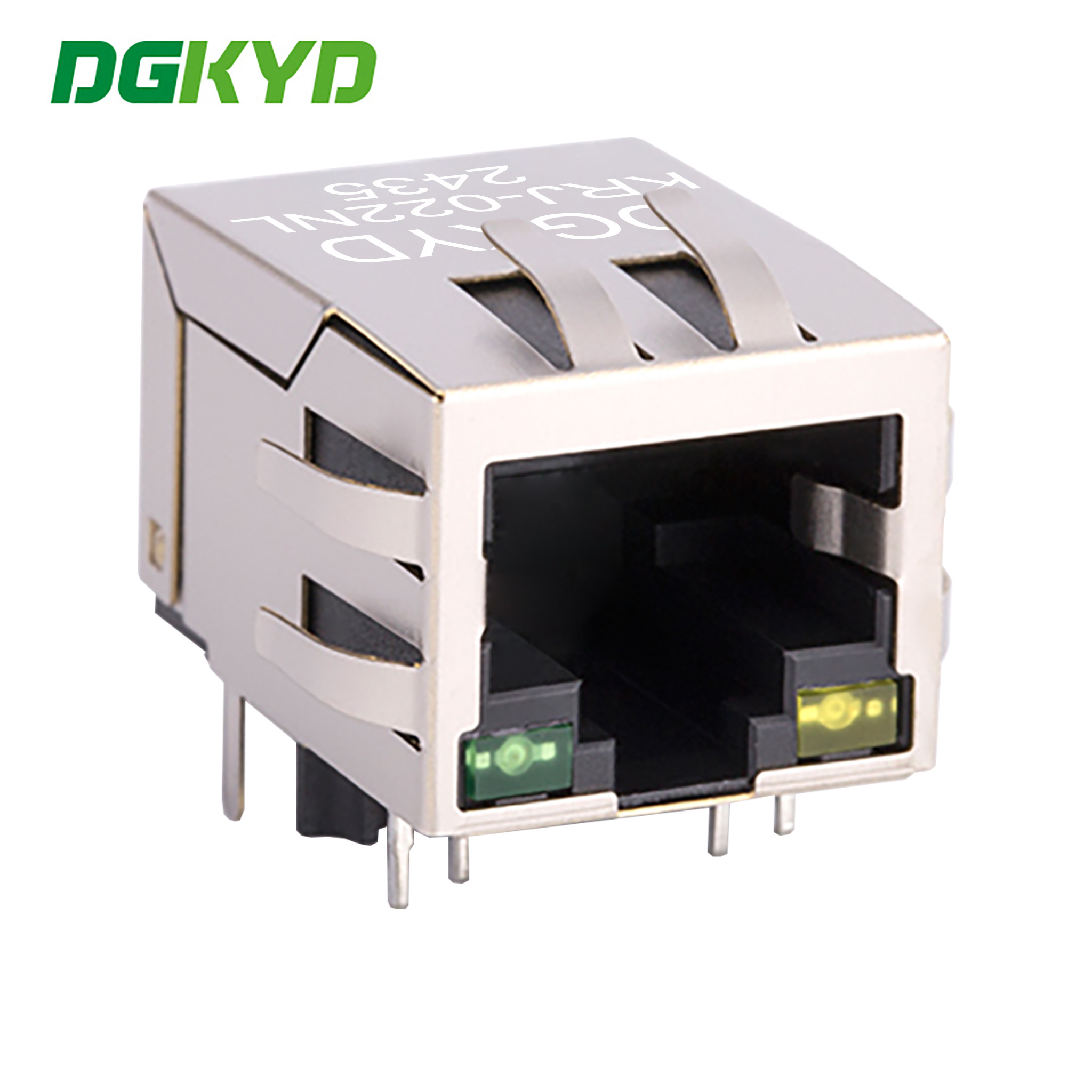

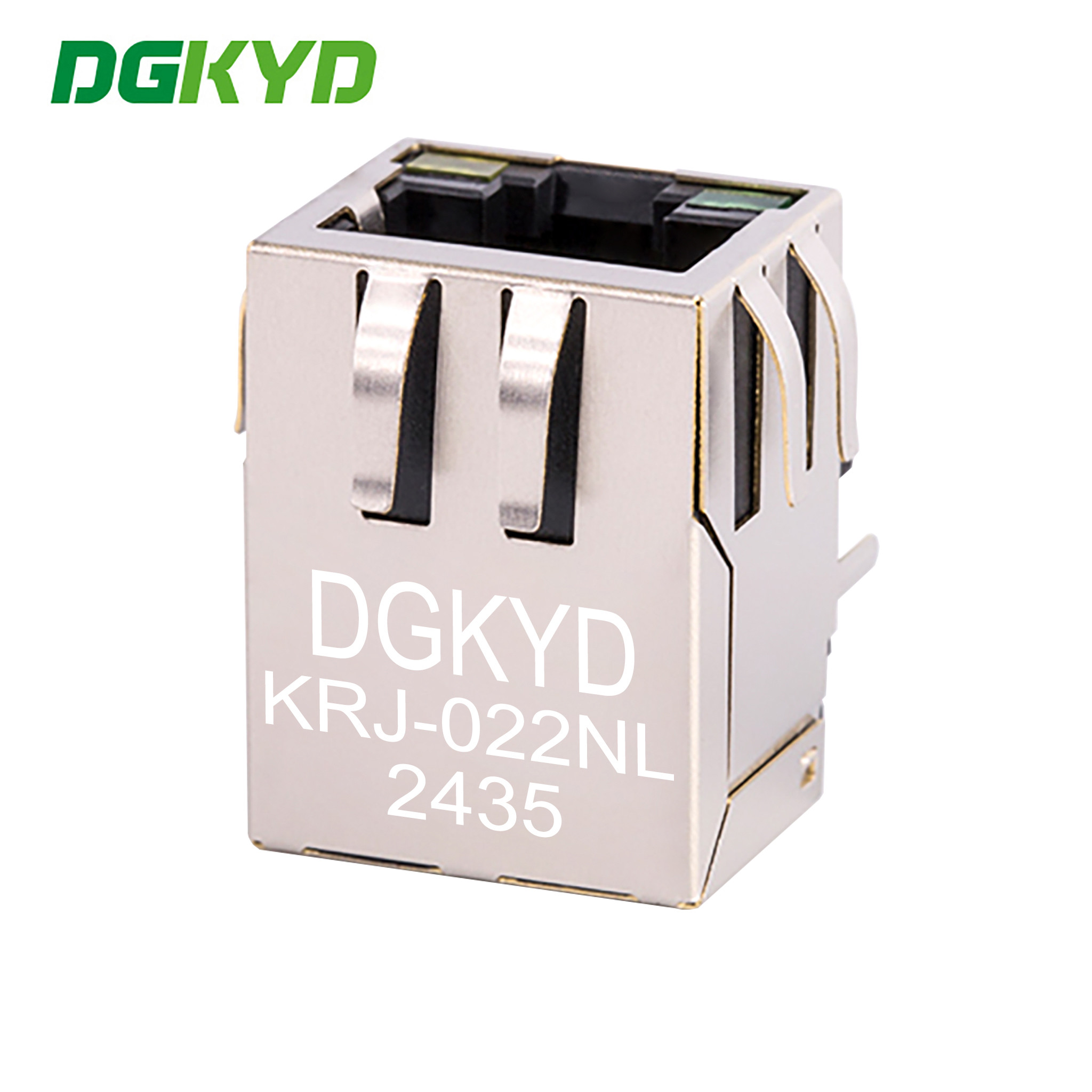

Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-022NL |
|
Detail Information |
|||
| Performance: | Cat 5/5e | Category: | Modular Jacks |
|---|---|---|---|
| Component Type: | PCB Jack | Application: | Lan,bridge,PC,router,usb Hub Network Rj45 |
| Gender: | Female RJ45 | Product Name: | RJ45 Ethernet Jack |
| LED Color: | Green-Yellow | Shielded: | Yes |
| Performance Speed: | 100M BASE-Tx | Operation Temperature: | -40°C~+85°C |
| Storage Temperature: | -40°C~+85°C | LATCH: | DOWN |
| High Light: | 100Mbps RJ45 Ethernet Port,RJ45 Ethernet Port KRJ-022NL,KRJ-022NL |
||
Product Description
Product Specification Document
KRJ-022NL.pdf
Parameters
| Part Number | KRJ-022NL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/ BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.
Applications:
• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,
100% test, 0 defect, short lead time are our best advantages
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Performance parameters:
1. Applied to Ethernet, coil ratio: 1CT: 1CT
2. Meet IEEE 802.3 & ANSI X 3.263 standard
3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
5. Withstand voltage: 2250VDC 1mA max, 60s
6.Impedance: 100 ohms
7. RJ45 interface meets FCC 68.5 standard
8. DC resistance: 1.5 Ω
