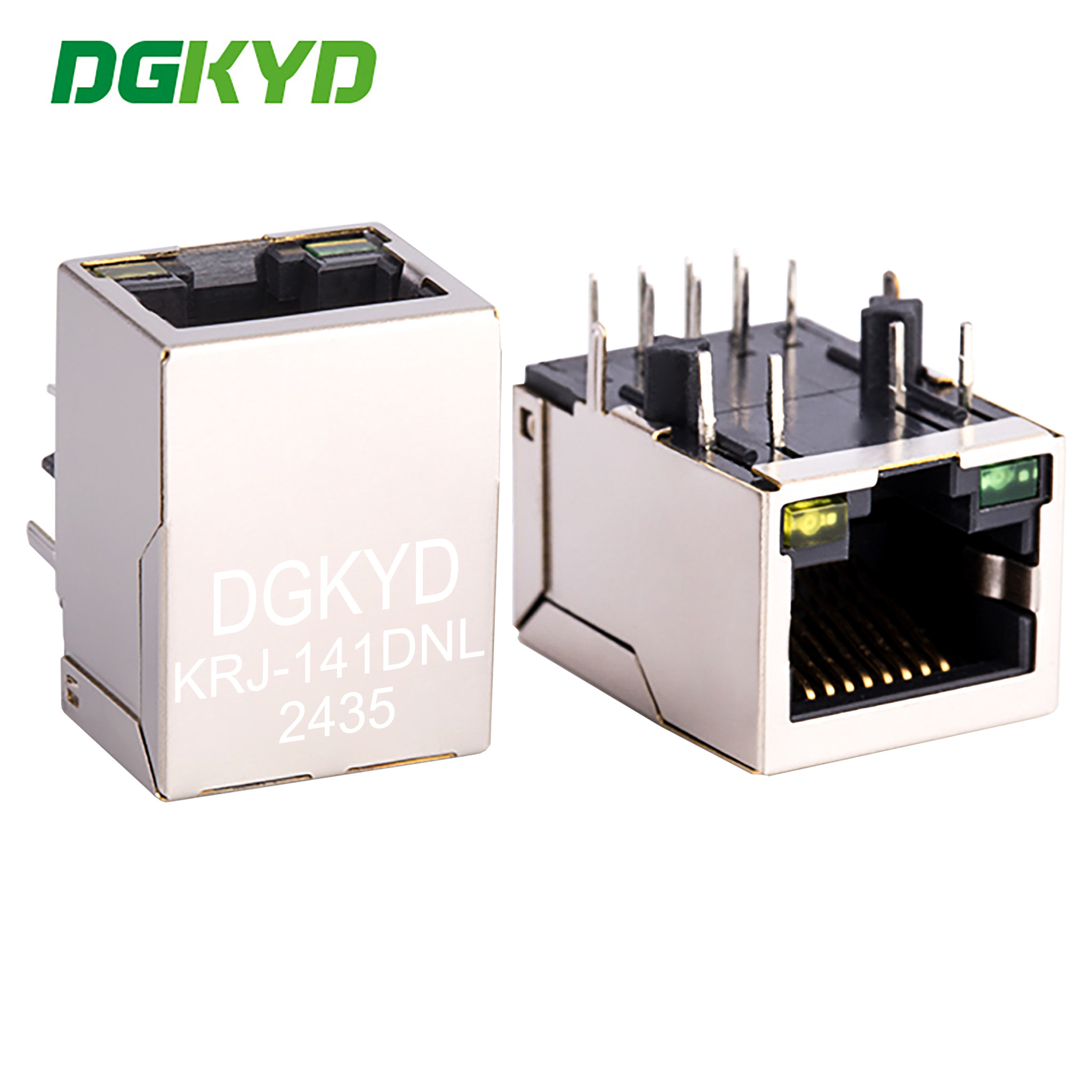

Single Port Connector KRJ-141DNL RJ45 Network Interface 100Mbps Light Without Card

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-141DNL

Detail Information
Product Name:	RJ45 With Transformer	Plastic Core:	Glass Fiber Filler PBT Black(UL94V-0),ROHS
Type:	RJ45 Female Jack	No.Port:	RJ45 Single Port
Shield RJ45:	Yes	Housing:	Phenolic, PBT Black (UL94V-0)
Operation Temperature:	-40°C~+85°C	Storage Temperature:	-40°C~+85°C
LED:	Green/Yellow
Highlight:	KRJ-141DNL , KRJ-141DNL RJ45 Network Interface , Single Port RJ45 Network Interface

Product Description

Single port connector KRJ-141DNL RJ45 network interface 100Mbps light without card RJ45 computer connector

Product Specification Document
KRJ-141DNL.pdf
Parameters

Part Number	KRJ-141DNL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Yes L-Green/R-Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/ BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Description:

10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with LEDS
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range : -40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shild:YES
Rohs compliant
Length:21.3mm
LEDS:YES
EMI fingers:NO
LEFT LED:Green,RIGHT LED:Yellow
Usage:KRJ-141DNL

Applications:

• Integrated RJ45 connector main used to :
• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,
optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,
telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

For example:
Single Port Connector KRJ-141DNL RJ45 Network Interface 100Mbps Light Without Card 0
