180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-180CGYZNL

Detail Information
Type:	RJ45 Jack	Product Name:	RJ45 With Transformer
Housing:	Phenolic, PBT Black (UL94V-0)	Plastic Core:	Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shielded:	Yes	No.Port:	Single Port
High Light:	rj45 lan connector , rj45 8p8c connectors , single port RJ45 connector jack

Product Description

Magnetics jack female shielded RJ45 connector Integrated pcb Mount

10/100Base-Tx RJ45 single port 1X1 vertical with top entry
Single port 1X1 Tab-Up 180 degree RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant
Length:18.75mm
LEDS:YES
EMI finger:NO
LEFT LED:Green,RIGHT LED:Yellow

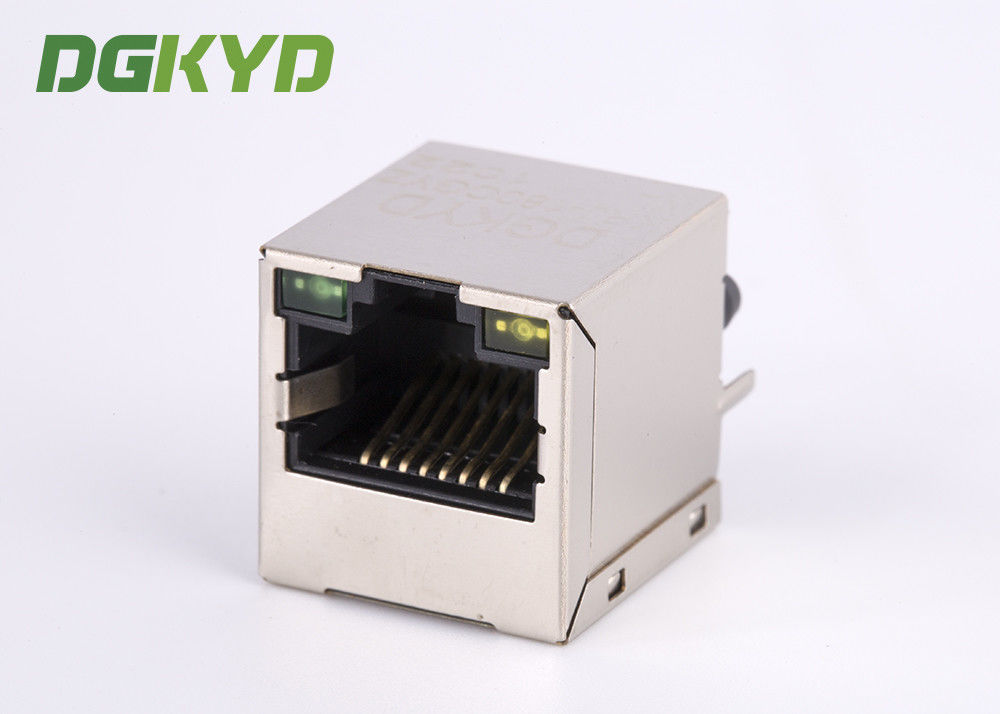

180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount 0

LED Specifications:

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, 0 defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,pls do not hesitate to contact us by email or TradeManager. We will asap reply with in 24h.
